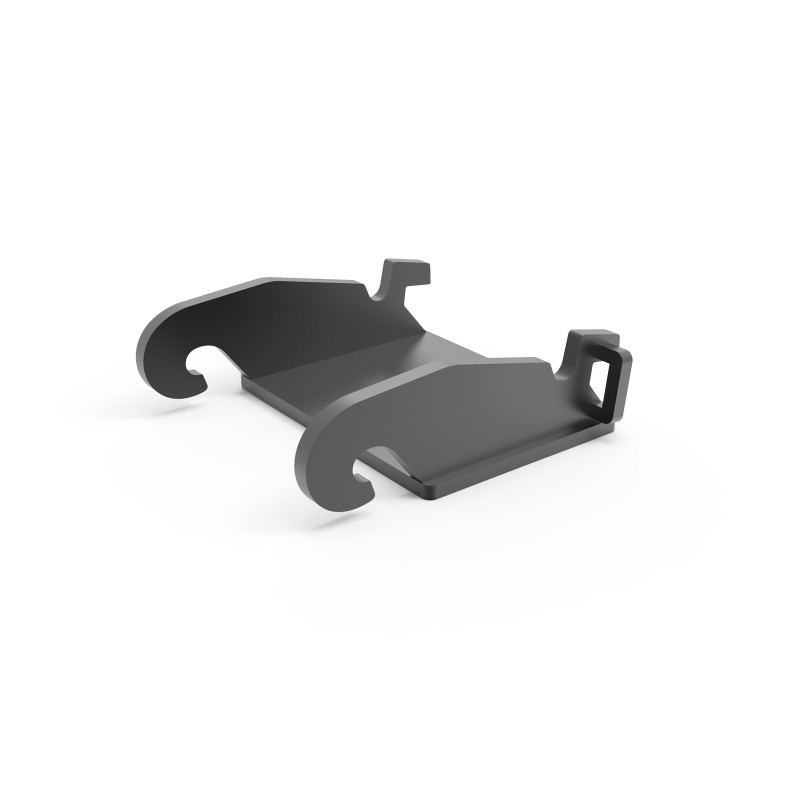

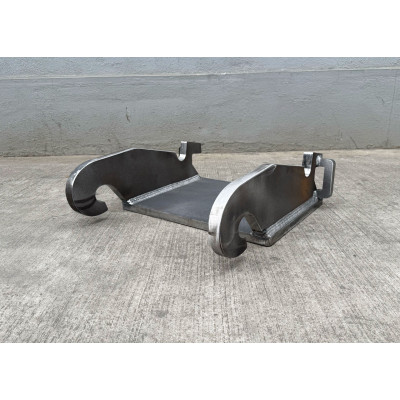

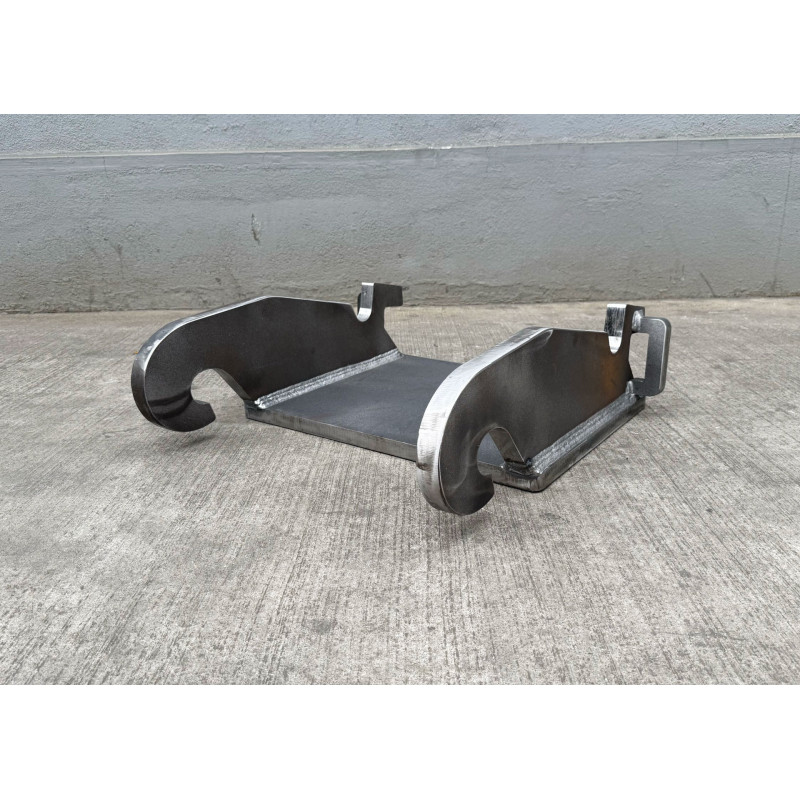

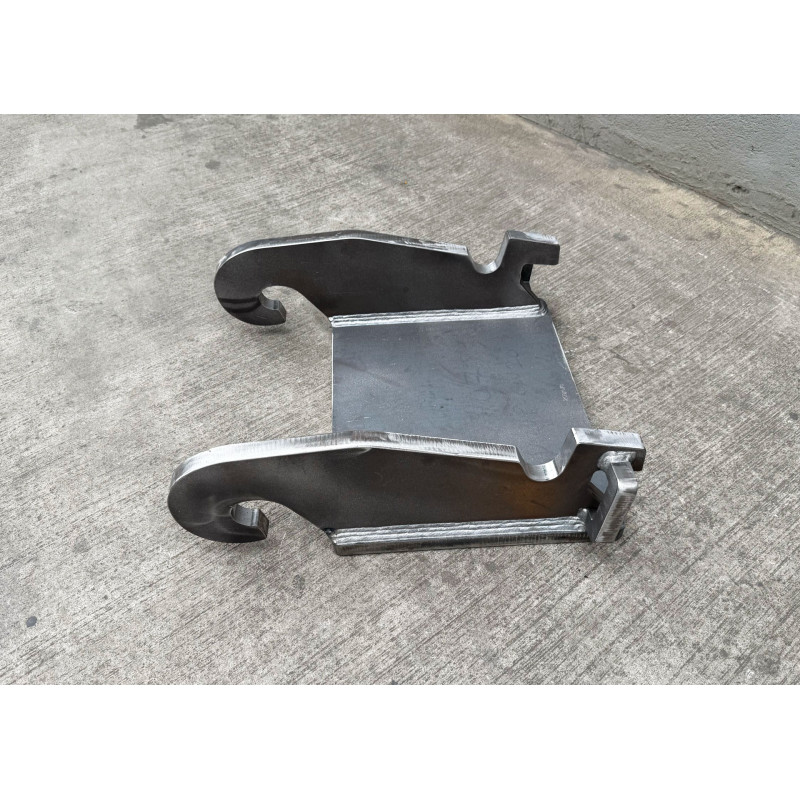

Adapter compatible with the Verachtert system- CW20/30/40 with base plate
3,467.37 zł
Tax included
The AD-WP-CW20/30/40 is a reinforced adapter designed for the larger Verachtert CW standards, suitable for heavy equipment and demanding applications. The base plate increases structural strength, while the precise fit ensures reliable force transfer and secure handling of large attachments.
| Pin diameter [mm] | Inner width [mm] |
Pin spacing [mm] |
|
|---|---|---|---|
| CW05 | 40 | 180 | 200 |
| CW10 | 50 | 320 | 300 |
| CW20/30/40 | 60 | 560 | 475 |
*The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| CW05 | CW10 | CW20/30/40 | ||||
| Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 20mm | S355 | 20mm | S355 | 35mm | HB400 |
| Base plate: | 16mm | S355 | 20mm | S355 | 30mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
AD-WP-CW20/30/40
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 8-9t
9-10t
10-11t
11-12t
12-13t
13-14t
14-15t
15-16t
16-17t
17-18t
18-19t
19-20t
20-21t
21-22t
22-23t
23-24t
24-25t
25-26t
26-27t
27-28t
28-29t
29-30t - Adapter
- CW20/30/40
- Side plate
- 35mm S355
- Base plate
- 30mm S355
- Pin diameter
- 200mm
- Inner width
- 300mm
- Pin spacing
- 475mm
- Weight
- 153kg
