Adapter compatible with the Lehnhoff system- MS03 with base plate
Adapter compatible with the Lehnhoff system- MS03 with base plate
Adapter compatible with the Lehnhoff system- MS03 with base plate
Adapter compatible with the Lehnhoff system- MS03 with base plate
Adapter compatible with the Lehnhoff system- MS03 with base plate
    Adapter compatible with the Lehnhoff system- MS03 with base plate
    Adapter compatible with the Lehnhoff system- MS03 with base plate
    Adapter compatible with the Lehnhoff system- MS03 with base plate
    Adapter compatible with the Lehnhoff system- MS03 with base plate
    Adapter compatible with the Lehnhoff system- MS03 with base plate

Adapter compatible with the Lehnhoff system- MS03 with base plate

546.12 zł
Tax included

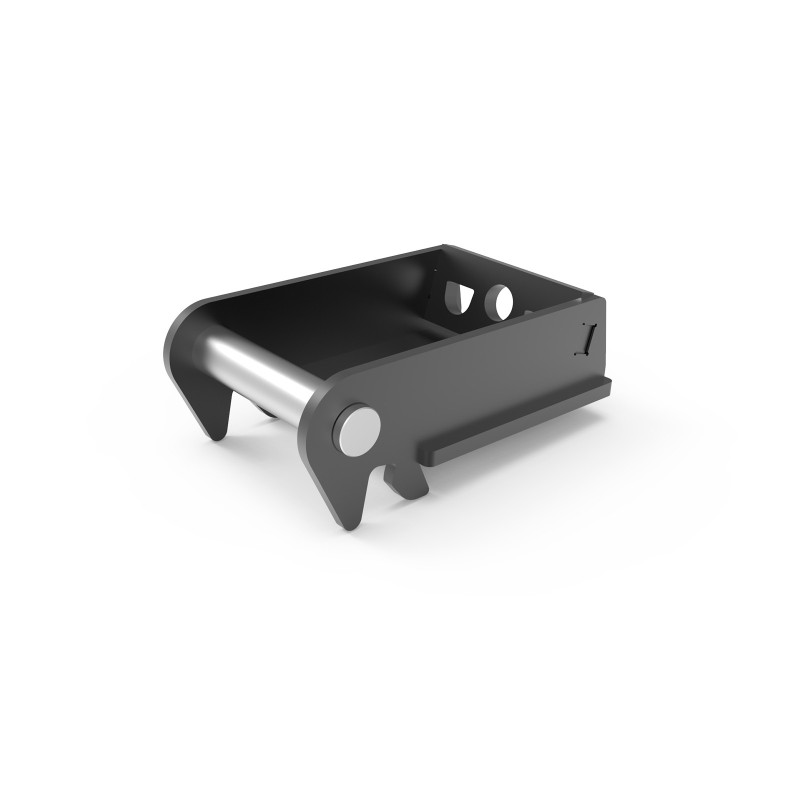

The AD-WP-MS03 model is a durable Lehnhoff MS03 adapter equipped with a base plate, designed for medium-sized machines. It ensures secure mounting and fast tool changes, increasing efficiency in construction and earthmoving applications.

Pin diameter  [mm]  Inner width   [mm]

Pin spacing*  [mm]
MS01 40 185 225
MS01SY 40 185 255
MS03 50 205 283,6
MS03SY 50 205 322
MS08 60 295 381
MS08SY 60 297 434
MS10 70 405 511,3
MS21/25 80 510 529,5
*In the technical specification, refer to the spacing between the pin and the thrust plate.
** The image is for illustrative purposes only. The order refers to the product described in the offer.
Quantity
Add to wishlist
Out-of-Stock

The main components are made of the following materials and thicknesses:

MS01 MS01SY MS03 MS03SY MS08 MS08SY MS10 MS21/25
Thickness Material Thickness Material Thickness Material Thickness Material Thickness Material Thickness Material Thickness Material Thickness Material
Side plate: 10mm S355 10mm S355 12mm S355 12mm S355 16mm S355 16mm S355 20mm S355 30mm S355
Base plate: 16mm S355 16mm S355 16mm S355 16mm S355 20mm S355 20mm S355 16mm S355 20mm S355

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

AD-WP-MS03

Data sheet

Lead time
up to 48 hours
For the machine
2-3t
3-4t
4-5t
Adapter
MS03
Side plate
12mm S355
Base plate
16mm S355
Pin diameter
50mm
Inner width
205mm
Pin spacing
283
Weight
23kg
