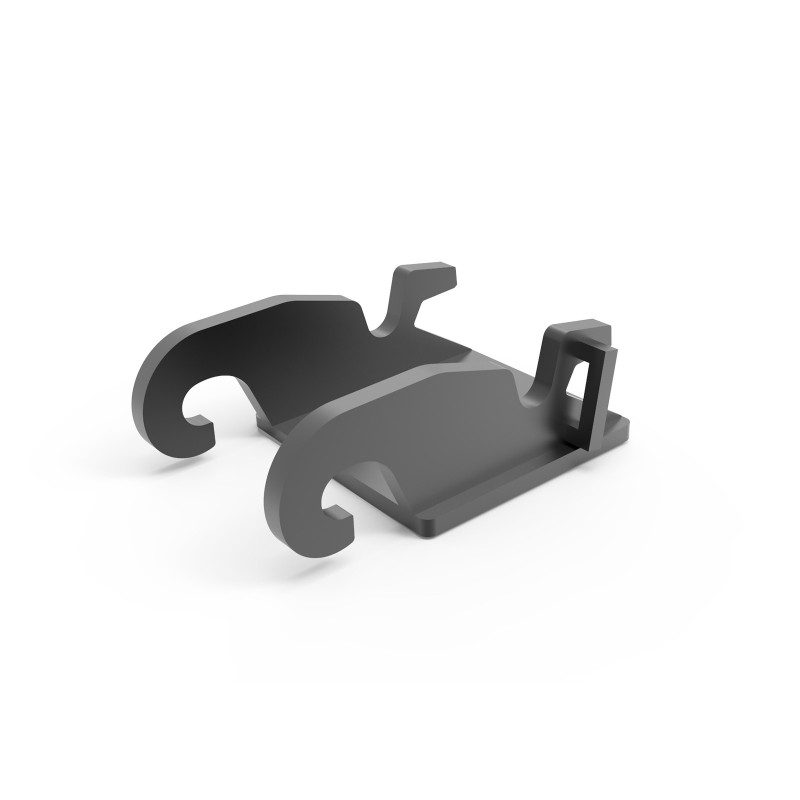

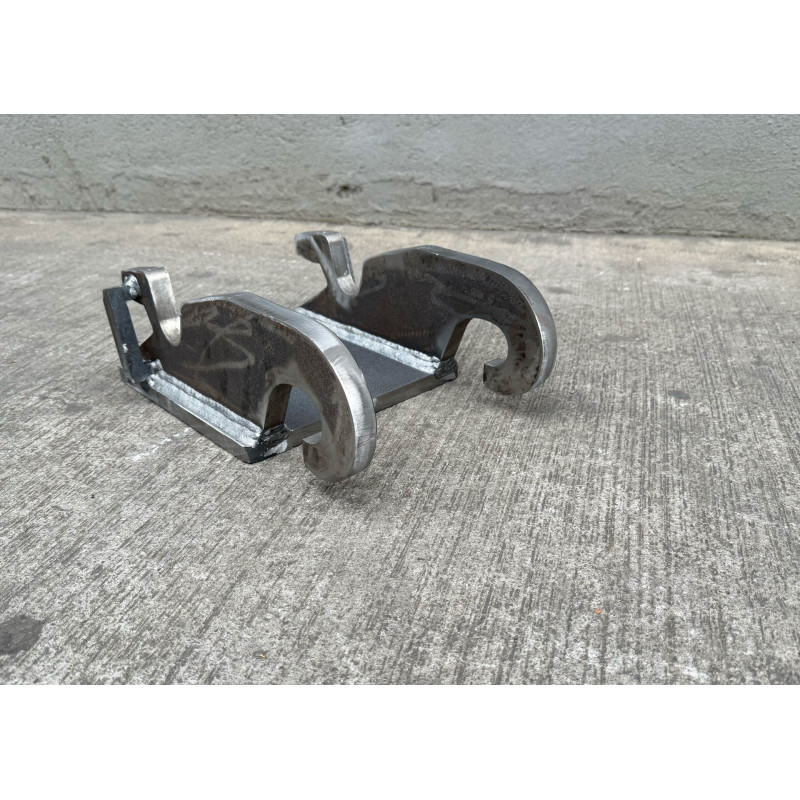

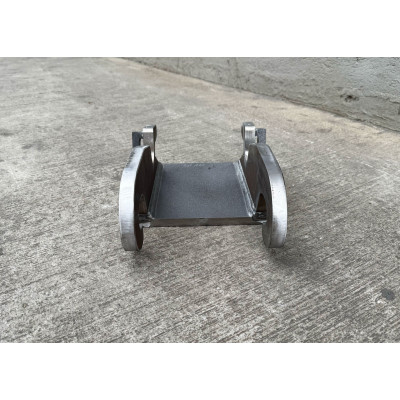

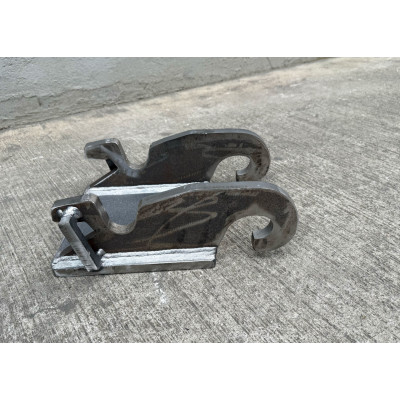

Adapter compatible with the Verachtert system- CW05 with base plate
400.98 zł
Tax included
The AD-WP-CW05 adapter, compatible with the Verachtert CW05 standard, features a durable base plate. It enables quick and secure attachment of tools on compact excavators, reducing tool-change time and improving on-site efficiency. Its robust design ensures reliable load transfer and maximum stability during demanding tasks.
| Pin diameter [mm] | Inner width [mm] |
Pin spacing [mm] |
|
|---|---|---|---|
| CW05 | 40 | 180 | 200 |
| CW10 | 50 | 320 | 300 |
| CW20/30/40 | 60 | 560 | 475 |

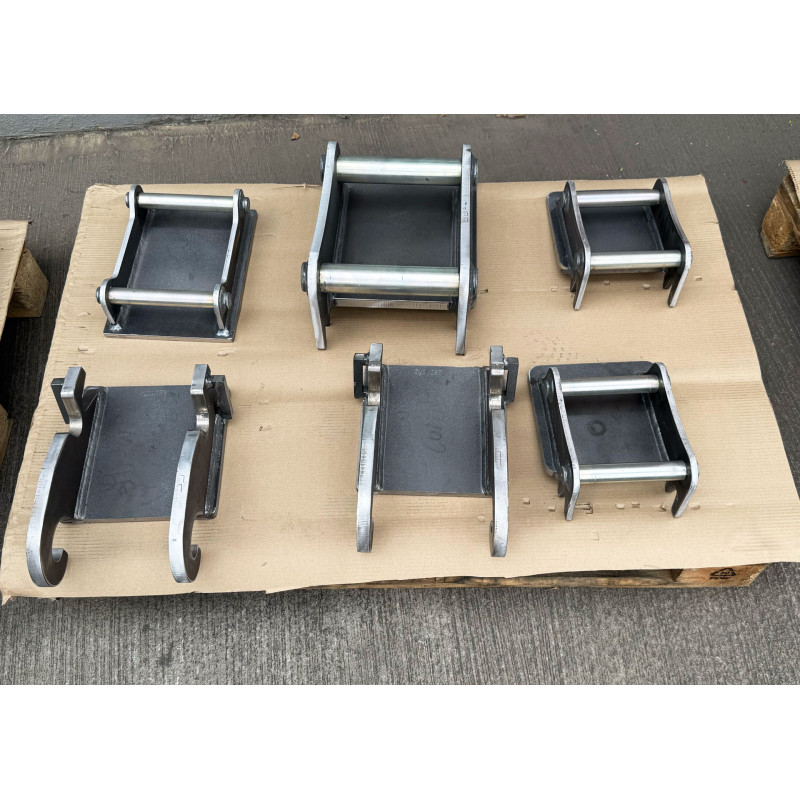

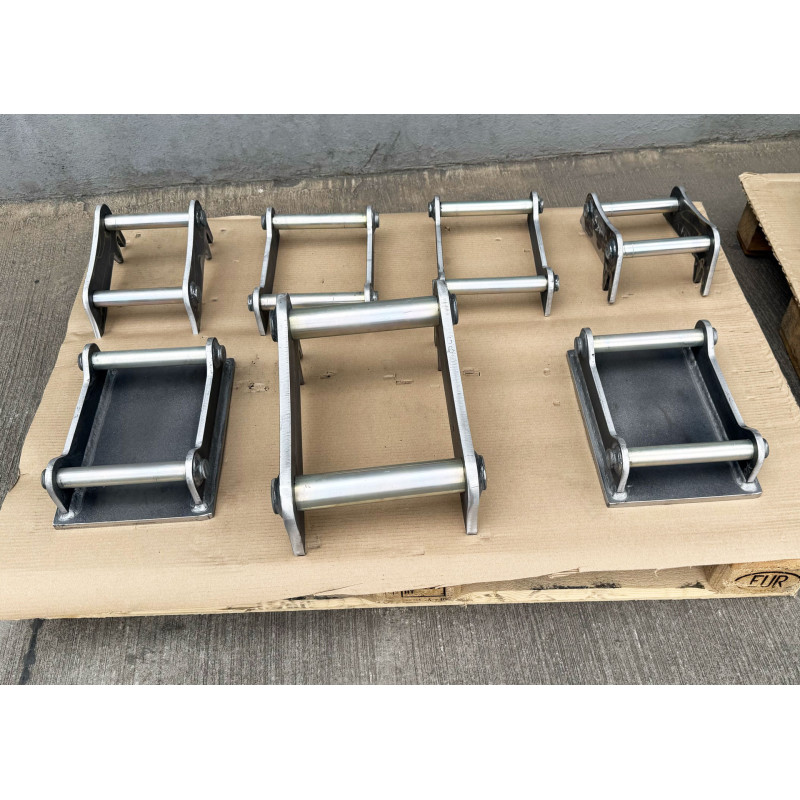

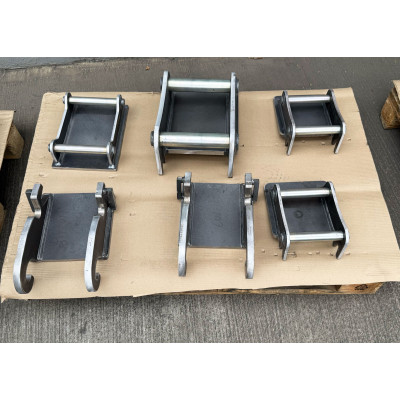

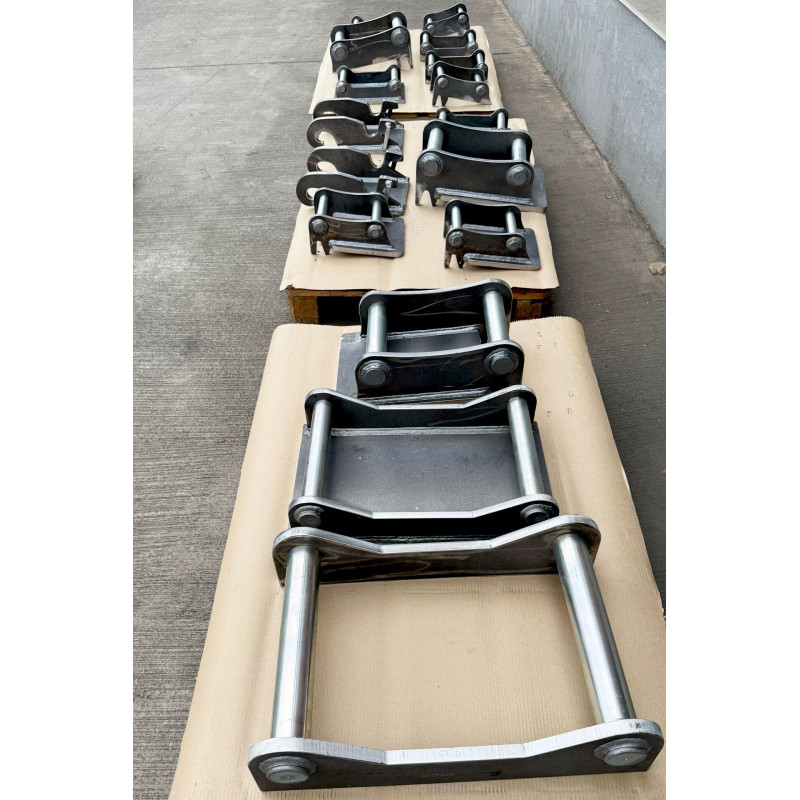

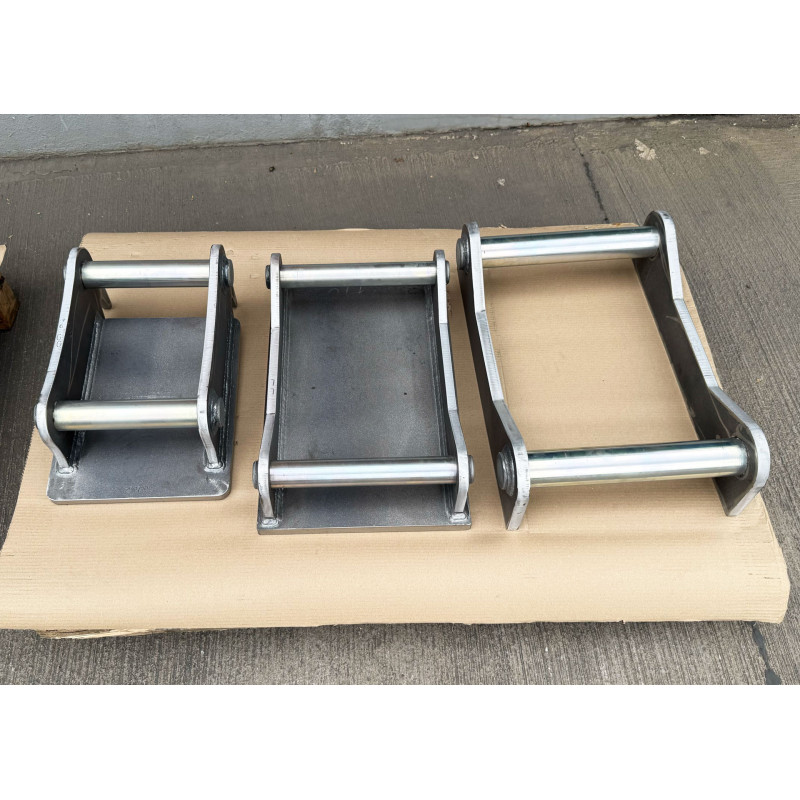

*The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| CW05 | CW10 | CW20/30/40 | ||||
| Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 20mm | S355 | 20mm | S355 | 35mm | HB400 |
| Base plate: | 16mm | S355 | 20mm | S355 | 30mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
AD-WP-CW05
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 0-2t
2-3t
3-4t
3-4t - Adapter
- CW05
- Side plate
- 20mm S355
- Base plate
- 16mm S355
- Pin diameter
- 40mm
- Inner width
- 180mm
- Pin spacing
- 200mm
- Weight
- 17kg
