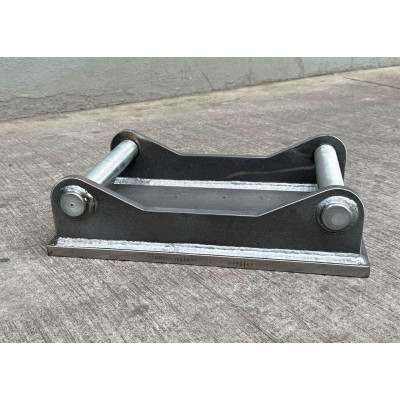

Adapter compatible with the Volvo system- S60 with base plate
2,228.76 zł
Tax included
AD-WP-S60 is a heavy-duty adapter for the Volvo S60 system, equipped with a massive base plate. Designed for larger excavators, it guarantees top stability and secure handling of heavy attachments.
| Pin diameter [mm] | Inner width [mm] | Pin spacing [mm] | |
|---|---|---|---|
| S30/150 | 30 | 152 | 200,5 |
| S30/180 | 30 | 182 | 230,5 |
| S40 | 40 | 202 | 300,5 |
| S45 | 45 | 292 | 430,5 |
| S50 | 50 | 272 | 430,5 |
| S60 | 60 | 342 | 480,5 |
| S70 | 70 | 452 | 600,5 |

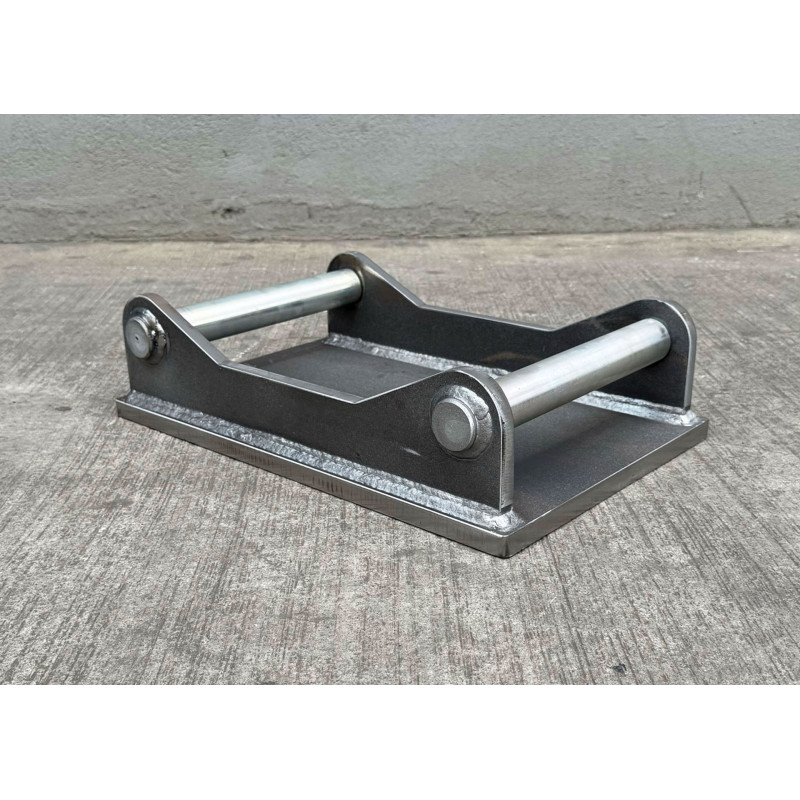

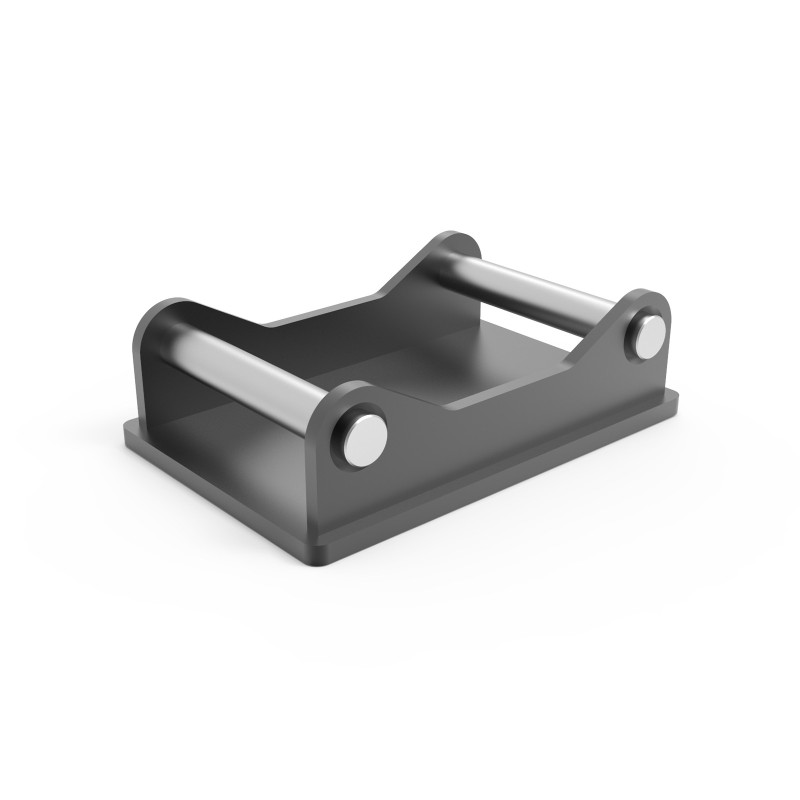

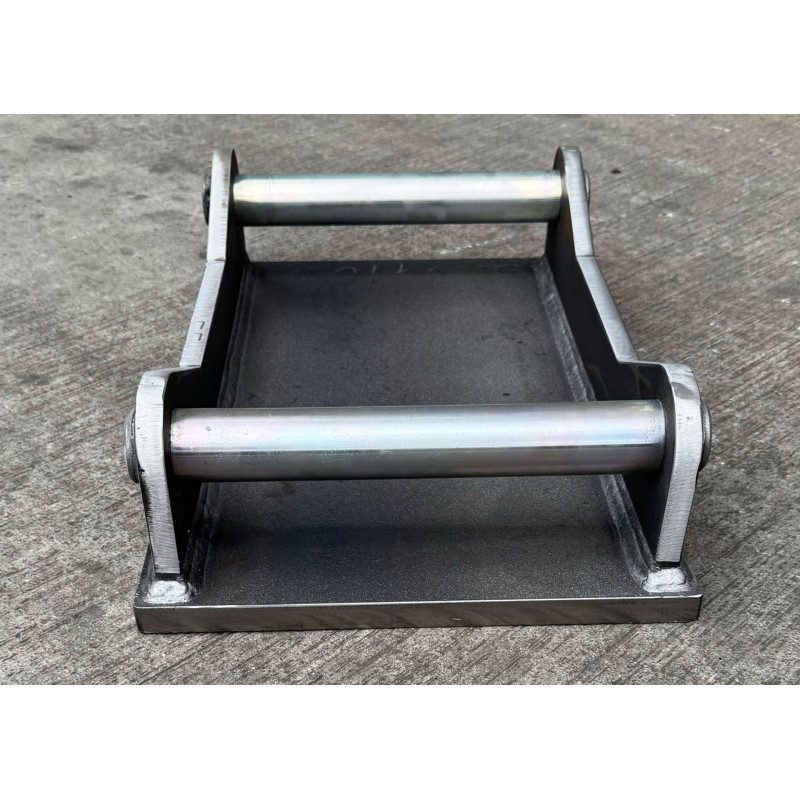

*The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| S30/150 | S30/180 | S40 | S45 | S50 | S60 | S70 | ||||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 20mm | S355 | 20mm | S355 | 20mm | S355 | 32mm | S355 | 32mm | S355 | 40mm | S355 | 50mm | S355 |
| Base plate: | 12mm | S355 | 12mm | S355 | 12mm | S355 | 20mm | S355 | 25mm | S355 | 25mm | S355 | 30mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
AD-WP-S60
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 12-13t
13-14t
14-15t
15-16t
16-17t
17-18t
18-19t
19-20t - Adapter
- S60
- Side plate
- 40mm S355
- Base plate
- 25mm S355
- Pin diameter
- 60mm
- Inner width
- 342mm
- Pin spacing
- 480,5mm
- Weight
- 94kg
