Adapter: S50

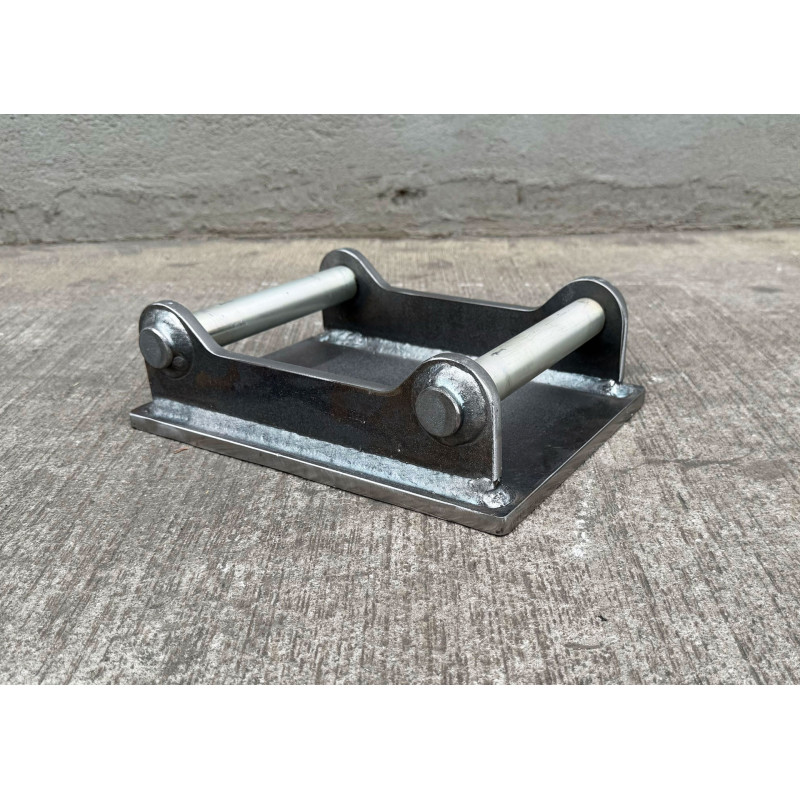

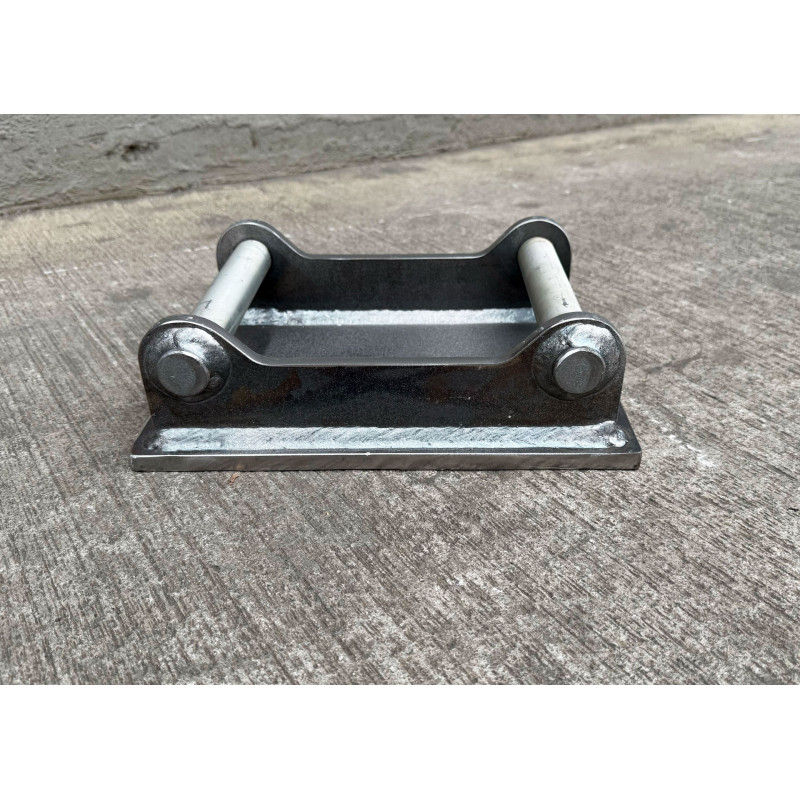

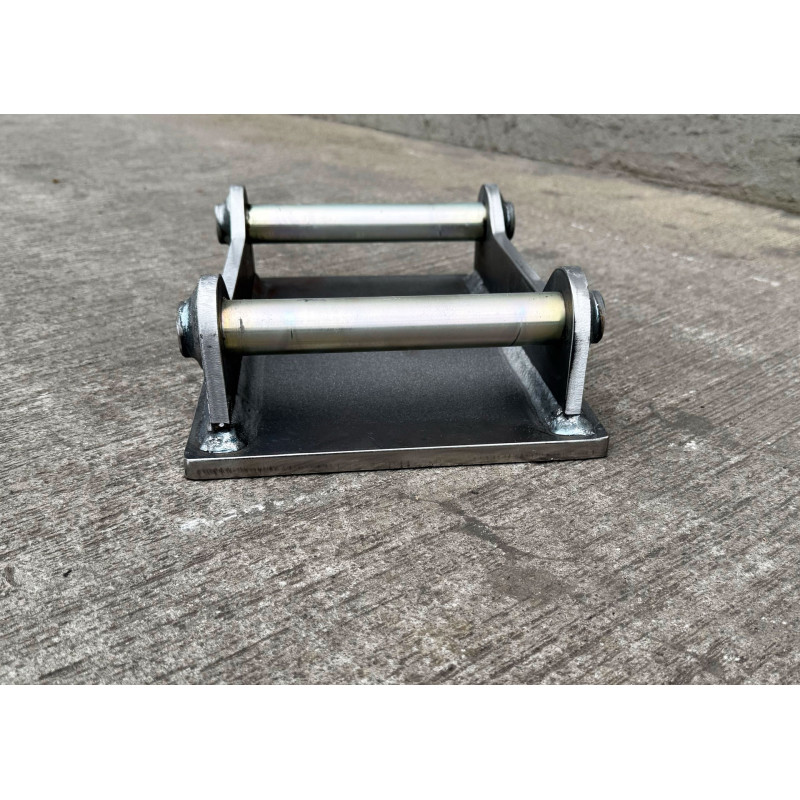

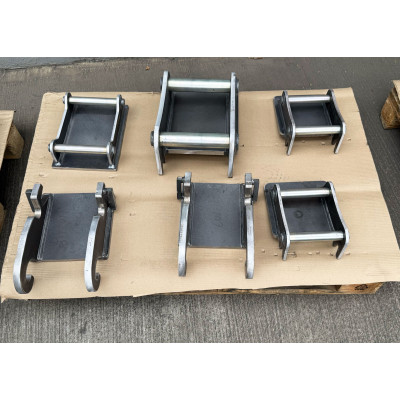

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

Adapter compatible with the Volvo system- S50 with base plate

1,460.01 zł

Tax included

In stock Lead time: up to 48 hours

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
S30/150	30	152	200,5
S30/180	30	182	230,5
S40	40	202	300,5
S45	45	292	430,5
S50	50	272	430,5
S60	60	342	480,5
S70	70	452	600,5

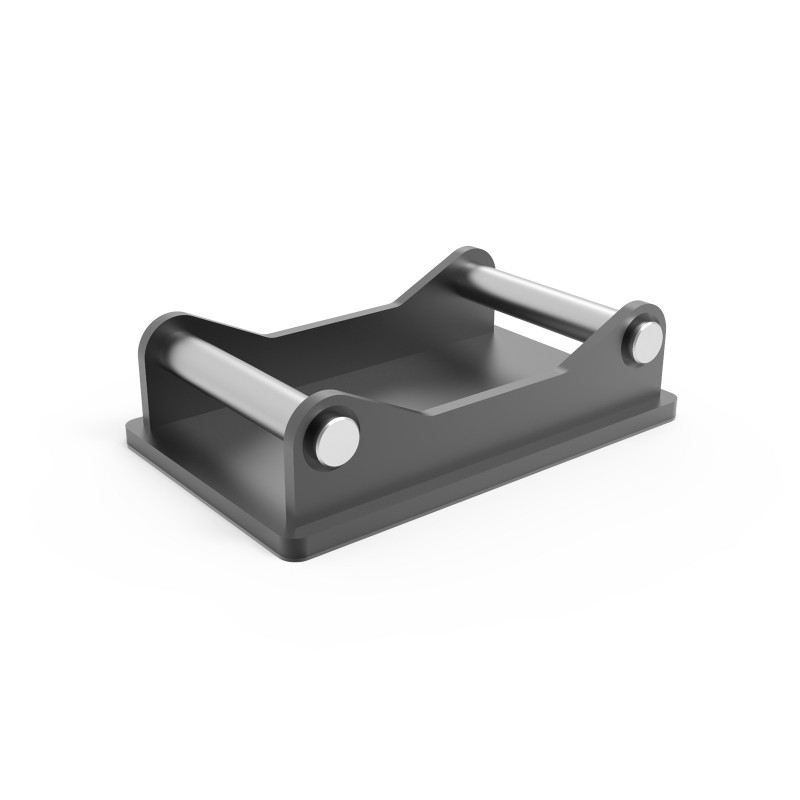

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Parameters

The main components are made of the following materials and thicknesses:

	S30/150		S30/180		S40		S45		S50		S60		S70
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	20mm	S355	32mm	S355	32mm	S355	40mm	S355	50mm	S355
Base plate:	12mm	S355	12mm	S355	12mm	S355	20mm	S355	25mm	S355	25mm	S355	30mm	S355

The AD-WP-S50 adapter with base plate is a reinforced component compatible with the Volvo S50 system, engineered for higher loads. It ensures very stable attachment of work tools and dependable force transfer during heavy-duty use.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference AD-WP-S50

Data sheet

Lead time: up to 48 hours
For the machine: 5-6
6-7
7-8
8-9
9-10
10-11
11-12
Adapter: S50
Side plate: 32 S355
Base plate: 25 S355
Pin diameter: 50
Inner width: 272
Pin spacing: 430,5
Weight: 60

Specific References

EAN13: 5908159220377
