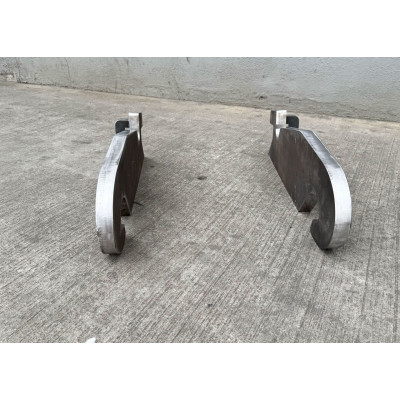

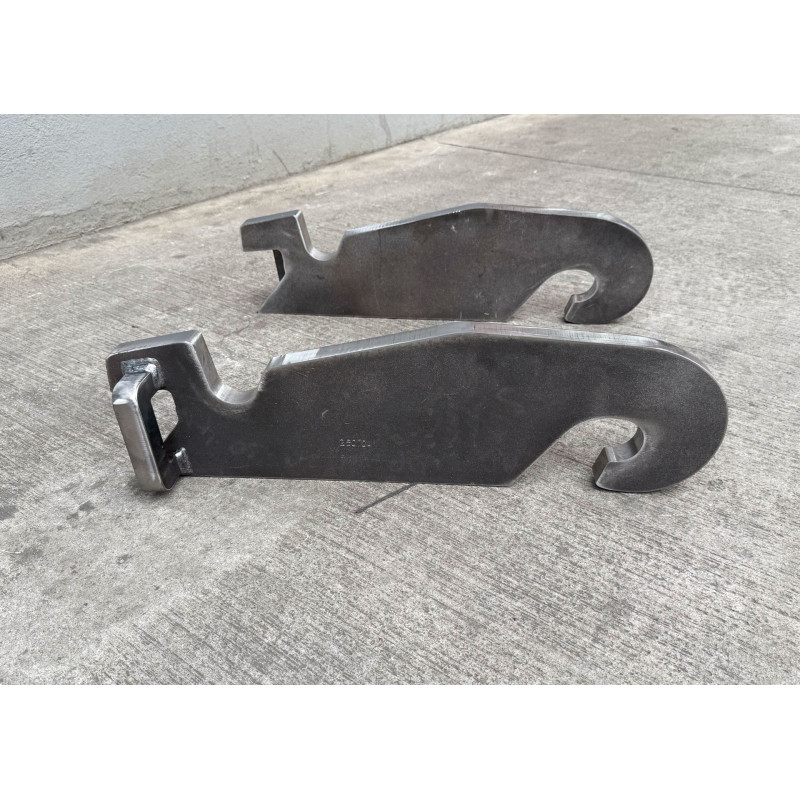

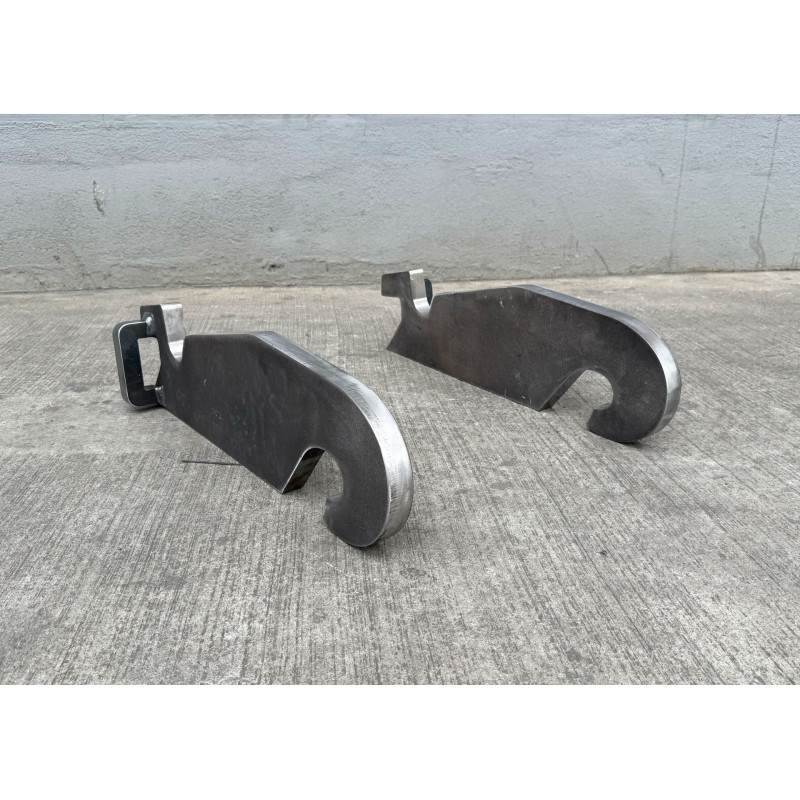

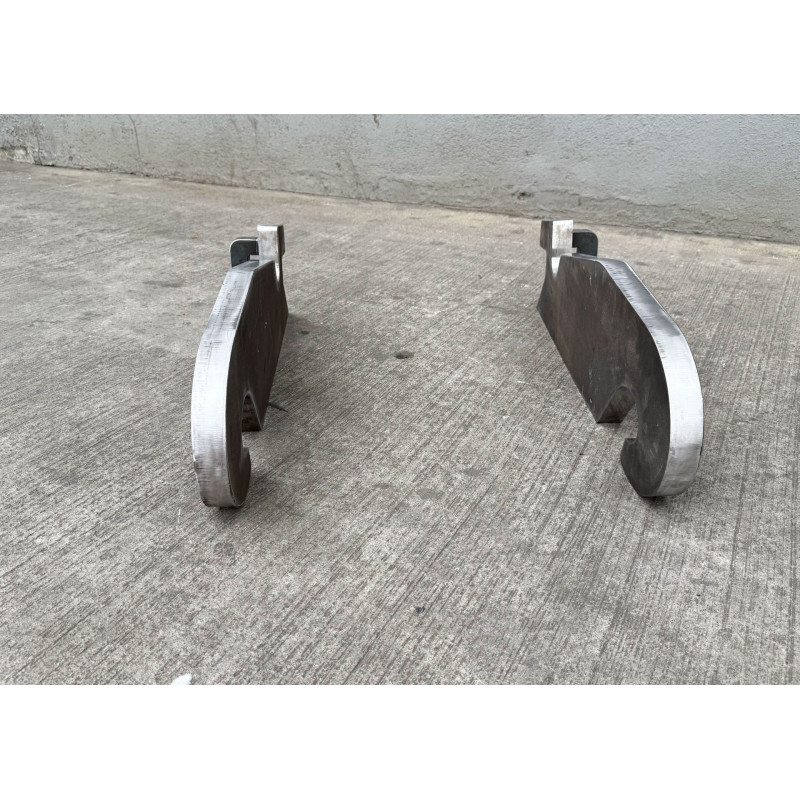

Adapter compatible with the Verachtert system- CW20/30/40 without base plate
1,680.18 zł
Tax included
The AD-WOP-CW20/30/40 model is compatible with Verachtert CW20, CW30, and CW40 systems and provides full functionality without a base plate. This strong, precisely manufactured adapter is ideal for large machines, offering fast attachment changes and dependable performance under heavy loads.

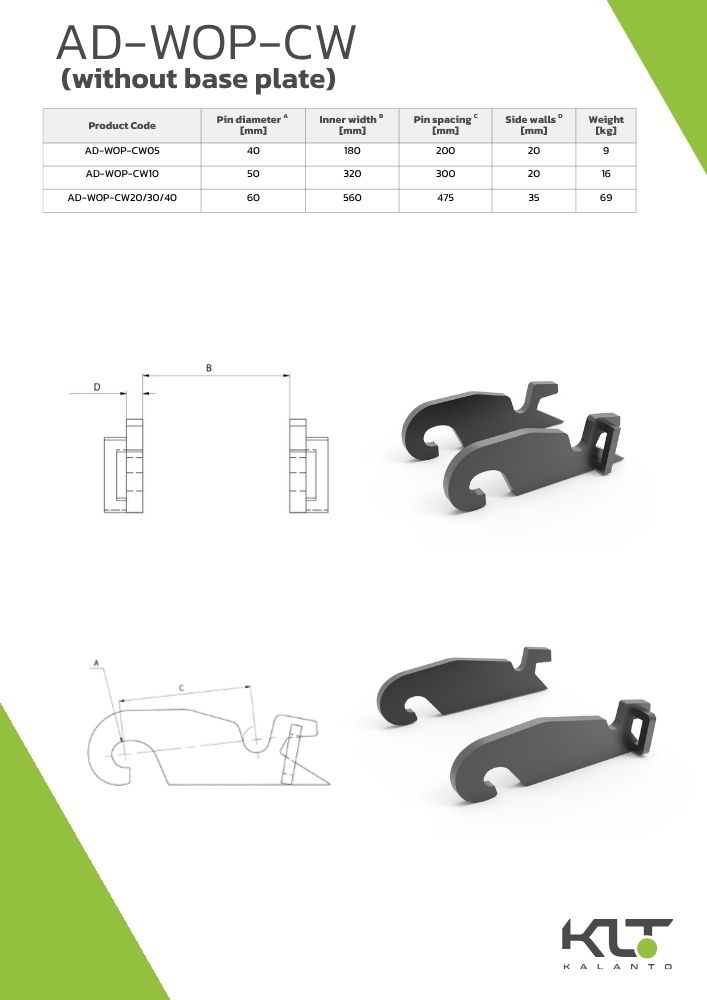

| Pin diameter [mm] | Inner width [mm] |
Pin spacing [mm] |
|
|---|---|---|---|
| CW05 | 40 | 180 | 200 |
| CW10 | 50 | 320 | 300 |
| CW20/30/40 | 60 | 560 | 475 |

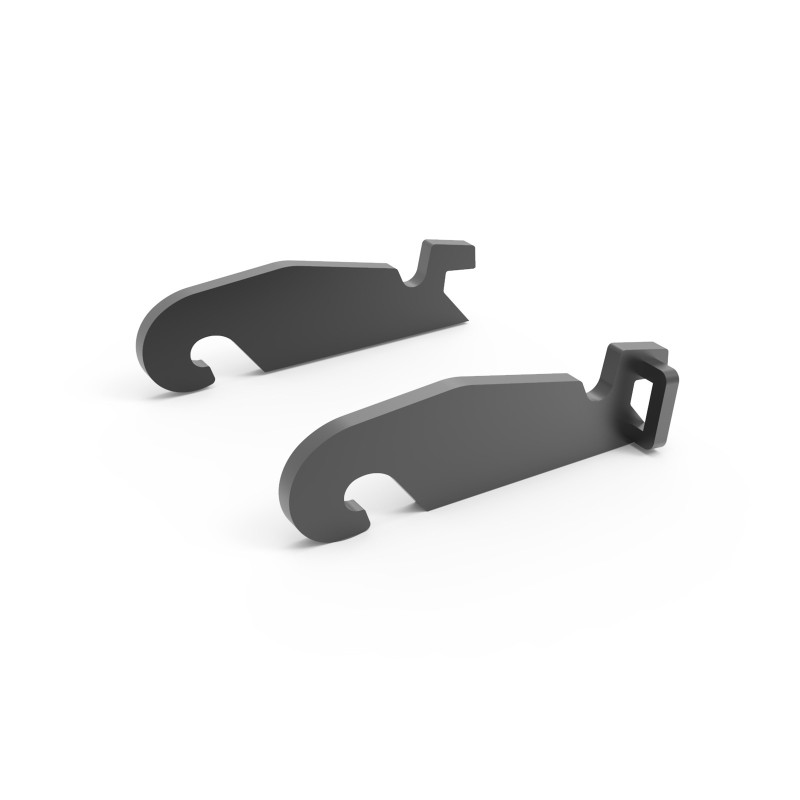

*The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| CW05 | CW10 | CW20/30/40 | ||||
| Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 20mm | S355 | 20mm | S355 | 35mm | HB400 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
AD-WOP-CW20/30/40
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 8-9t
9-10t
10-11t
11-12t
12-13t
13-14t
14-15t
15-16t
16-17t
17-18t
18-19t
19-20t
20-21t
21-22t
22-23t
23-24t
24-25t
25-26t
26-27t
27-28t
28-29t
29-30t - Adapter
- CW20/30/40
- Side plate
- 35mm S355
- Pin diameter
- 200mm
- Inner width
- 300mm
- Pin spacing
- 475mm
- Weight
- 69kg
