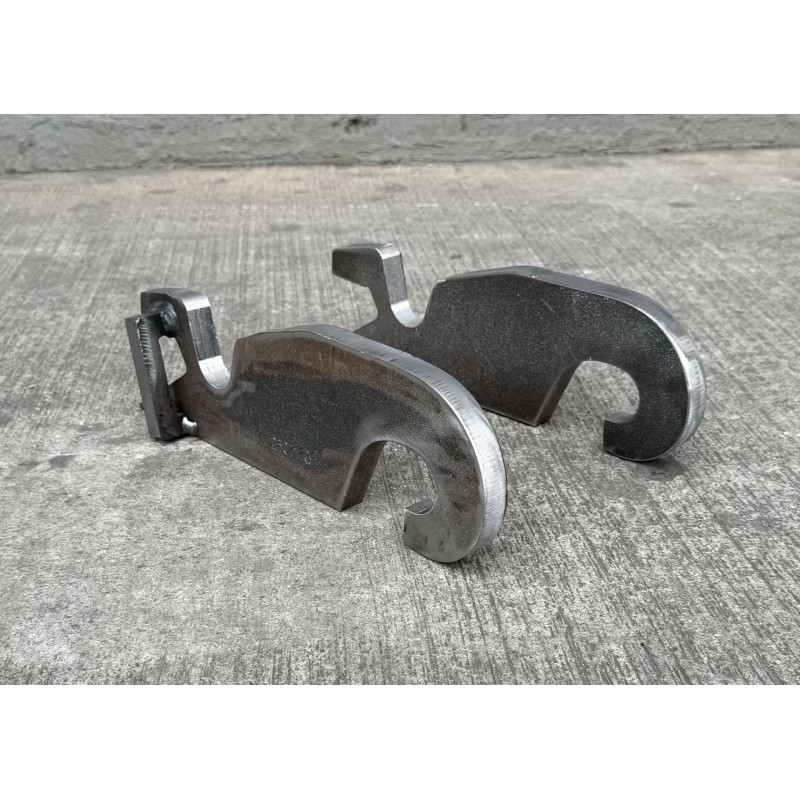

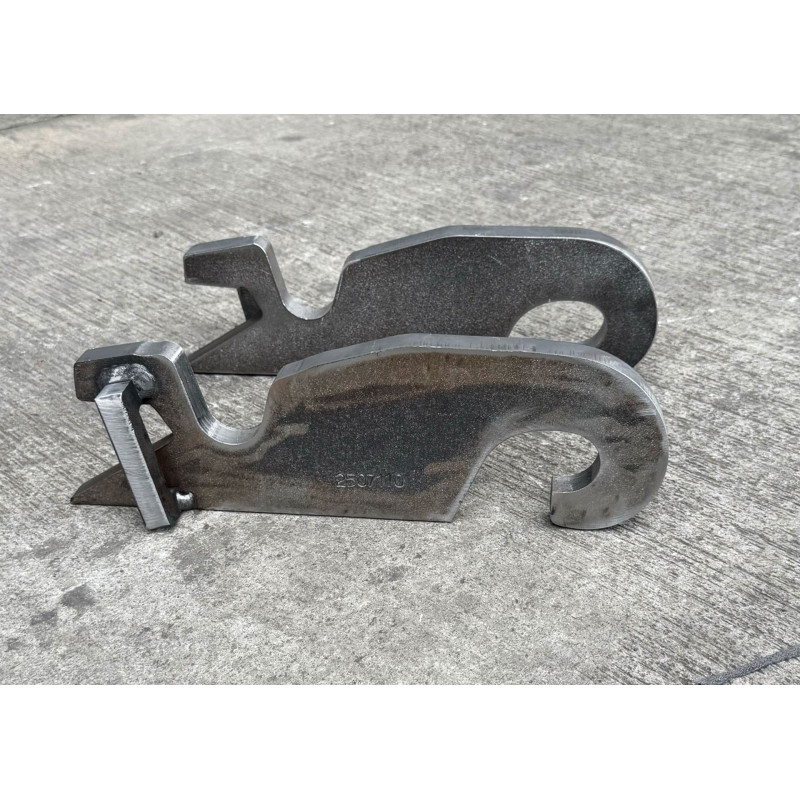

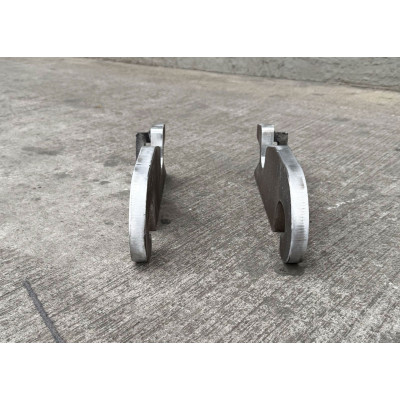

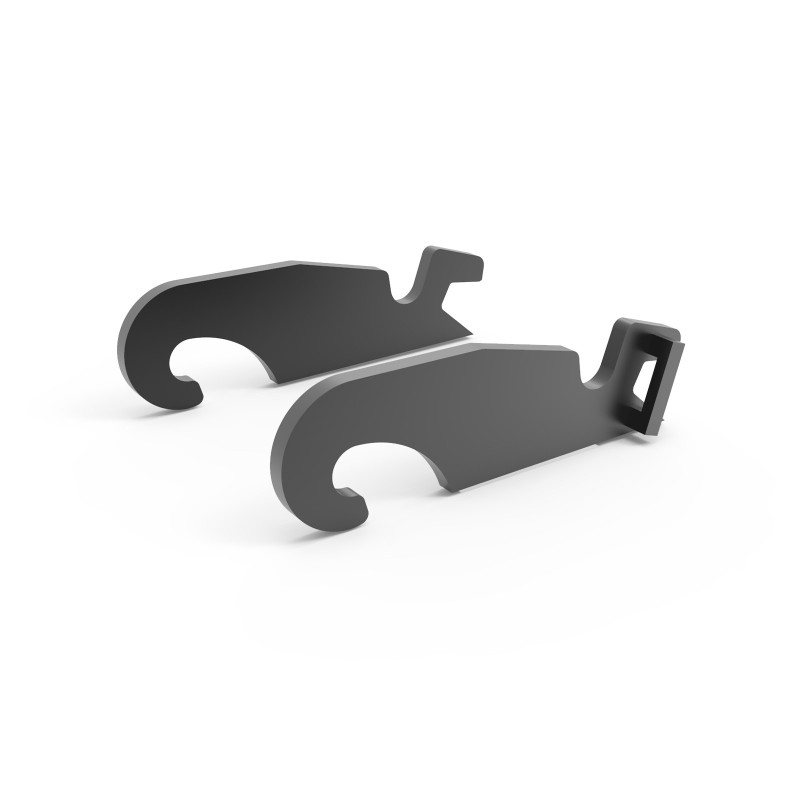

Adapter compatible with the Verachtert system- CW10 without base plate
445.26 zł
Tax included
The AD-WOP-CW10 is a base-plate-free design fully compatible with the Verachtert CW10 standard. It ensures quick and secure connection of work tools and maintains durability even under intensive use. A practical option for operators who prefer a lighter and more flexible setup.
| Pin diameter [mm] | Inner width [mm] |
Pin spacing [mm] |
|
|---|---|---|---|
| CW05 | 40 | 180 | 200 |
| CW10 | 50 | 320 | 300 |
| CW20/30/40 | 60 | 560 | 475 |

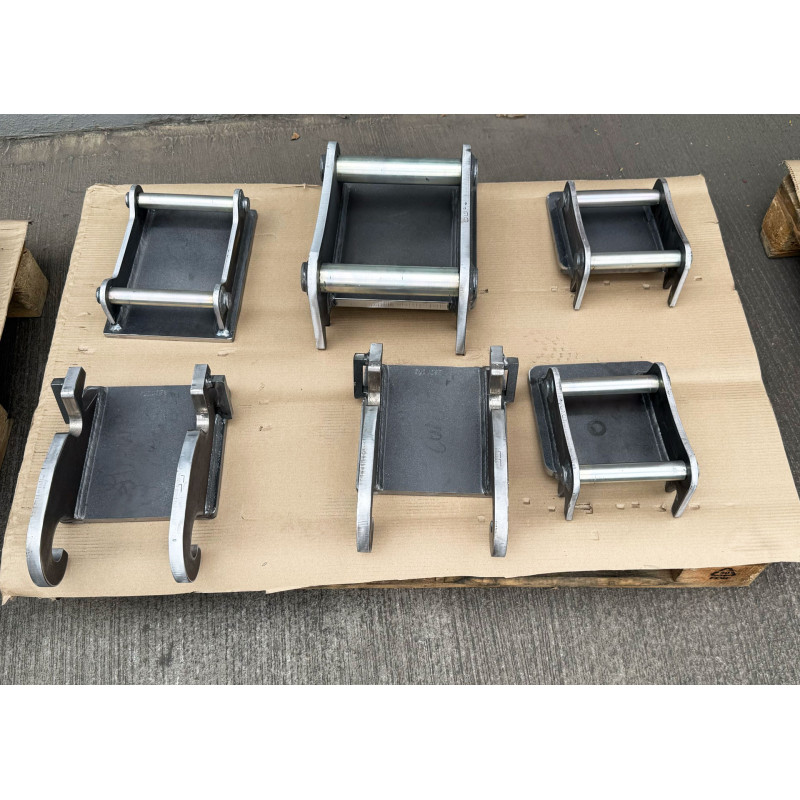

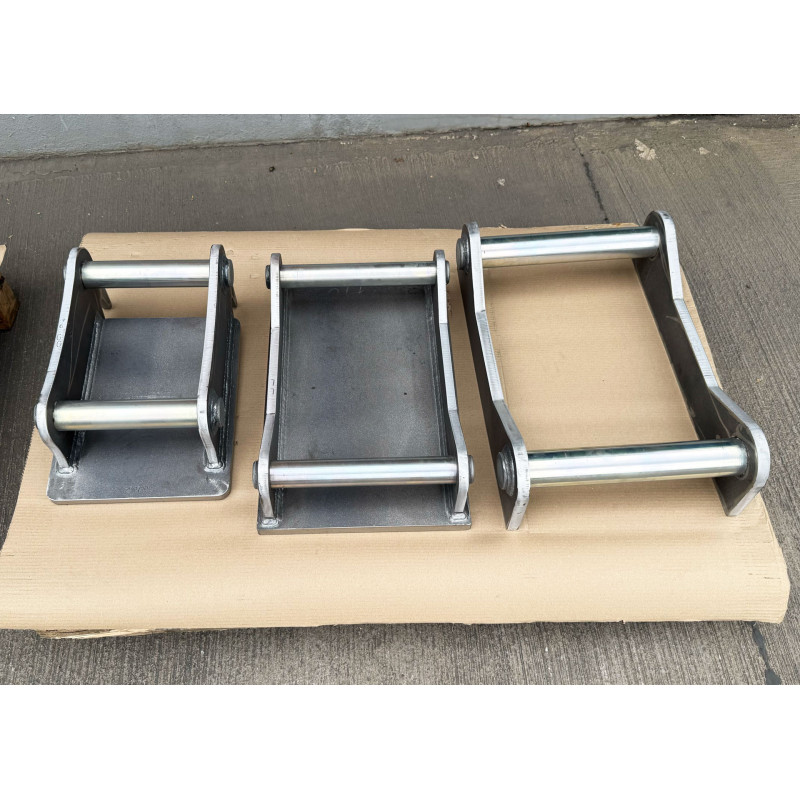

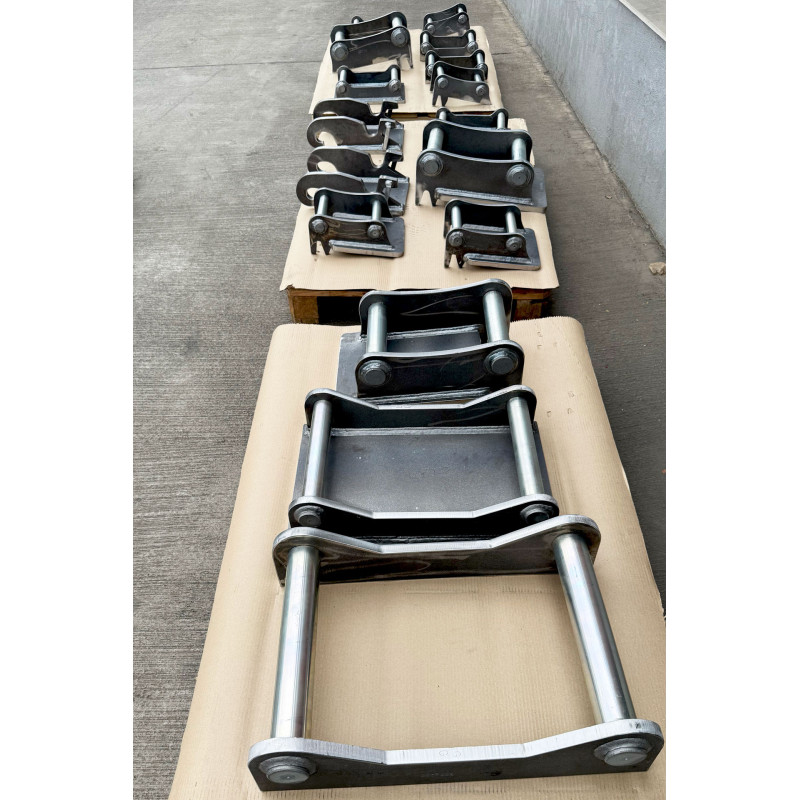

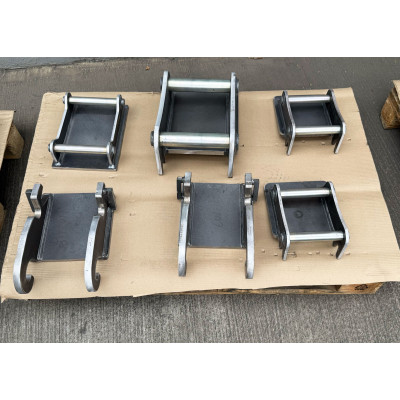

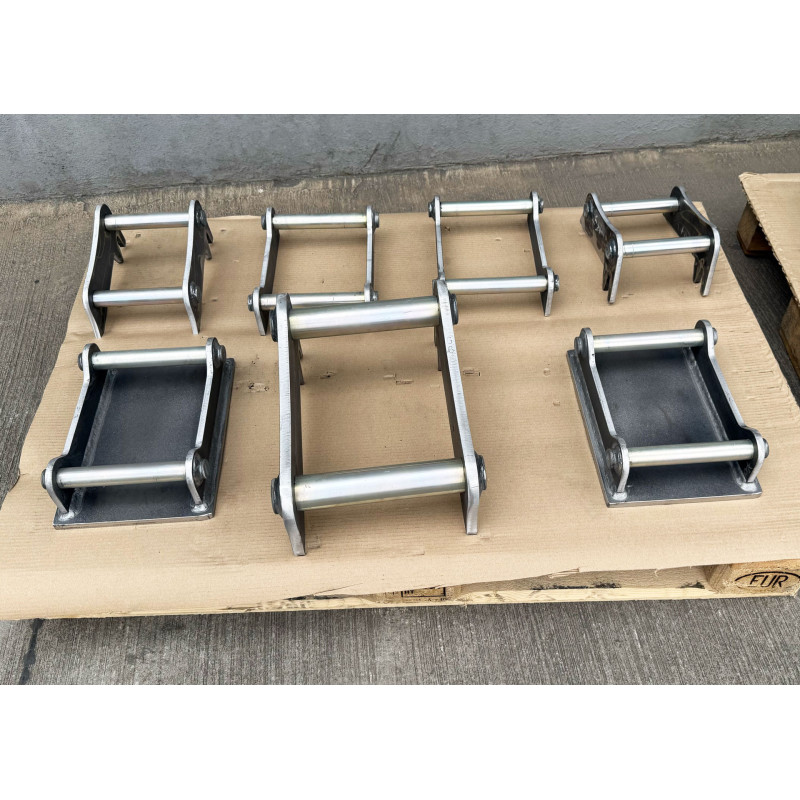

*The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| CW05 | CW10 | CW20/30/40 | ||||
| Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 20mm | S355 | 20mm | S355 | 35mm | HB400 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
AD-WOP-CW10
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 4-5t
5-6t
6-7t
7-8t
8-9t
9-10t
10-11t - Adapter
- CW10
- Side plate
- 20mm S355
- Pin diameter
- 50mm
- Inner width
- 320mm
- Pin spacing
- 560mm
- Weight
- 16kg
