Adapter: MS08

Adapter compatible with the Lehnhoff system- MS08 with base plate

Adapter compatible with the Lehnhoff system- MS08 with base plate

Adapter compatible with the Lehnhoff system- MS08 with base plate

Adapter compatible with the Lehnhoff system- MS08 with base plate

Adapter compatible with the Lehnhoff system- MS08 with base plate

Adapter compatible with the Lehnhoff system- MS08 with base plate

Adapter compatible with the Lehnhoff system- MS08 with base plate

Adapter compatible with the Lehnhoff system- MS08 with base plate

Adapter compatible with the Lehnhoff system- MS08 with base plate

Adapter compatible with the Lehnhoff system- MS08 with base plate

Adapter compatible with the Lehnhoff system- MS08 with base plate

1,110.69 zł

Tax included

In stock Lead time: up to 48 hours

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing* [mm]
MS01	40	185	225
MS01SY	40	185	255
MS03	50	205	283,6
MS03SY	50	205	322
MS08	60	295	381
MS08SY	60	297	434
MS10	70	405	511,3
MS21/25	80	510	529,5

*In the technical specification, refer to the spacing between the pin and the thrust plate.

Parameters

The main components are made of the following materials and thicknesses:

	MS01		MS01SY		MS03		MS03SY		MS08		MS08SY		MS10		MS21/25
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	10mm	S355	10mm	S355	12mm	S355	12mm	S355	16mm	S355	16mm	S355	20mm	S355	30mm	S355
Base plate:	16mm	S355	16mm	S355	16mm	S355	16mm	S355	20mm	S355	20mm	S355	16mm	S355	20mm	S355

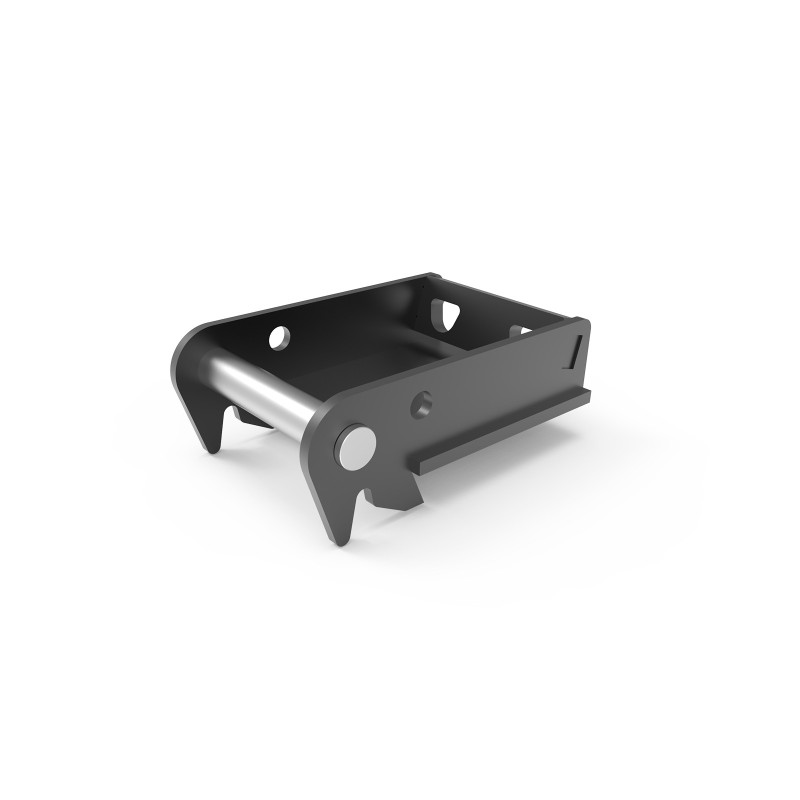

The AD-WP-MS08 is a base-plate adapter compatible with the Lehnhoff MS08 system, intended for more powerful machines. It stands out with exceptional durability and a perfect fit, ensuring secure and stable attachment of work tools.

** The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference AD-WP-MS08

Data sheet

Lead time: up to 48 hours
For the machine: 5-6
6-7
7-8
8-9
9-10
Adapter: MS08
Side plate: 16 S355
Base plate: 20 S355
Pin diameter: 60
Inner width: 295
Pin spacing: 381
Weight: 50

Specific References

EAN13: 5908159220292
