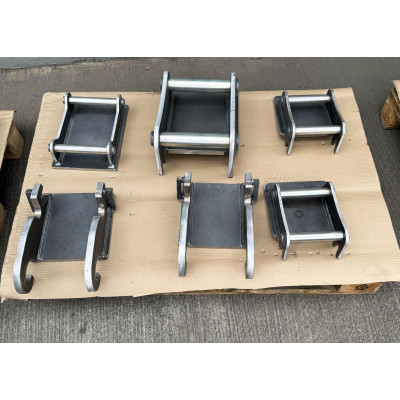

Adapter compatible with the Martin system- M02 with base plate
365.31 zł
Tax included
The AD-WP-M02 adapter is manufactured according to the Martin M02 standard and equipped with a durable base plate. It allows quick and secure attachment of tools to compact excavators, ensuring stability and reliable force transfer. Its precise fit improves workflow efficiency and increases the machine’s versatility.
| Pin diameter [mm] | Inner width [mm] | Pin spacing [mm] | |
|---|---|---|---|
| M02 | 30 | 161 | 170 |
| M03 | 35 | 184 | 180 |
| M10 | 50 | 232 | 292 |

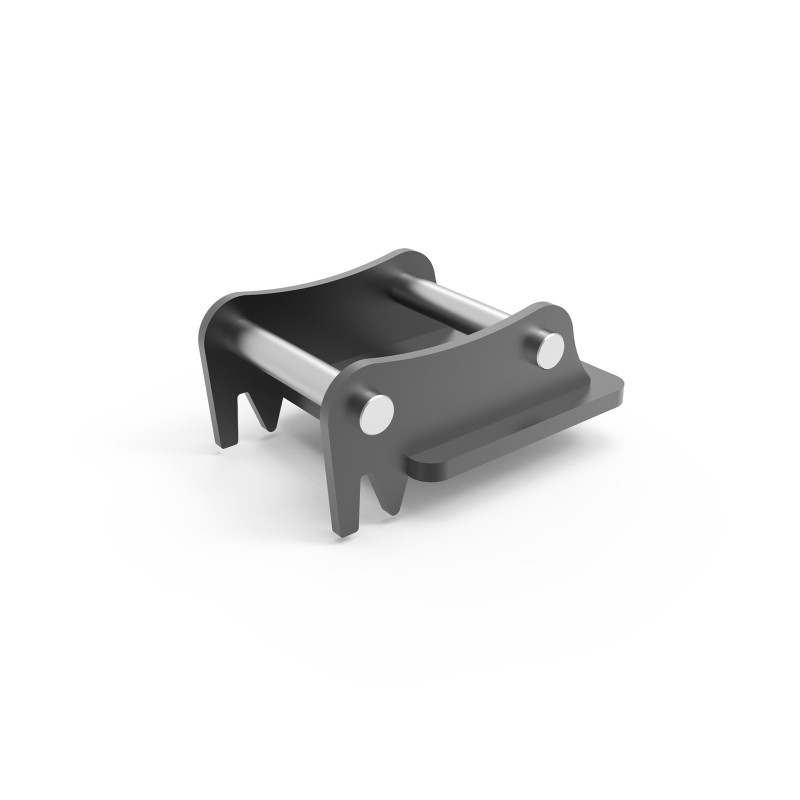

*The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| M02 | M03 | M10 | ||||
| Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 12mm | S355 | 16mm | S355 |
| Base plate: | 16mm | S355 | 16mm | S355 | 20mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
AD-WP-M02
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 0-2t
3-4t - Adapter
- M02
- Side plate
- 10mm S355
- Base plate
- 16mm S355
- Pin diameter
- 30mm
- Inner width
- 161mm
- Pin spacing
- 170mm
- Weight
- 12kg
