Adapter: S30/180

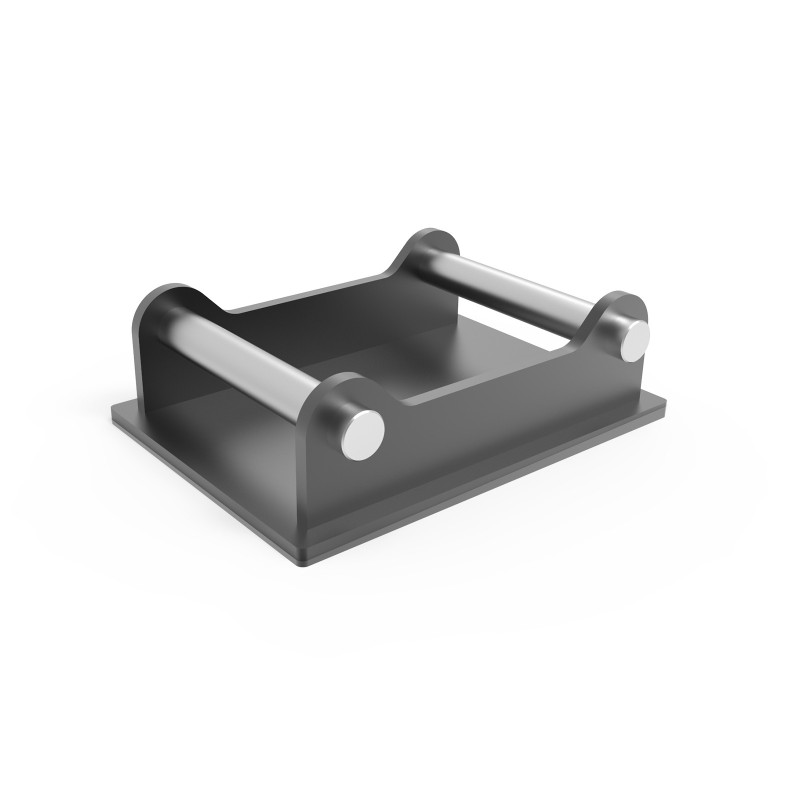

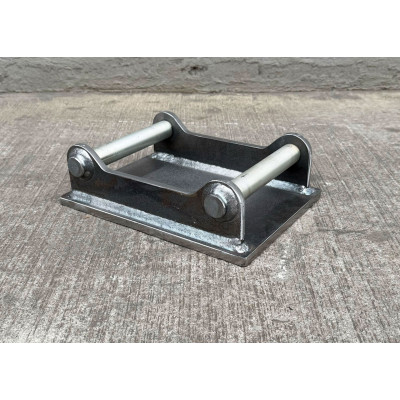

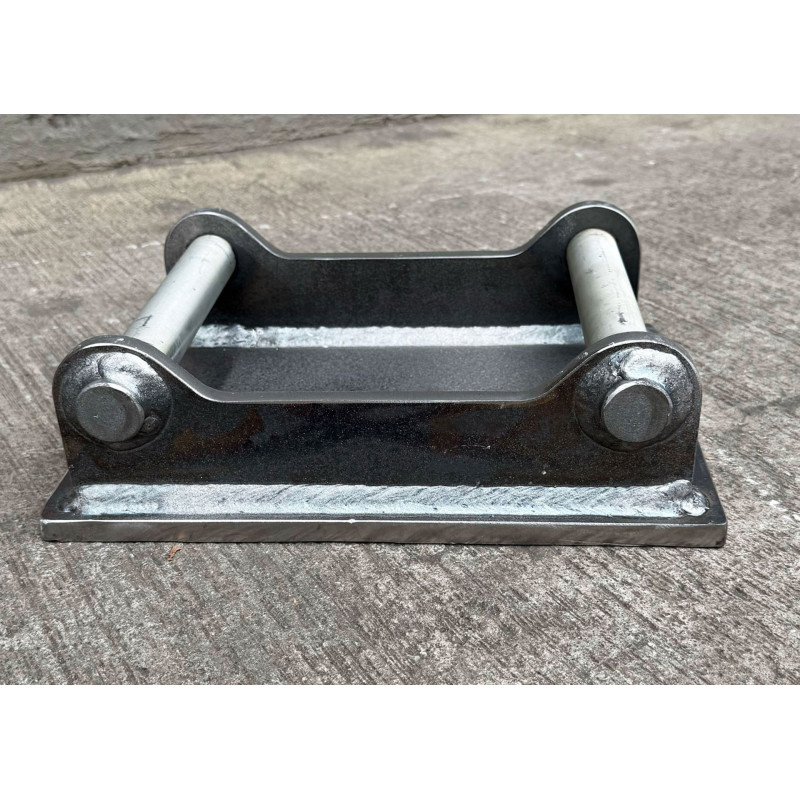

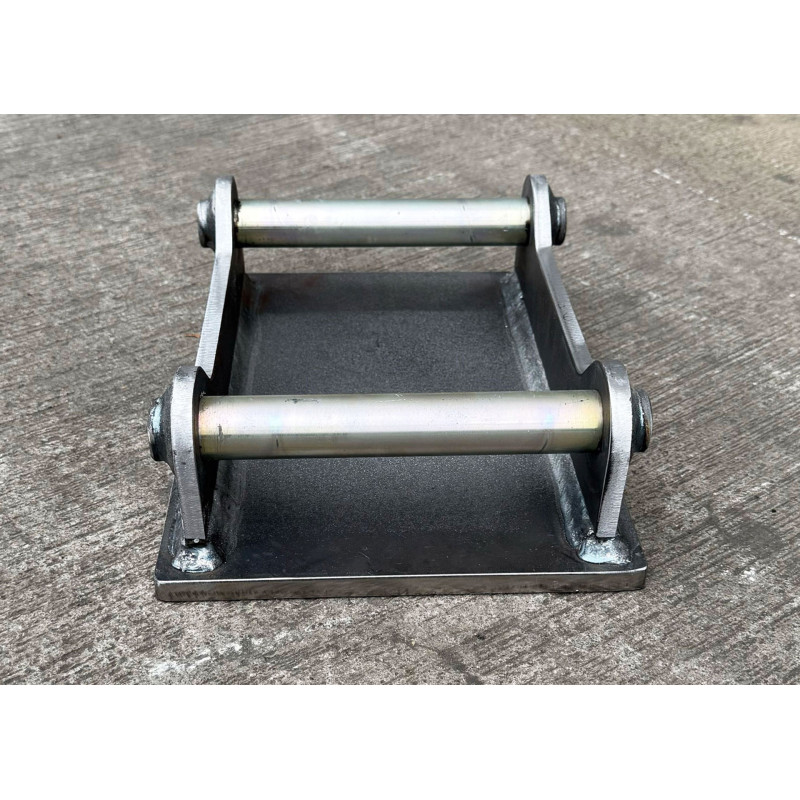

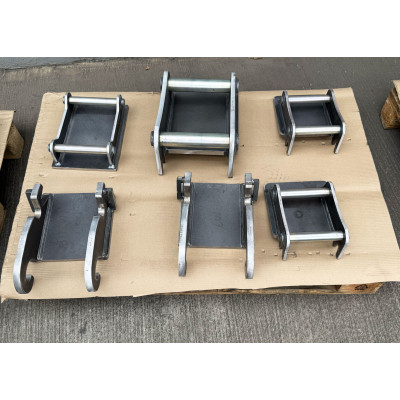

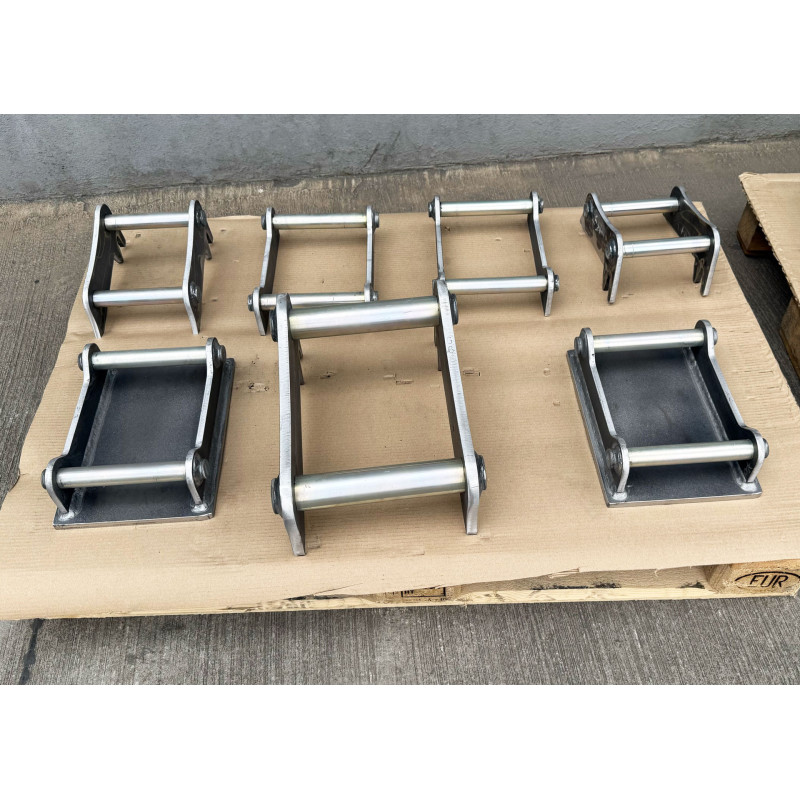

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

Adapter compatible with the Volvo system- S30/180 with base plate

552.27 zł

Tax included

In stock Lead time: up to 48 hours

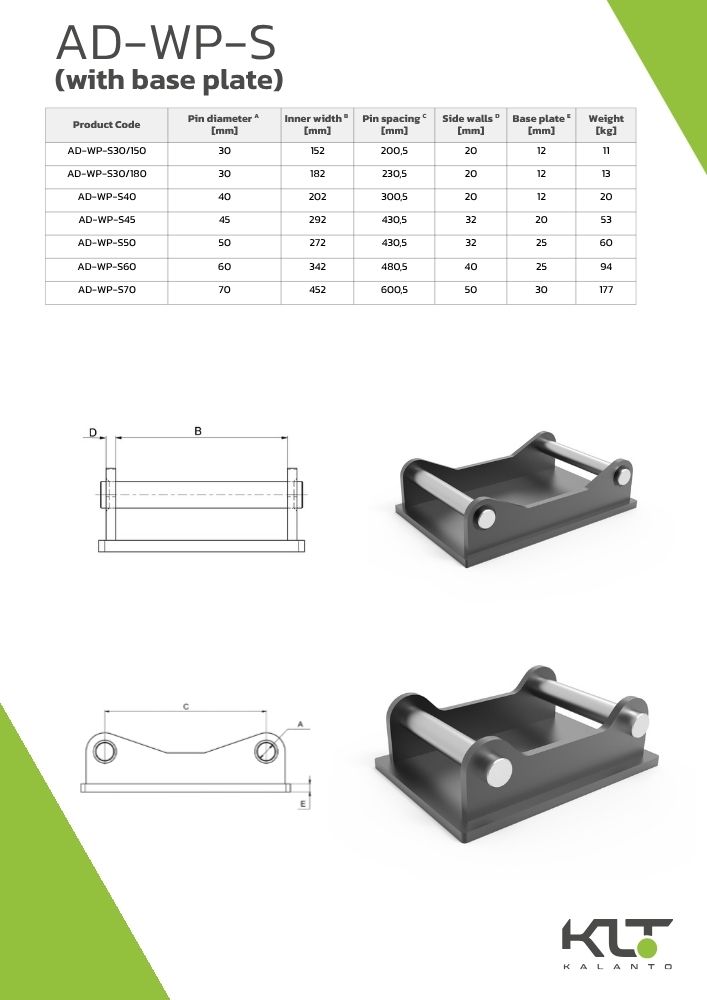

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
S30/150	30	152	200,5
S30/180	30	182	230,5
S40	40	202	300,5
S45	45	292	430,5
S50	50	272	430,5
S60	60	342	480,5
S70	70	452	600,5

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Parameters

The main components are made of the following materials and thicknesses:

S30/150		S30/180		S40		S45		S50		S60		S70
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	20mm	S355	32mm	S355	32mm	S355	40mm	S355	50mm	S355
Base plate:	12mm	S355	12mm	S355	12mm	S355	20mm	S355	25mm	S355	25mm	S355	30mm	S355

The AD-WP-S30/180 adapter with a base plate is a strong and precise solution for the Volvo S30/180 system. It ensures secure fitting and stability, significantly improving tool changes and enhancing the excavator’s efficiency.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference AD-WP-S30/180

Data sheet

Lead time: up to 48 hours
For the machine: 0-1
1-2
Adapter: S30/180
Side plate: 20 S355
Base plate: 12 S355
Pin diameter: 30
Inner width: 182
Pin spacing: 230,5
Weight: 13

Specific References

EAN13: 5908159220346
