Adapter: S45

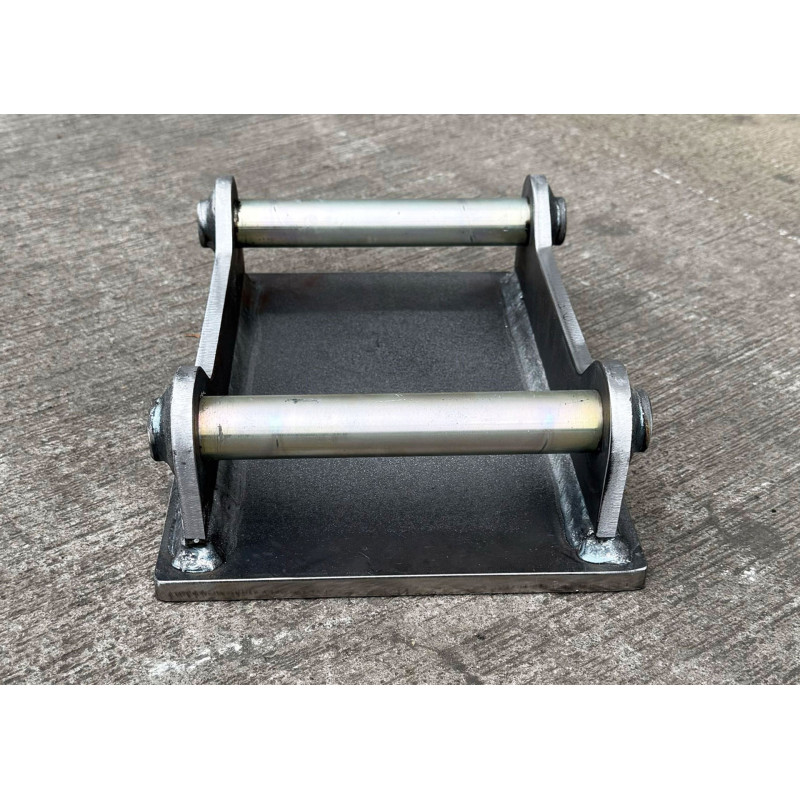

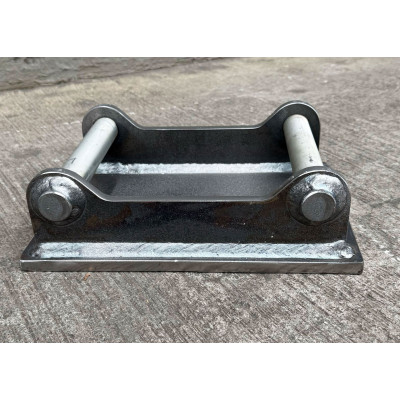

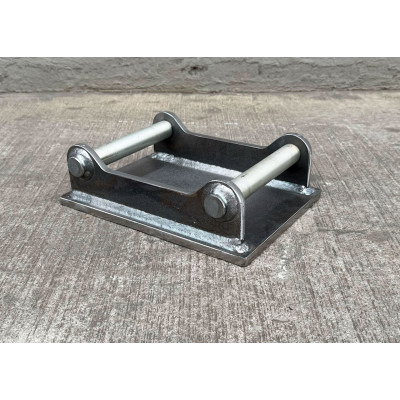

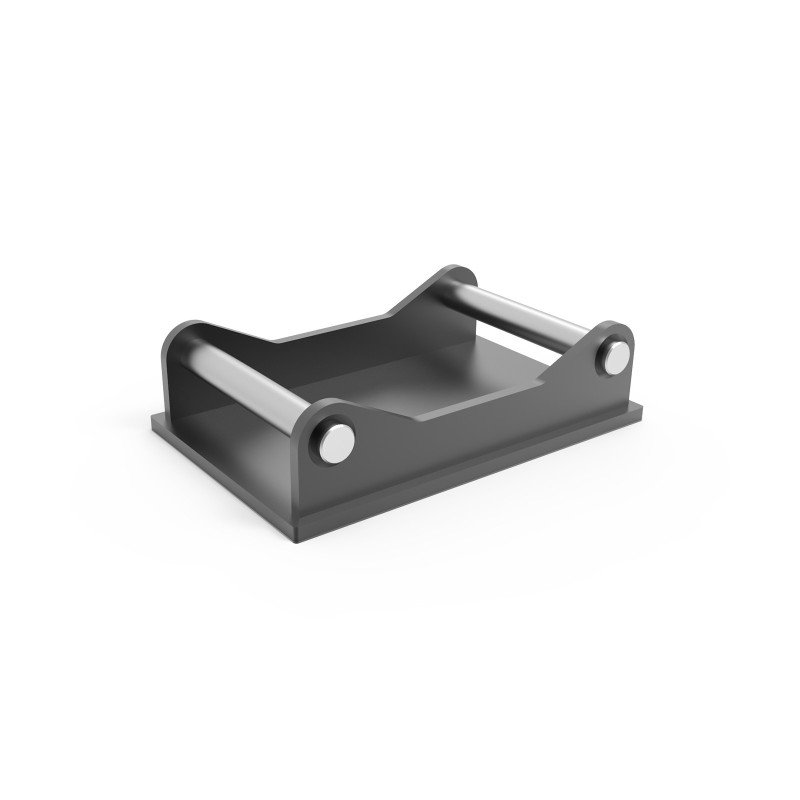

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

Adapter compatible with the Volvo system- S45 with base plate

1,226.31 zł

Tax included

In stock Lead time: up to 48 hours

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
S30/150	30	152	200,5
S30/180	30	182	230,5
S40	40	202	300,5
S45	45	292	430,5
S50	50	272	430,5
S60	60	342	480,5
S70	70	452	600,5

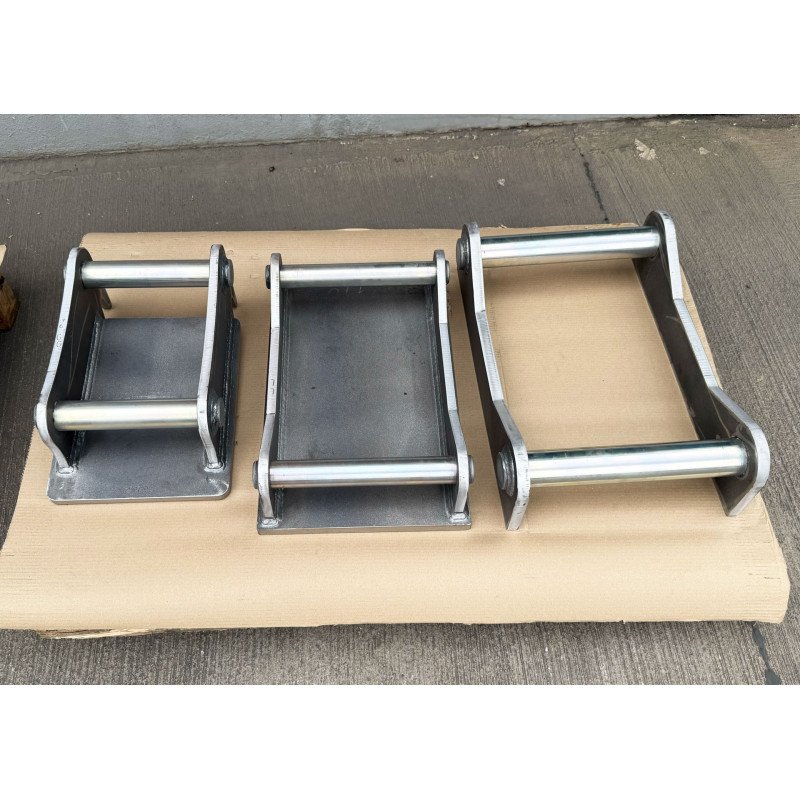

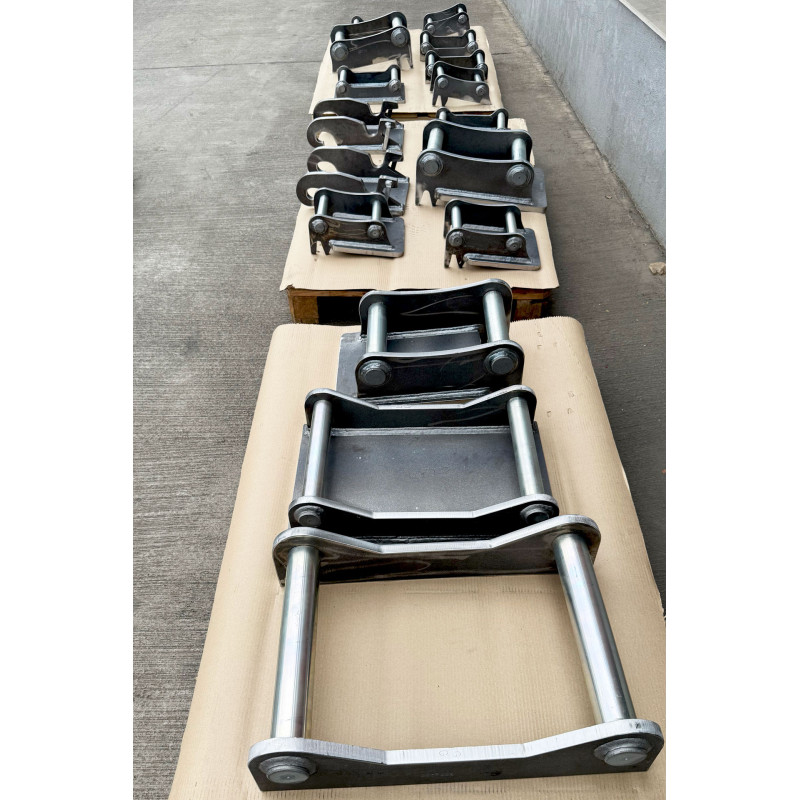

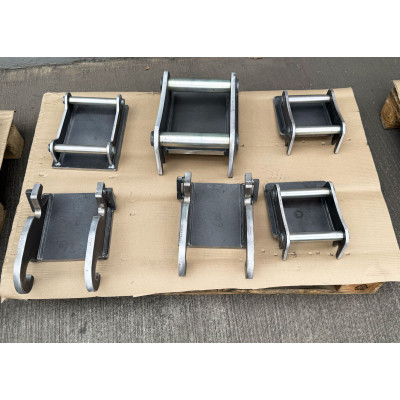

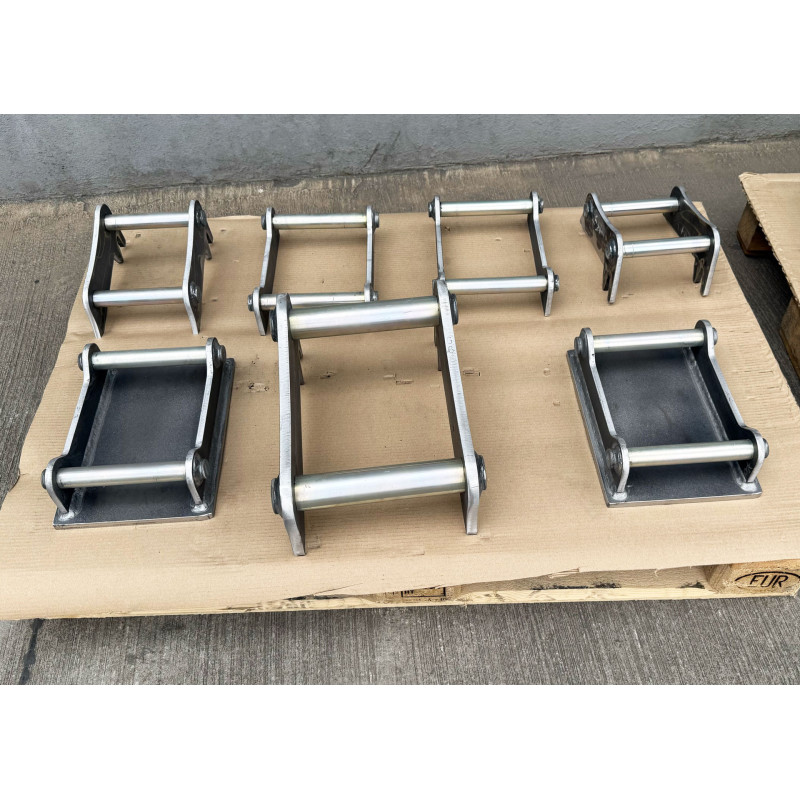

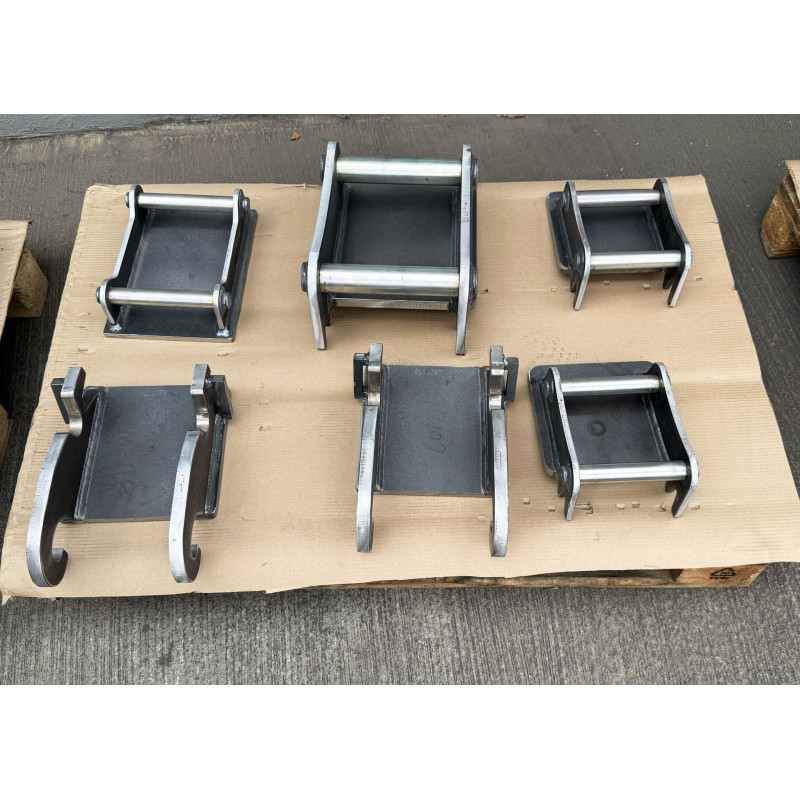

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Parameters

The main components are made of the following materials and thicknesses:

	S30/150		S30/180		S40		S45		S50		S60		S70
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	20mm	S355	32mm	S355	32mm	S355	40mm	S355	50mm	S355
Base plate:	12mm	S355	12mm	S355	12mm	S355	20mm	S355	25mm	S355	25mm	S355	30mm	S355

The AD-WP-S45 adapter, built to the Volvo S45 standard, includes a sturdy base plate to ensure reliable force transfer. Its strong and precise construction guarantees smooth, trouble-free excavator operation even in harsh conditions.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference AD-WP-S45

Data sheet

Lead time: up to 48 hours
For the machine: 5-6
6-7
7-8
8-9
9-10
10-11
11-12
Adapter: S45
Side plate: 32 S355
Base plate: 20 S355
Pin diameter: 45
Inner width: 292
Pin spacing: 430,5
Weight: 53

Specific References

EAN13: 5908159220360
