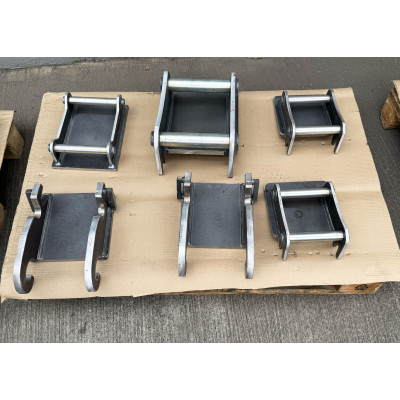

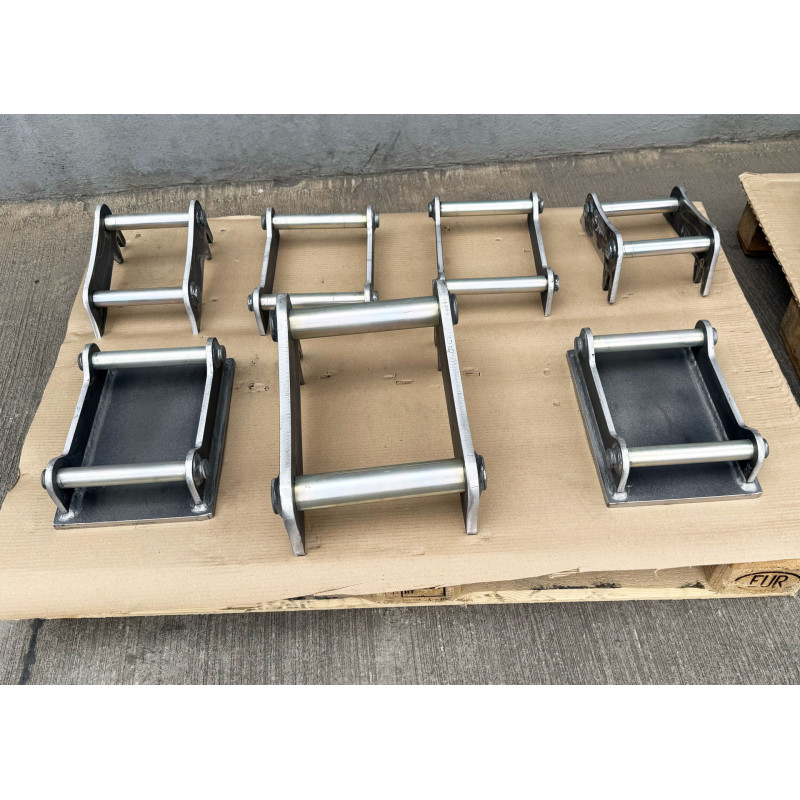

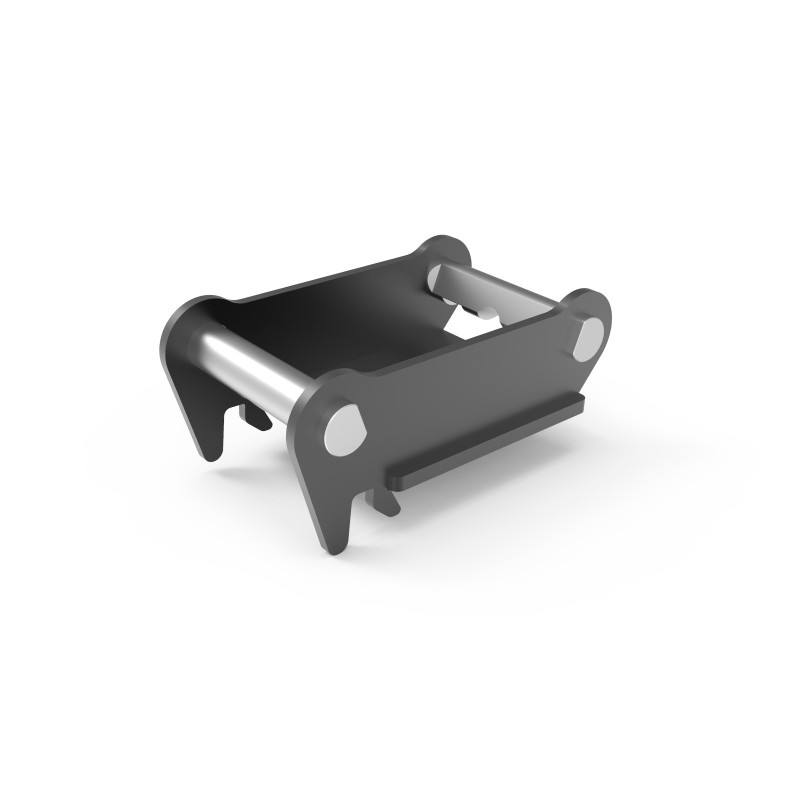

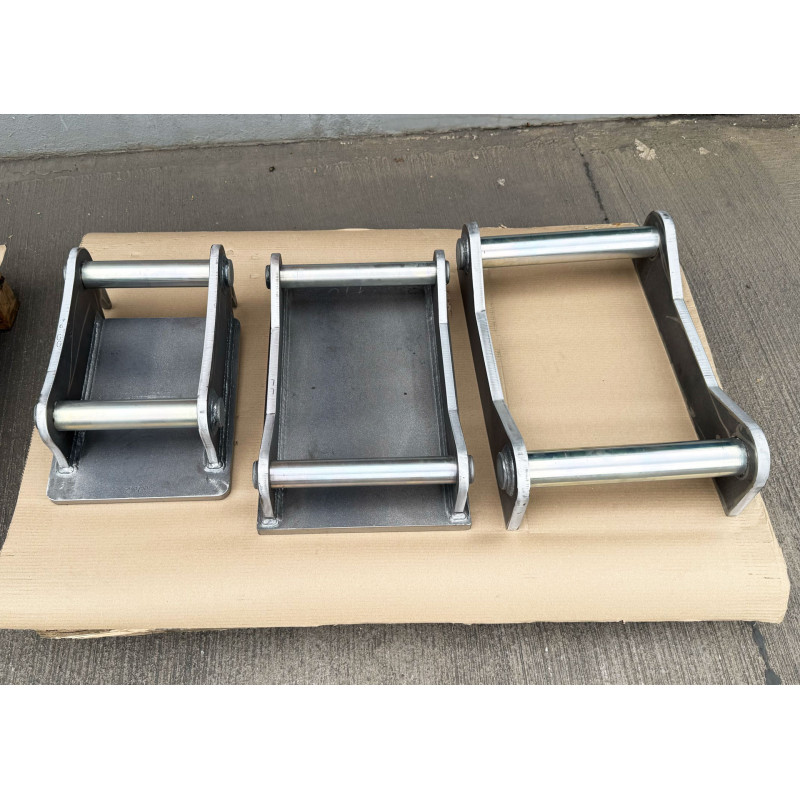

The AD-WP-MS03SY adapter with base plate is a reliable component of the MS03SY system, created for dynamic tool exchange. Its solid construction and precise alignment ensure stability and safety during operation.

Pin diameter  [mm]  Inner width   [mm]

Pin spacing*  [mm]
MS01 40 185 225
MS01SY 40 185 255
MS03 50 205 283,6
MS03SY 50 205 322
MS08 60 295 381
MS08SY 60 297 434
MS10 70 405 511,3
MS21/25 80 510 529,5
*In the technical specification, refer to the spacing between the pin and the thrust plate.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
Quantity
Add to wishlist
Out-of-Stock

The main components are made of the following materials and thicknesses:

MS01 MS01SY MS03 MS03SY MS08 MS08SY MS10 MS21/25
Thickness Material Thickness Material Thickness Material Thickness Material Thickness Material Thickness Material Thickness Material Thickness Material
Side plate: 10mm S355 10mm S355 12mm S355 12mm S355 16mm S355 16mm S355 20mm S355 30mm S355
Base plate: 16mm S355 16mm S355 16mm S355 16mm S355 20mm S355 20mm S355 16mm S355 20mm S355

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

AD-WP-MS03SY

Data sheet

Lead time
up to 48 hours
For the machine
2-3t
3-4t
4-5t
Adapter
MS03SY
Side plate
12mm S355
Base plate
16mm S355
Pin diameter
50mm
Inner width
205mm
Pin spacing
322mm
Weight
25kg
