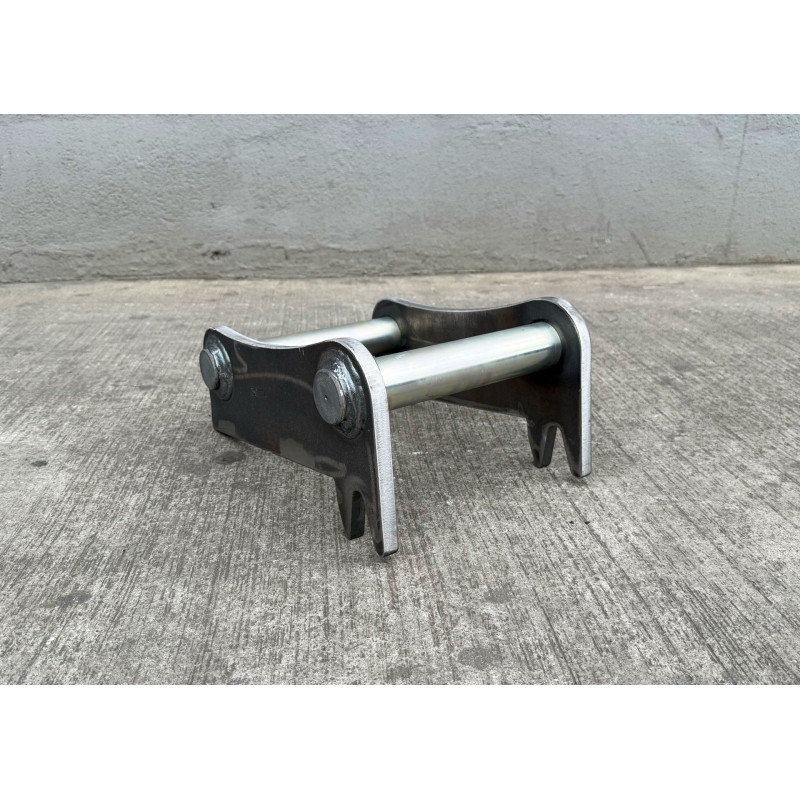

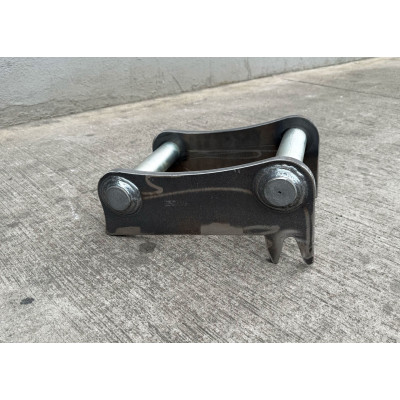

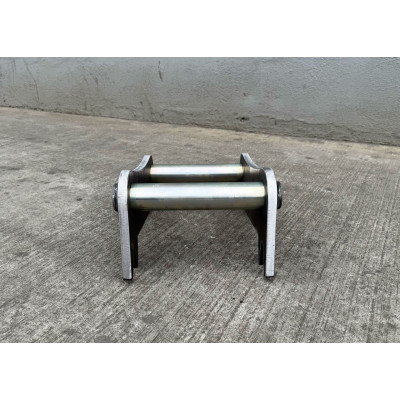

Adapter compatible with the Martin system- M03 without base plate
362.85 zł
Tax included
AD-WOP-M03 is a lightweight, base-plate-free adapter compatible with the Martin M03 system. Its solid construction and precise alignment allow quick tool mounting while offering high versatility and strong load resistance.

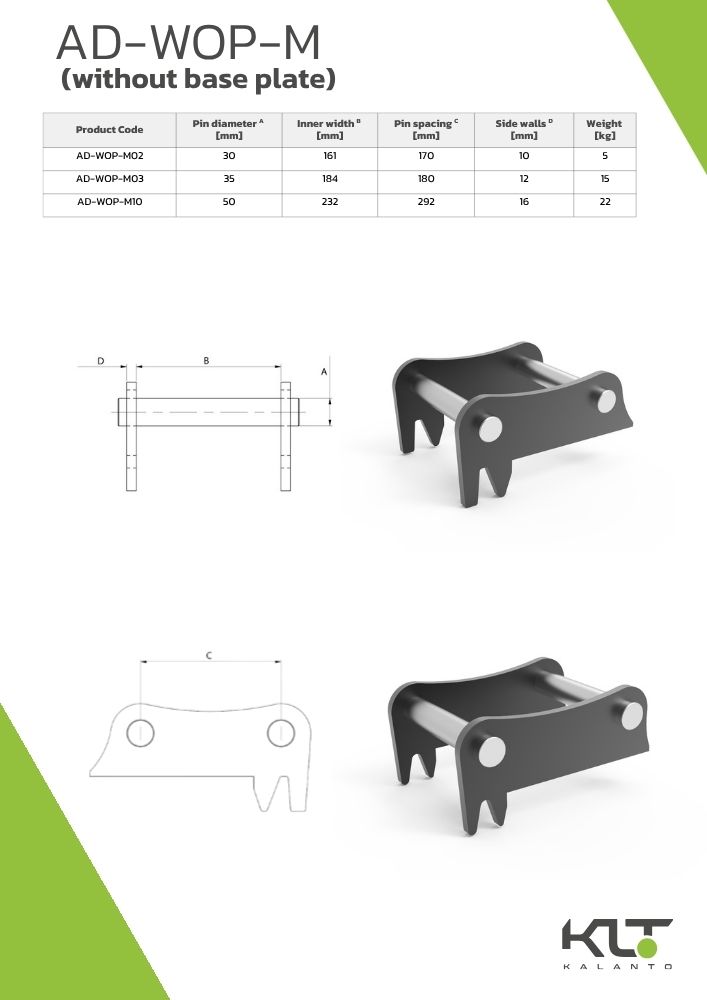

| Pin diameter [mm] | Inner width [mm] | Pin spacing [mm] | |
|---|---|---|---|
| M02 | 30 | 161 | 170 |
| M03 | 35 | 184 | 180 |
| M10 | 50 | 232 | 292 |

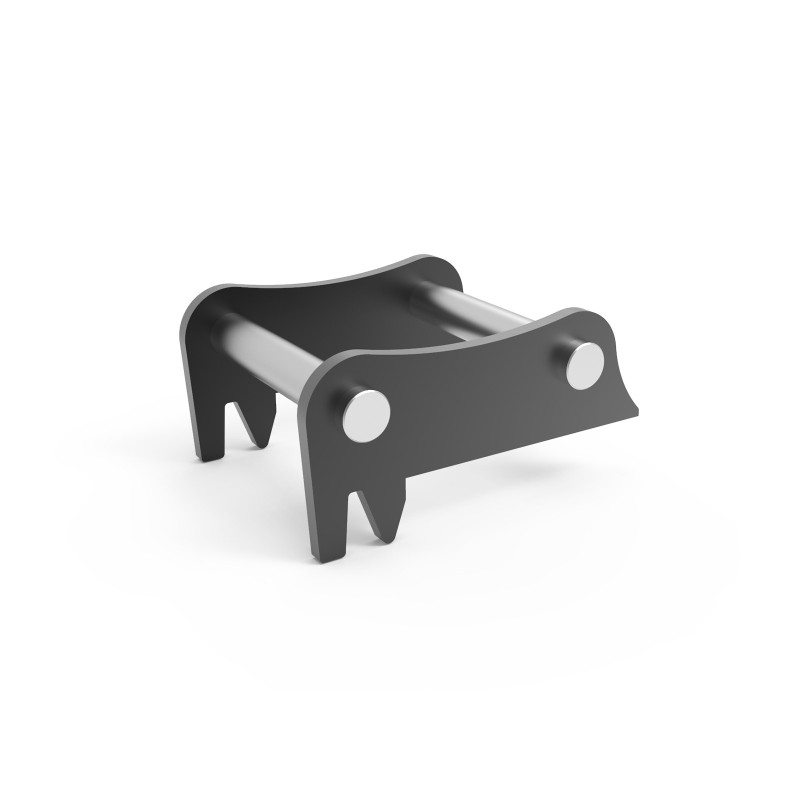

*The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| M02 | M03 | M10 | ||||
| Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 12mm | S355 | 16mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
AD-WOP-M03
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 2-3t
3-4t - Adapter
- M03
- Side plate
- 12mm S355
- Pin diameter
- 35mm
- Inner width
- 184mm
- Pin spacing
- 180mm
- Weight
- 15kg
