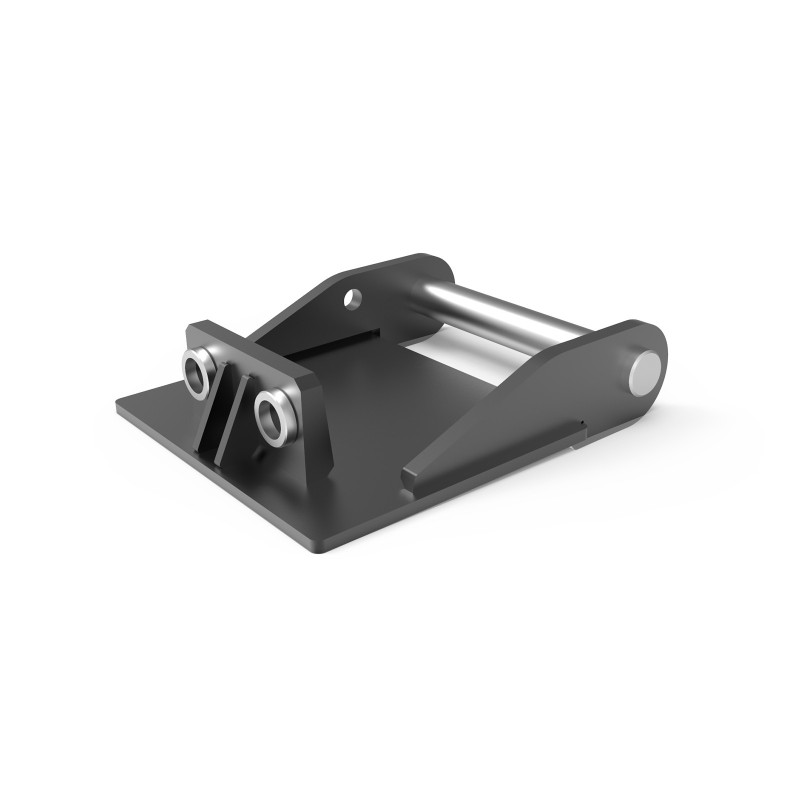

Adapter compatible with the Lehnhoff system- MS21/25 with base plate
3,853.59 zł
Tax included
Compatible with the Lehnhoff MS21/MS25 system, the AD-WP-MS21/25 adapter is designed for heavy equipment. Thanks to its reinforced construction and integrated base plate, it delivers top-level durability and safety when handling large work tools.

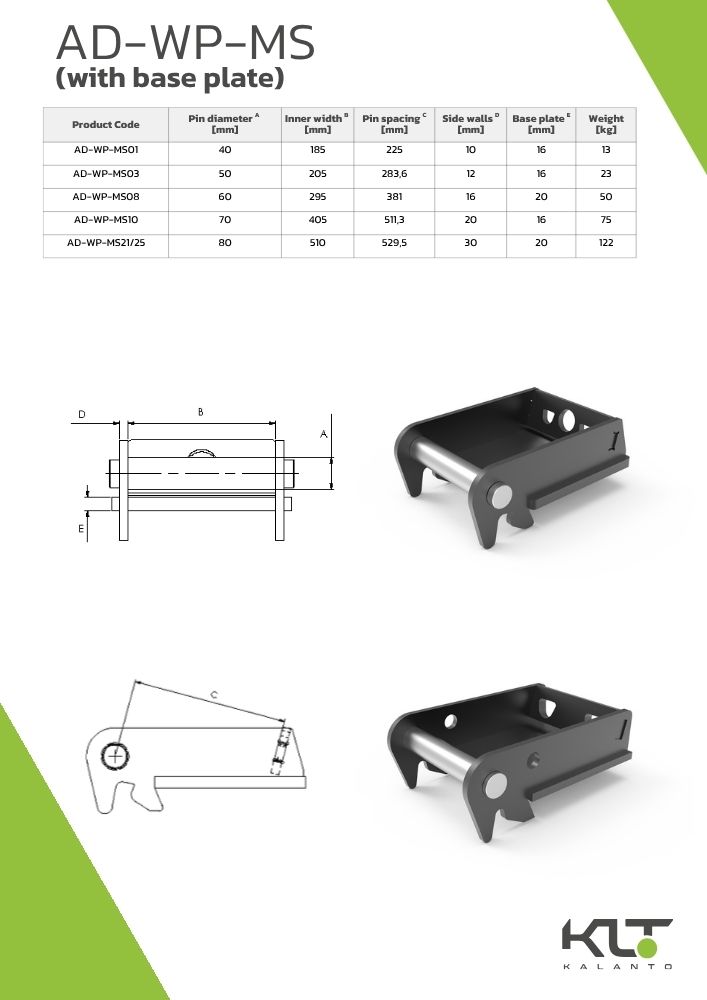

| Pin diameter [mm] | Inner width [mm] |
Pin spacing* [mm] |
|
|---|---|---|---|
| MS01 | 40 | 185 | 225 |
| MS01SY | 40 | 185 | 255 |
| MS03 | 50 | 205 | 283,6 |
| MS03SY | 50 | 205 | 322 |
| MS08 | 60 | 295 | 381 |
| MS08SY | 60 | 297 | 434 |
| MS10 | 70 | 405 | 511,3 |
| MS21/25 | 80 | 510 | 529,5 |
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| MS01 | MS01SY | MS03 | MS03SY | MS08 | MS08SY | MS10 | MS21/25 | |||||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 10mm | S355 | 12mm | S355 | 12mm | S355 | 16mm | S355 | 16mm | S355 | 20mm | S355 | 30mm | S355 |
| Base plate: | 16mm | S355 | 16mm | S355 | 16mm | S355 | 16mm | S355 | 20mm | S355 | 20mm | S355 | 16mm | S355 | 20mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
AD-WP-MS21/25
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 21-22t
22-23t
23-24t
24-25t
25-26t
26-27t
27-28t
28-29t
29-30t
30-31t
31-32t
32-33t
33-34t
34-35t
35-36t
36-37t
37-38t
38-39t
39-40t - Adapter
- MS21/25
- Side plate
- 30mm S355
- Base plate
- 20mm S355
- Pin diameter
- 80mm
- Inner width
- 510mm
- Pin spacing
- 529,3mm
- Weight
- 122kg
