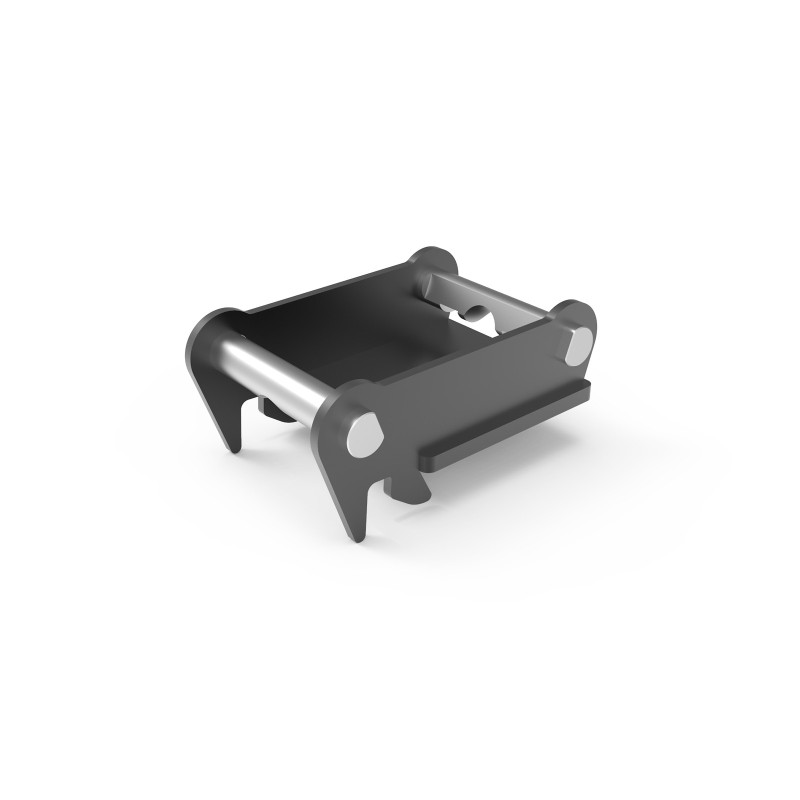

Adapter compatible with the Lehnhoff system- MS01SY with base plate
520.29 zł
Tax included

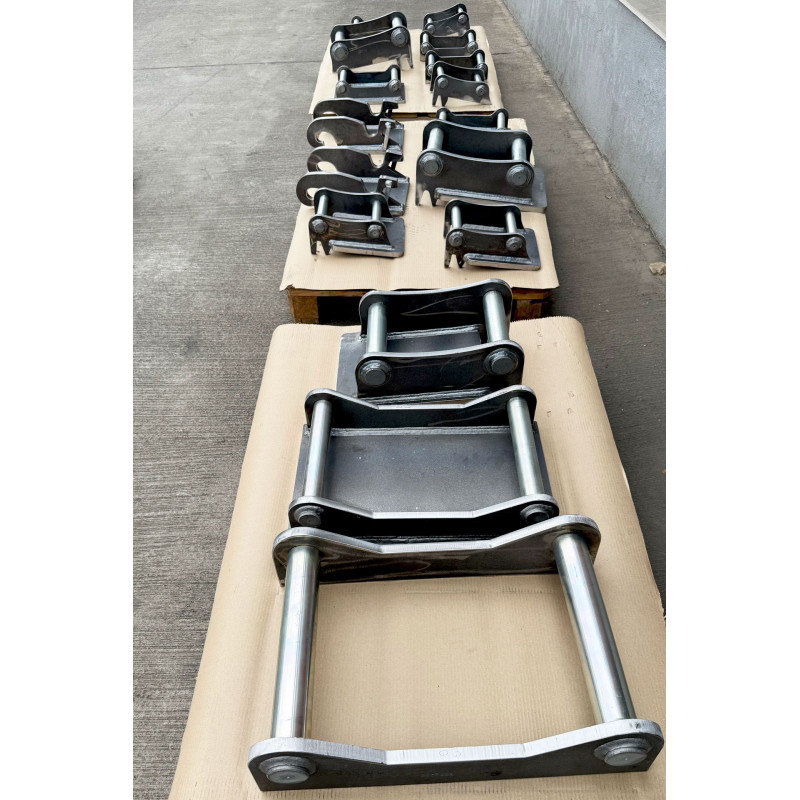

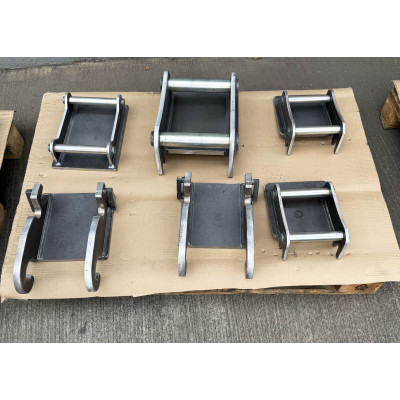

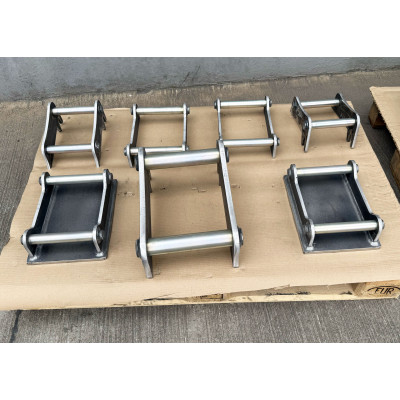

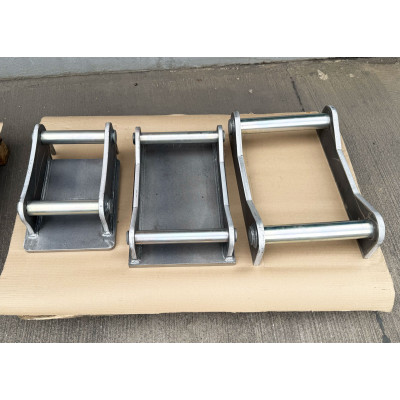

The AD-WP-MS01SY adapter features a base plate and is built for the Lehnhoff MS01SY symmetric system. It ensures easy and safe tool changes, while its precise fit and robust construction deliver excellent stability even under heavy use.
| Pin diameter [mm] | Inner width [mm] |
Pin spacing* [mm] |
|
|---|---|---|---|
| MS01 | 40 | 185 | 225 |
| MS01SY | 40 | 185 | 255 |
| MS03 | 50 | 205 | 283,6 |
| MS03SY | 50 | 205 | 322 |
| MS08 | 60 | 295 | 381 |
| MS08SY | 60 | 297 | 434 |
| MS10 | 70 | 405 | 511,3 |
| MS21/25 | 80 | 510 | 529,5 |
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| MS01 | MS01SY | MS03 | MS03SY | MS08 | MS08SY | MS10 | MS21/25 | |||||||||
| Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 10mm | S355 | 10mm | S355 | 12mm | S355 | 12mm | S355 | 16mm | S355 | 16mm | S355 | 20mm | S355 | 30mm | S355 |
| Base plate: | 16mm | S355 | 16mm | S355 | 16mm | S355 | 16mm | S355 | 20mm | S355 | 20mm | S355 | 16mm | S355 | 20mm | S355 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
AD-WP-MS01SY

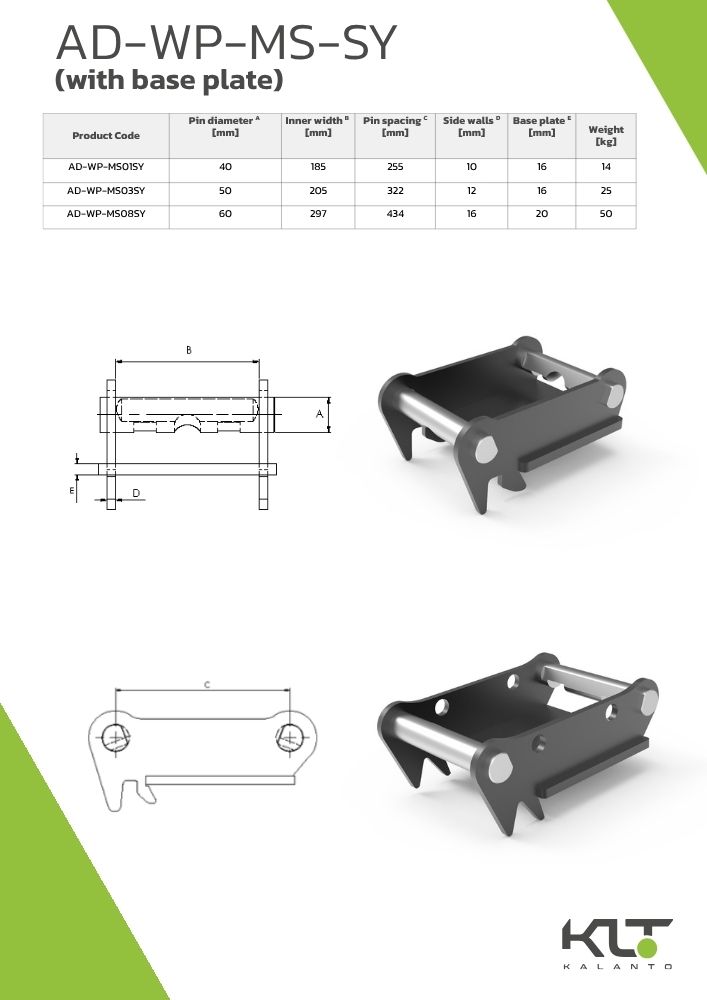

Data sheet
- Lead time
- up to 48 hours
- For the machine
- 0-2t
3-4t - Adapter
- MS01SY
- Side plate
- 10mm S355
- Base plate
- 16mm S355
- Pin diameter
- 40mm
- Inner width
- 185mm
- Pin spacing
- 255mm
- Weight
- 14kg
