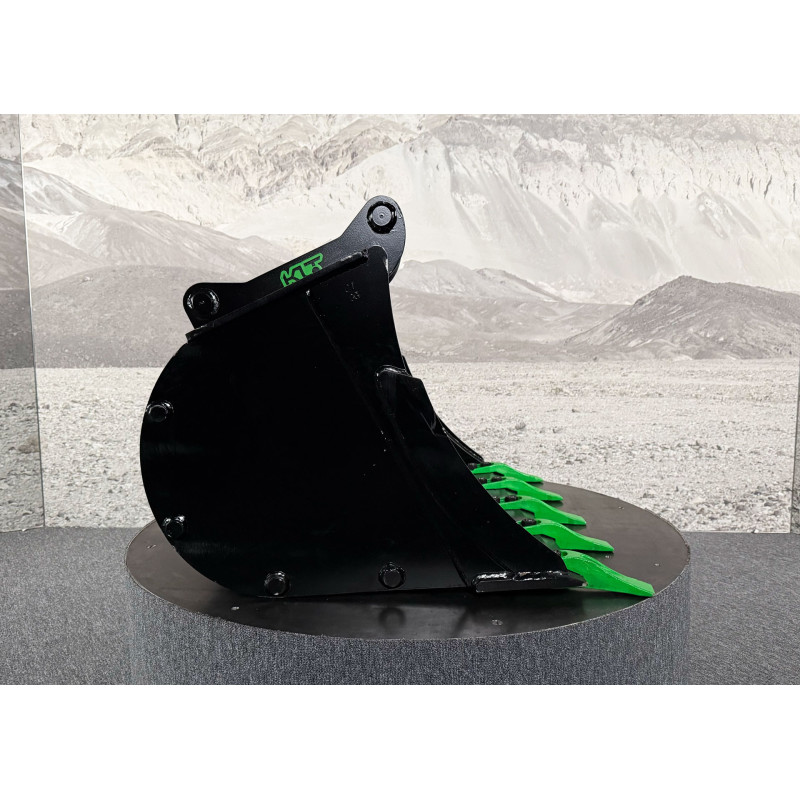

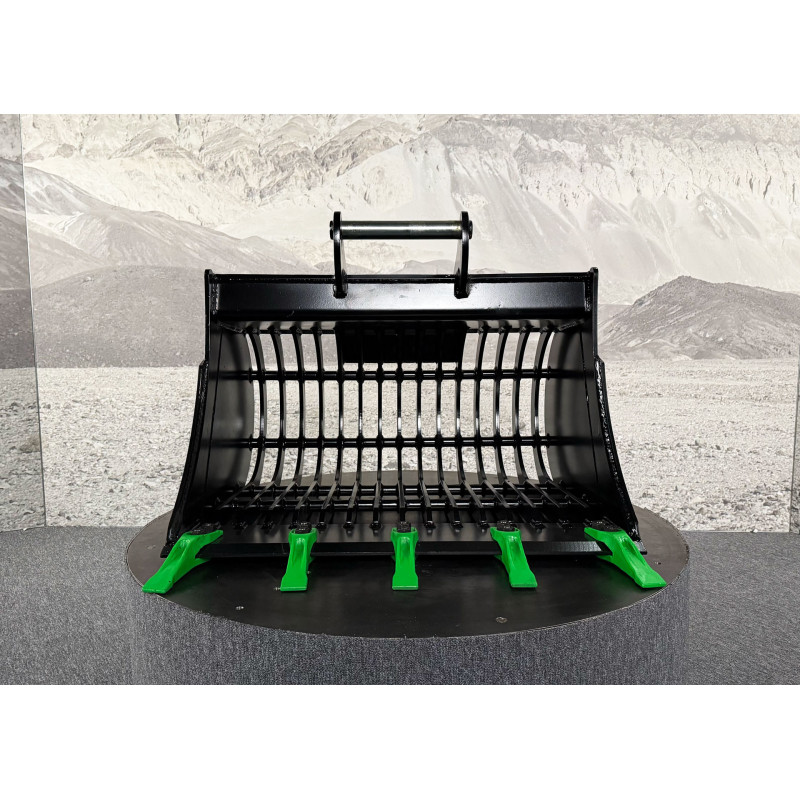

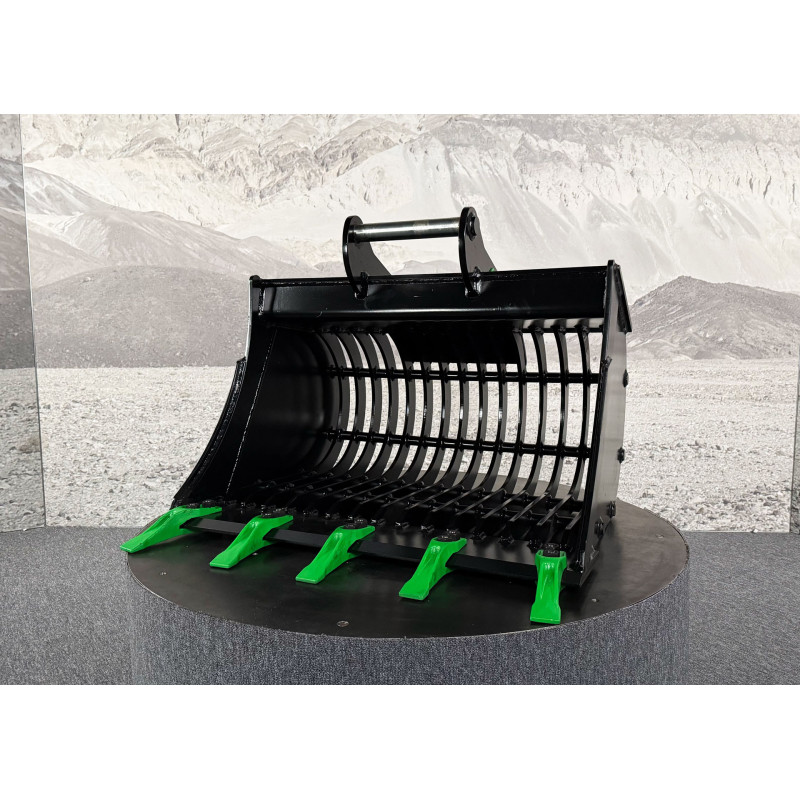

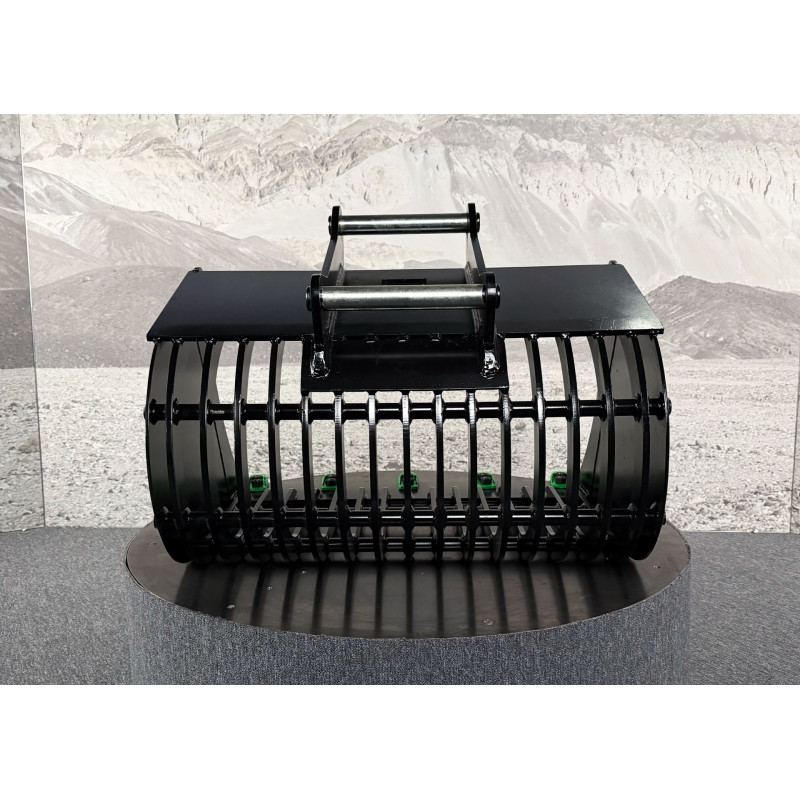

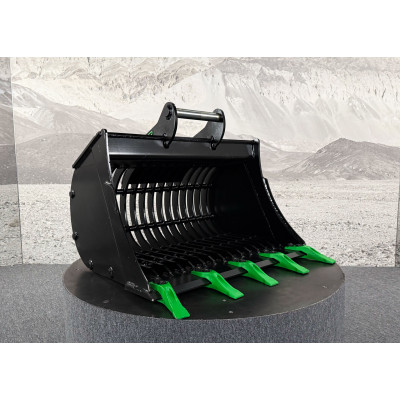

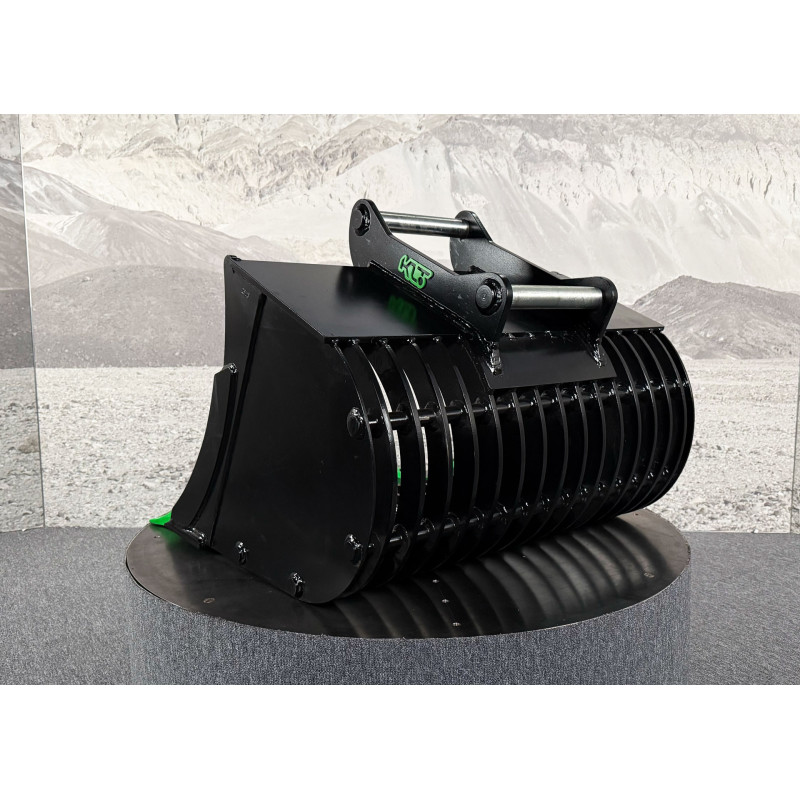

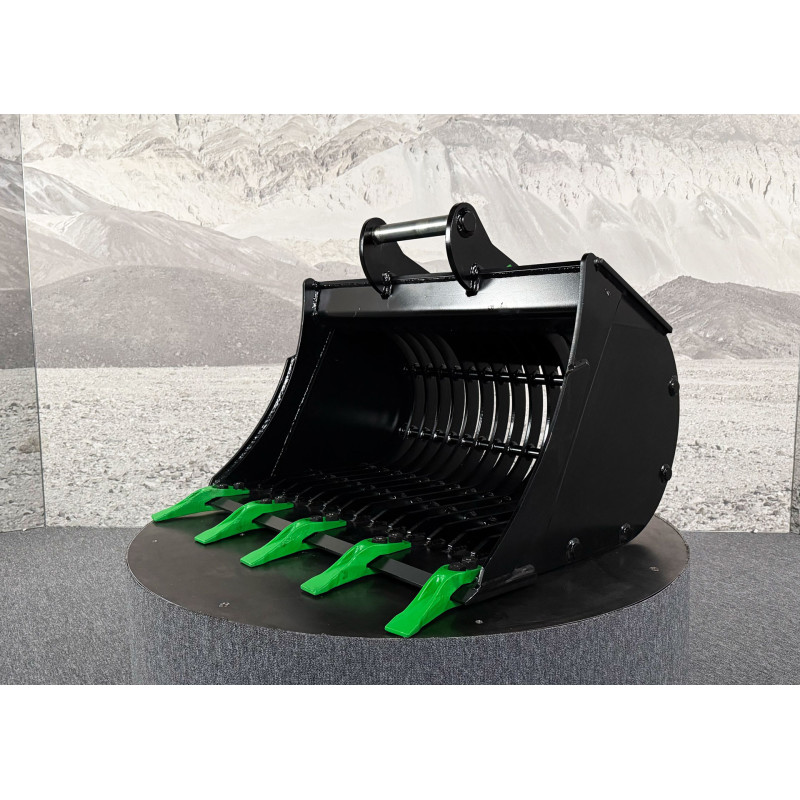

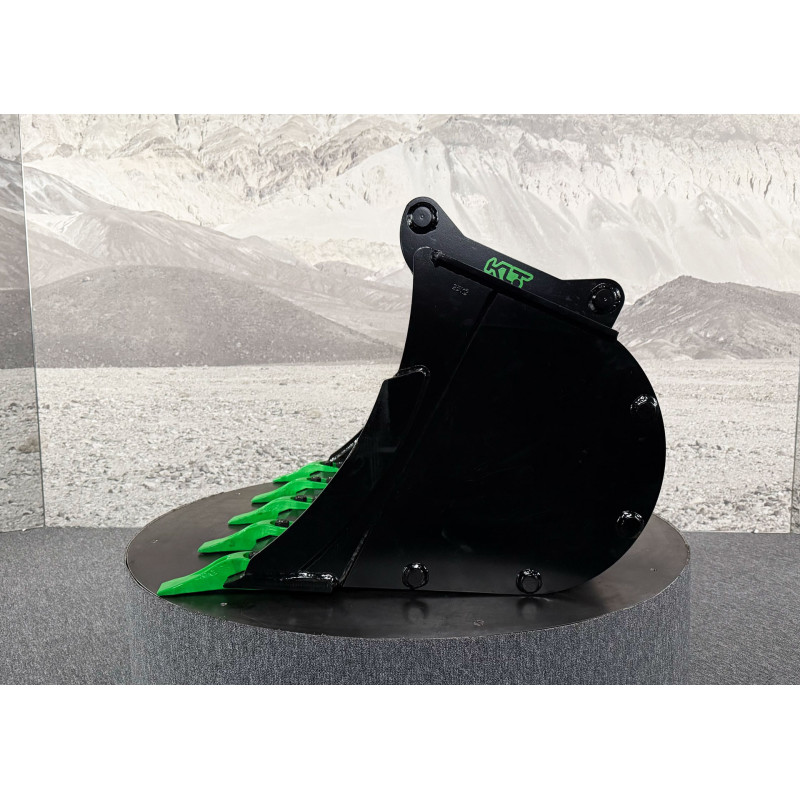

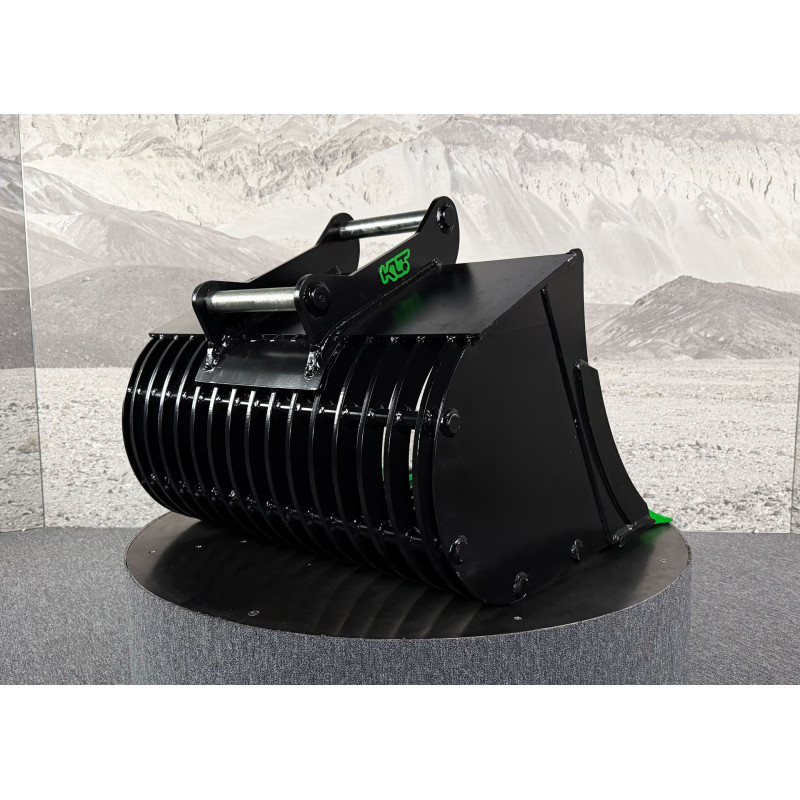

Skeleton bucket 800mm MS08SY class 6-9t
5,193.06 zł
Tax included
The SBS-S5-V1-800-MS08SY model is a skeleton bucket designed for excavators weighing between 6 and 9 tons. Built for intensive use, it performs exceptionally well in screening, sorting and cleaning material without the need for additional attachments. High-grade steel, reinforcements in critical areas and carefully engineered geometry make the SBS-S5 a reliable tool for earthmoving, cleanup and separation tasks where durability, efficiency and operator comfort in difficult terrain conditions are essential.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 800 | 195 | 246,9 | 5 |
| 1000 | 232 | 320,7 | 5 |
| 1200 | 272 | 394,6 | 6 |

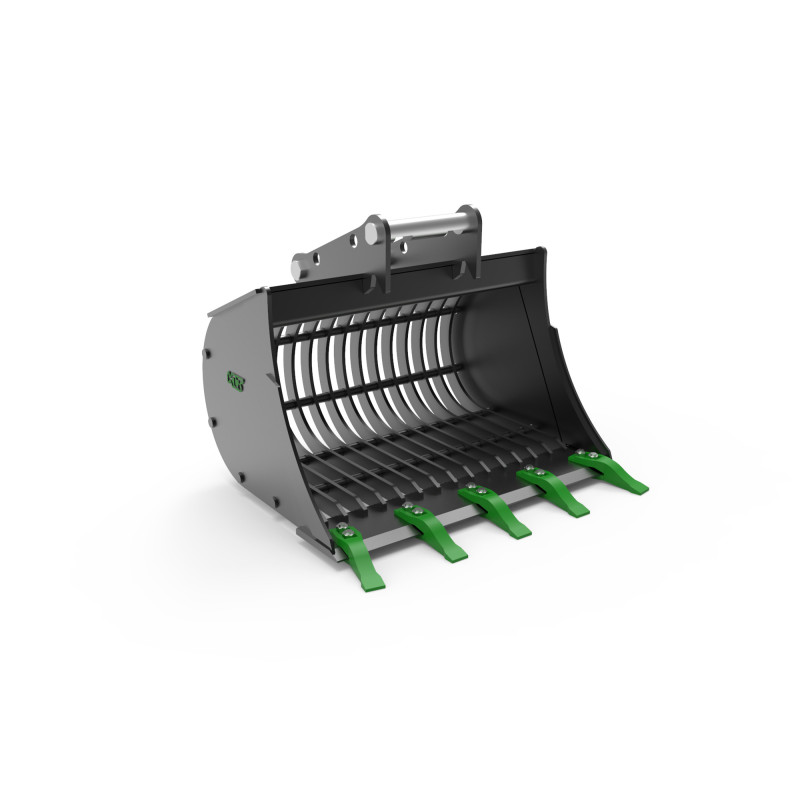

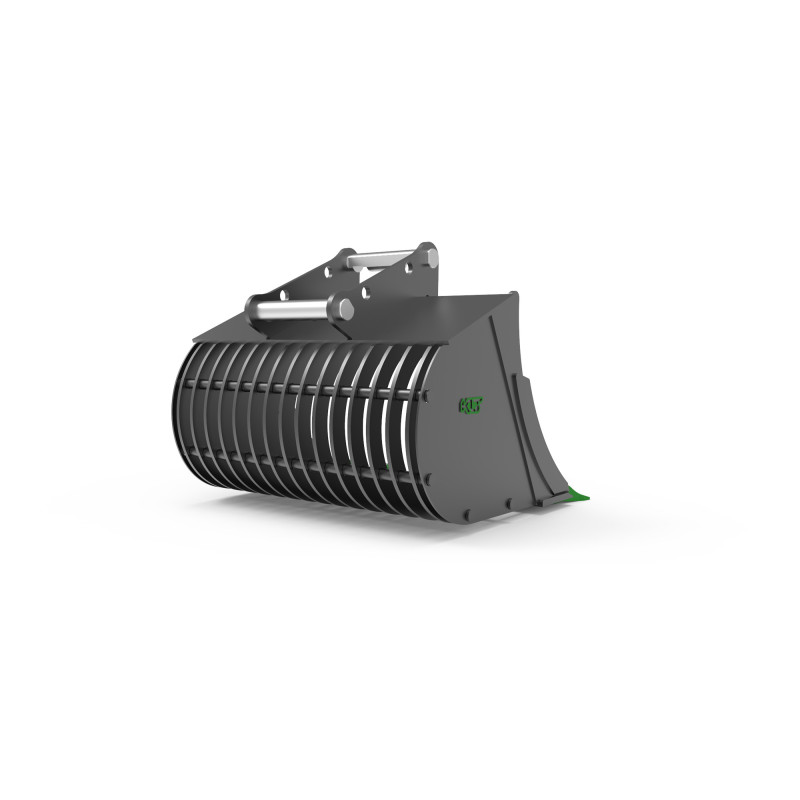

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Ribs: | 12 mm | S355 |
| Cutting edge: | 20 x 220 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 12 mm | S355 |
| Bend plate: | 10 mm | S355 |
| Rib spacing: | 45mm | - |
| Type | ||
| Teeth: | E25 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
SBS-S5-V1-800-MS08SY
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 6-7t
7-8t
8-9t - Adapter
- MS08SY
- Width
- 800mm
- Weight without adapter
- 195kg
- Capacity
- 246,9 l
- Side/rear plate
- 6mm S355
- Front side plate
- 12mm S355
- Side cutters
- 8mm HB400
- Ribs
- 12mm S355
- Rib spacing
- 45mm
- Cutting edge
- 20x200mm HB400
- Top plate
- 12mm S355
- Bend plate
- 10mm S355
- Number of teeth
- 5pcs
- Type of teeth
- E25
