Skeleton bucket 600mm MS03SY class 2-3t
2,147.58 zł
Tax included
The SBS-S2-V1-600-MS03SY model is a screening skeleton bucket designed for mini excavators and compact excavators weighing between 2 and 3 tons. Its specially engineered ribbed structure allows for efficient separation of soil from larger fractions such as stones, rubble, and organic debris. Durable materials and well-thought-out geometry provide high resistance to wear and mechanical damage while maintaining low overall weight. It is ideal for gardening work, cleanup tasks, and light material sorting on construction sites.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 600 | 61 | 82,1 | 4 |
| 800 | 79 | 113,8 | 5 |

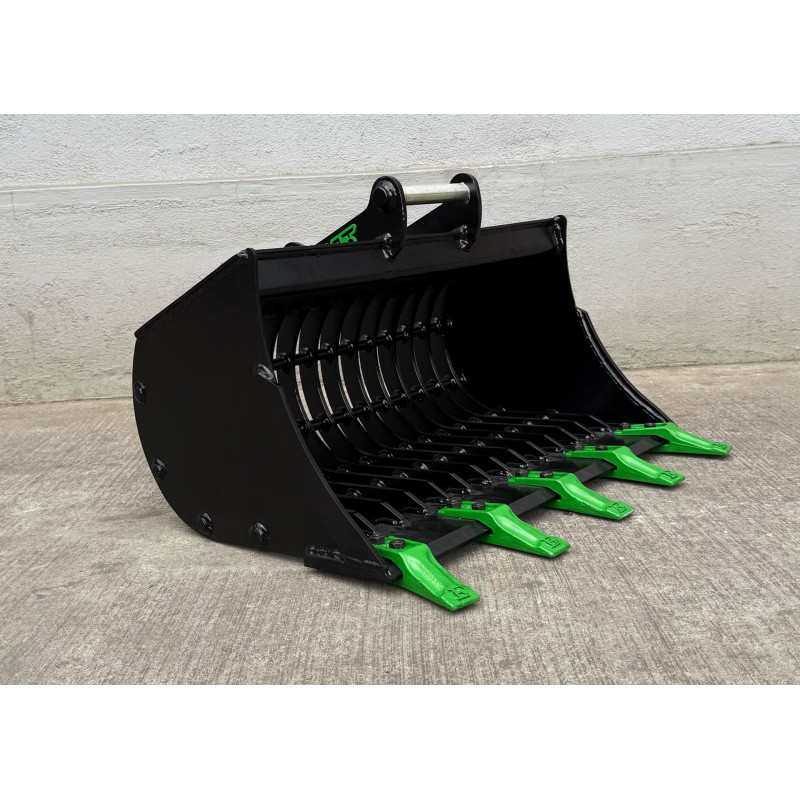

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Ribs: | 8 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Rib spacing: | 45mm | - |
| Type | ||
| Teeth: | E11.4 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
SBS-S2-V1-600-MS03SY
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 2-3t
- Adapter
- MS03SY
- Width
- 600mm
- Weight without adapter
- 61kg
- Capacity
- 82,1 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Ribs
- 8mm S355
- Rib spacing
- 45mm
- Cutting edge
- 16x150mm HB400
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 4pcs
- Type of teeth
- E11.4
