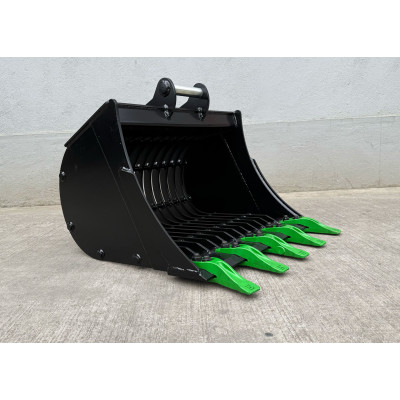

Skeleton bucket 800mm S40 class 4-6t
3,752.73 zł
Tax included

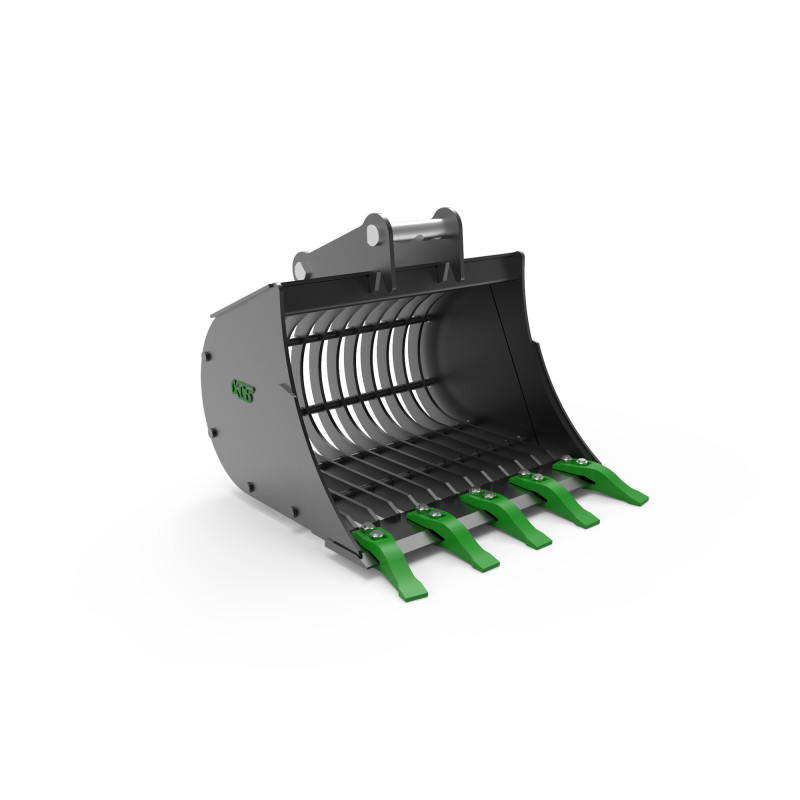

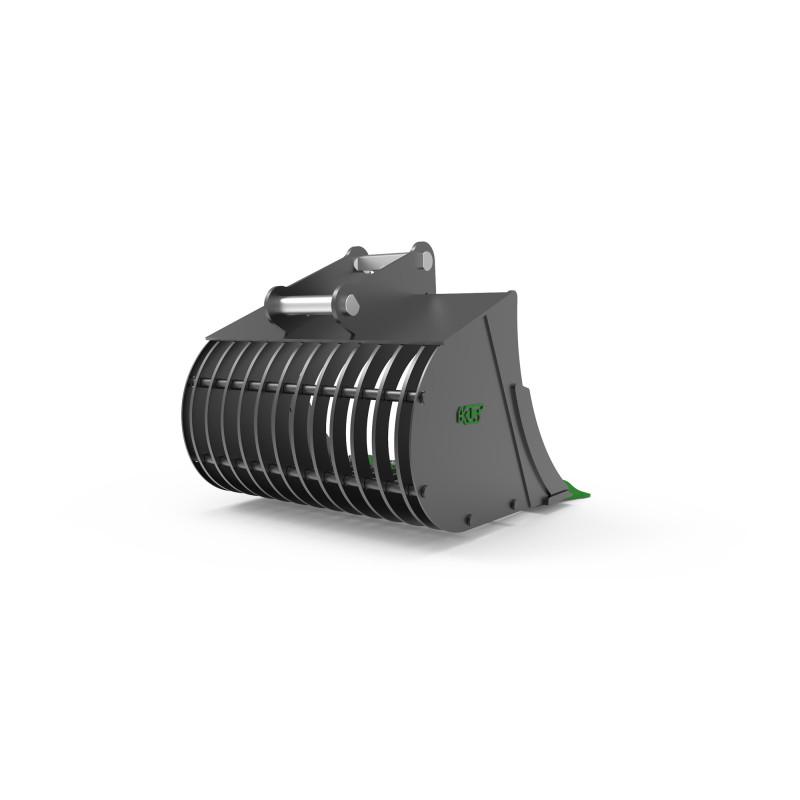

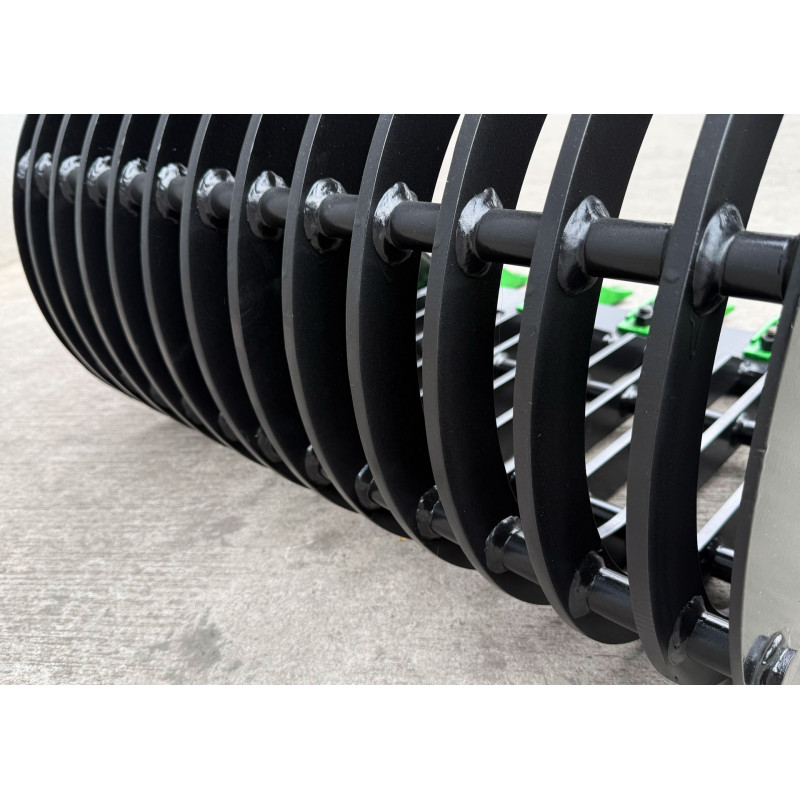

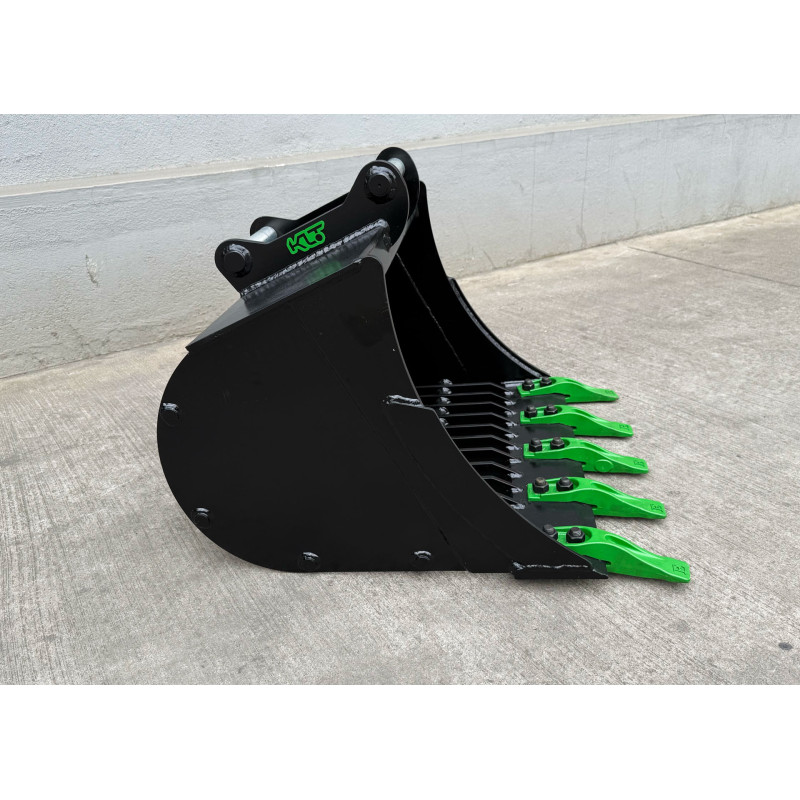

The SBS-S4-V1-800-S40 bucket is designed for 4–6-ton excavators and excels in intensive screening and sorting of loose materials. Its strong ribbed body provides efficient removal of fine fractions and separation from larger components present in the excavated material. The bucket’s durable construction, optimal working proportions and resistance to damage make it a great choice for earthworks, construction and reclamation projects where both speed and quality of screening are important.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 600 | 112 | 146,2 | 4 |
| 800 | 136 | 207 | 5 |
| 1000 | 165 | 267,6 | 5 |
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Ribs: | 10 mm | S355 |
| Cutting edge: | 20 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Rib spacing: | 45mm | - |
| Type | ||
| Teeth: | E25 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
SBS-S4-V1-800-S40
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 4-5t
5-6t - Adapter
- S40
- Width
- 800mm
- Weight without adapter
- 136kg
- Capacity
- 207 l
- Side/rear plate
- 5mm S355
- Front side plate
- 10mm S355
- Side cutters
- 8mm HB400
- Ribs
- 10mm S355
- Rib spacing
- 45mm
- Cutting edge
- 20x150mm HB400
- Top plate
- 8mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 5pcs
- Type of teeth
- E25
