Class: 4-6 T
Width: 700
Adapter: S40

Skeleton bucket 700mm S40 class 3-6t

Name: Skeleton bucket 700mm S40 class 3-6t
Brand: ZMG
SKU: LAP-ZMG3-700-S40
Price: 3687.54 PLN
Availability: InStock

3,687.54 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
600	96	157	4
700	108	189	5
800	120	221	5
900	132	253	5
1000	144	285	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Ribs:	10 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	6 mm	S355
Rib spacing:	45 mm

	Type
Teeth:	JCB

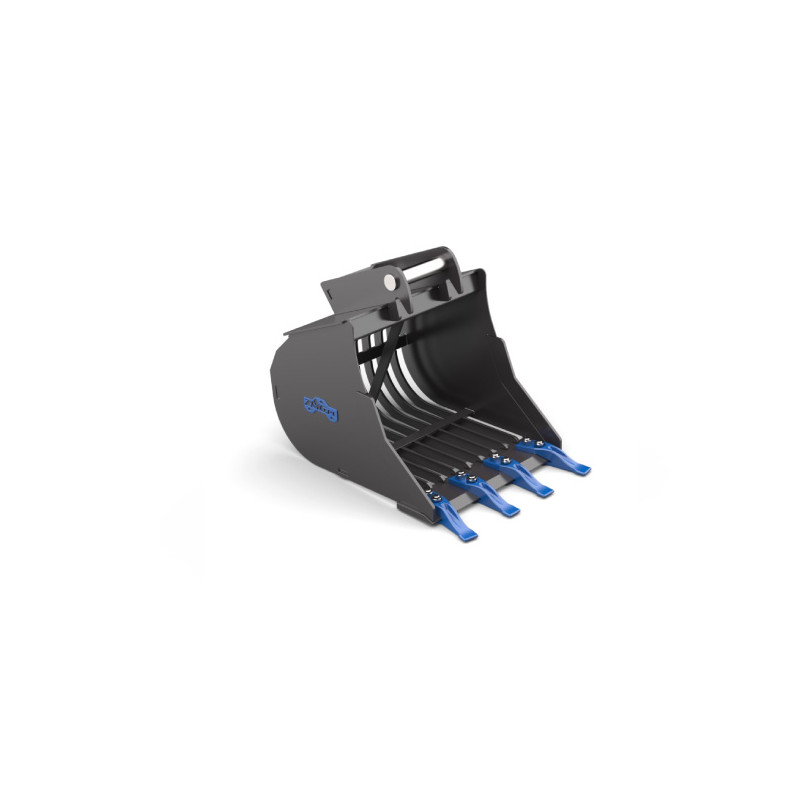

The LAP-ZMG3-700-S40 is a 700 mm skeleton bucket created for mini and compact excavators up to 2 t. Its open structure allows efficient screening and material separation, essential for aggregate sorting, scrap handling, and secondary material processing. The S40 adapter guarantees compatibility with machines equipped with the popular S40 standard, facilitating integration into existing machine fleets. The solid welded structure and steel bars guarantee durability and deformation resistance during intensive use.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG3

Reference LAP-ZMG3-700-S40

Data sheet

Lead time: up to 3 business weeks
For the machine: 3-4
4-5
5-6
Adapter: S40
Width: 700
Weight without adapter: 108
Capacity: 189
Side/rear plate: 5 S355
Side cutters: 8 HB400
Ribs: 10 S355
Rib spacing: 45
Cutting edge: 20 HB500
Top plate: 8 S355
Bend plate: 6 S355
Number of teeth: 5
Type of teeth: JCB
