Class: 6-9 T
Width: 600
Adapter: S45

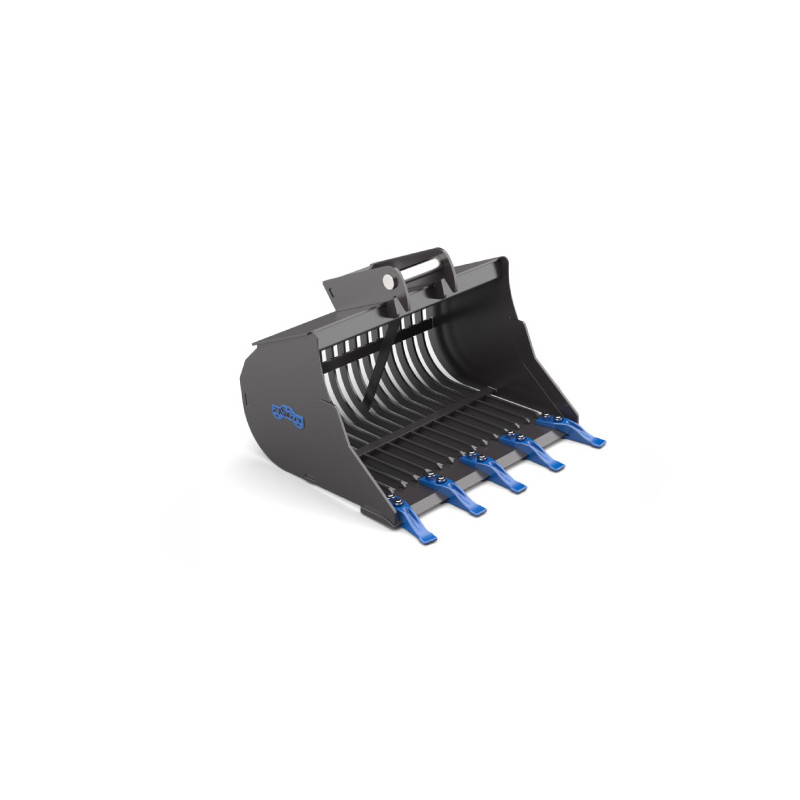

Skeleton bucket 600mm S45 class 6-8t

Skeleton bucket 600mm S45 class 6-8t

Skeleton bucket 600mm S45 class 6-8t

Skeleton bucket 600mm S45 class 6-8t

Skeleton bucket 600mm S45 class 6-8t

3,956.91 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
600	117	193	4
800	157	269	5
900	173	307	5
1000	190	345	5
1100	207	384	6
1200	224	430	6

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Ribs:	10 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	12 mm	HB400
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Rib spacing:	55 mm

	Type
Teeth:	JCB

The LAP-ZMG4-600-S45 is a 600 mm skeleton bucket created for excavators in the 6–8 t class. Its open structure allows efficient screening and material separation, essential for aggregate sorting, scrap handling, and secondary material processing. The S45 adapter is designed for large machines with the S45 standard, providing secure and durable mounting of heavy attachments. The steel frame and reinforced S355 steel bars ensure long service life even when working with hard, abrasive materials.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG4

Reference LAP-ZMG4-600-S45

Data sheet

Lead time: up to 3 business weeks
For the machine: 6-7
7-8
Adapter: S45
Width: 600
Weight without adapter: 117
Capacity: 193
Side/rear plate: 6 S355
Side cutters: 12 HB400
Ribs: 10 S355
Rib spacing: 55
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 4
Type of teeth: JCB
