Class: 6-9 T
Width: 1000
Adapter: MS08

Skeleton bucket 1000mm MS08 class 8-11t

Skeleton bucket 1000mm MS08 class 8-11t

Skeleton bucket 1000mm MS08 class 8-11t

Skeleton bucket 1000mm MS08 class 8-11t

Skeleton bucket 1000mm MS08 class 8-11t

7,362.78 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
800	216	344	4
1000	256	450	5
1200	296	555	6

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	8 mm	S355
Ribs:	12 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	12 mm	HB400
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Rib spacing:	55 mm

	Type
Teeth:	CAT J200

The LAP-ZMG5-1000-MS08 series is a 1000 mm skeleton bucket dedicated to heavy excavators in the 8–11 t class. Openings in the base and sides let fine material fall through freely, making it indispensable for stone-soil separation, recycling, and landscaping work. The Lehnhoff MS08 quick coupler is designed for heavy machines, ensuring secure attachment and rapid tool changes on demanding job sites. The steel frame and reinforced S355 steel bars ensure long service life even when working with hard, abrasive materials.

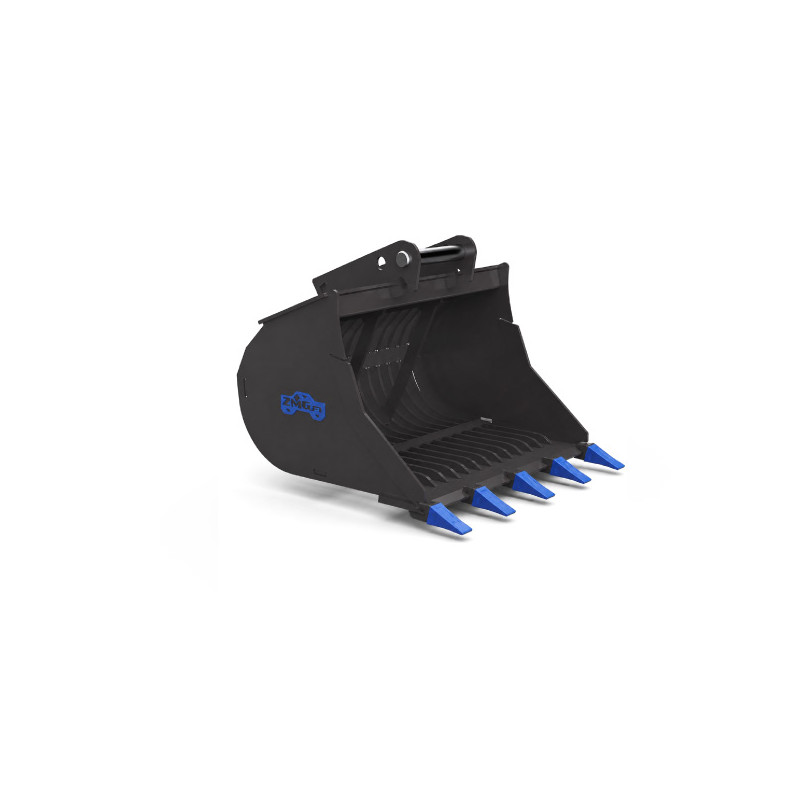

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG5

Reference LAP-ZMG5-1000-MS08

Data sheet

Lead time: up to 3 business weeks
For the machine: 8-9
9-10
10-11
Adapter: MS08
Width: 1000
Weight without adapter: 256
Capacity: 450
Side/rear plate: 8 S355
Side cutters: 12 HB400
Ribs: 12 S355
Rib spacing: 55
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 5
Type of teeth: CAT J200
