Class: 2-3 T
Width: 700
Adapter: S40

Skeleton bucket 700mm S40 class 2-3t

Name: Skeleton bucket 700mm S40 class 2-3t
Brand: ZMG
SKU: LAP-ZMG2-700-S40
Price: 2554.71 PLN
Availability: InStock

2,554.71 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
500	49	69	4
600	56	85	4
700	64	100	4
800	71	116	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Ribs:	8 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	40 mm

	Type
Teeth:	JCB Mini

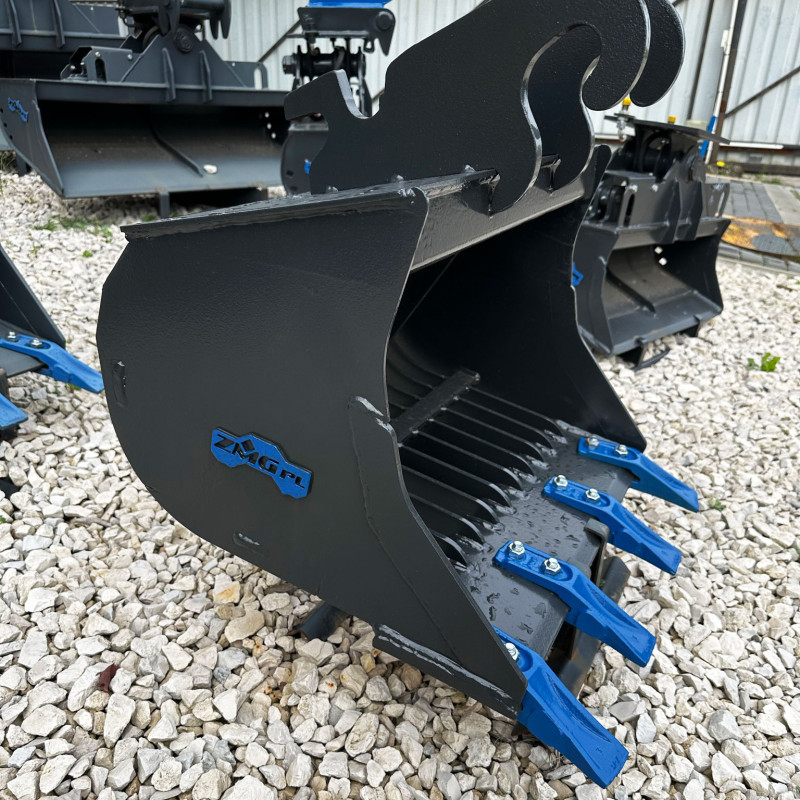

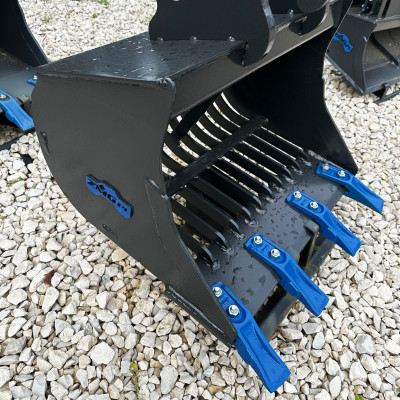

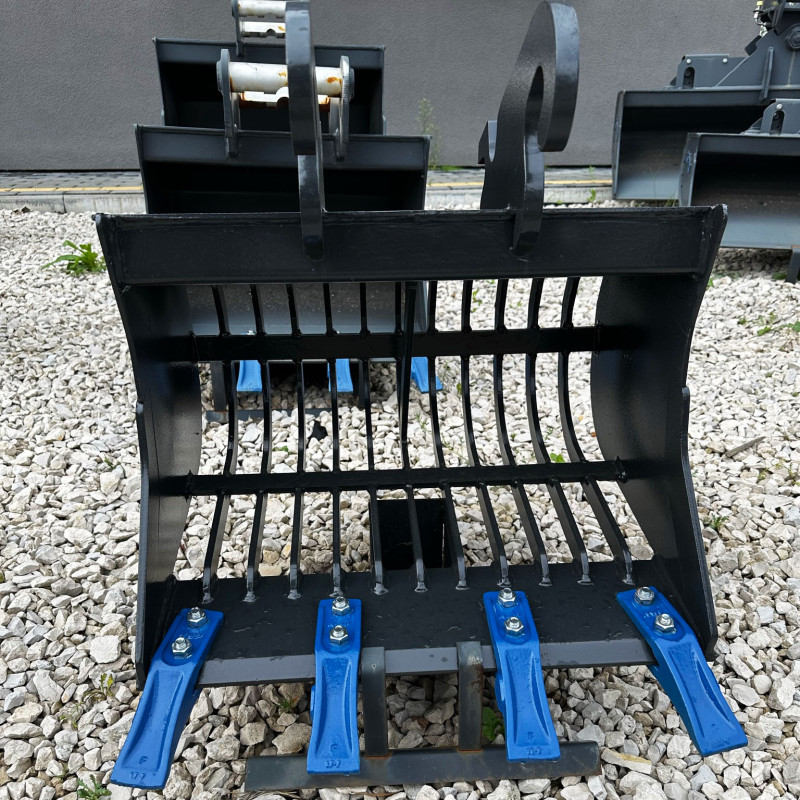

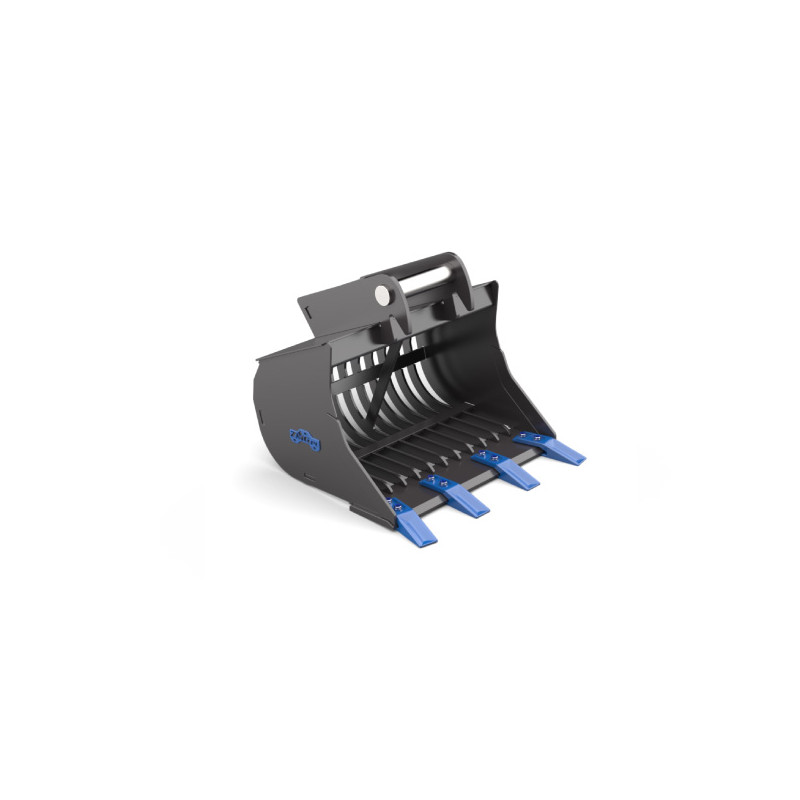

The LAP-ZMG2-700-S40 skeleton bucket, 700 mm wide, was designed with small excavators in the 2–3 t class in mind. The tool is ideal for separating stones from soil, recycling operations, and collecting organic material in forest and agricultural settings. The S40 adapter guarantees compatibility with machines equipped with the popular S40 standard, facilitating integration into existing machine fleets. The steel frame and reinforced S355 steel bars ensure long service life even when working with hard, abrasive materials.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG2

Reference LAP-ZMG2-700-S40

Data sheet

Lead time: up to 3 business weeks
For the machine: 2-3
Adapter: S40
Width: 700
Weight without adapter: 64
Capacity: 100
Side/rear plate: 5 S355
Side cutters: 8 HB400
Ribs: 8 S355
Rib spacing: 40
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: JCB Mini
