Class: 2-3 T
Width: 500
Adapter: with pins

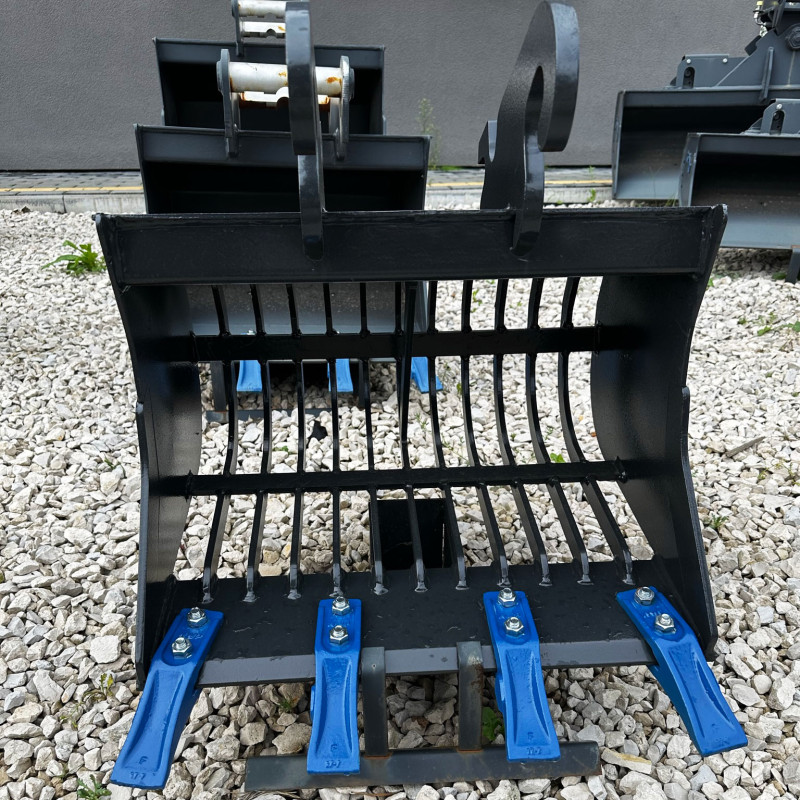

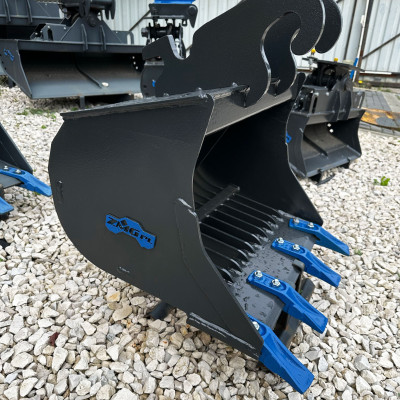

Skeleton bucket 500mm with pins class 2-3t

Skeleton bucket 500mm with pins class 2-3t

Skeleton bucket 500mm with pins class 2-3t

Skeleton bucket 500mm with pins class 2-3t

Skeleton bucket 500mm with pins class 2-3t

Skeleton bucket 500mm with pins class 2-3t

Skeleton bucket 500mm with pins class 2-3t

Skeleton bucket 500mm with pins class 2-3t

Skeleton bucket 500mm with pins class 2-3t

Skeleton bucket 500mm with pins class 2-3t

Skeleton bucket 500mm with pins class 2-3t

2,269.35 zł

Tax included

In stock Lead time: up to 3 business weeks

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
500	49	69	4
600	56	85	4
700	64	100	4
800	71	116	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Ribs:	8 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	40 mm

	Type
Teeth:	JCB Mini

The LAP-ZMG2-500-ZSW skeleton bucket, 500 mm wide, was designed with small excavators in the 2–3 t class in mind. The tool is ideal for separating stones from soil, recycling operations, and collecting organic material in forest and agricultural settings. Pin mounting provides a traditional, proven and robust connection between the attachment and the excavator arm, independent of any quick coupler system. High-quality steel and careful welding technology ensure the bucket retains its shape and working properties over a long service life.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG2

Reference LAP-ZMG2-500-ZSW

Data sheet

Lead time: up to 3 business weeks
For the machine: 2-3
Adapter: with pins
Width: 500
Weight without adapter: 49
Capacity: 69
Side/rear plate: 5 S355
Side cutters: 8 HB400
Ribs: 8 S355
Rib spacing: 40
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: JCB Mini
