Class: 4-6 T
Width: 1000
Adapter: CW10

Skeleton bucket 1000mm CW10 class 3-6t

Name: Skeleton bucket 1000mm CW10 class 3-6t
Brand: ZMG
SKU: LAP-ZMG3-1000-CW10
Price: 4904.01 PLN
Availability: InStock

4,904.01 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
600	96	157	4
700	108	189	5
800	120	221	5
900	132	253	5
1000	144	285	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Ribs:	10 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	6 mm	S355
Rib spacing:	45 mm

	Type
Teeth:	JCB

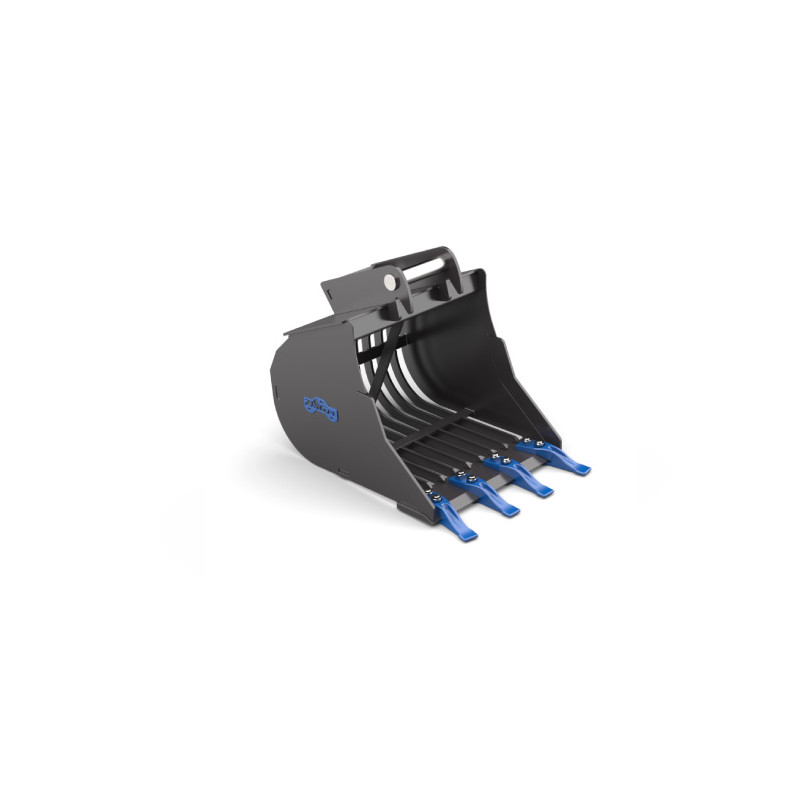

The LAP-ZMG3-1000-CW10 skeleton bucket with a working width of 1000 mm is a specialist tool designed for mini and compact excavators up to 2 t. It is excellent for soil screening, stone separation, and sorting bulk materials from earth on construction sites and in forestry operations. The Verachtert CW10 quick coupler system, designed for heavier applications, provides reliable and stable attachment-to-machine connection. High-quality steel and careful welding technology ensure the bucket retains its shape and working properties over a long service life.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG3

Reference LAP-ZMG3-1000-CW10

Data sheet

Lead time: up to 3 business weeks
For the machine: 3-4
4-5
5-6
Adapter: CW10
Width: 1000
Weight without adapter: 144
Capacity: 285
Side/rear plate: 5 S355
Side cutters: 8 HB400
Ribs: 10 S355
Rib spacing: 45
Cutting edge: 20 HB500
Top plate: 8 S355
Bend plate: 6 S355
Number of teeth: 5
Type of teeth: JCB
