Class: 8-11 T
Width: 800
Adapter: MS08SY

Skeleton bucket 800mm MS08SY class 8-11t

Skeleton bucket 800mm MS08SY class 8-11t

Name: Skeleton bucket 800mm MS08SY class 8-11t
Brand: ZMG
SKU: LAP-ZMG5-800-MS08SY
Price: 6558.36 PLN
Availability: InStock

6,558.36 zł Tax included

In stock Lead time up to 3 business weeks

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Lehnhoff system- MS08SY-without base plate

Reference: AD-WOP-MS08SY

Built for the MS08SY system, the AD-WOP-MS08SY is a durable base-plate-free adapter. It provides high precision during attachment and enables rapid tool coupling, significantly reducing retooling time.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 5-6, 6-7, 7-8, 8-9, 9-10
Adapter: MS08SY
Side plate: 16 S355
Pin diameter: 60
Inner width: 297
Pin spacing: 434
Weight: 29

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing* [mm]
MS01	40	185	225
MS01SY	40	185	255
MS03	50	205	283,6
MS03SY	50	205	322
MS08	60	295	381
MS08SY	60	297	434

*In the technical specification, refer to the spacing between the pin and the thrust plate.

Parameters

The main components are made of the following materials and thicknesses:

	MS01		MS01SY		MS03		MS03SY		MS08		MS08SY
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	10mm	S355	10mm	S355	12mm	S355	12mm	S355	16mm	S355	16mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
800	216	344	4
1000	256	450	5
1200	296	555	6

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	8 mm	S355
Ribs:	12 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	12 mm	HB400
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Rib spacing:	55 mm

	Type
Teeth:	CAT J200

Alternative products with a different lead time:

up to 48 hours Class: 6-9 T Kalanto 5,193.06 zł

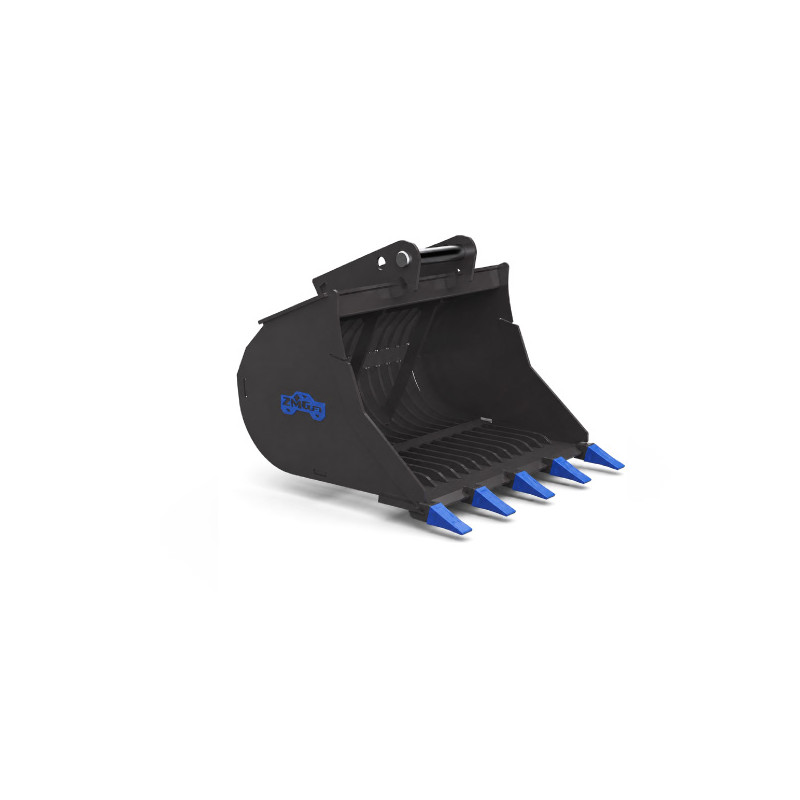

The LAP-ZMG5-800-MS08SY skeleton bucket with a working width of 800 mm is a specialist tool designed for heavy excavators in the 8–11 t class. It is excellent for soil screening, stone separation, and sorting bulk materials from earth on construction sites and in forestry operations. The hydraulic Lehnhoff MS08SY quick coupler enables operators to swap heavy attachments directly from the cab, eliminating manual coupling and improving safety. The solid welded structure and steel bars guarantee durability and deformation resistance during intensive use.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG5

Reference LAP-ZMG5-800-MS08SY

Data sheet

Lead time: up to 3 business weeks
For the machine: 8-9
9-10
10-11
Adapter: MS08SY
Width: 800
Weight without adapter: 216
Capacity: 344
Side/rear plate: 8 S355
Side cutters: 12 HB400
Ribs: 12 S355
Rib spacing: 55
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 4
Type of teeth: CAT J200
