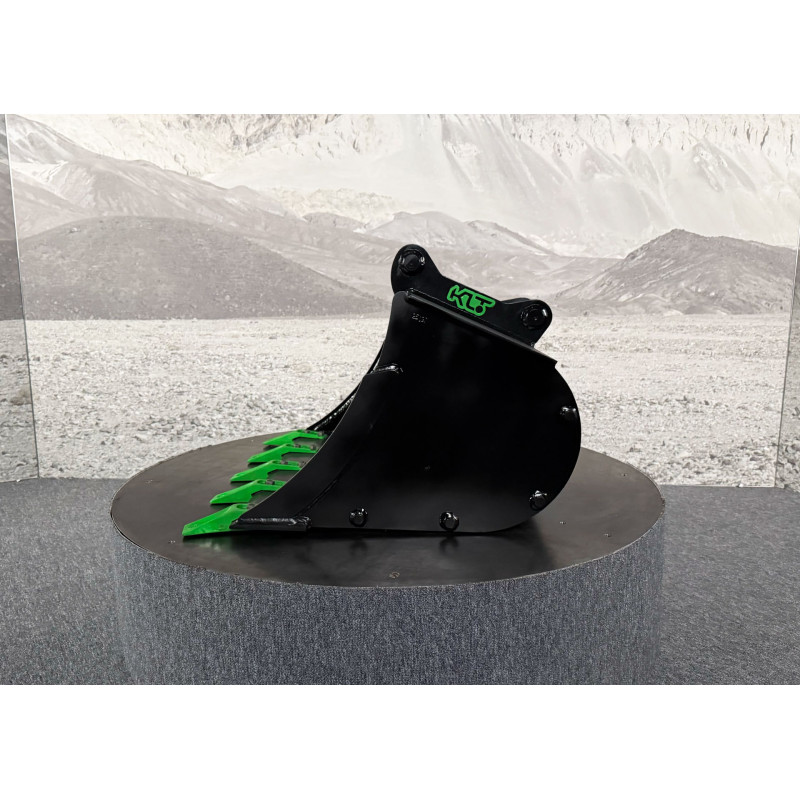

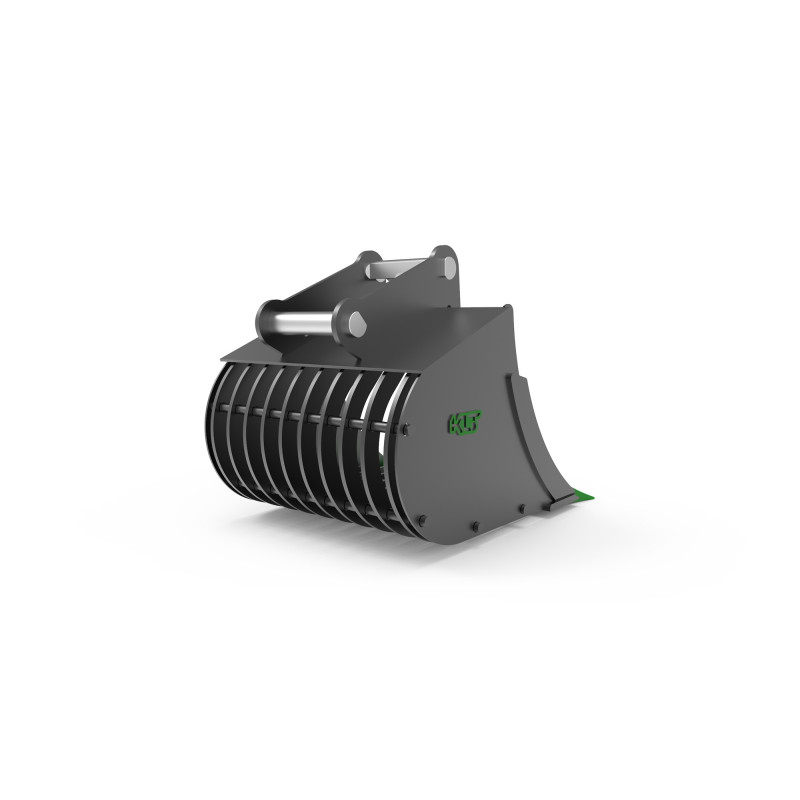

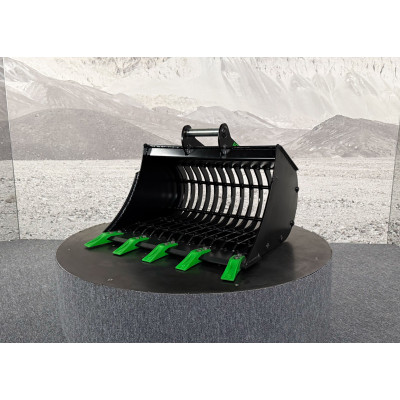

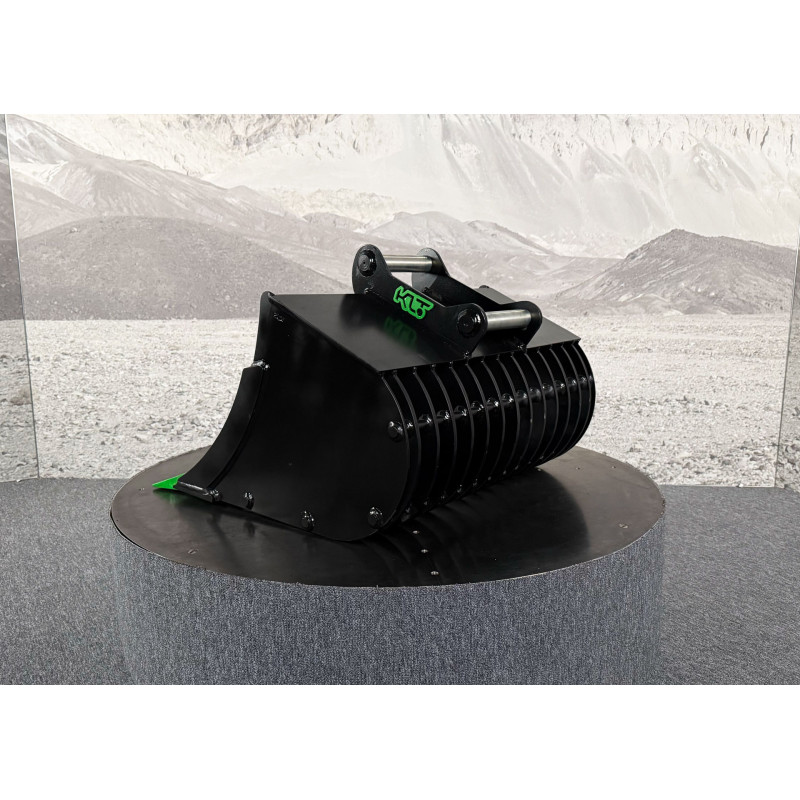

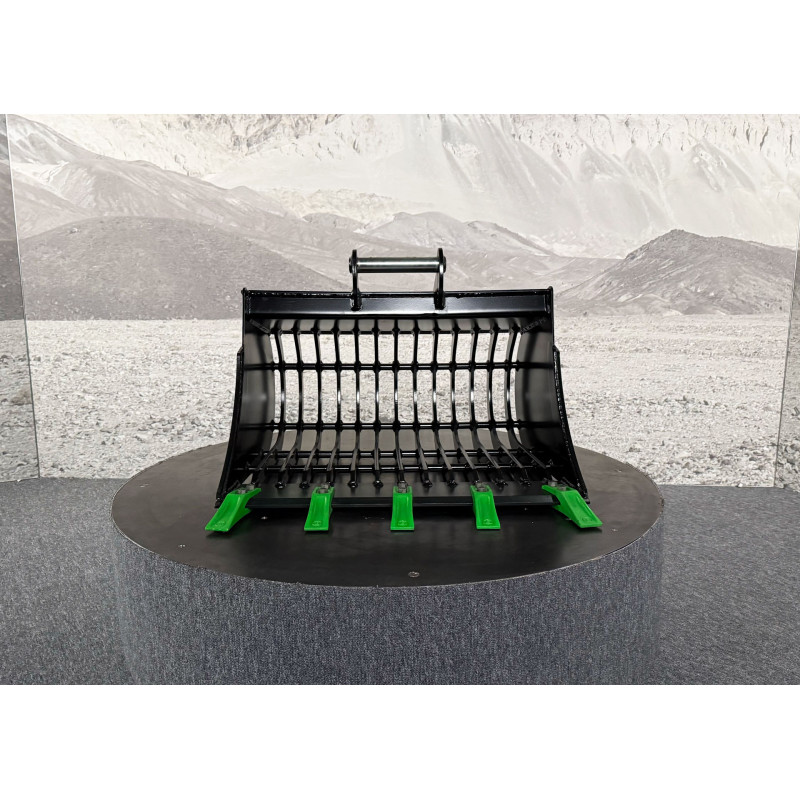

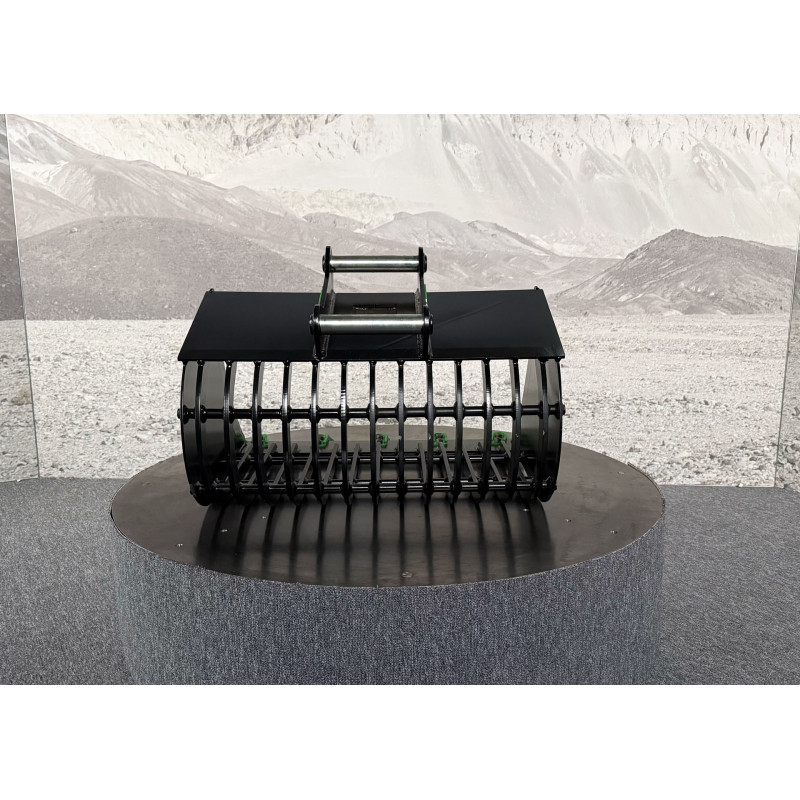

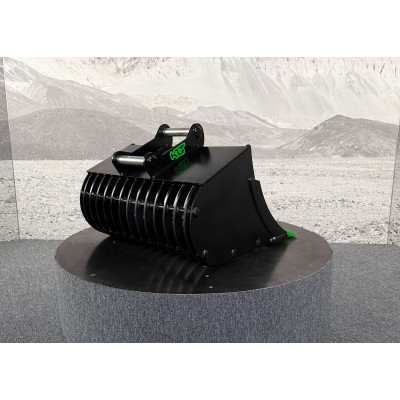

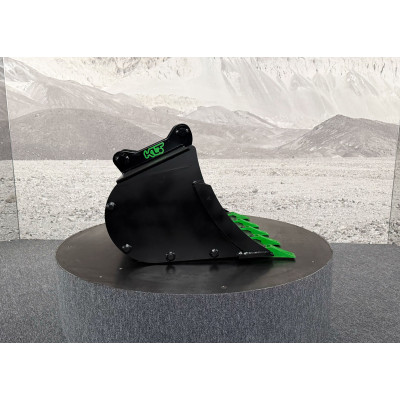

Skeleton bucket 800mm MS03SY class 3-4t
2,942.16 zł
Tax included
The SBS-S3-V1-800-MS03SY bucket is a heavy-duty skeleton model dedicated to excavators in the 3–4-ton weight class. Its solid ribbed structure enables efficient screening and accurate separation of various fractions such as stones, rubble or roots. The bucket’s optimized design, proportions and geometry provide smooth loading and effortless dumping, resulting in higher work efficiency during earthmoving, cleanup and sorting tasks..
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 600 | 80 | 117 | 4 |
| 800 | 99 | 164 | 5 |

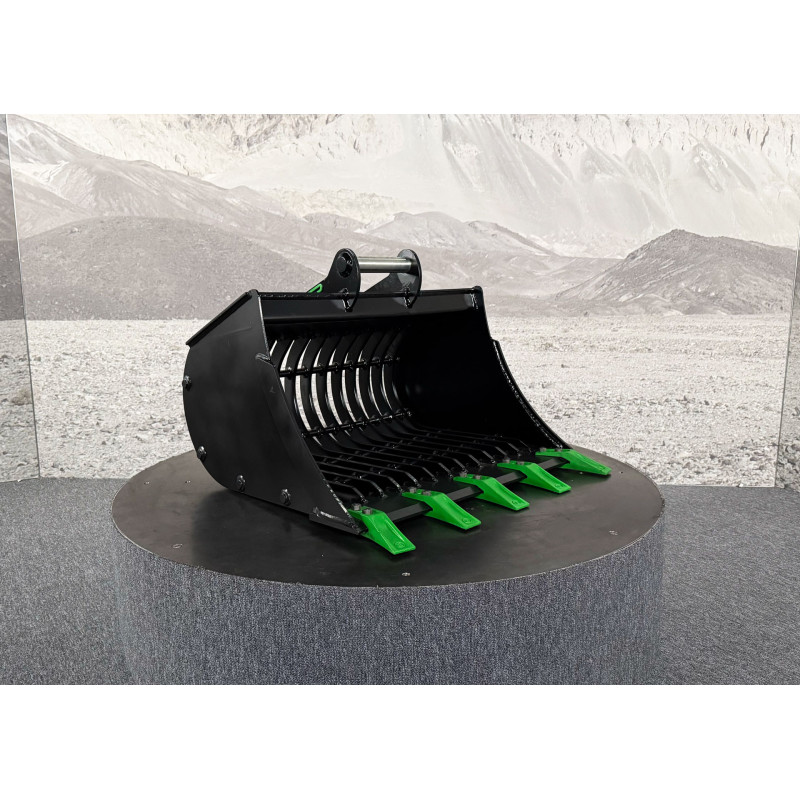

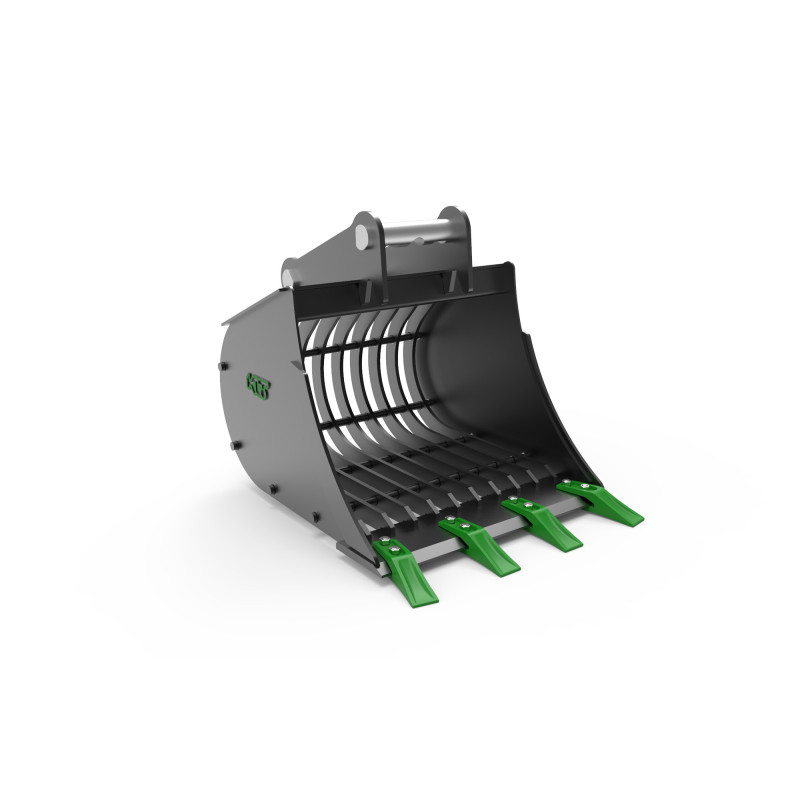

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Ribs: | 10 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 6 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Rib spacing: | 45mm | - |
| Type | ||
| Teeth: | E11.4 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
SBS-S3-V1-800-MS03SY
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 3-4t
- Adapter
- MS03SY
- Width
- 800mm
- Weight without adapter
- 99kg
- Capacity
- 164 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Ribs
- 10mm S355
- Rib spacing
- 45mm
- Cutting edge
- 16x150mm HB400
- Top plate
- 6mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 5pcs
- Type of teeth
- E11.4
