Class: 6-9 T
Width: 900
Adapter: M10

Skeleton bucket 900mm M10 class 6-8t

Name: Skeleton bucket 900mm M10 class 6-8t
Brand: ZMG
SKU: LAP-ZMG4-900-M10
Price: 4998.72 PLN
Availability: InStock

4,998.72 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
600	117	193	4
800	157	269	5
900	173	307	5
1000	190	345	5
1100	207	384	6
1200	224	430	6

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Ribs:	10 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	12 mm	HB400
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Rib spacing:	55 mm

	Type
Teeth:	JCB

Model LAP-ZMG4-900-M10 is a 900 mm skeleton bucket dedicated to excavators in the 6–8 t class. Its perforated structure enables efficient aggregate sorting, soil sieving, and selective material collection without transporting unwanted water or fine particles. The MartinM10 adapter ensures M10 system compatibility, allowing seamless attachment mounting on machines equipped with this standard. The solid welded structure and steel bars guarantee durability and deformation resistance during intensive use.

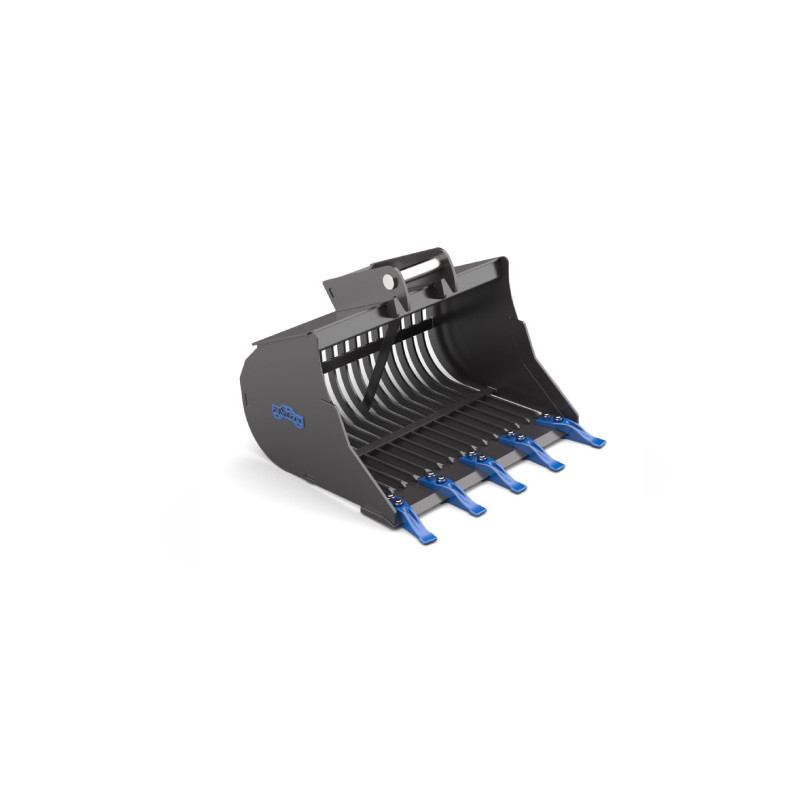

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG4

Reference LAP-ZMG4-900-M10

Data sheet

Lead time: up to 3 business weeks
For the machine: 6-7
7-8
Adapter: M10
Width: 900
Weight without adapter: 173
Capacity: 307
Side/rear plate: 6 S355
Side cutters: 12 HB400
Ribs: 10 S355
Rib spacing: 55
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 5
Type of teeth: JCB
