Class: 4-6 T
Width: 700
Adapter: MS03SY

Skeleton bucket 700mm MS03SY class 3-6t

Name: Skeleton bucket 700mm MS03SY class 3-6t
Brand: ZMG
SKU: LAP-ZMG3-700-MS03SY
Price: 3856.05 PLN
Availability: InStock

3,856.05 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

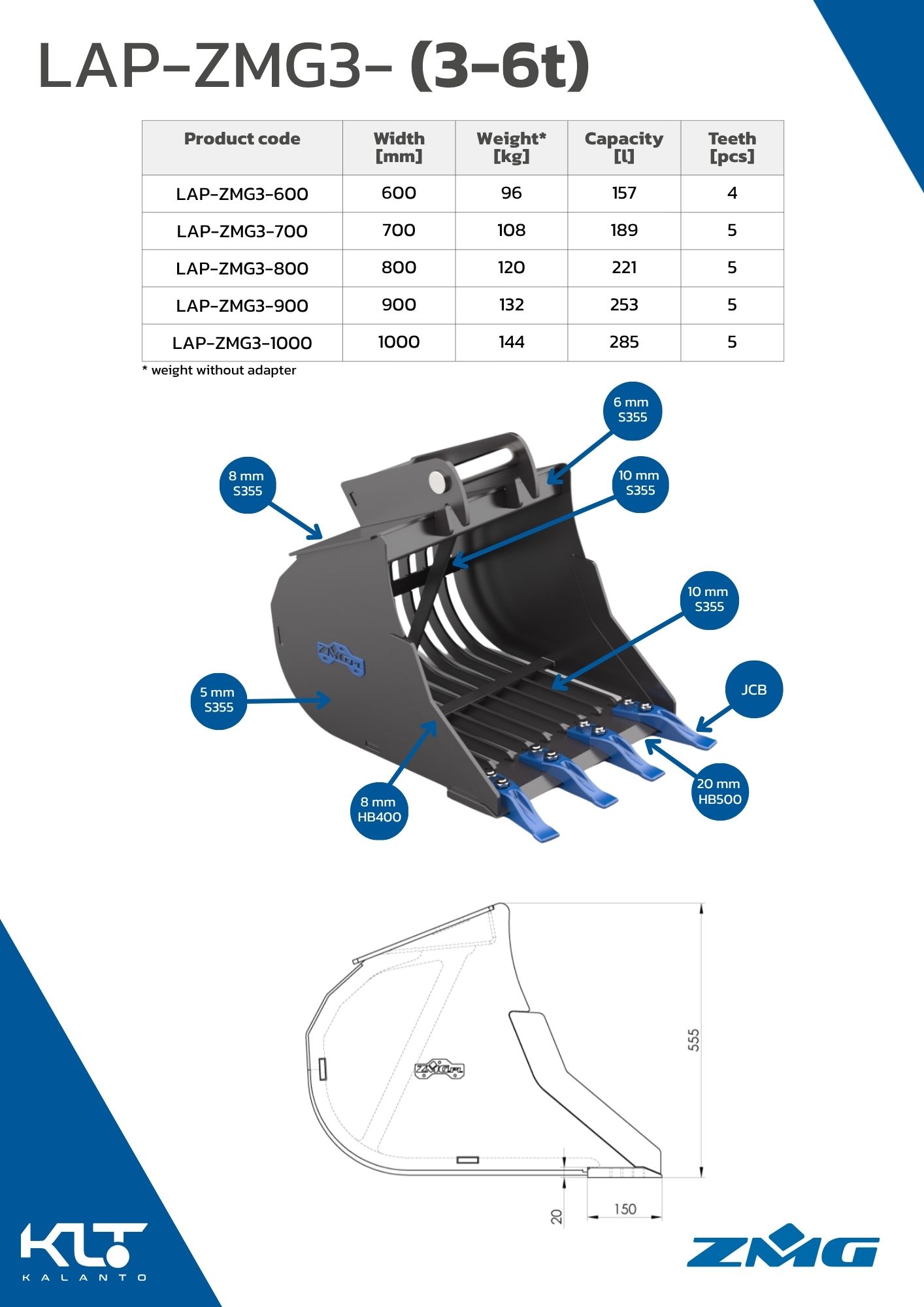

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
600	96	157	4
700	108	189	5
800	120	221	5
900	132	253	5
1000	144	285	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Ribs:	10 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	6 mm	S355
Rib spacing:	45 mm

	Type
Teeth:	JCB

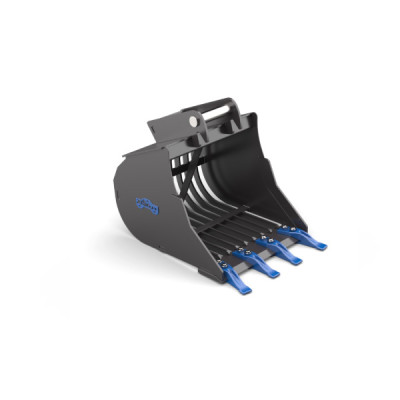

The LAP-ZMG3-700-MS03SY skeleton bucket with a working width of 700 mm is a specialist tool designed for mini and compact excavators up to 2 t. It is excellent for soil screening, stone separation, and sorting bulk materials from earth on construction sites and in forestry operations. The hydraulic Lehnhoff MS03SY quick coupler lets the operator change attachments without leaving the cab, increasing productivity and safety. The steel frame and reinforced S355 steel bars ensure long service life even when working with hard, abrasive materials.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG3

Reference LAP-ZMG3-700-MS03SY

Data sheet

Lead time: up to 3 business weeks
For the machine: 3-4
4-5
5-6
Adapter: MS03SY
Width: 700
Weight without adapter: 108
Capacity: 189
Side/rear plate: 5 S355
Side cutters: 8 HB400
Ribs: 10 S355
Rib spacing: 45
Cutting edge: 20 HB500
Top plate: 8 S355
Bend plate: 6 S355
Number of teeth: 5
Type of teeth: JCB
