Class: 2-3 T
Width: 500
Adapter: MS03SY

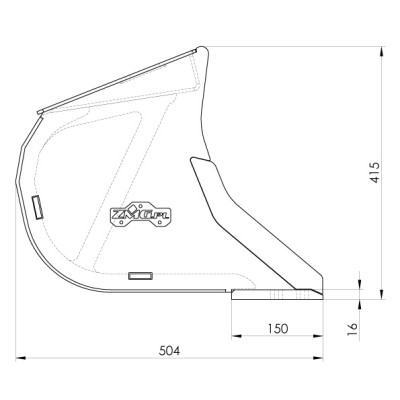

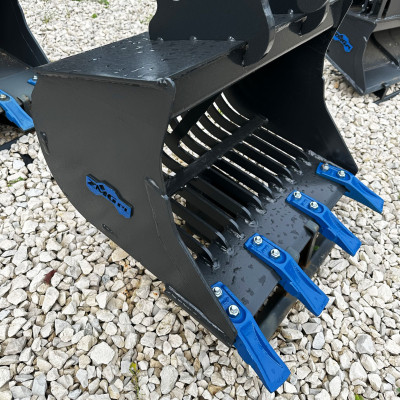

Skeleton bucket 500mm MS03SY class 2-3t

Name: Skeleton bucket 500mm MS03SY class 2-3t
Brand: ZMG
SKU: LAP-ZMG2-500-MS03SY
Price: 2253.36 PLN
Availability: InStock

2,253.36 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
500	49	69	4
600	56	85	4
700	64	100	4
800	71	116	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Ribs:	8 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	40 mm

	Type
Teeth:	JCB Mini

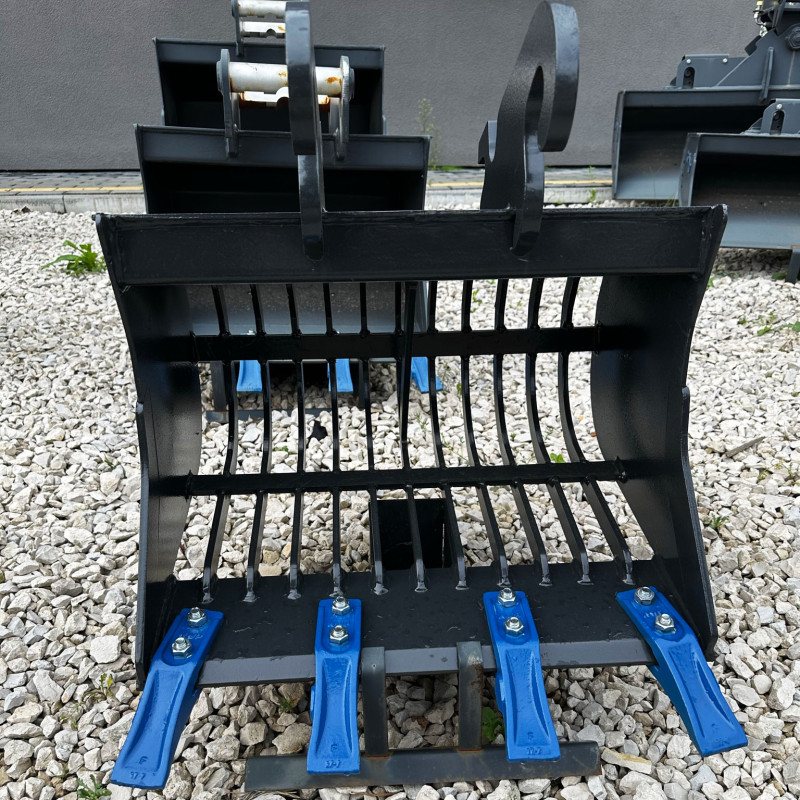

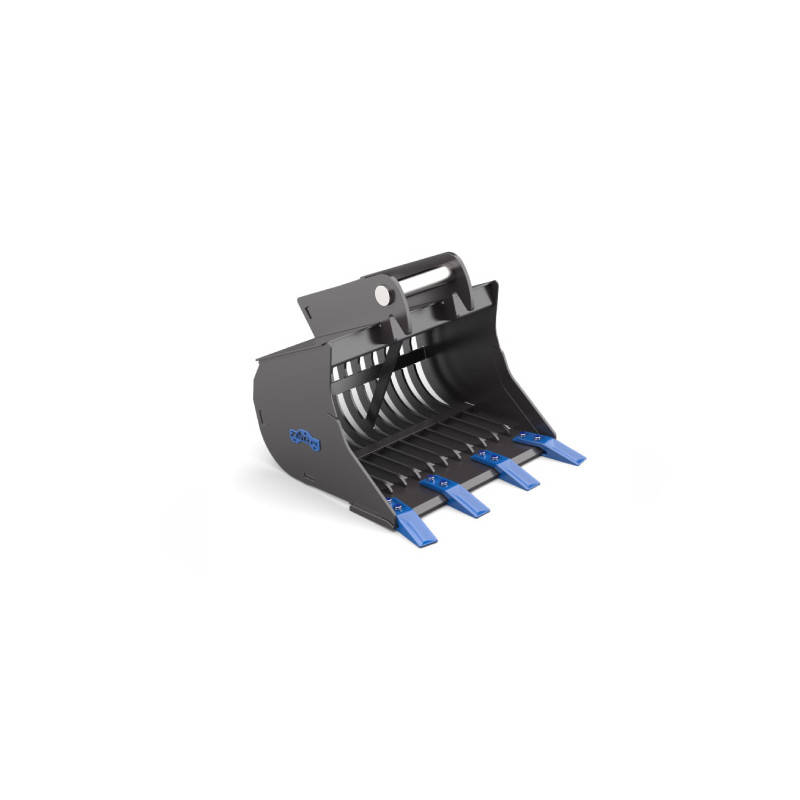

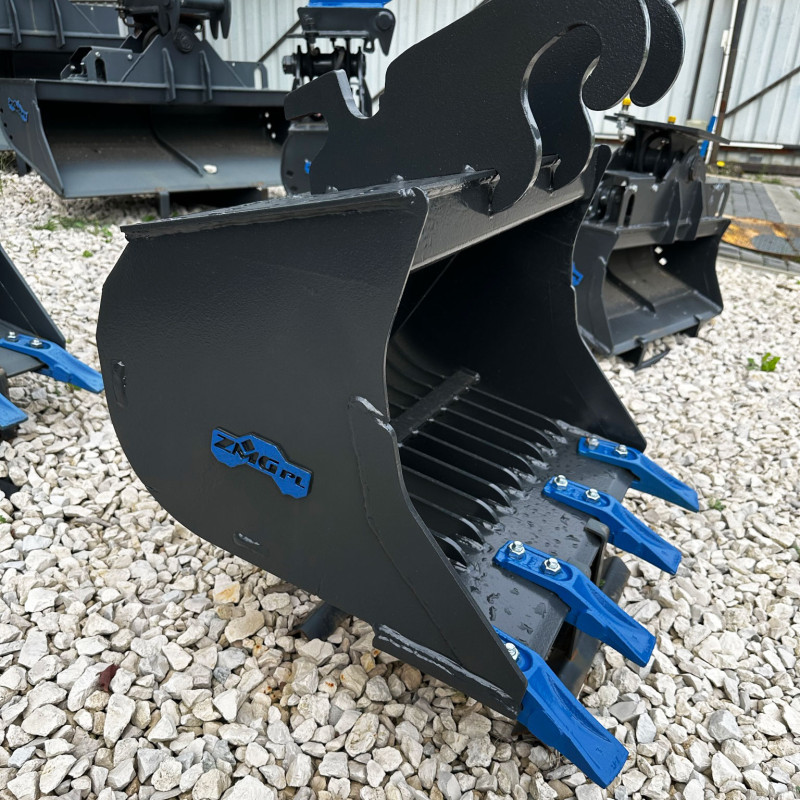

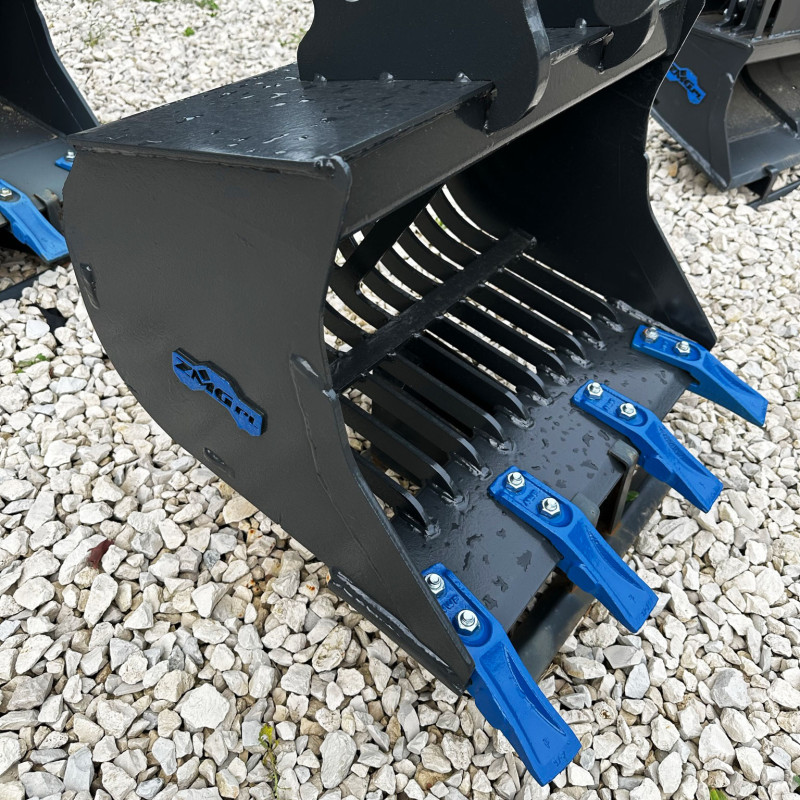

The LAP-ZMG2-500-MS03SY skeleton bucket, 500 mm wide, was designed with small excavators in the 2–3 t class in mind. The tool is ideal for separating stones from soil, recycling operations, and collecting organic material in forest and agricultural settings. The hydraulic Lehnhoff MS03SY quick coupler lets the operator change attachments without leaving the cab, increasing productivity and safety. The steel frame and reinforced S355 steel bars ensure long service life even when working with hard, abrasive materials.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG2

Reference LAP-ZMG2-500-MS03SY

Data sheet

Lead time: up to 3 business weeks
For the machine: 2-3
Adapter: MS03SY
Width: 500
Weight without adapter: 49
Capacity: 69
Side/rear plate: 5 S355
Side cutters: 8 HB400
Ribs: 8 S355
Rib spacing: 40
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: JCB Mini

16 other products in the same category:

Class: 6-9 T
Width: 1200
Adapter: S45

ZMG

Skeleton bucket 1200mm S45 class 8-11t

8,420.58 zł

In stock

Model LAP-ZMG5-1200-S45 is a 1200 mm skeleton bucket dedicated to heavy excavators in the 8–11 t class. Its perforated structure enables efficient aggregate sorting, soil sieving, and selective...

Class: 4-6 T
Width: 800
Adapter: MS03

ZMG

Skeleton bucket 800mm MS03 class 3-6t

4,004.88 zł

In stock

The LAP-ZMG3-800-MS03 skeleton bucket, 800 mm wide, was designed with mini and compact excavators up to 2 t in mind. The tool is ideal for separating stones from soil, recycling operations, and...

Class: 2-3 T
Width: 800
Adapter: MS03SY

ZMG

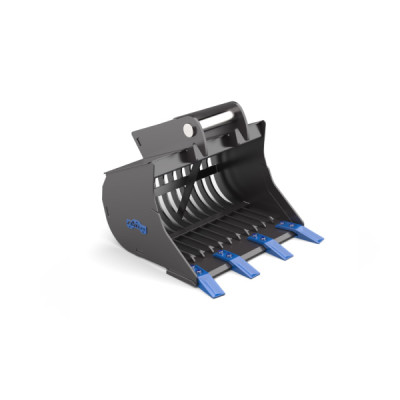

Skeleton bucket 800mm MS03SY class 2-3t

2,983.98 zł

In stock

The LAP-ZMG2-800-MS03SY series is a 800 mm skeleton bucket dedicated to small excavators in the 2–3 t class. Openings in the base and sides let fine material fall through freely, making it...

Class: 2-3 T
Width: 800
Adapter: MS03

ZMG

Skeleton bucket 800mm MS03 class 2-3t

2,814.24 zł

In stock

Model LAP-ZMG2-800-MS03 is a 800 mm skeleton bucket dedicated to small excavators in the 2–3 t class. Its perforated structure enables efficient aggregate sorting, soil sieving, and selective...

Class: 2-3 T
Width: 700
Adapter: CW05

ZMG

Skeleton bucket 700mm CW05 class 2-3t

2,554.71 zł

In stock

The LAP-ZMG2-700-CW05 is a 700 mm skeleton bucket created for small excavators in the 2–3 t class. Its open structure allows efficient screening and material separation, essential for aggregate...

Class: 6-9 T
Width: 1100
Adapter: MS08

ZMG

Skeleton bucket 1100mm MS08 class 6-8t

5,876.94 zł

In stock

The LAP-ZMG4-1100-MS08 series is a 1100 mm skeleton bucket dedicated to excavators in the 6–8 t class. Openings in the base and sides let fine material fall through freely, making it indispensable...

Skeleton bucket 1200mm without adapter class 6-8t

Class: 6-9 T
Width: 1200
Adapter: Without adapter

ZMG

Skeleton bucket 1200mm without adapter class 6-8t

5,490.72 zł

In stock

The LAP-ZMG4-1200-WOA skeleton bucket, 1200 mm wide, was designed with excavators in the 6–8 t class in mind. The tool is ideal for separating stones from soil, recycling operations, and...

Class: 6-9 T
Width: 600
Adapter: MS08SY

ZMG

Skeleton bucket 600mm MS08SY class 6-8t

4,210.29 zł

In stock

The LAP-ZMG4-600-MS08SY skeleton bucket with a working width of 600 mm is a specialist tool designed for excavators in the 6–8 t class. It is excellent for soil screening, stone separation, and...

Class: 6-9 T
Width: 800
Adapter: MS08SY

Kalanto

Skeleton bucket 800mm MS08SY class 6-9t

5,193.06 zł

In stock

The SBS-S5-V1-800-MS08SY model is a skeleton bucket designed for excavators weighing between 6 and 9 tons. Built for intensive use, it performs exceptionally well in screening, sorting and...

Class: 4-6 T
Width: 900
Adapter: S40

ZMG

Skeleton bucket 900mm S40 class 3-6t

4,322.22 zł

In stock

The LAP-ZMG3-900-S40 skeleton bucket, 900 mm wide, was designed with mini and compact excavators up to 2 t in mind. The tool is ideal for separating stones from soil, recycling operations, and...

Class: 2-3 T
Width: 800
Adapter: CW05

ZMG

Skeleton bucket 800mm CW05 class 2-3t

2,814.24 zł

In stock

The LAP-ZMG2-800-CW05 series is a 800 mm skeleton bucket dedicated to small excavators in the 2–3 t class. Openings in the base and sides let fine material fall through freely, making it...

Class: 4-6 T
Width: 800
Adapter: MS03SY

ZMG

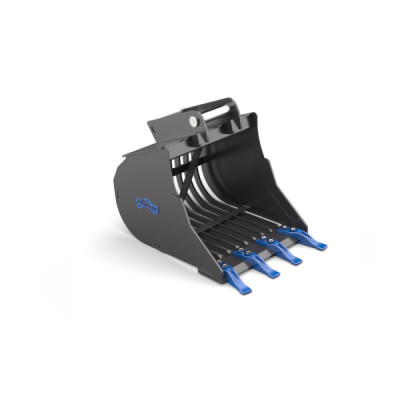

Skeleton bucket 800mm MS03SY class 3-6t

4,173.39 zł

In stock

The LAP-ZMG3-800-MS03SY skeleton bucket with a working width of 800 mm is a specialist tool designed for mini and compact excavators up to 2 t. It is excellent for soil screening, stone...

Class: 0-2 T
Width: 800
Adapter: M03

ZMG

Skeleton bucket 800mm M03 class 0-2t

2,365.29 zł

In stock

The LAP-ZMG1-800-M03 series is a 800 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Openings in the base and sides let fine material fall through freely, making it...

Class: 4-6 T
Width: 800
Adapter: M10

ZMG

Skeleton bucket 800mm M10 class 3-6t

4,269.33 zł

In stock

Model LAP-ZMG3-800-M10 is a 800 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Its perforated structure enables efficient aggregate sorting, soil sieving, and selective...

Skeleton bucket 1000mm MS03SY class 4-6t

Class: 4-6 T
Width: 1000
Adapter: MS03SY

Kalanto

Skeleton bucket 1000mm MS03SY class 4-6t

4,463.67 zł

In stock

The SBS-S4-V1-1000-MS03SY bucket is a strong and efficient ribbed construction designed for excavators in the 4–6-ton class. Its large ribbed working surface ensures excellent material flow,...

Skeleton bucket 800mm without adapter class 8-11t

Class: 6-9 T
Width: 800
Adapter: Without adapter

ZMG

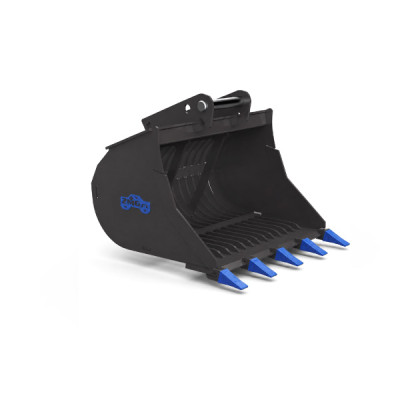

Skeleton bucket 800mm without adapter class 8-11t
