Class: 6-9 T
Width: 1200
Adapter: Without adapter

Skeleton bucket 1200mm without adapter class 8-11t

Skeleton bucket 1200mm without adapter class 8-11t

Name: Skeleton bucket 1200mm without adapter class 8-11t
Brand: ZMG
SKU: LAP-ZMG5-1200-WOA
Price: 7627.23 PLN
Availability: InStock

7,627.23 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

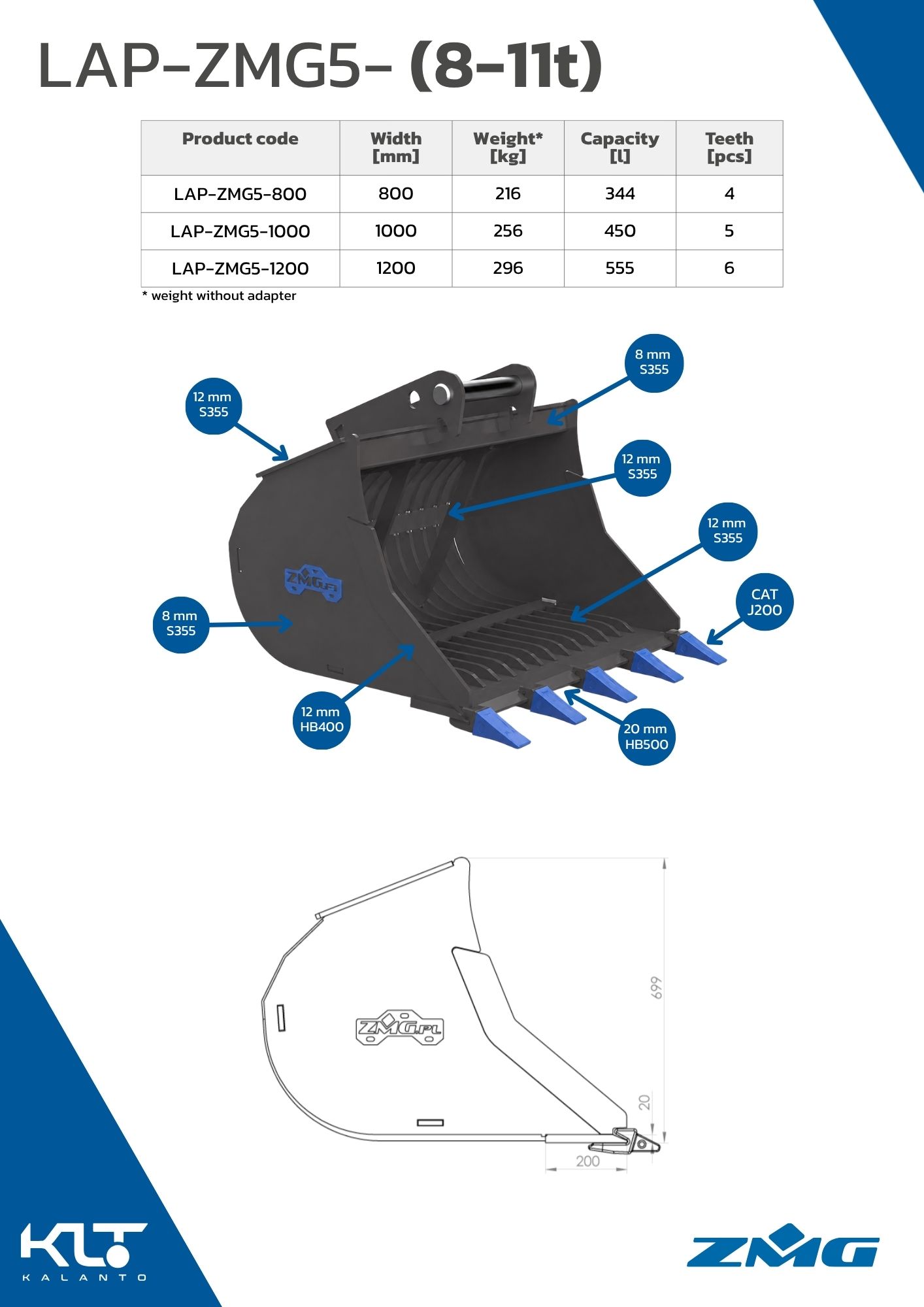

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
800	216	344	4
1000	256	450	5
1200	296	555	6

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	8 mm	S355
Ribs:	12 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	12 mm	HB400
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Rib spacing:	55 mm

	Type
Teeth:	CAT J200

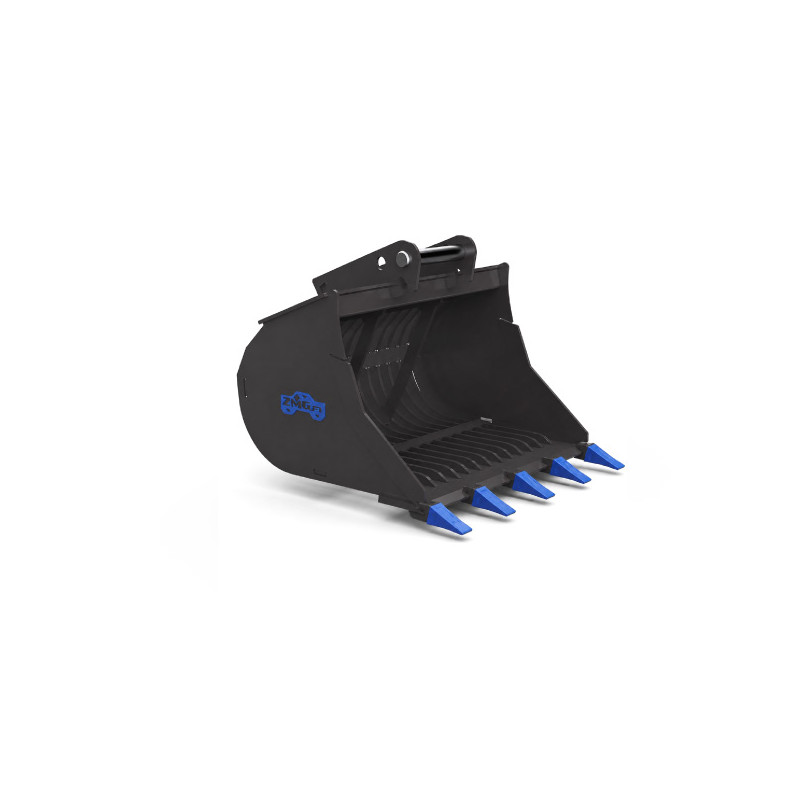

The LAP-ZMG5-1200-WOA skeleton bucket, 1200 mm wide, was designed with heavy excavators in the 8–11 t class in mind. The tool is ideal for separating stones from soil, recycling operations, and collecting organic material in forest and agricultural settings. The adapterless version is designed for direct mounting on the excavator arm, eliminating intermediate components and reducing total attachment weight. High-quality steel and careful welding technology ensure the bucket retains its shape and working properties over a long service life.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG5

Reference LAP-ZMG5-1200-WOA

Data sheet

Lead time: up to 3 business weeks
For the machine: 8-9
9-10
10-11
Adapter: Without adapter
Width: 1200
Weight without adapter: 296
Capacity: 555
Side/rear plate: 8 S355
Side cutters: 12 HB400
Ribs: 12 S355
Rib spacing: 55
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 6
Type of teeth: CAT J200
