Class: 3-6 T
Width: 1000
Adapter: S40

Skeleton bucket 1000mm S40 class 3-6t

Name: Skeleton bucket 1000mm S40 class 3-6t
Brand: ZMG
SKU: LAP-ZMG3-1000-S40
Price: 4639.56 PLN
Availability: InStock

4,639.56 zł Tax included

In stock Lead time up to 3 business weeks

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Volvo system- S40 without base plate

Reference: AD-WOP-S40

AD-WOP-S40 is a base-plate-free design created for the Volvo S40 system. It provides quick, secure tool mounting and excellent load resistance, making it reliable for demanding construction work.

Lead time: up to 48 hours
For the machine: 2-3, 3-4, 4-5, 5-6
Adapter: S40
Side plate: 20 S355
Pin diameter: 40
Inner width: 202
Pin spacing: 300,5
Weight: 9

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
S30/150	30	152	200,5
S30/180	30	182	230,5
S40	40	202	300,5
S45	45	292	430,5
S50	50	272	430,5
S60	60	342	480,5
S70	70	452	600,5

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Parameters

The main components are made of the following materials and thicknesses:

	S30/150		S30/180		S40		S45		S50		S60		S70
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	20mm	S355	32mm	S355	32mm	S355	40mm	S355	50mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
600	96	157	4
700	108	189	5
800	120	221	5
900	132	253	5
1000	144	285	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Ribs:	10 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	6 mm	S355
Rib spacing:	45 mm

	Type
Teeth:	JCB

Alternative products with a different lead time:

up to 48 hours Class: 4-6 T Kalanto 4,240.49 zł

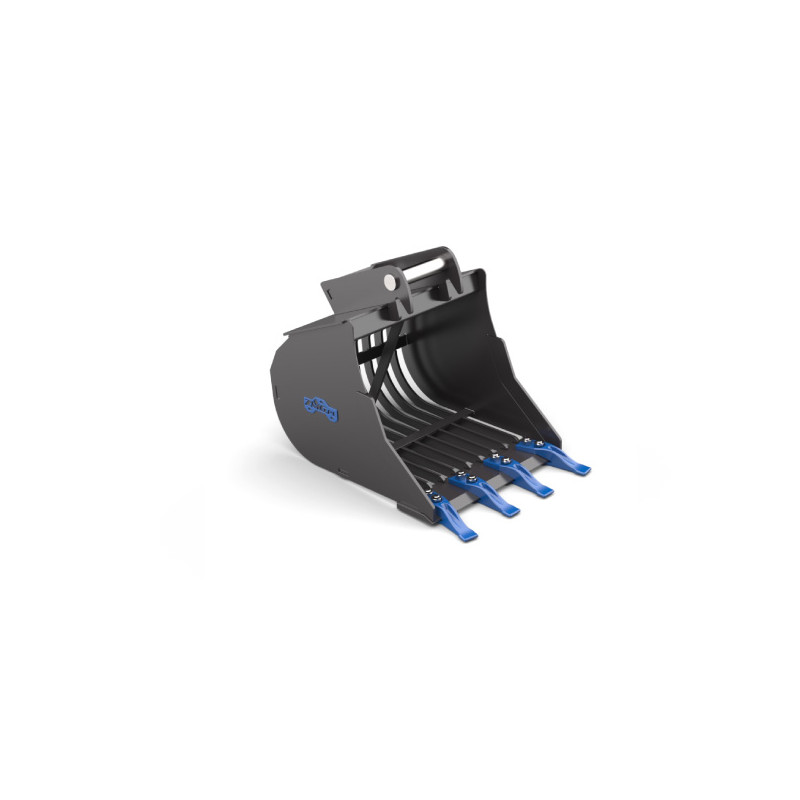

The LAP-ZMG3-1000-S40 skeleton bucket, 1000 mm wide, was designed with mini and compact excavators up to 2 t in mind. The tool is ideal for separating stones from soil, recycling operations, and collecting organic material in forest and agricultural settings. The S40 adapter guarantees compatibility with machines equipped with the popular S40 standard, facilitating integration into existing machine fleets. The steel frame and reinforced S355 steel bars ensure long service life even when working with hard, abrasive materials.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG3

Reference LAP-ZMG3-1000-S40

Data sheet

Lead time: up to 3 business weeks
For the machine: 3-4
4-5
5-6
Adapter: S40
Width: 1000
Weight without adapter: 144
Capacity: 285
Side/rear plate: 5 S355
Side cutters: 8 HB400
Ribs: 10 S355
Rib spacing: 45
Cutting edge: 20 HB500
Top plate: 8 S355
Bend plate: 6 S355
Number of teeth: 5
Type of teeth: JCB
