  • Class: 6-9 T
  • Width: 1000
  • Adapter: OQ45

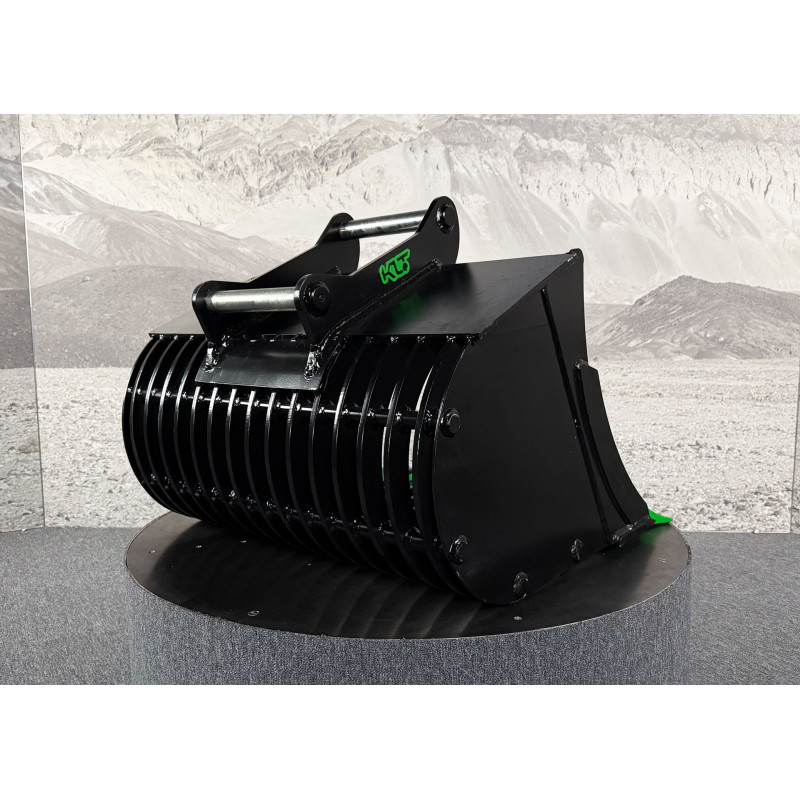

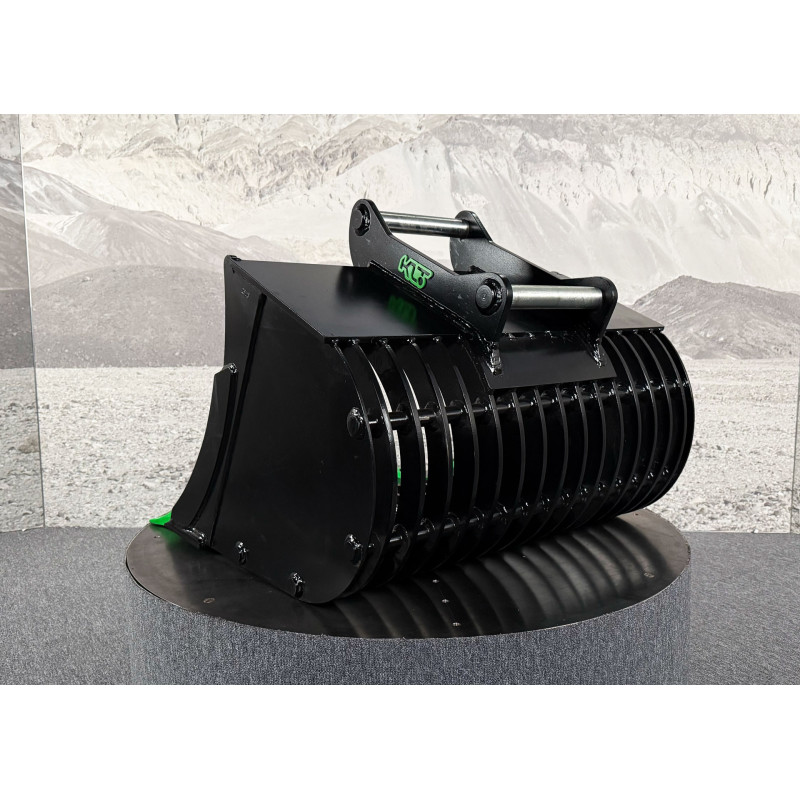

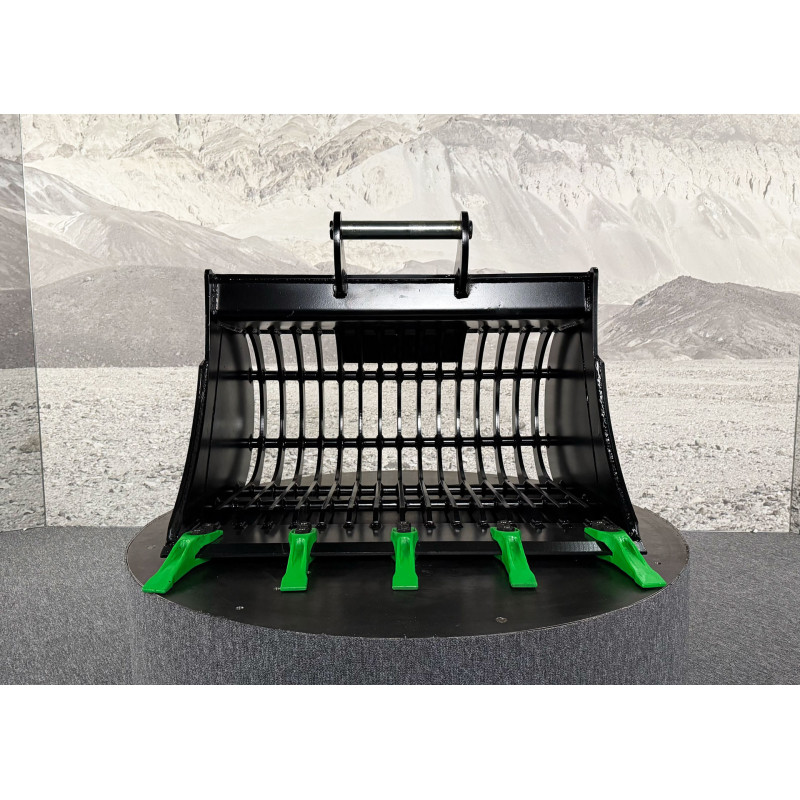

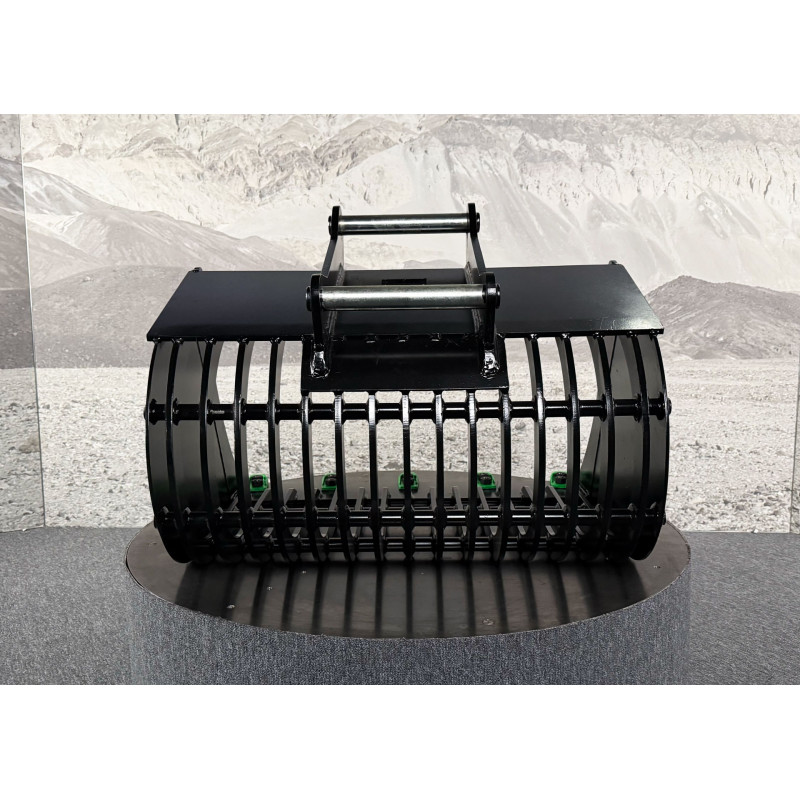

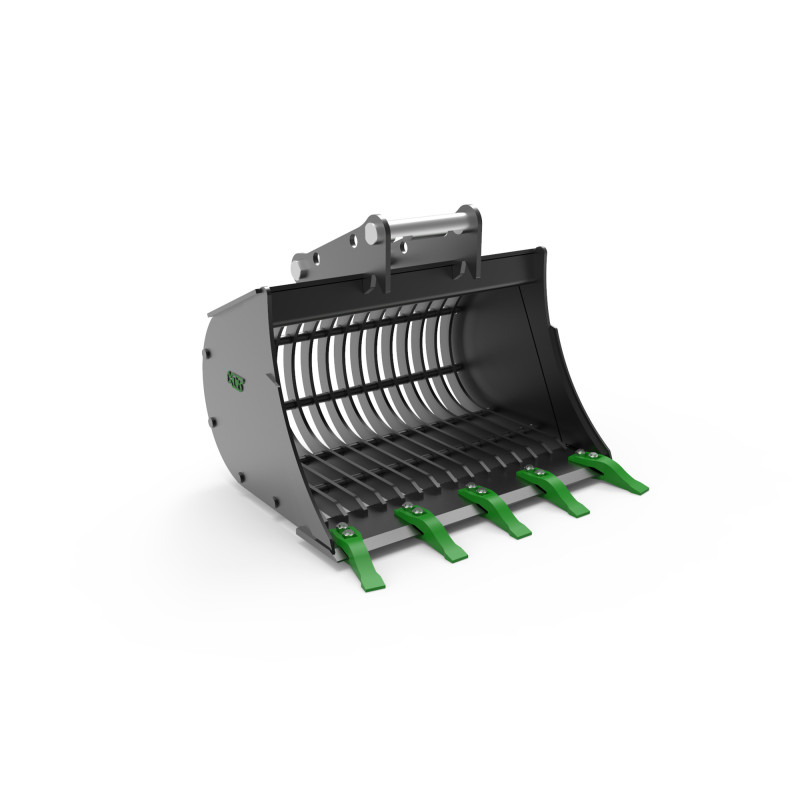

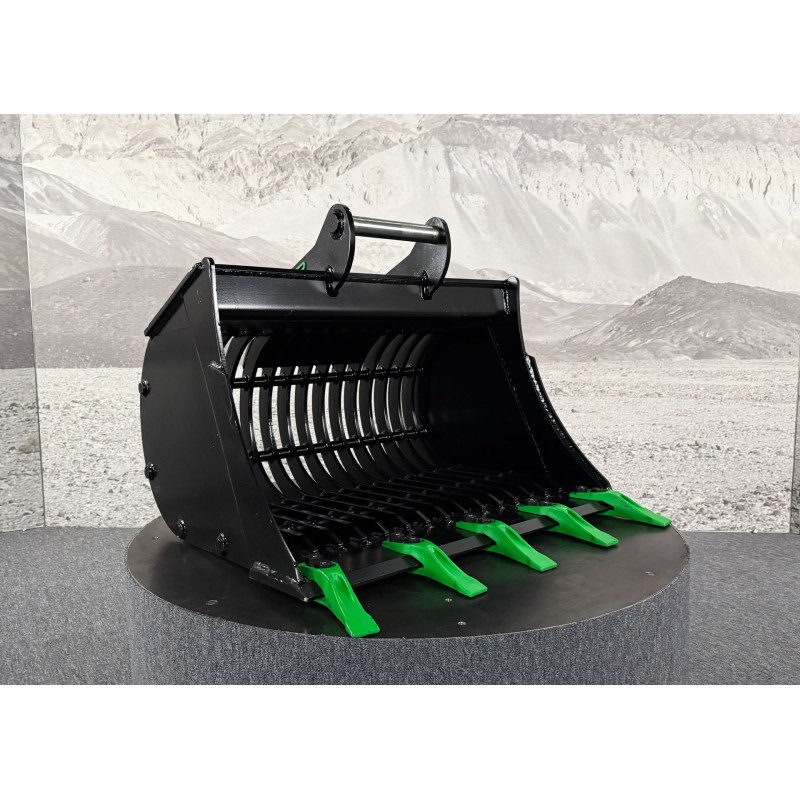

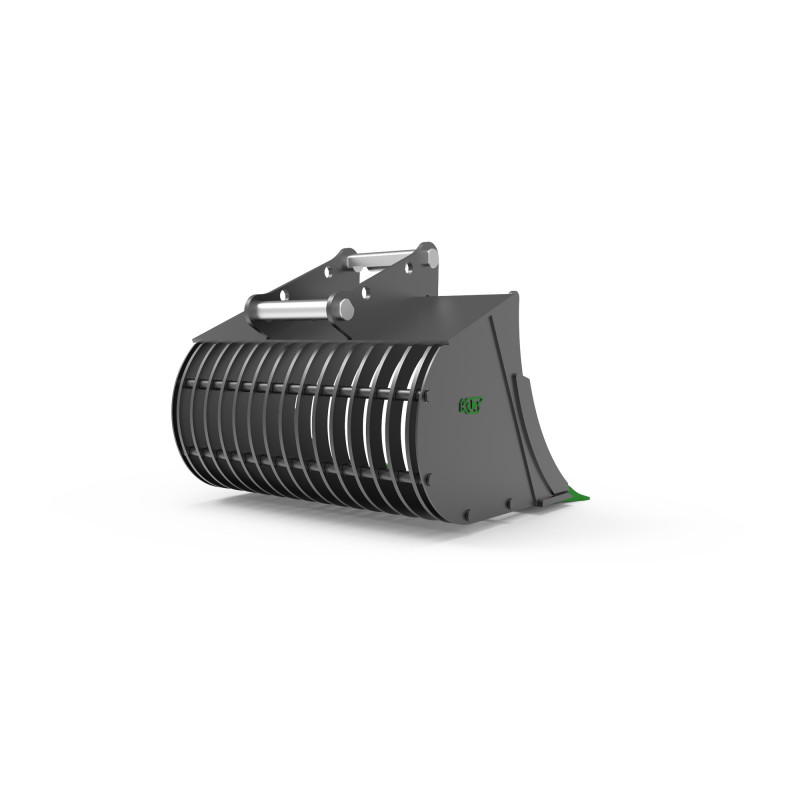

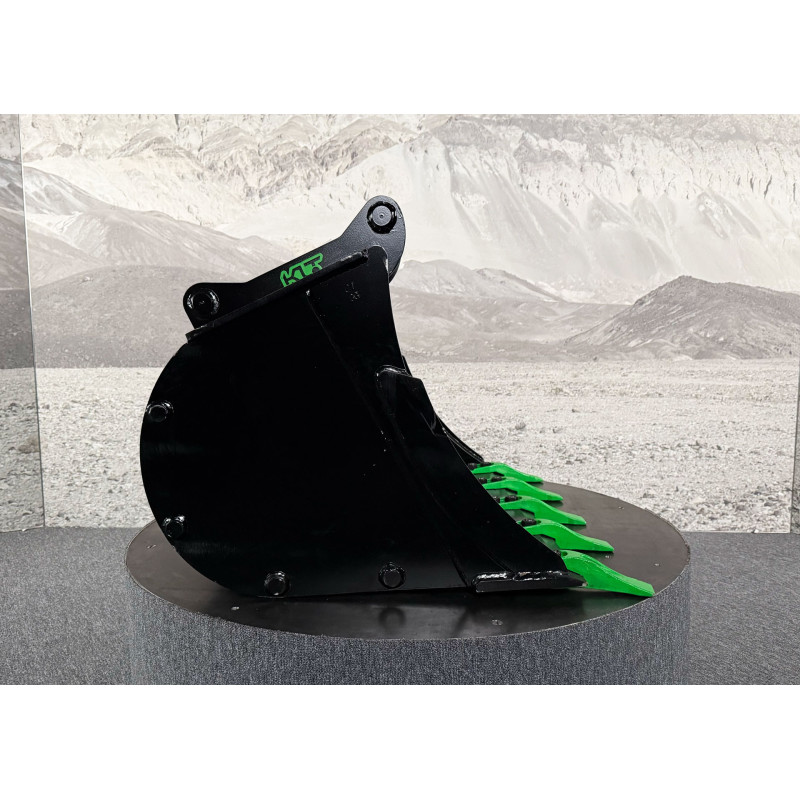

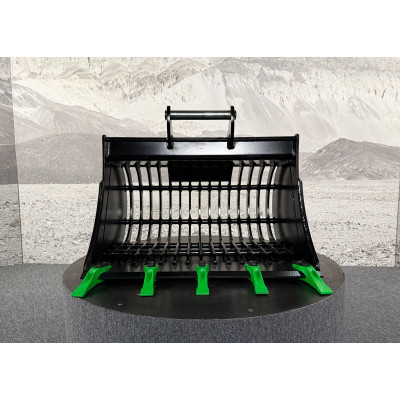

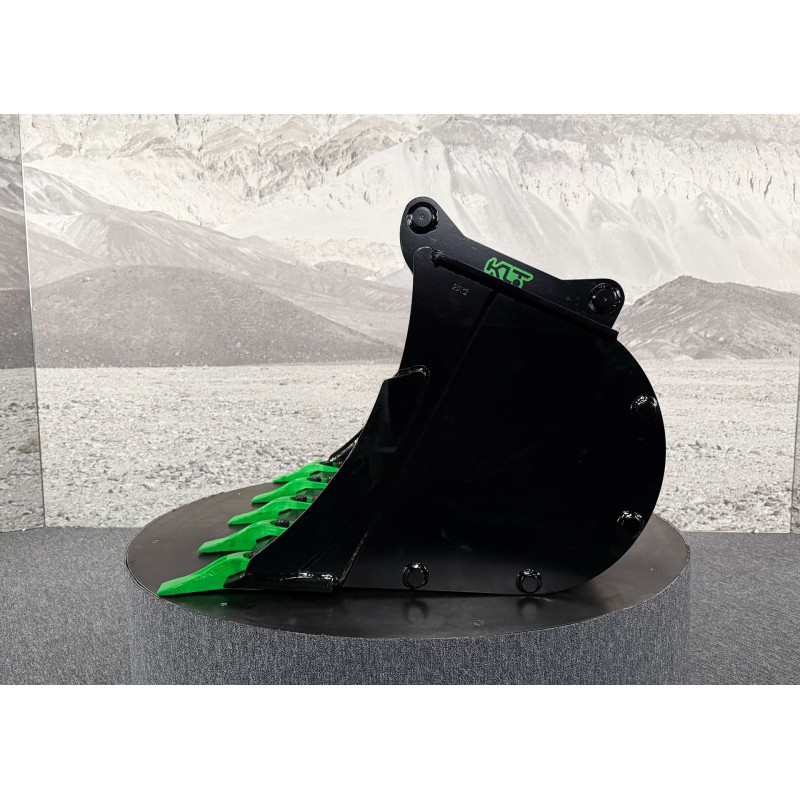

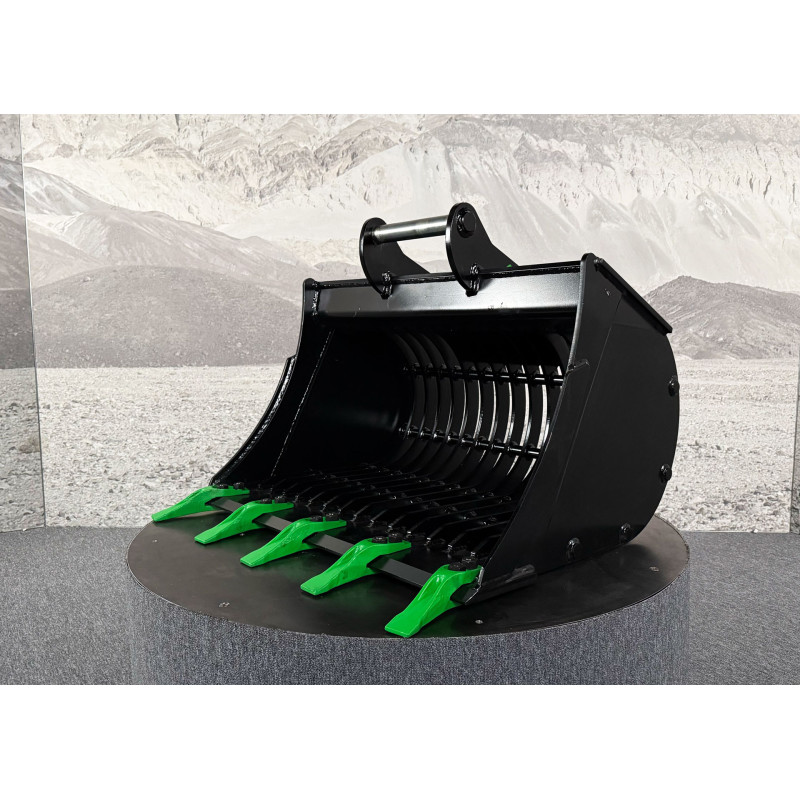

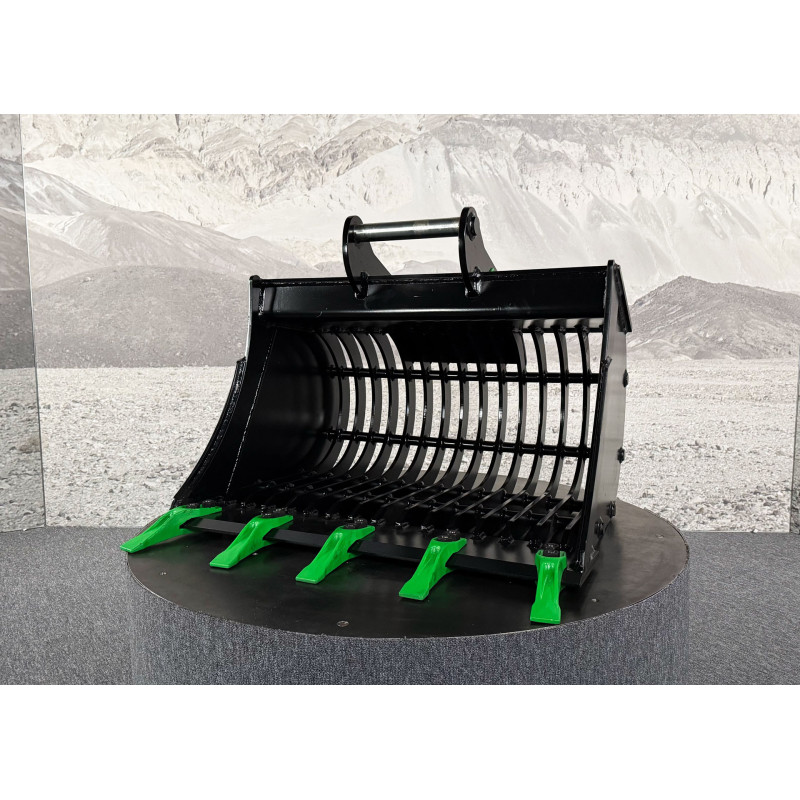

Skeleton bucket 1000mm OQ45 class 6-9t
Skeleton bucket 1000mm OQ45 class 6-9t
Skeleton bucket 1000mm OQ45 class 6-9t
Skeleton bucket 1000mm OQ45 class 6-9t
Skeleton bucket 1000mm OQ45 class 6-9t
Skeleton bucket 1000mm OQ45 class 6-9t
Skeleton bucket 1000mm OQ45 class 6-9t
Skeleton bucket 1000mm OQ45 class 6-9t
Skeleton bucket 1000mm OQ45 class 6-9t
Skeleton bucket 1000mm OQ45 class 6-9t
Skeleton bucket 1000mm OQ45 class 6-9t
    Skeleton bucket 1000mm OQ45 class 6-9t
    Skeleton bucket 1000mm OQ45 class 6-9t
    Skeleton bucket 1000mm OQ45 class 6-9t
    Skeleton bucket 1000mm OQ45 class 6-9t
    Skeleton bucket 1000mm OQ45 class 6-9t
    Skeleton bucket 1000mm OQ45 class 6-9t
    Skeleton bucket 1000mm OQ45 class 6-9t
    Skeleton bucket 1000mm OQ45 class 6-9t
    Skeleton bucket 1000mm OQ45 class 6-9t
    Skeleton bucket 1000mm OQ45 class 6-9t
    Skeleton bucket 1000mm OQ45 class 6-9t

Skeleton bucket 1000mm OQ45 class 6-9t

6,045.45 zł Tax included
In stock Lead time up to 48 hours

Other models:

Width
Adapter
Watch video (2)
The SBS-S5-V1-1000-OQ45 is a heavy-duty skeleton bucket engineered for 6–9-ton excavators. Its reinforced ribbed shell effectively separates fine fractions from larger materials, making it a perfect choice for soil screening, selective sorting or debris separation. Well-designed geometry and high abrasion resistance ensure long service life, while the ergonomic profile improves filling and dumping efficiency, enhancing productivity on the job site.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
Quantity
Add to wishlist

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

SBS-S5-V1-1000-OQ45

Data sheet

Lead time
up to 48 hours
For the machine
6-7
7-8
8-9
Adapter
OQ45
Width
1000
Weight without adapter
232
Capacity
320,7
Side/rear plate
6 S355
Front side plate
12 S355
Side cutters
8 HB400
Ribs
12 S355
Rib spacing
45
Cutting edge
20x200 HB400
Top plate
12 S355
Bend plate
10 S355
Number of teeth
5
Type of teeth
E25
