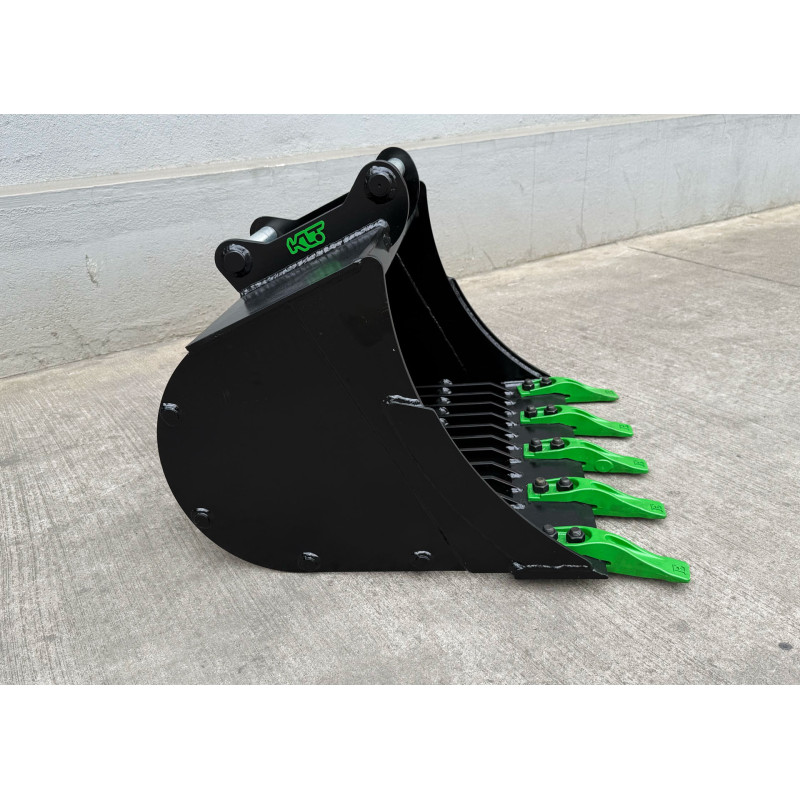

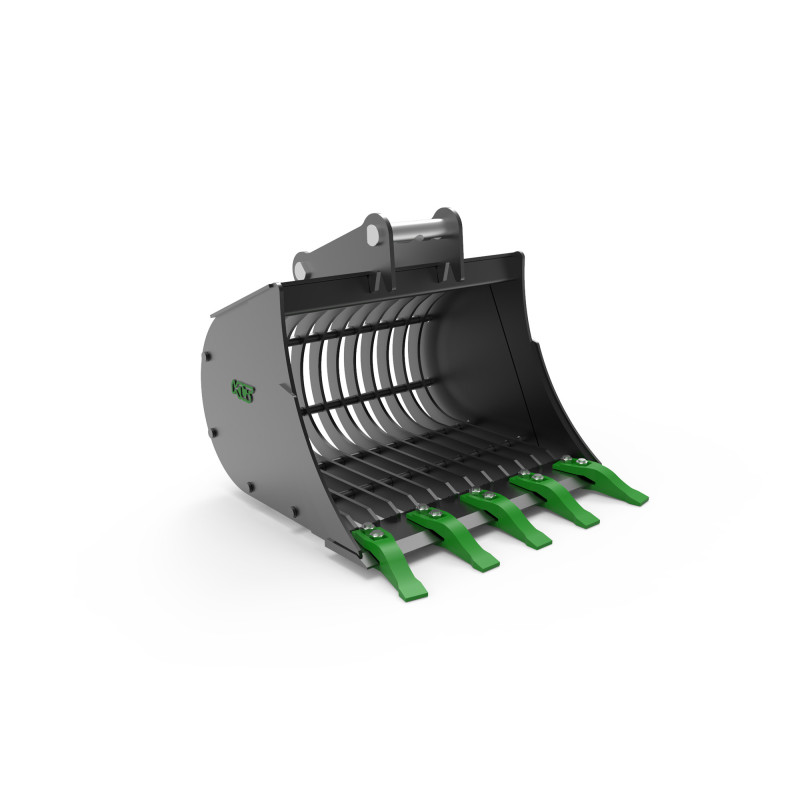

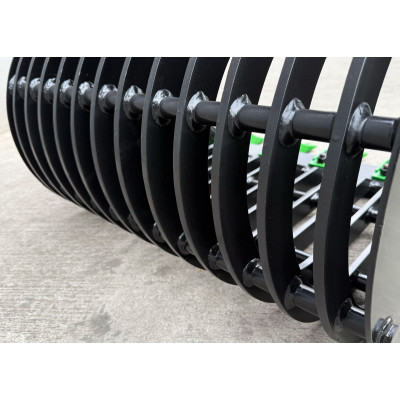

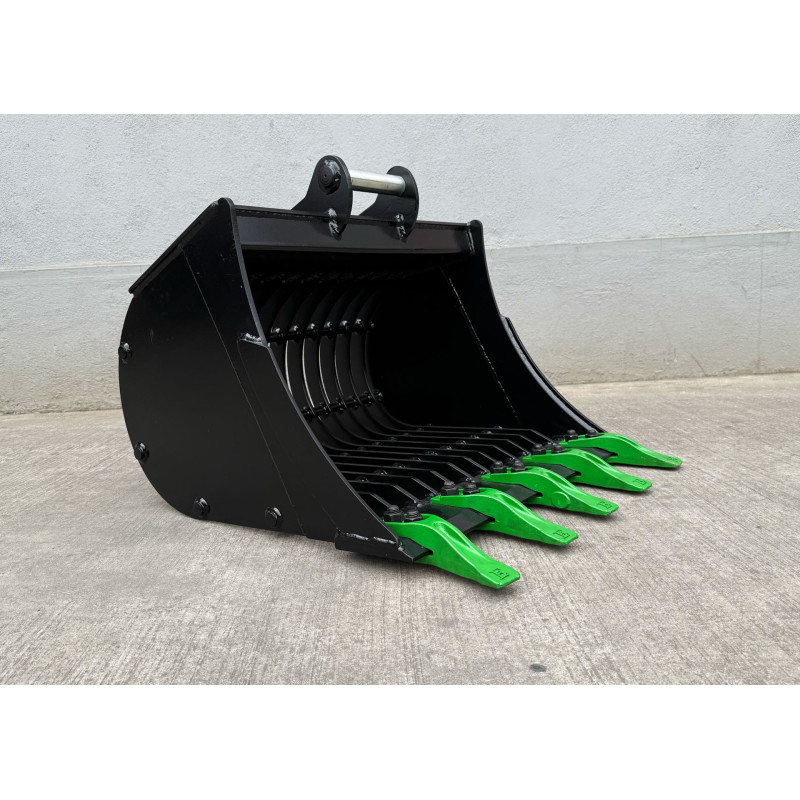

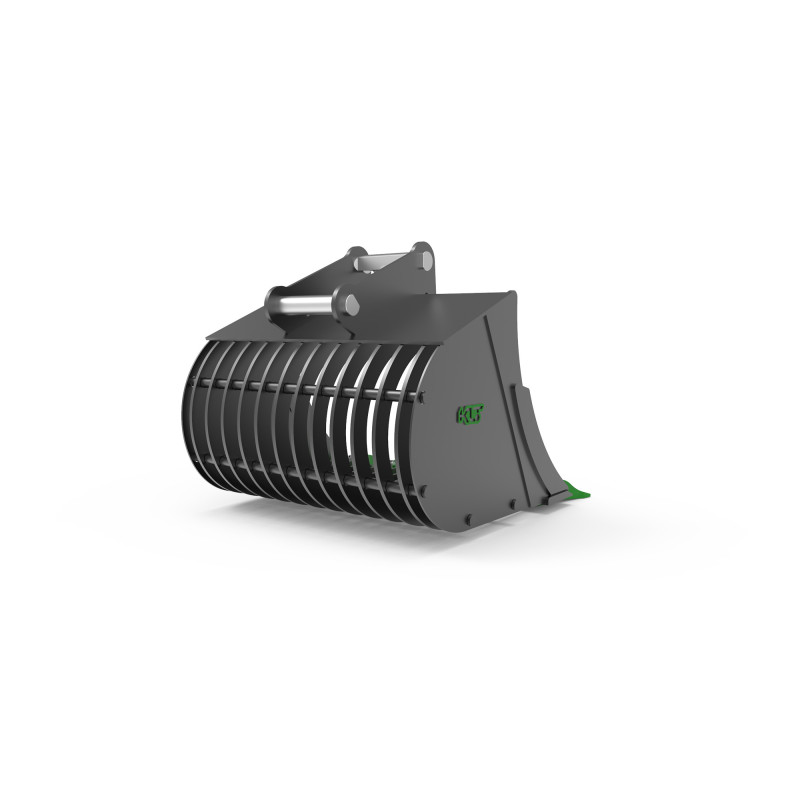

Skeleton bucket 800mm MS03SY class 4-6t
3,752.73 zł
Tax included
The SBS-S4-V1-800-MS03SY model is a durable skeleton bucket designed for 4–6-ton excavators, engineered for efficient screening and material separation. Its solid ribbed structure allows for quick removal of fine fractions and effective separation from larger elements such as stones, rubble or roots. Thanks to its sturdy build and high resistance to heavy loads, the SBS-S4 performs exceptionally well in earthmoving, reclamation, cleanup and construction tasks where maintaining both work pace and screening quality is essential.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 600 | 112 | 146,2 | 4 |
| 800 | 136 | 207 | 5 |
| 1000 | 165 | 267,6 | 5 |
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Ribs: | 10 mm | S355 |
| Cutting edge: | 20 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Rib spacing: | 45mm | - |
| Type | ||
| Teeth: | E25 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
SBS-S4-V1-800-MS03SY
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 4-5t
5-6t - Adapter
- MS03SY
- Width
- 800mm
- Weight without adapter
- 136kg
- Capacity
- 207 l
- Side/rear plate
- 5mm S355
- Front side plate
- 10mm S355
- Side cutters
- 8mm HB400
- Ribs
- 10mm S355
- Rib spacing
- 45mm
- Cutting edge
- 20x150mm HB400
- Top plate
- 8mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 5pcs
- Type of teeth
- E25
