Class: 6-8 T
Width: 900
Adapter: S45

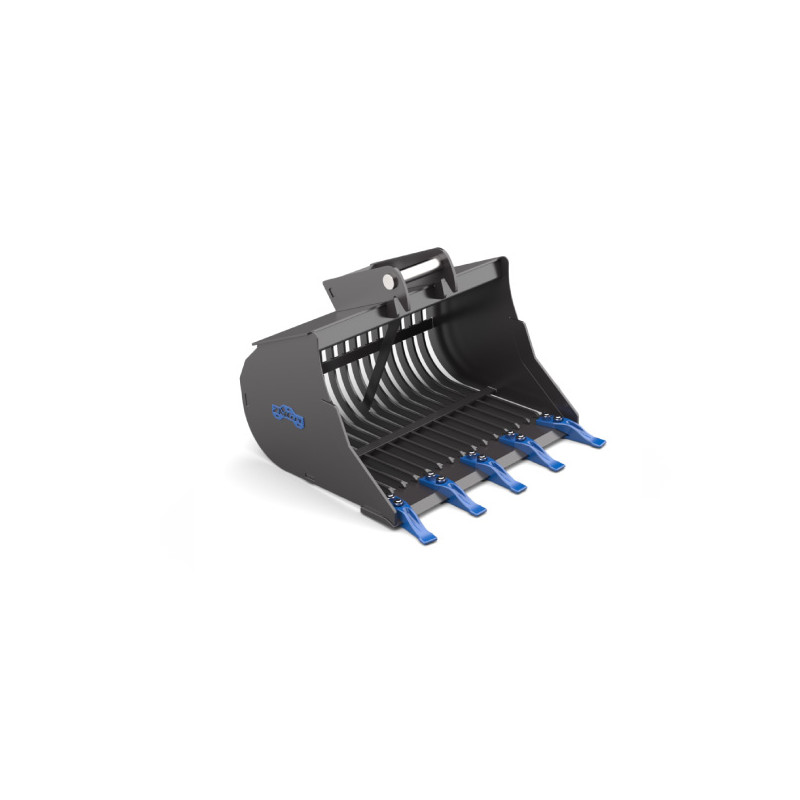

Skeleton bucket 900mm S45 class 6-8t

Name: Skeleton bucket 900mm S45 class 6-8t
Brand: ZMG
SKU: LAP-ZMG4-900-S45
Price: 4998.72 PLN
Availability: InStock

4,998.72 zł Tax included

In stock Lead time up to 3 business weeks

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Volvo system- S45 without base plate

Reference: AD-WOP-S45

The AD-WOP-S45 model designed for the S45 system offers a stable connection without the need for a base plate. Lightweight yet durable, it enables fast tool changes and increases the machine’s versatility.

Lead time: up to 48 hours
For the machine: 5-6, 6-7, 7-8, 8-9, 9-10, 10-11, 11-12
Adapter: S45
Side plate: 32 S355
Pin diameter: 45
Inner width: 292
Pin spacing: 430,5
Weight: 21

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing [mm]
S30/150	30	152	200,5
S30/180	30	182	230,5
S40	40	202	300,5
S45	45	292	430,5
S50	50	272	430,5
S60	60	342	480,5
S70	70	452	600,5

*The image is for illustrative purposes only. The order refers to the product described in the offer.

Parameters

The main components are made of the following materials and thicknesses:

	S30/150		S30/180		S40		S45		S50		S60		S70
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	20mm	S355	20mm	S355	20mm	S355	32mm	S355	32mm	S355	40mm	S355	50mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
600	117	193	4
800	157	269	5
900	173	307	5
1000	190	345	5
1100	207	384	6
1200	224	430	6

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Ribs:	10 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	12 mm	HB400
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Rib spacing:	55 mm

	Type
Teeth:	JCB

The LAP-ZMG4-900-S45 skeleton bucket, 900 mm wide, was designed with excavators in the 6–8 t class in mind. The tool is ideal for separating stones from soil, recycling operations, and collecting organic material in forest and agricultural settings. The S45 adapter is designed for large machines with the S45 standard, providing secure and durable mounting of heavy attachments. The steel frame and reinforced S355 steel bars ensure long service life even when working with hard, abrasive materials.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG4

Reference LAP-ZMG4-900-S45

Data sheet

Lead time: up to 3 business weeks
For the machine: 6-7
7-8
Adapter: S45
Width: 900
Weight without adapter: 173
Capacity: 307
Side/rear plate: 6 S355
Side cutters: 12 HB400
Ribs: 10 S355
Rib spacing: 55
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 5
Type of teeth: JCB
