Class: 0-2 T
Width: 600
Adapter: Without adapter

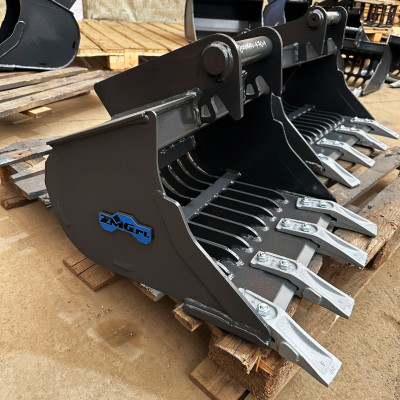

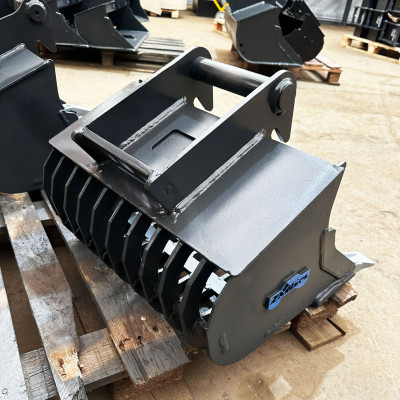

Skeleton bucket 600mm without adapter class 0-2t

Skeleton bucket 600mm without adapter class 0-2t

Skeleton bucket 600mm without adapter class 0-2t

Skeleton bucket 600mm without adapter class 0-2t

Skeleton bucket 600mm without adapter class 0-2t

Skeleton bucket 600mm without adapter class 0-2t

Skeleton bucket 600mm without adapter class 0-2t

Skeleton bucket 600mm without adapter class 0-2t

Skeleton bucket 600mm without adapter class 0-2t

Skeleton bucket 600mm without adapter class 0-2t

Skeleton bucket 600mm without adapter class 0-2t

1,671.57 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
500	41	49	4
600	48	61	4
700	54	73	4
800	61	85	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Ribs:	8 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	40 mm

	Type
Teeth:	JCB Mini

The LAP-ZMG1-600-WOA skeleton bucket with a working width of 600 mm is a specialist tool designed for mini and compact excavators up to 2 t. It is excellent for soil screening, stone separation, and sorting bulk materials from earth on construction sites and in forestry operations. The adapterless version is designed for direct mounting on the excavator arm, eliminating intermediate components and reducing total attachment weight. High-quality steel and careful welding technology ensure the bucket retains its shape and working properties over a long service life.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG1

Reference LAP-ZMG1-600-WOA

Data sheet

Lead time: up to 3 business weeks
For the machine: 1-2
Adapter: Without adapter
Width: 600
Weight without adapter: 48
Capacity: 61
Side/rear plate: 4 S355
Side cutters: 8 HB400
Ribs: 8 S355
Rib spacing: 40
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: JCB Mini

16 other products in the same category:

Skeleton bucket 800mm MS03SY class 3-4t

Class: 3-4 T
Width: 800
Adapter: MS03SY

Skeleton bucket 800mm MS03SY class 3-4t

2,942.16 zł

In stock

The SBS-S3-V1-800-MS03SY bucket is a heavy-duty skeleton model dedicated to excavators in the 3–4-ton weight class. Its solid ribbed structure enables efficient screening and accurate separation...

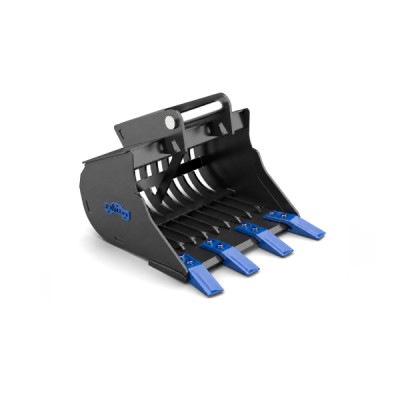

Skeleton bucket 700mm MS01 class 0-2t
