Class: 0-2 T
Width: 500
Adapter: M03

Skeleton bucket 500mm M03 class 0-2t

Skeleton bucket 500mm M03 class 0-2t

Skeleton bucket 500mm M03 class 0-2t

Skeleton bucket 500mm M03 class 0-2t

Skeleton bucket 500mm M03 class 0-2t

Skeleton bucket 500mm M03 class 0-2t

Skeleton bucket 500mm M03 class 0-2t

Skeleton bucket 500mm M03 class 0-2t

Skeleton bucket 500mm M03 class 0-2t

Skeleton bucket 500mm M03 class 0-2t

Skeleton bucket 500mm M03 class 0-2t

1,698.63 zł Tax included

In stock Lead time up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
500	41	49	4
600	48	61	4
700	54	73	4
800	61	85	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Ribs:	8 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	40 mm

	Type
Teeth:	JCB Mini

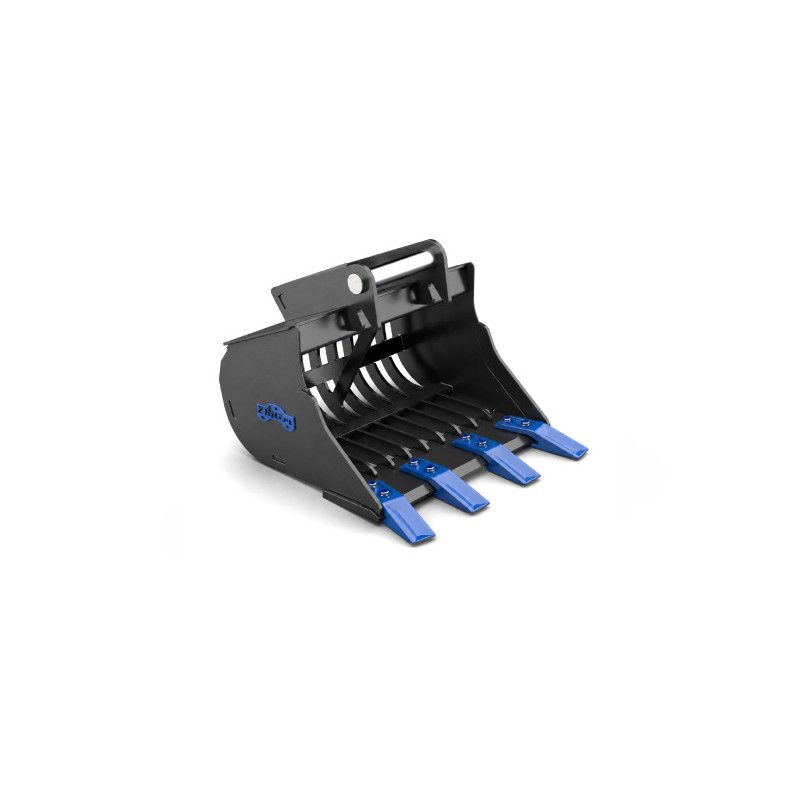

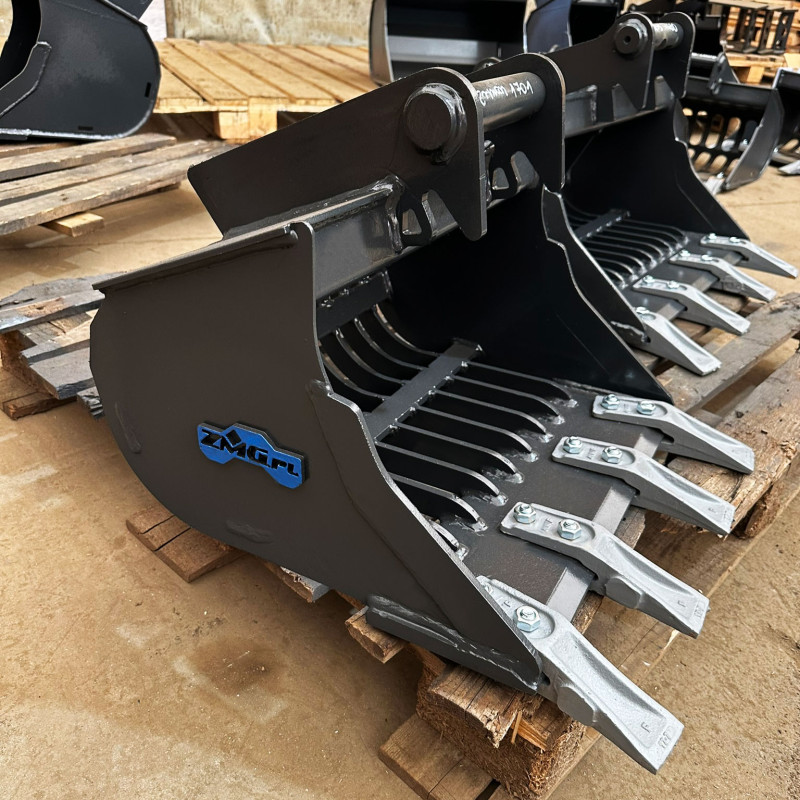

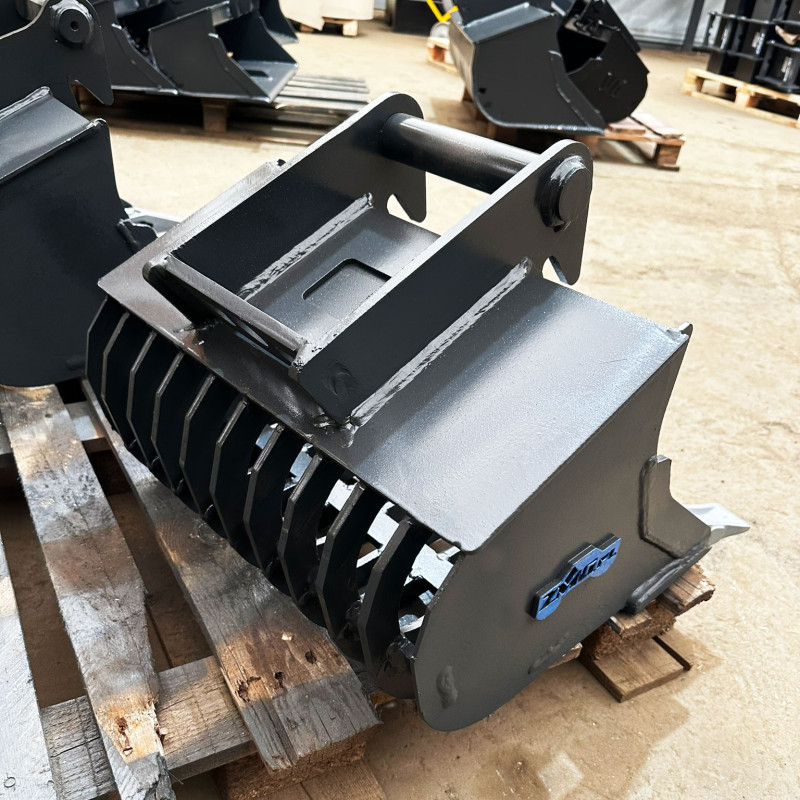

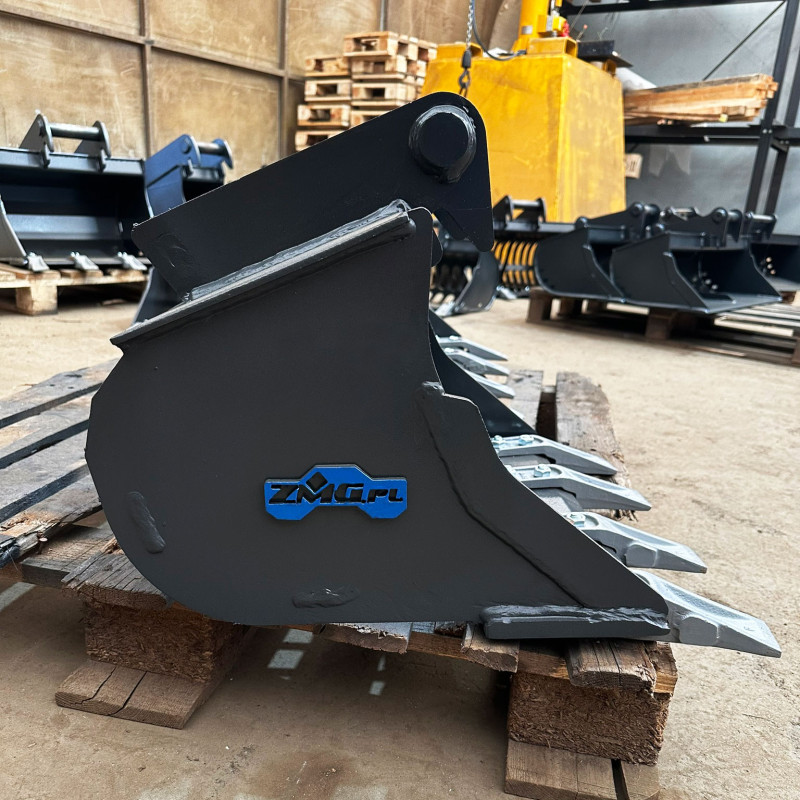

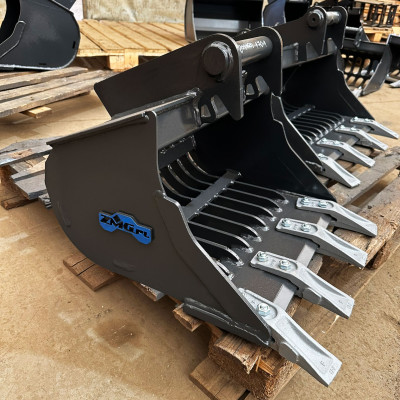

The LAP-ZMG1-500-M03 series is a 500 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Openings in the base and sides let fine material fall through freely, making it indispensable for stone-soil separation, recycling, and landscaping work. The Martin M03 adapter (compatible with SW10, CM30) ensures wide compatibility with machines equipped with this popular quick coupler system. The steel frame and reinforced S355 steel bars ensure long service life even when working with hard, abrasive materials.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG1

Reference LAP-ZMG1-500-M03

Data sheet

Lead time: up to 3 business weeks
For the machine: 0-1
1-2
Adapter: M03
Width: 500
Weight without adapter: 41
Capacity: 49
Side/rear plate: 4 S355
Side cutters: 8 HB400
Ribs: 8 S355
Rib spacing: 40
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: JCB Mini
