  • Class: 2-3 T
  • Width: 500
  • Adapter: MS03

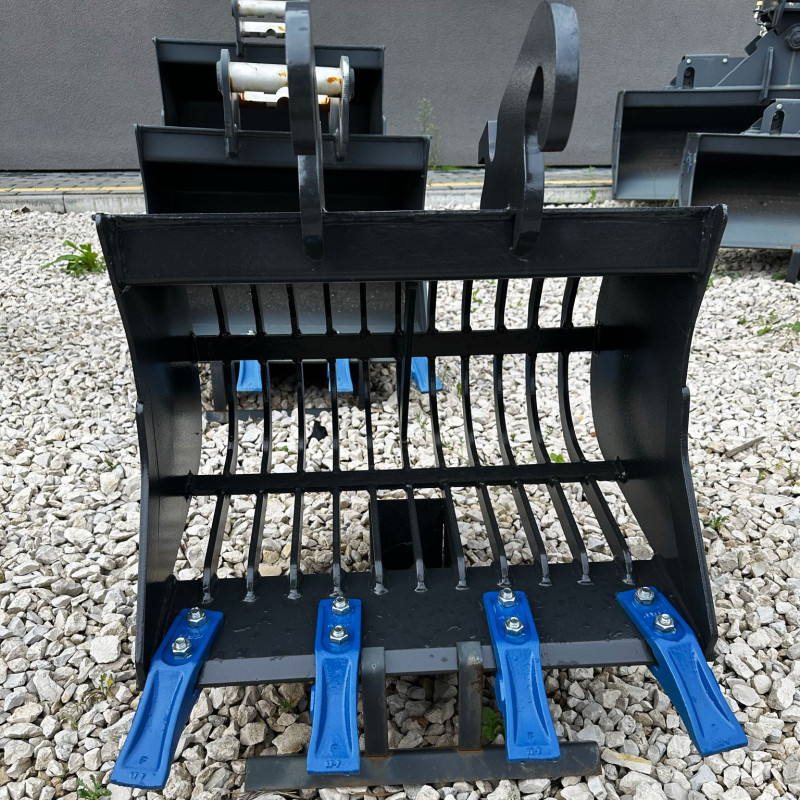

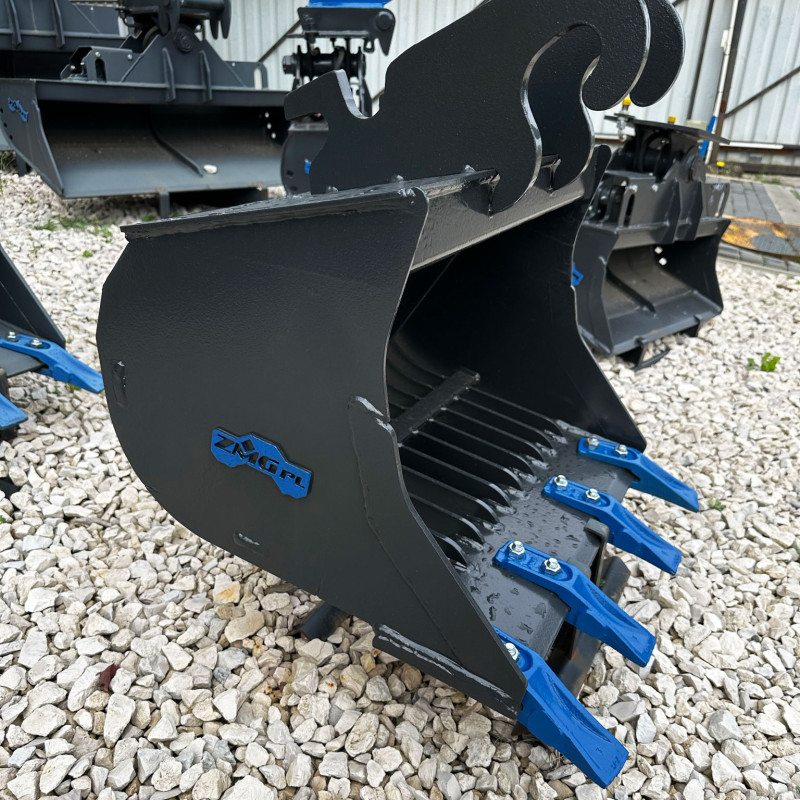

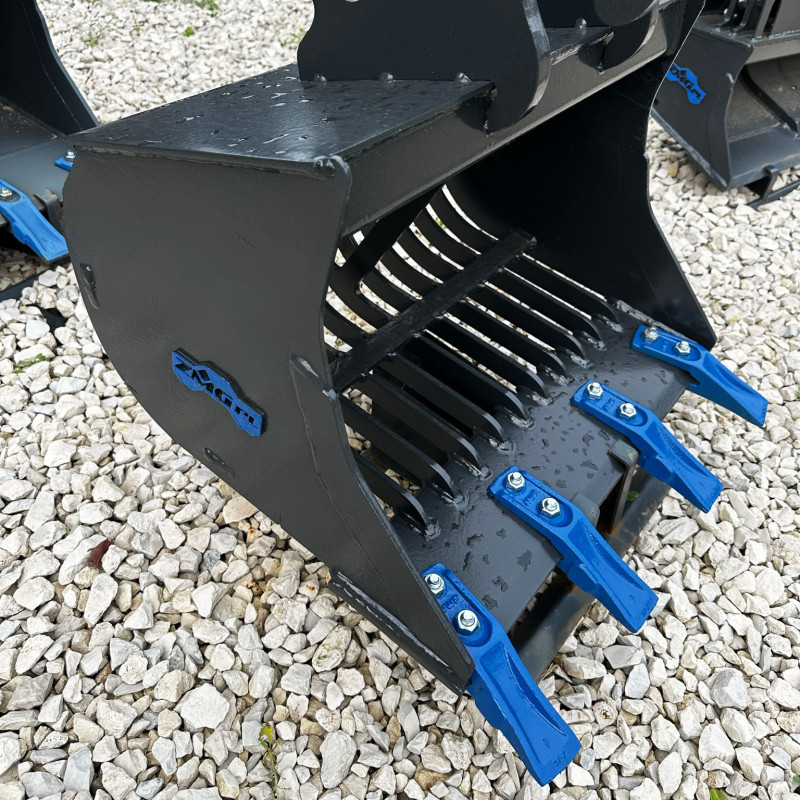

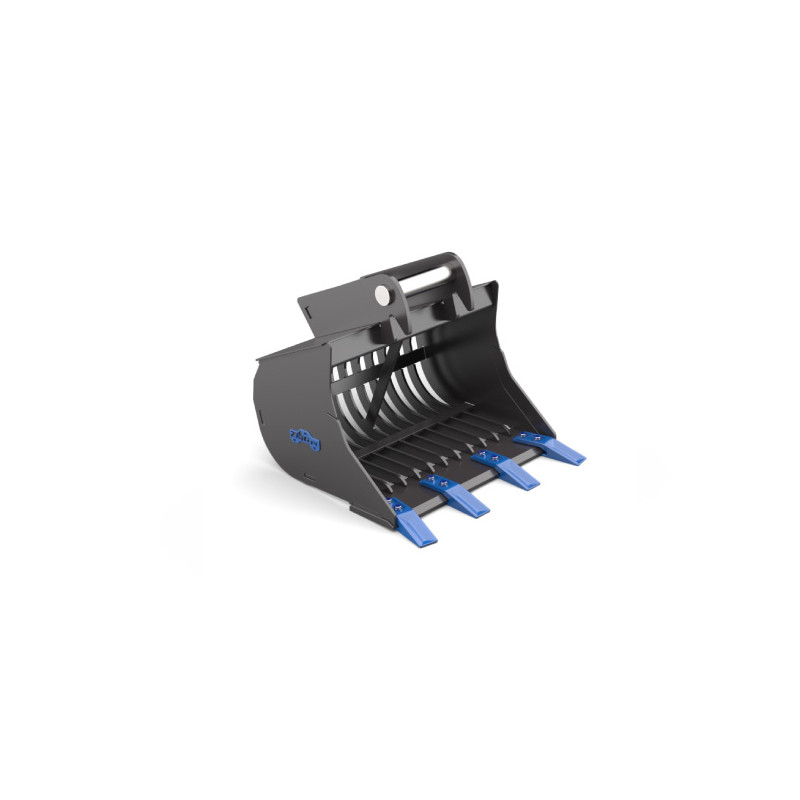

Skeleton bucket 500mm MS03 class 2-3t
Skeleton bucket 500mm MS03 class 2-3t
Skeleton bucket 500mm MS03 class 2-3t
Skeleton bucket 500mm MS03 class 2-3t
Skeleton bucket 500mm MS03 class 2-3t
    Skeleton bucket 500mm MS03 class 2-3t
    Skeleton bucket 500mm MS03 class 2-3t
    Skeleton bucket 500mm MS03 class 2-3t
    Skeleton bucket 500mm MS03 class 2-3t
    Skeleton bucket 500mm MS03 class 2-3t

Skeleton bucket 500mm MS03 class 2-3t

2,084.85 zł
Tax included
In stock Lead time: up to 3 business weeks

Other models:

Width
Adapter

The LAP-ZMG2-500-MS03 is a 500 mm skeleton bucket created for small excavators in the 2–3 t class. Its open structure allows efficient screening and material separation, essential for aggregate sorting, scrap handling, and secondary material processing. The Lehnhoff MS03 quick coupler provides reliable attachment and efficient tool changes for medium-class machines. The solid welded structure and steel bars guarantee durability and deformation resistance during intensive use.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Quantity
Add to wishlist

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG2

LAP-ZMG2-500-MS03

Data sheet

Lead time
up to 3 business weeks
For the machine
2-3
Adapter
MS03
Width
500
Weight without adapter
49
Capacity
69
Side/rear plate
5 S355
Side cutters
8 HB400
Ribs
8 S355
Rib spacing
40
Cutting edge
16 HB500
Top plate
5 S355
Bend plate
5 S355
Number of teeth
4
Type of teeth
JCB Mini
