Class: 4-6 T
Width: 800
Adapter: MS03

Skeleton bucket 800mm MS03 class 3-6t

Name: Skeleton bucket 800mm MS03 class 3-6t
Brand: ZMG
SKU: LAP-ZMG3-800-MS03
Price: 4004.88 PLN
Availability: InStock

4,004.88 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
600	96	157	4
700	108	189	5
800	120	221	5
900	132	253	5
1000	144	285	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Ribs:	10 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	6 mm	S355
Rib spacing:	45 mm

	Type
Teeth:	JCB

The LAP-ZMG3-800-MS03 skeleton bucket, 800 mm wide, was designed with mini and compact excavators up to 2 t in mind. The tool is ideal for separating stones from soil, recycling operations, and collecting organic material in forest and agricultural settings. The Lehnhoff MS03 quick coupler provides reliable attachment and efficient tool changes for medium-class machines. The solid welded structure and steel bars guarantee durability and deformation resistance during intensive use.

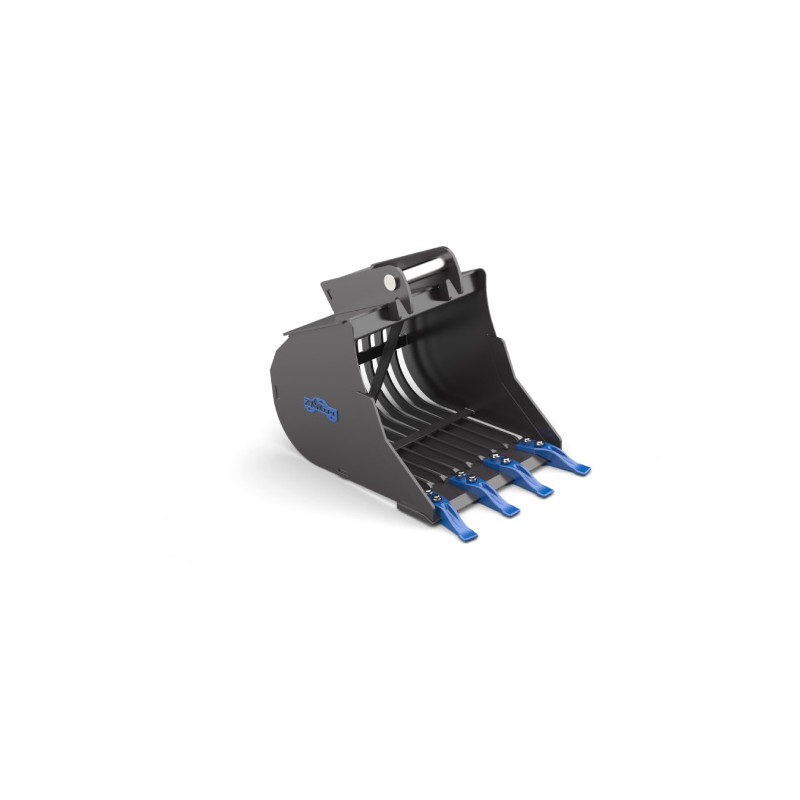

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG3

Reference LAP-ZMG3-800-MS03

Data sheet

Lead time: up to 3 business weeks
For the machine: 3-4
4-5
5-6
Adapter: MS03
Width: 800
Weight without adapter: 120
Capacity: 221
Side/rear plate: 5 S355
Side cutters: 8 HB400
Ribs: 10 S355
Rib spacing: 45
Cutting edge: 20 HB500
Top plate: 8 S355
Bend plate: 6 S355
Number of teeth: 5
Type of teeth: JCB

16 other products in the same category:

Class: 0-2 T
Width: 800
Adapter: MS01

ZMG

Skeleton bucket 800mm MS01 class 0-2t

2,301.33 zł

In stock

The LAP-ZMG1-800-MS01 is a 800 mm skeleton bucket created for mini and compact excavators up to 2 t. Its open structure allows efficient screening and material separation, essential for aggregate...

Class: 2-3 T
Width: 800
Adapter: S40

ZMG

Skeleton bucket 800mm S40 class 2-3t

2,814.24 zł

In stock

The LAP-ZMG2-800-S40 skeleton bucket with a working width of 800 mm is a specialist tool designed for small excavators in the 2–3 t class. It is excellent for soil screening, stone separation, and...

Class: 6-9 T
Width: 1000
Adapter: M10

ZMG

Skeleton bucket 1000mm M10 class 8-11t

7,362.78 zł

In stock

The LAP-ZMG5-1000-M10 skeleton bucket with a working width of 1000 mm is a specialist tool designed for heavy excavators in the 8–11 t class. It is excellent for soil screening, stone separation,...

Class: 2-3 T
Width: 600
Adapter: MS03

ZMG

Skeleton bucket 600mm MS03 class 2-3t

2,301.33 zł

In stock

The LAP-ZMG2-600-MS03 is a 600 mm skeleton bucket created for small excavators in the 2–3 t class. Its open structure allows efficient screening and material separation, essential for aggregate...

Skeleton bucket 1000mm with pins class 3-6t

Class: 4-6 T
Width: 1000
Adapter: with pins

ZMG

Skeleton bucket 1000mm with pins class 3-6t

4,824.06 zł

In stock

The LAP-ZMG3-1000-ZSW skeleton bucket, 1000 mm wide, was designed with mini and compact excavators up to 2 t in mind. The tool is ideal for separating stones from soil, recycling operations, and...

Class: 2-3 T
Width: 600
Adapter: S40

ZMG

Skeleton bucket 600mm S40 class 2-3t

2,301.33 zł

In stock

The LAP-ZMG2-600-S40 skeleton bucket, 600 mm wide, was designed with small excavators in the 2–3 t class in mind. The tool is ideal for separating stones from soil, recycling operations, and...

Class: 6-9 T
Width: 1000
Adapter: MS08

ZMG

Skeleton bucket 1000mm MS08 class 6-8t

5,384.94 zł

In stock

The LAP-ZMG4-1000-MS08 skeleton bucket with a working width of 1000 mm is a specialist tool designed for excavators in the 6–8 t class. It is excellent for soil screening, stone separation, and...

Class: 0-2 T
Width: 600
Adapter: CW05

ZMG

Skeleton bucket 600mm CW05 class 0-2t

1,983.99 zł

In stock

The LAP-ZMG1-600-CW05 skeleton bucket, 600 mm wide, was designed with mini and compact excavators up to 2 t in mind. The tool is ideal for separating stones from soil, recycling operations, and...

Skeleton bucket 700mm with pins class 3-6t

Class: 4-6 T
Width: 700
Adapter: with pins

ZMG

Skeleton bucket 700mm with pins class 3-6t

3,872.04 zł

In stock

The LAP-ZMG3-700-ZSW skeleton bucket with a working width of 700 mm is a specialist tool designed for mini and compact excavators up to 2 t. It is excellent for soil screening, stone separation,...

Skeleton bucket 700mm without adapter class 0-2t

Class: 0-2 T
Width: 700
Adapter: Without adapter

ZMG

Skeleton bucket 700mm without adapter class 0-2t

1,862.22 zł

In stock

Model LAP-ZMG1-700-WOA is a 700 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Its perforated structure enables efficient aggregate sorting, soil sieving, and selective...

Skeleton bucket 700mm without adapter class 2-3t

Class: 2-3 T
Width: 700
Adapter: Without adapter

ZMG

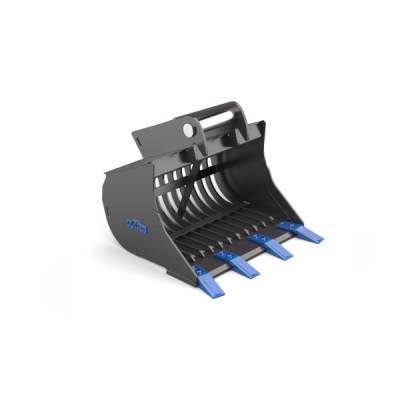

Skeleton bucket 700mm without adapter class 2-3t

2,184.48 zł

In stock

The LAP-ZMG2-700-WOA is a 700 mm skeleton bucket created for small excavators in the 2–3 t class. Its open structure allows efficient screening and material separation, essential for aggregate...

Class: 6-9 T
Width: 1200
Adapter: M10

ZMG

Skeleton bucket 1200mm M10 class 8-11t

8,420.58 zł

In stock

The LAP-ZMG5-1200-M10 skeleton bucket, 1200 mm wide, was designed with heavy excavators in the 8–11 t class in mind. The tool is ideal for separating stones from soil, recycling operations, and...

Skeleton bucket 1000mm without adapter class 4-6t

Class: 4-6 T
Width: 1000
Adapter: Without adapter

Kalanto

Skeleton bucket 1000mm without adapter class 4-6t

4,335.75 zł

In stock

The SBS-S4-V1-1000-WOA is a spacious skeleton bucket offering high productivity for excavators in the 4–6-ton range. Its wide, ribbed shell enables rapid and accurate separation of fine soil...

Skeleton bucket 600mm S30/180 class 0-2t

Class: 0-2 T
Width: 600
Adapter: S30/180

ZMG

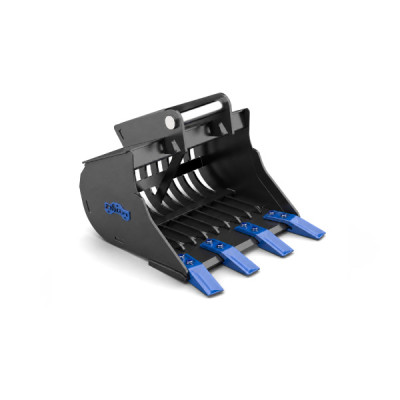

Skeleton bucket 600mm S30/180 class 0-2t
