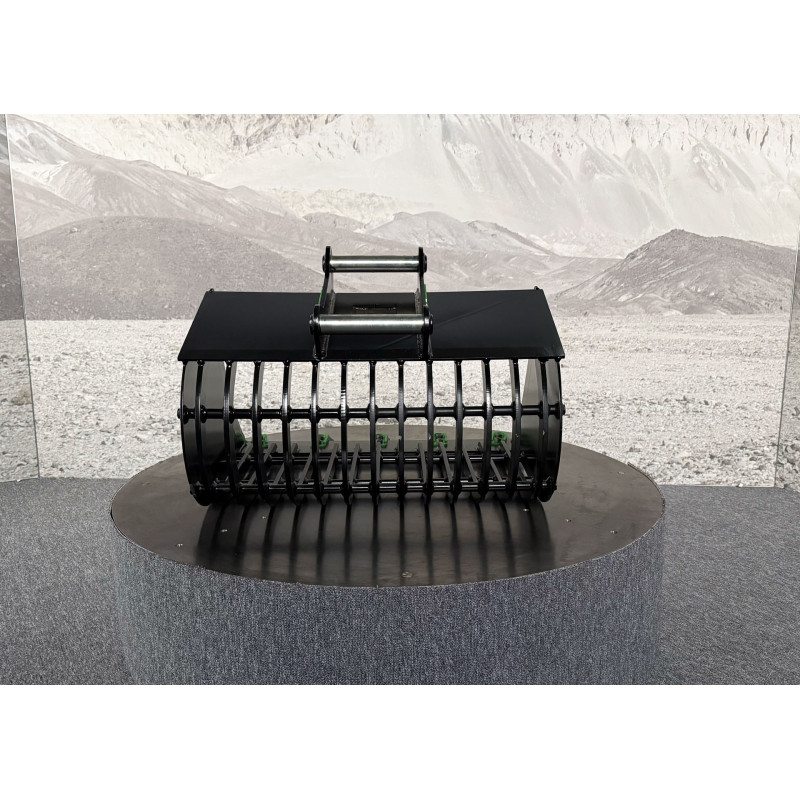

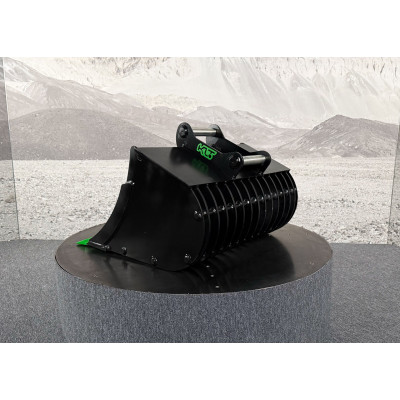

Skeleton bucket 600mm S40 class 3-4t
2,447.70 zł
Tax included
The SBS-S3-V1-600-S40 model is a robust skeleton bucket designed for 3–4-ton excavators, created to ensure efficient screening and sorting of loose materials. Precisely positioned ribs allow for effective separation of soil from larger fractions without the need for additional tools. It performs exceptionally well when removing stones, rubble, roots or other unwanted elements from the excavated material. Thought-out geometry ensures easy filling and fast emptying, which noticeably enhances overall productivity.

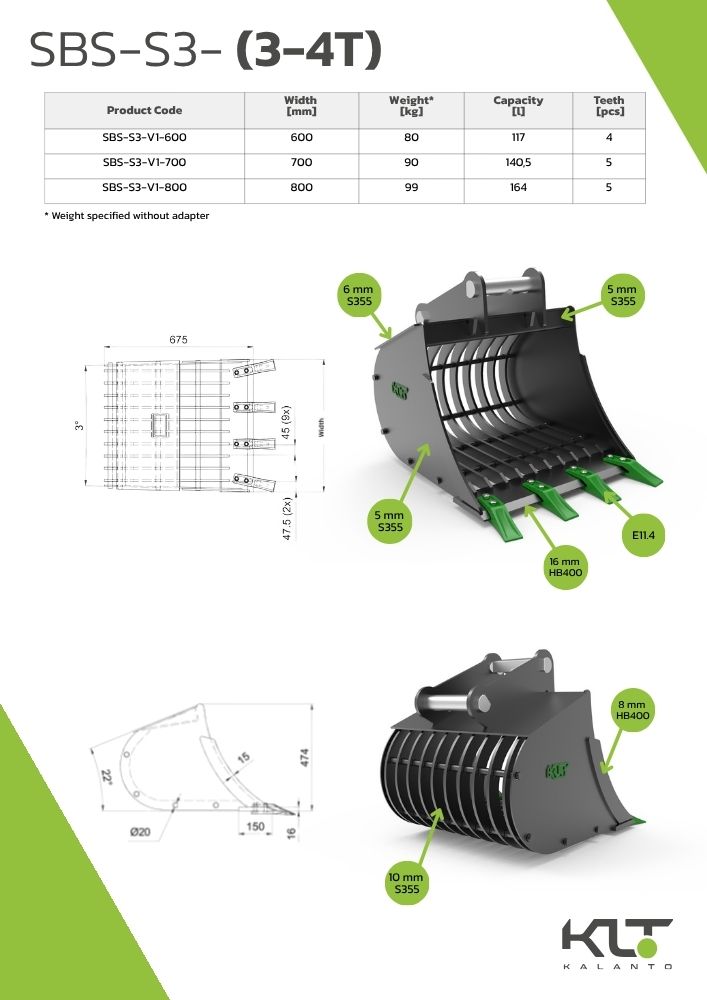

| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 600 | 80 | 117 | 4 |
| 800 | 99 | 164 | 5 |

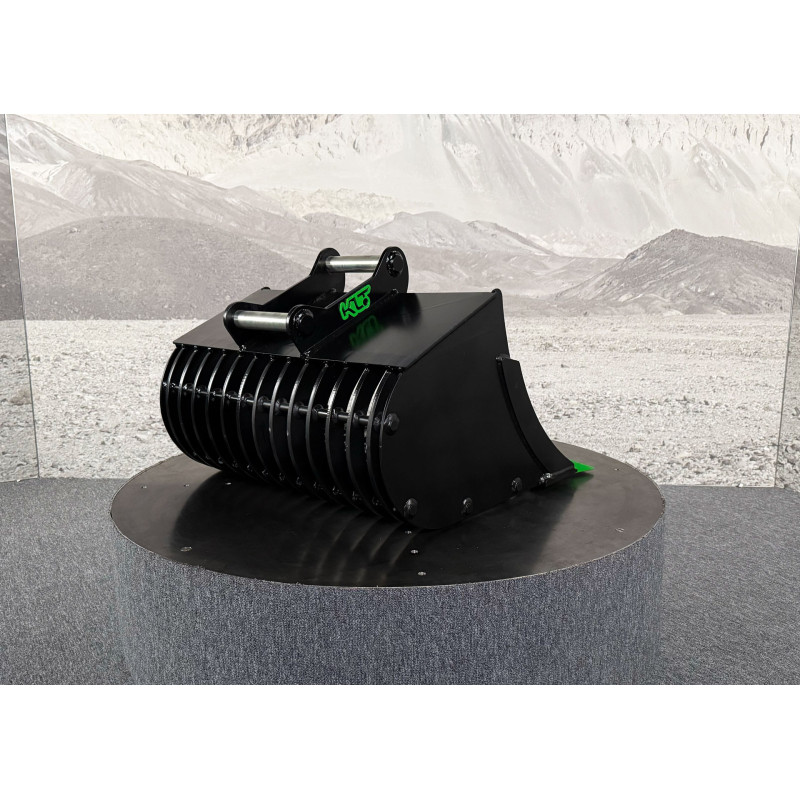

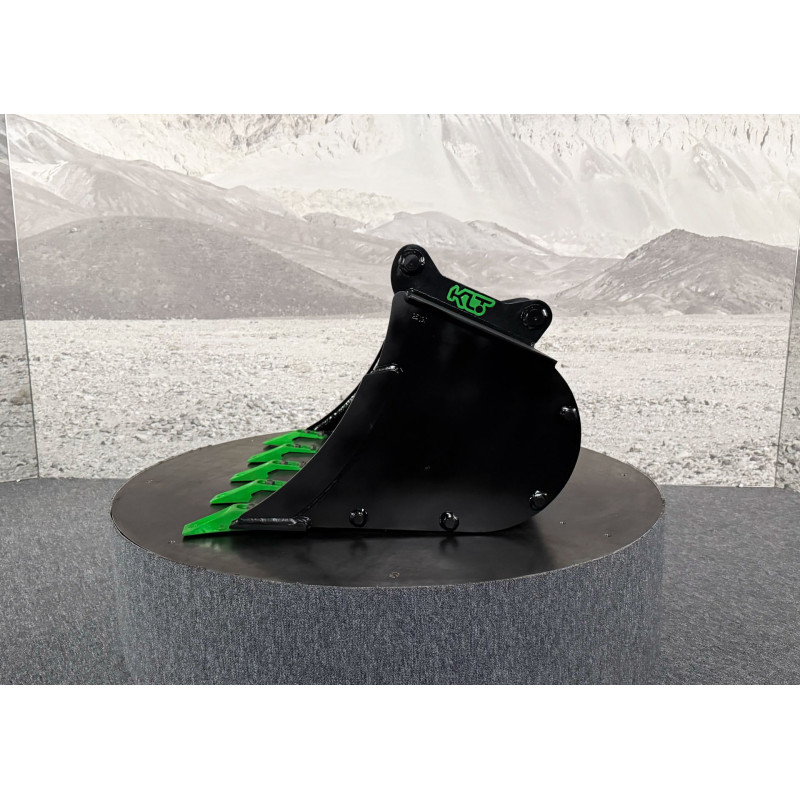

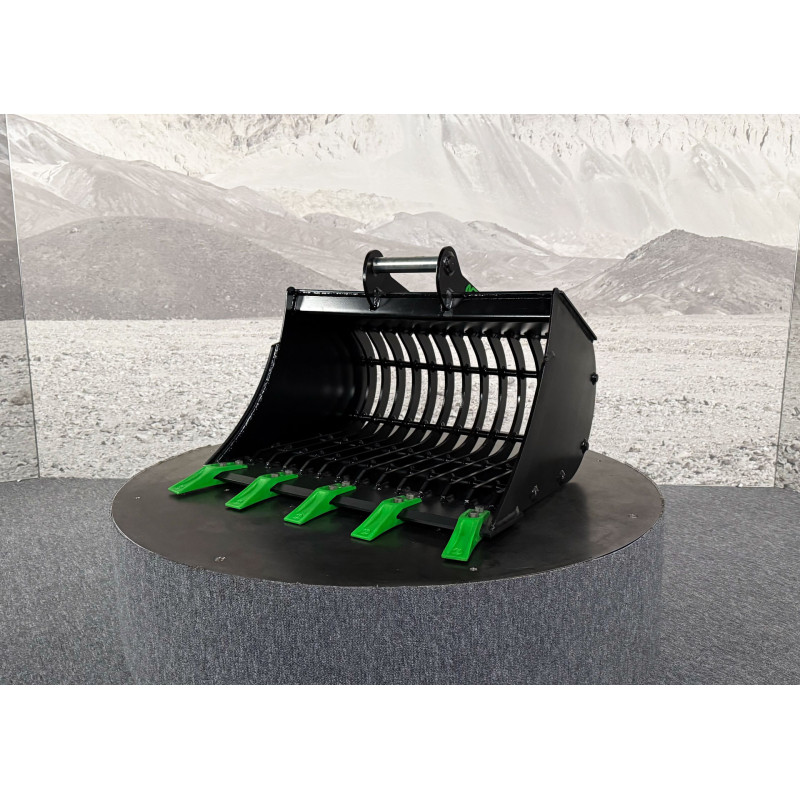

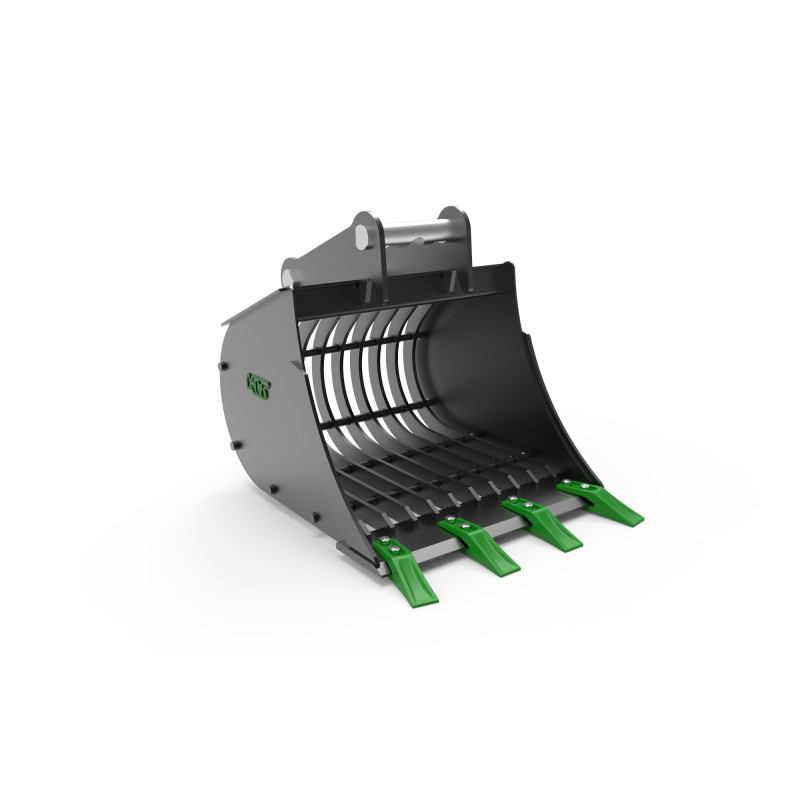

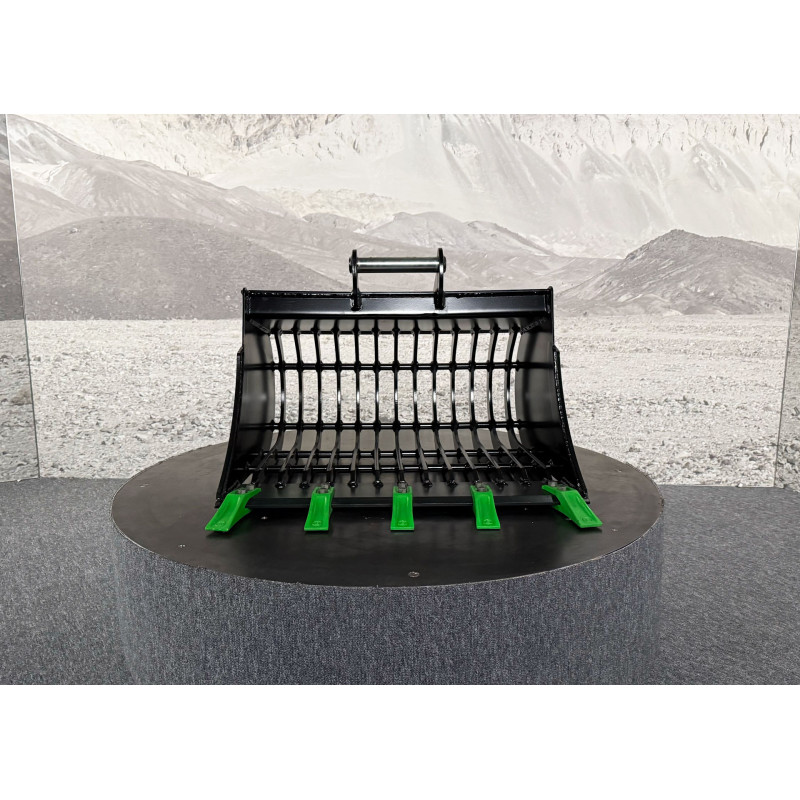

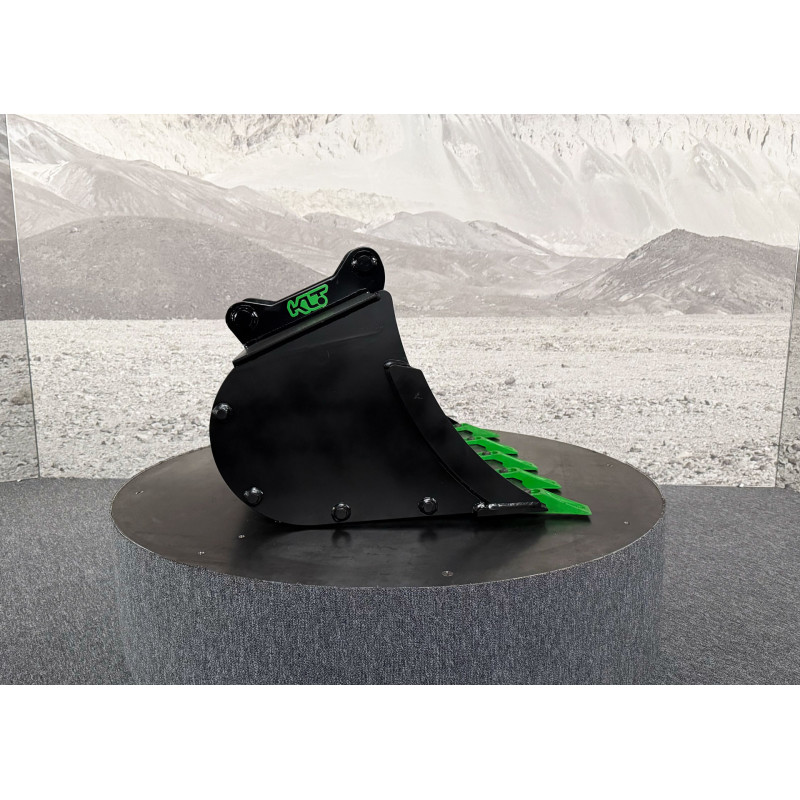

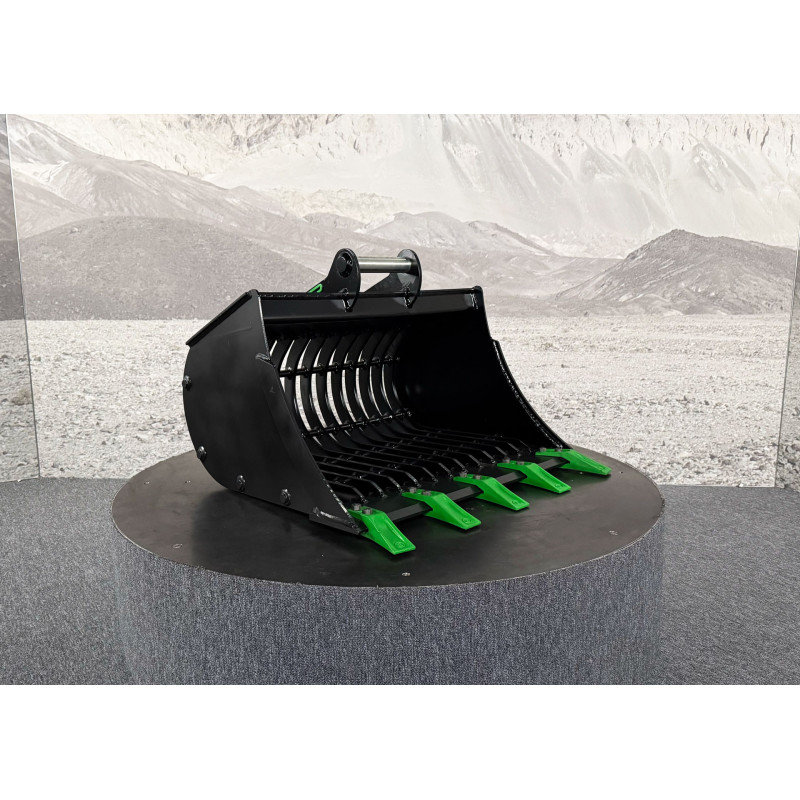

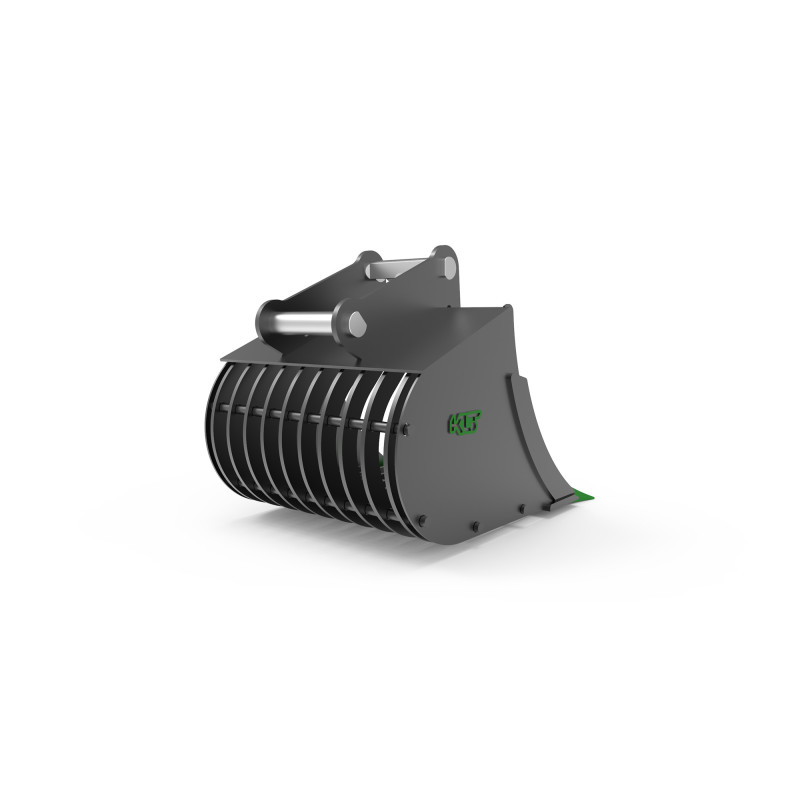

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Ribs: | 10 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 6 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Rib spacing: | 45mm | - |
| Type | ||
| Teeth: | E11.4 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
SBS-S3-V1-600-S40
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 3-4t
- Adapter
- S40
- Width
- 600mm
- Weight without adapter
- 80kg
- Capacity
- 117 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Ribs
- 10mm S355
- Rib spacing
- 45mm
- Cutting edge
- 16x150mm HB400
- Top plate
- 6mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 4pcs
- Type of teeth
- E11.4
