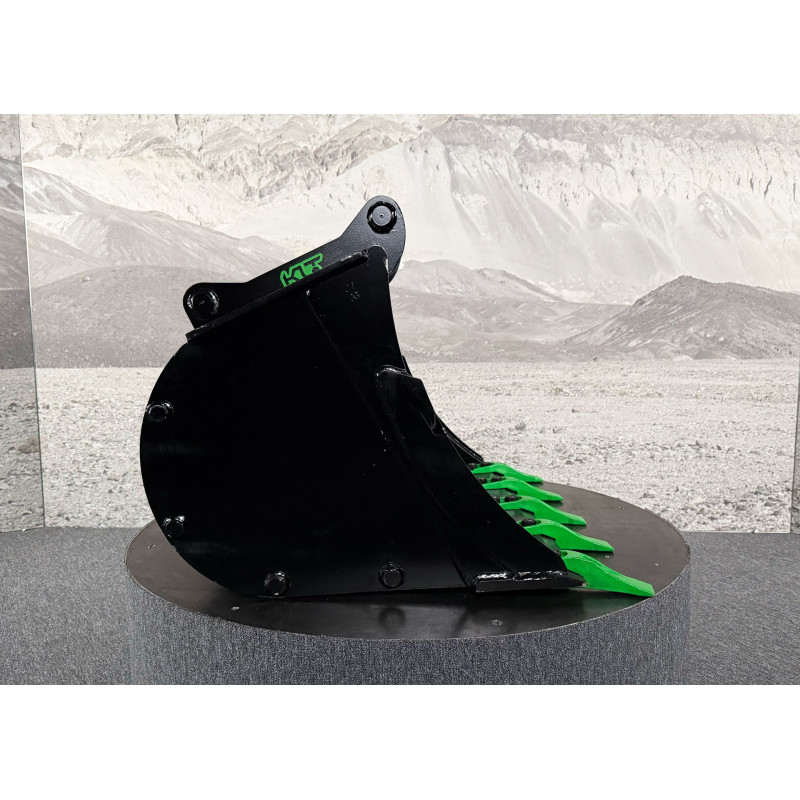

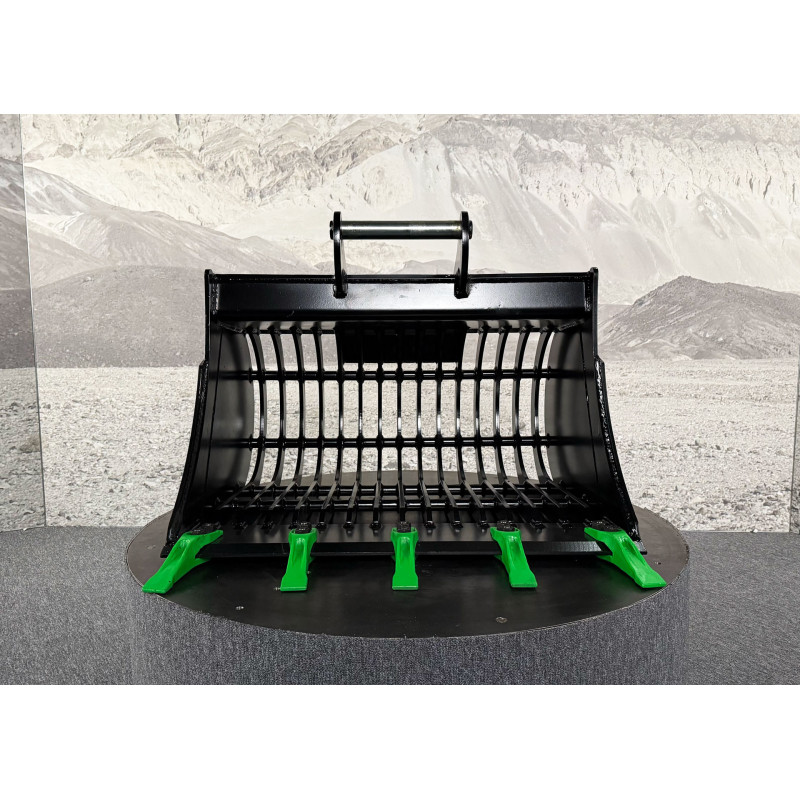

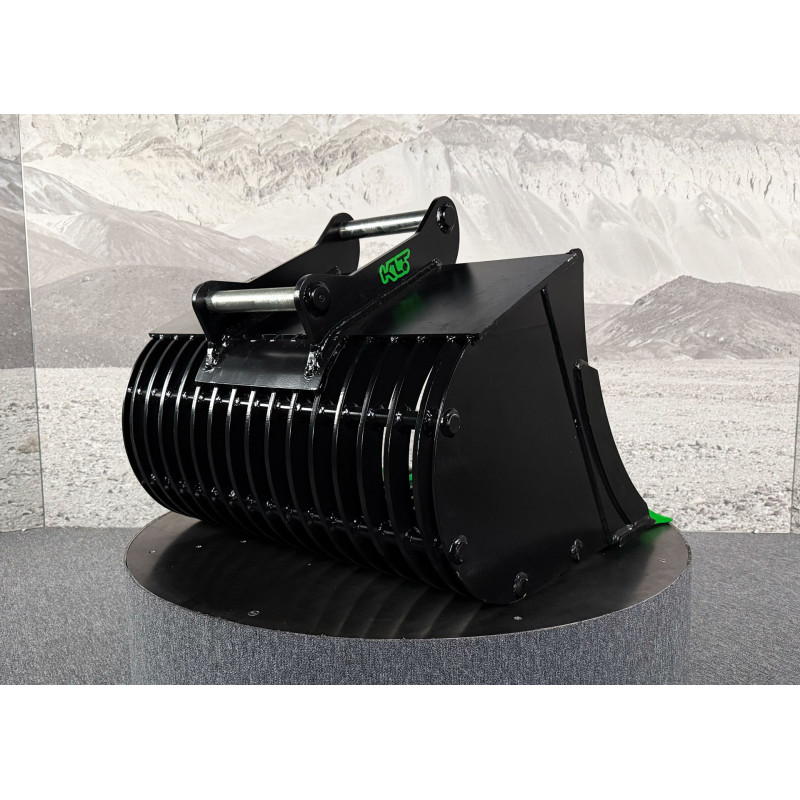

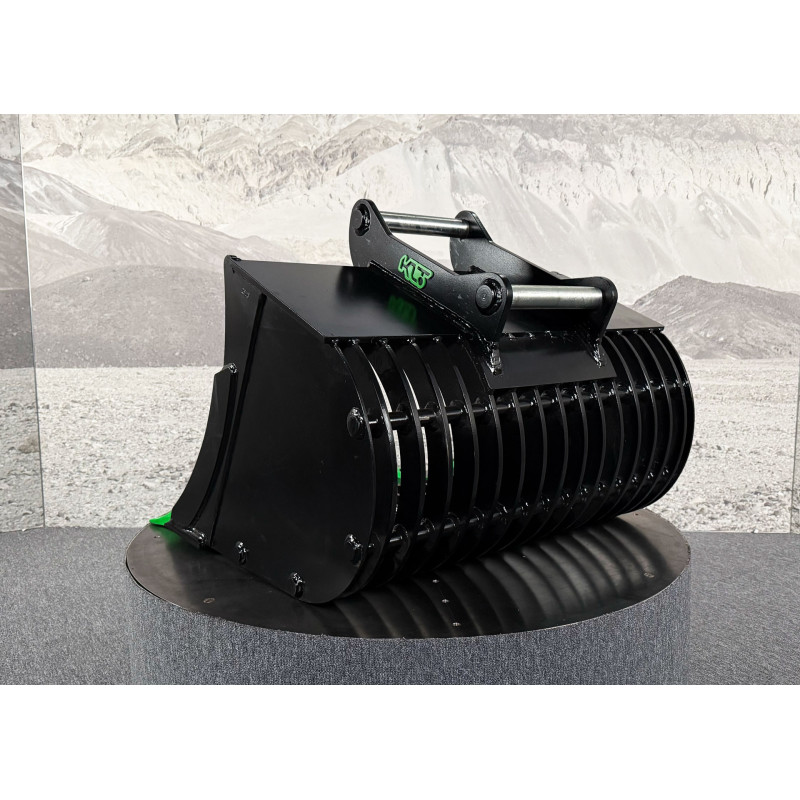

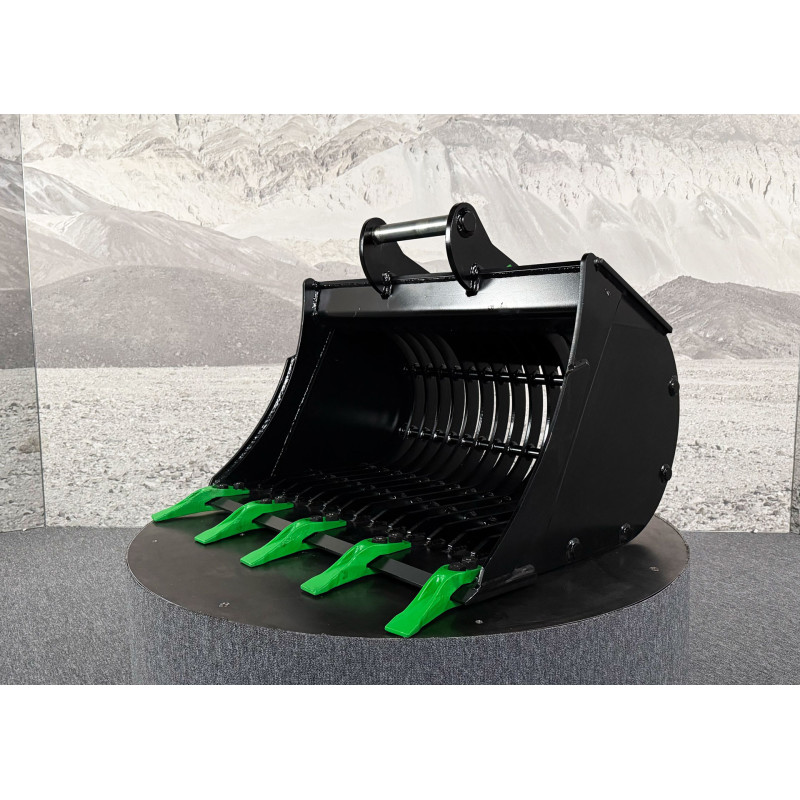

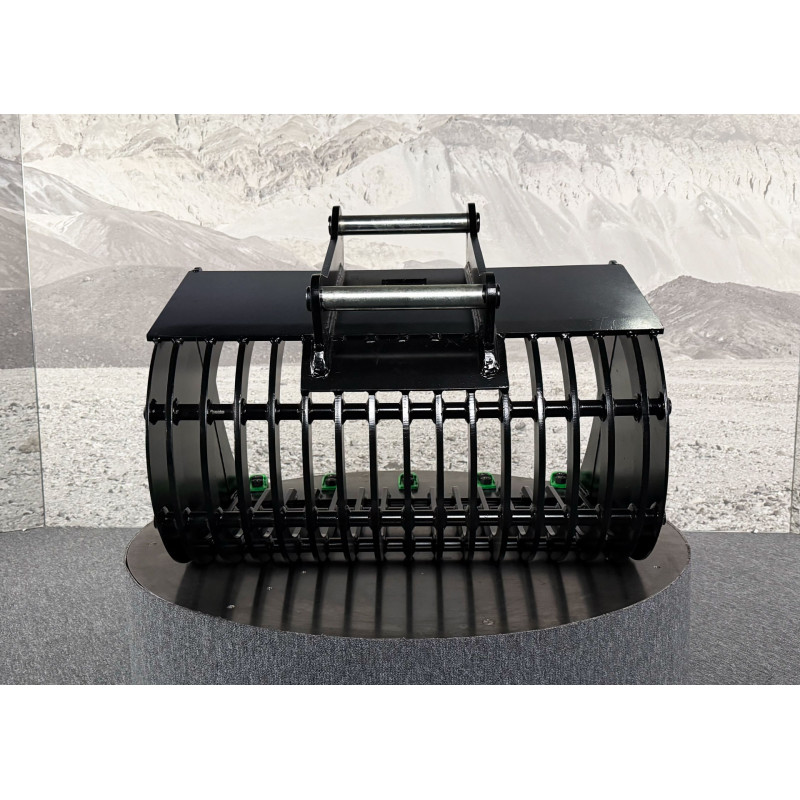

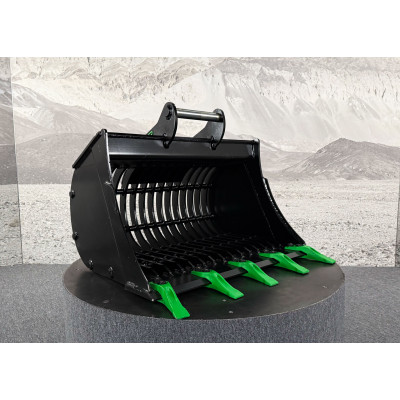

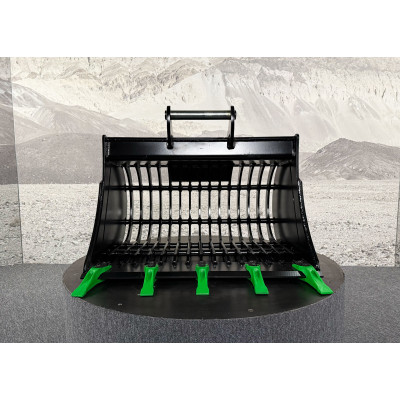

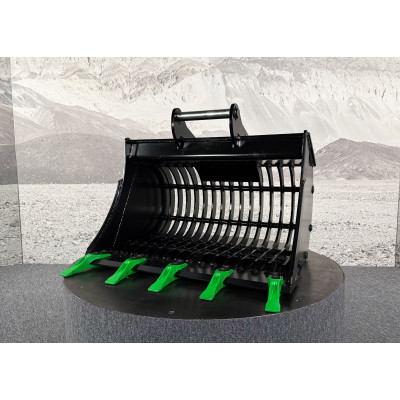

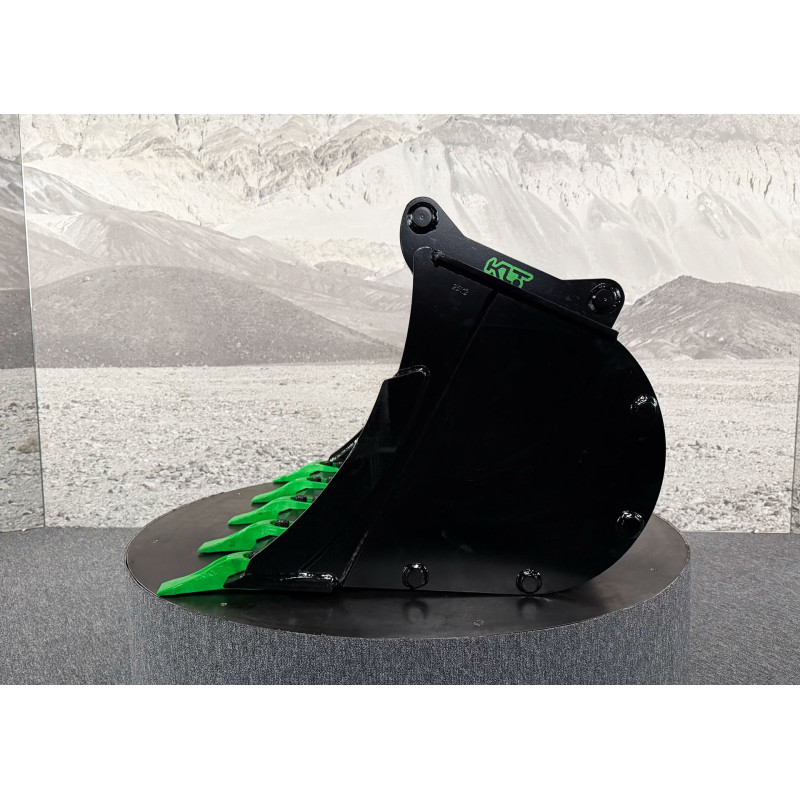

Skeleton bucket 1000mm S45 class 6-9t
6,045.45 zł
Tax included
The SBS-S5-V1-1000-S45 is a heavy-duty skeleton bucket engineered for 6–9-ton excavators. Its reinforced ribbed shell effectively separates fine fractions from larger materials, making it a perfect choice for soil screening, selective sorting or debris separation. Well-designed geometry and high abrasion resistance ensure long service life, while the ergonomic profile improves filling and dumping efficiency, enhancing productivity on the job site.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 800 | 195 | 246,9 | 5 |
| 1000 | 232 | 320,7 | 5 |
| 1200 | 272 | 394,6 | 6 |

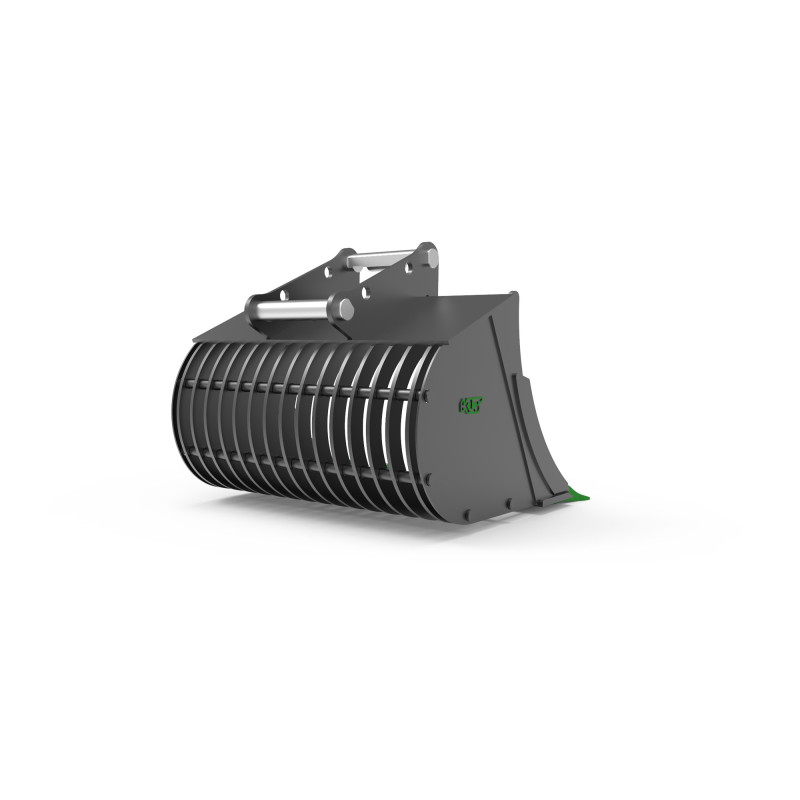

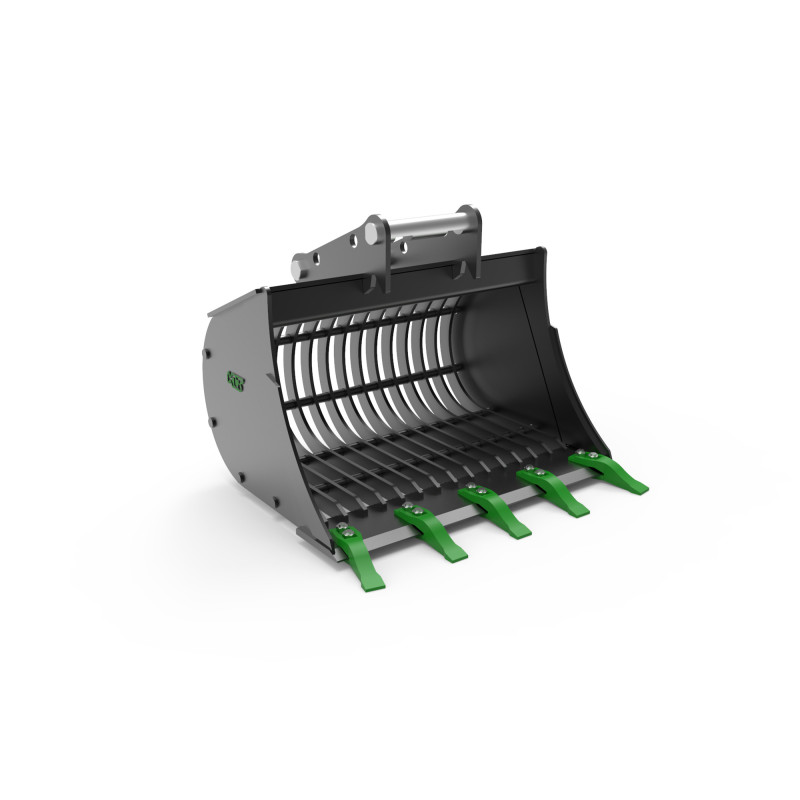

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 6 mm | S355 |
| Ribs: | 12 mm | S355 |
| Cutting edge: | 20 x 220 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 12 mm | S355 |
| Bend plate: | 10 mm | S355 |
| Rib spacing: | 45mm | - |
| Type | ||
| Teeth: | E25 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
SBS-S5-V1-1000-S45
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 6-7t
7-8t
8-9t - Adapter
- S45
- Width
- 1000mm
- Weight without adapter
- 232kg
- Capacity
- 320,7 l
- Side/rear plate
- 6mm S355
- Front side plate
- 12mm S355
- Side cutters
- 8mm HB400
- Ribs
- 12mm S355
- Rib spacing
- 45mm
- Cutting edge
- 20x200mm HB400
- Top plate
- 12mm S355
- Bend plate
- 10mm S355
- Number of teeth
- 5pcs
- Type of teeth
- E25
