Class: 0-2 T
Width: 700
Adapter: MS01SY

Skeleton bucket 700mm MS01SY class 0-2t

Name: Skeleton bucket 700mm MS01SY class 0-2t
Brand: ZMG
SKU: LAP-ZMG1-700-MS01SY
Price: 2174.64 PLN
Availability: InStock

2,174.64 zł Tax included

In stock Lead time up to 3 business weeks

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Lehnhoff system- MS01SY-without base plate

Reference: AD-WOP-MS01SY

The AD-WOP-MS01SY adapter, compliant with the MS01SY system, allows fast tool switching without the need for a base plate. It is an ideal option for users seeking maximum functionality, minimal weight, and high versatility.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 0-1, 1-2
Adapter: MS01SY
Side plate: 10 S355
Pin diameter: 40
Inner width: 185
Pin spacing: 255
Weight: 8

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing* [mm]
MS01	40	185	225
MS01SY	40	185	255
MS03	50	205	283,6
MS03SY	50	205	322
MS08	60	295	381
MS08SY	60	297	434

*In the technical specification, refer to the spacing between the pin and the thrust plate.

Parameters

The main components are made of the following materials and thicknesses:

	MS01		MS01SY		MS03		MS03SY		MS08		MS08SY
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	10mm	S355	10mm	S355	12mm	S355	12mm	S355	16mm	S355	16mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
500	41	49	4
600	48	61	4
700	54	73	4
800	61	85	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Ribs:	8 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	40 mm

	Type
Teeth:	JCB Mini

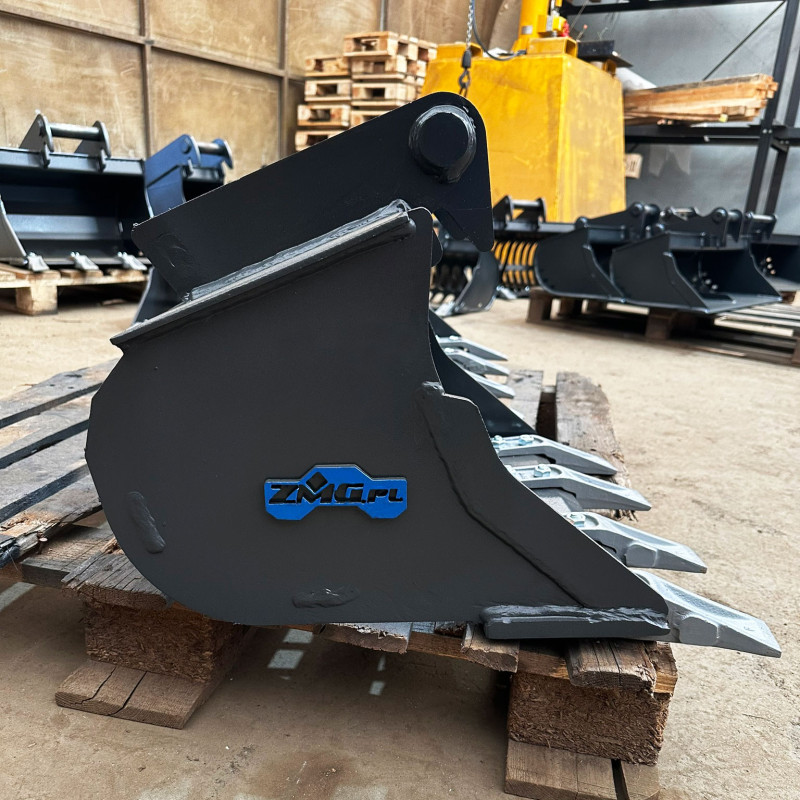

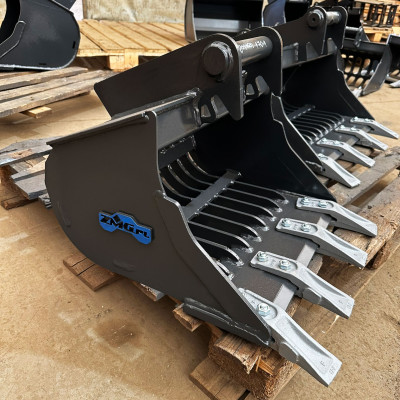

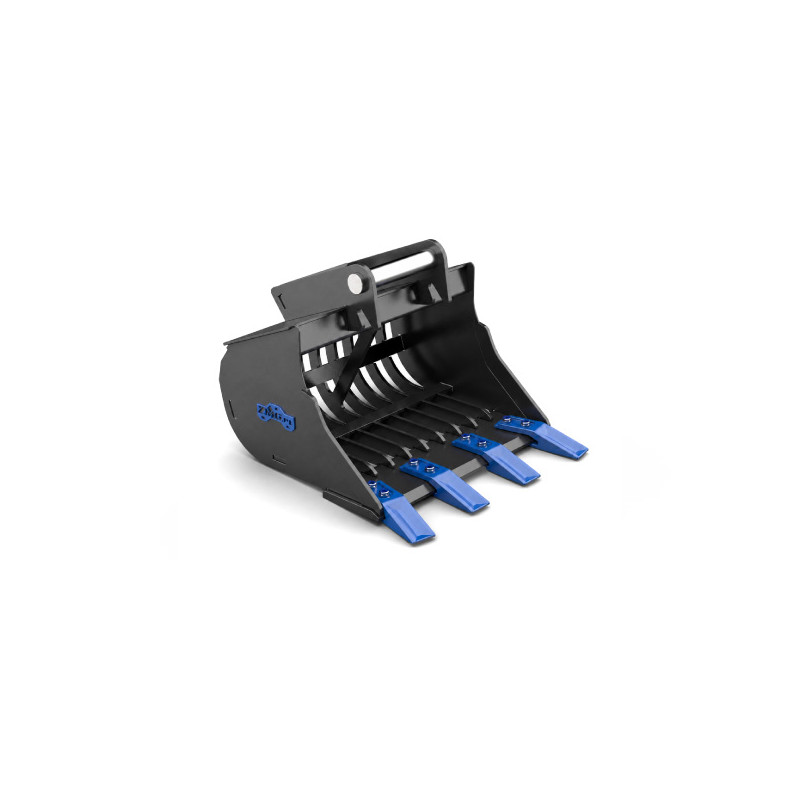

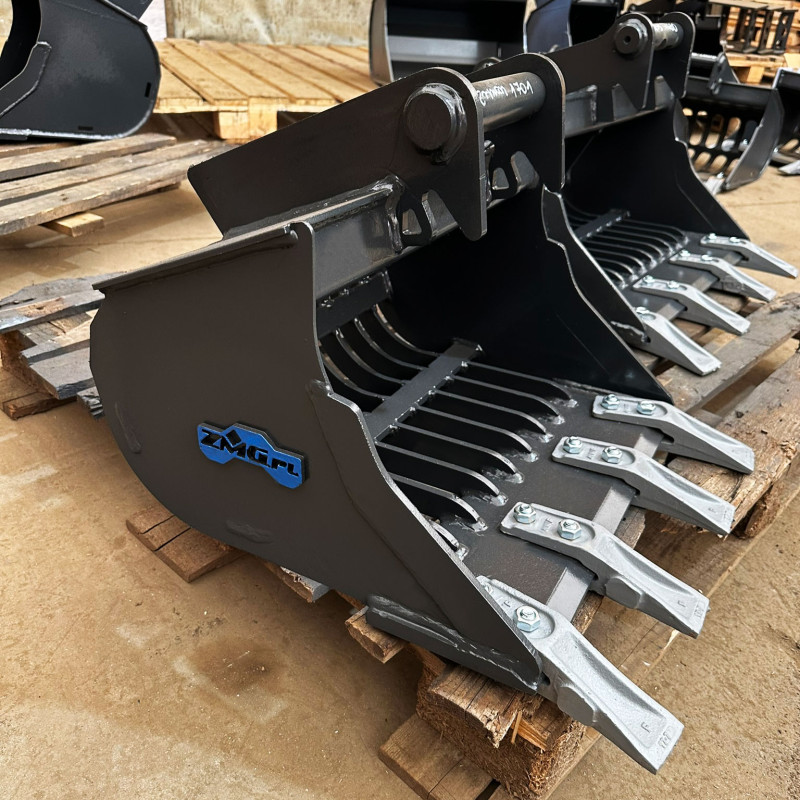

The LAP-ZMG1-700-MS01SY skeleton bucket, 700 mm wide, was designed with mini and compact excavators up to 2 t in mind. The tool is ideal for separating stones from soil, recycling operations, and collecting organic material in forest and agricultural settings. The hydraulic Lehnhoff MS01SY quick coupler allows attachment changes directly from the cab without leaving the machine – maximum convenience and safety. High-quality steel and careful welding technology ensure the bucket retains its shape and working properties over a long service life.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG1

Reference LAP-ZMG1-700-MS01SY

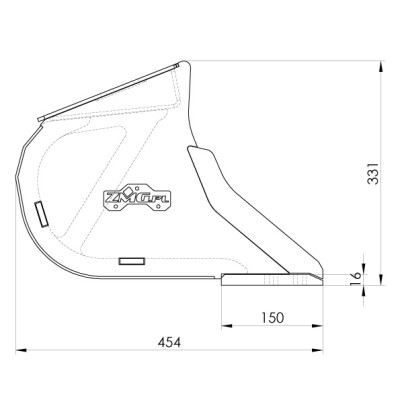

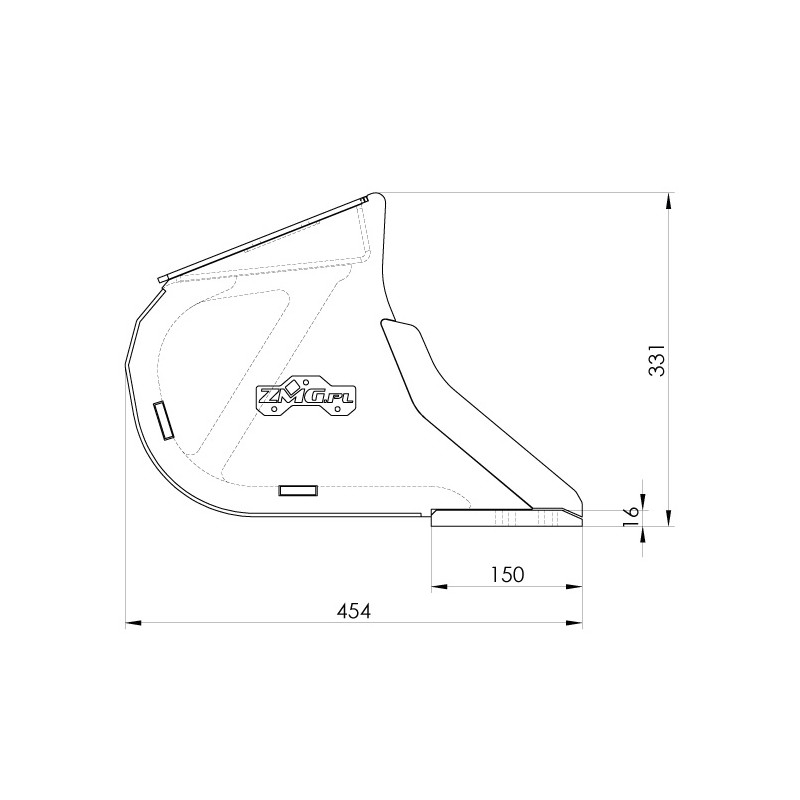

Data sheet

Lead time: up to 3 business weeks
For the machine: 0-1
1-2
Adapter: MS01SY
Width: 700
Weight without adapter: 54
Capacity: 73
Side/rear plate: 4 S355
Side cutters: 8 HB400
Ribs: 8 S355
Rib spacing: 40
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: JCB Mini
