Class: 6-9 T
Width: 800
Adapter: S50

Skeleton bucket 800mm S50 class 6-8t

Name: Skeleton bucket 800mm S50 class 6-8t
Brand: ZMG
SKU: LAP-ZMG4-800-S50
Price: 4617.42 PLN
Availability: InStock

4,617.42 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
600	117	193	4
800	157	269	5
900	173	307	5
1000	190	345	5
1100	207	384	6
1200	224	430	6

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Ribs:	10 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	12 mm	HB400
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Rib spacing:	55 mm

	Type
Teeth:	JCB

The LAP-ZMG4-800-S50 series is a 800 mm skeleton bucket dedicated to excavators in the 6–8 t class. Openings in the base and sides let fine material fall through freely, making it indispensable for stone-soil separation, recycling, and landscaping work. The S50 adapter is designed for the largest construction-class machines, providing stable and safe mounting of heavy working attachments. High-quality steel and careful welding technology ensure the bucket retains its shape and working properties over a long service life.

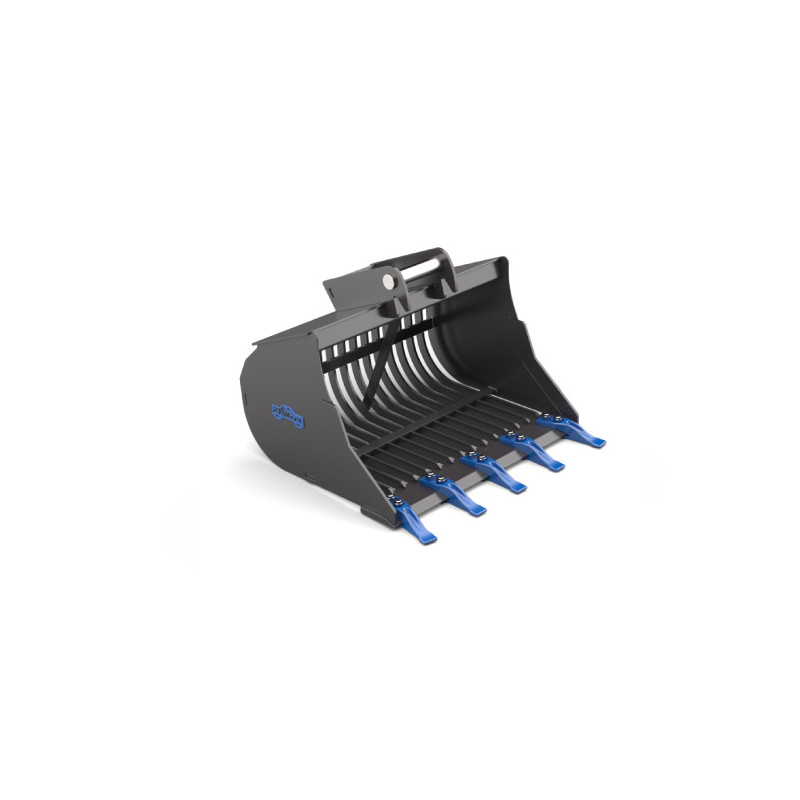

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG4

Reference LAP-ZMG4-800-S50

Data sheet

Lead time: up to 3 business weeks
For the machine: 6-7
7-8
Adapter: S50
Width: 800
Weight without adapter: 157
Capacity: 269
Side/rear plate: 6 S355
Side cutters: 12 HB400
Ribs: 10 S355
Rib spacing: 55
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 5
Type of teeth: JCB
