Class: 4-6 T
Width: 1000
Adapter: MS03

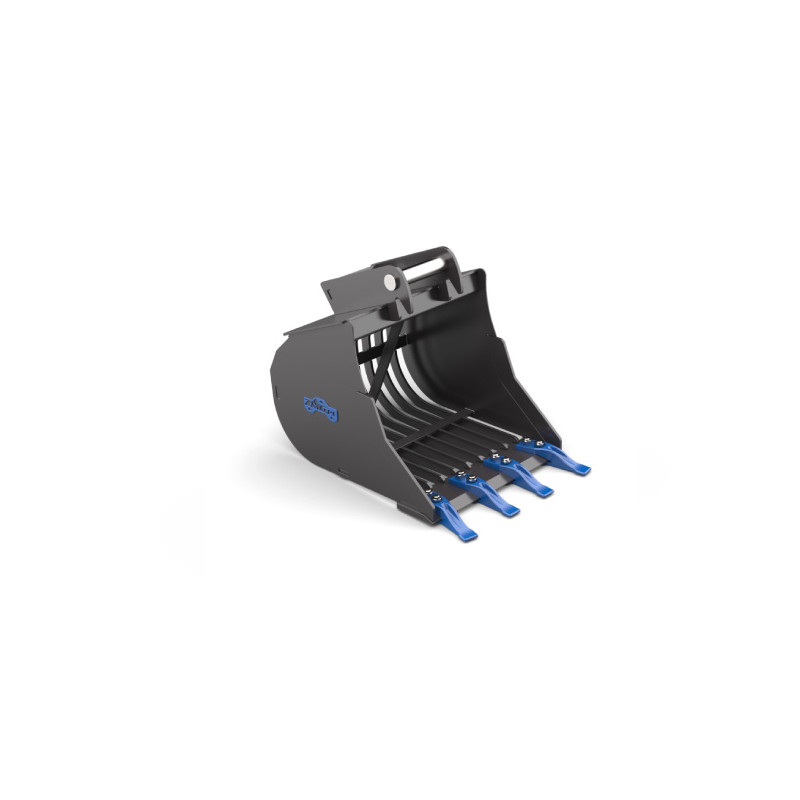

Skeleton bucket 1000mm MS03 class 3-6t

Name: Skeleton bucket 1000mm MS03 class 3-6t
Brand: ZMG
SKU: LAP-ZMG3-1000-MS03
Price: 4639.56 PLN
Availability: InStock

4,639.56 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
600	96	157	4
700	108	189	5
800	120	221	5
900	132	253	5
1000	144	285	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Ribs:	10 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	6 mm	S355
Rib spacing:	45 mm

	Type
Teeth:	JCB

The LAP-ZMG3-1000-MS03 series is a 1000 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Openings in the base and sides let fine material fall through freely, making it indispensable for stone-soil separation, recycling, and landscaping work. The Lehnhoff MS03 quick coupler provides reliable attachment and efficient tool changes for medium-class machines. The solid welded structure and steel bars guarantee durability and deformation resistance during intensive use.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG3

Reference LAP-ZMG3-1000-MS03

Data sheet

Lead time: up to 3 business weeks
For the machine: 3-4
4-5
5-6
Adapter: MS03
Width: 1000
Weight without adapter: 144
Capacity: 285
Side/rear plate: 5 S355
Side cutters: 8 HB400
Ribs: 10 S355
Rib spacing: 45
Cutting edge: 20 HB500
Top plate: 8 S355
Bend plate: 6 S355
Number of teeth: 5
Type of teeth: JCB
