Class: 4-6 T
Width: 600
Adapter: Without adapter

Skeleton bucket 600mm without adapter class 3-6t

Skeleton bucket 600mm without adapter class 3-6t

Skeleton bucket 600mm without adapter class 3-6t

Skeleton bucket 600mm without adapter class 3-6t

Skeleton bucket 600mm without adapter class 3-6t

2,908.95 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
600	96	157	4
700	108	189	5
800	120	221	5
900	132	253	5
1000	144	285	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Ribs:	10 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	6 mm	S355
Rib spacing:	45 mm

	Type
Teeth:	JCB

The LAP-ZMG3-600-WOA is a 600 mm skeleton bucket created for mini and compact excavators up to 2 t. Its open structure allows efficient screening and material separation, essential for aggregate sorting, scrap handling, and secondary material processing. The adapterless version is designed for direct mounting on the excavator arm, eliminating intermediate components and reducing total attachment weight. The steel frame and reinforced S355 steel bars ensure long service life even when working with hard, abrasive materials.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG3

Reference LAP-ZMG3-600-WOA

Data sheet

Lead time: up to 3 business weeks
For the machine: 3-4
4-5
5-6
Adapter: Without adapter
Width: 600
Weight without adapter: 96
Capacity: 157
Side/rear plate: 5 S355
Side cutters: 8 HB400
Ribs: 10 S355
Rib spacing: 45
Cutting edge: 20 HB500
Top plate: 8 S355
Bend plate: 6 S355
Number of teeth: 4
Type of teeth: JCB

16 other products in the same category:

Skeleton bucket 1000mm without adapter class 4-6t

Class: 4-6 T
Width: 1000
Adapter: Without adapter

Skeleton bucket 1000mm without adapter class 4-6t

4,335.75 zł

In stock

The SBS-S4-V1-1000-WOA is a spacious skeleton bucket offering high productivity for excavators in the 4–6-ton range. Its wide, ribbed shell enables rapid and accurate separation of fine soil...

Skeleton bucket 600mm with pins class 0-2t

Class: 0-2 T
Width: 600
Adapter: with pins

Skeleton bucket 600mm with pins class 0-2t

2,041.80 zł

In stock

The LAP-ZMG1-600-ZSW is a 600 mm skeleton bucket created for mini and compact excavators up to 2 t. Its open structure allows efficient screening and material separation, essential for aggregate...

Skeleton bucket 1200mm without adapter class 6-8t

Class: 6-9 T
Width: 1200
Adapter: Without adapter

Skeleton bucket 1200mm without adapter class 6-8t

5,490.72 zł

In stock

The LAP-ZMG4-1200-WOA skeleton bucket, 1200 mm wide, was designed with excavators in the 6–8 t class in mind. The tool is ideal for separating stones from soil, recycling operations, and...

Skeleton bucket 500mm S30/180 class 0-2t

Class: 0-2 T
Width: 500
Adapter: S30/180

Skeleton bucket 500mm S30/180 class 0-2t

1,634.67 zł

In stock

The LAP-ZMG1-500-S30/180 skeleton bucket with a working width of 500 mm is a specialist tool designed for mini and compact excavators up to 2 t. It is excellent for soil screening, stone...

Skeleton bucket 900mm S40 class 3-6t

Class: 4-6 T
Width: 900
Adapter: S40

Skeleton bucket 900mm S40 class 3-6t

4,322.22 zł

In stock

The LAP-ZMG3-900-S40 skeleton bucket, 900 mm wide, was designed with mini and compact excavators up to 2 t in mind. The tool is ideal for separating stones from soil, recycling operations, and...

Skeleton bucket 700mm M10 class 3-6t

Class: 4-6 T
Width: 700
Adapter: M10

Skeleton bucket 700mm M10 class 3-6t

3,951.99 zł

In stock

The LAP-ZMG3-700-M10 is a 700 mm skeleton bucket created for mini and compact excavators up to 2 t. Its open structure allows efficient screening and material separation, essential for aggregate...

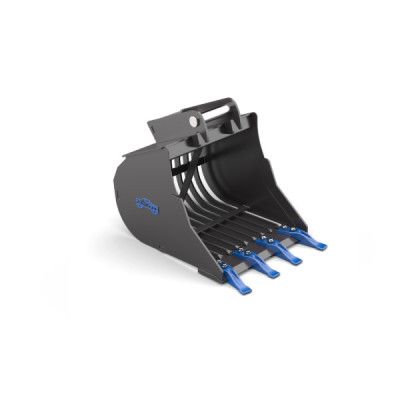

Skeleton bucket 900mm MS03 class 3-6t

Class: 4-6 T
Width: 900
Adapter: MS03

Skeleton bucket 900mm MS03 class 3-6t

4,322.22 zł

In stock

The LAP-ZMG3-900-MS03 is a 900 mm skeleton bucket created for mini and compact excavators up to 2 t. Its open structure allows efficient screening and material separation, essential for aggregate...

Skeleton bucket 800mm S30/180 class 0-2t

Class: 0-2 T
Width: 800
Adapter: S30/180

Skeleton bucket 800mm S30/180 class 0-2t

2,301.33 zł

In stock

Model LAP-ZMG1-800-S30/180 is a 800 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Its perforated structure enables efficient aggregate sorting, soil sieving, and selective...

Skeleton bucket 600mm M03 class 0-2t

Class: 0-2 T
Width: 600
Adapter: M03

Skeleton bucket 600mm M03 class 0-2t

1,920.03 zł

In stock

The LAP-ZMG1-600-M03 series is a 600 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Openings in the base and sides let fine material fall through freely, making it...

Skeleton bucket 600mm MS08 class 6-8t

Class: 6-9 T
Width: 600
Adapter: MS08

Skeleton bucket 600mm MS08 class 6-8t

3,956.91 zł

In stock

The LAP-ZMG4-600-MS08 skeleton bucket, 600 mm wide, was designed with excavators in the 6–8 t class in mind. The tool is ideal for separating stones from soil, recycling operations, and collecting...

Skeleton bucket 900mm M10 class 6-8t

Class: 6-9 T
Width: 900
Adapter: M10

Skeleton bucket 900mm M10 class 6-8t

4,998.72 zł

In stock

Model LAP-ZMG4-900-M10 is a 900 mm skeleton bucket dedicated to excavators in the 6–8 t class. Its perforated structure enables efficient aggregate sorting, soil sieving, and selective material...

Skeleton bucket 800mm S50 class 6-8t

Class: 6-9 T
Width: 800
Adapter: S50

Skeleton bucket 800mm S50 class 6-8t

4,617.42 zł

In stock

The LAP-ZMG4-800-S50 series is a 800 mm skeleton bucket dedicated to excavators in the 6–8 t class. Openings in the base and sides let fine material fall through freely, making it indispensable...

Skeleton bucket 1200mm MS08 class 8-11t

Class: 6-9 T
Width: 1200
Adapter: MS08

Skeleton bucket 1200mm MS08 class 8-11t

8,420.58 zł

In stock

The LAP-ZMG5-1200-MS08 skeleton bucket, 1200 mm wide, was designed with heavy excavators in the 8–11 t class in mind. The tool is ideal for separating stones from soil, recycling operations, and...

Skeleton bucket 800mm MS03 class 3-6t

Class: 4-6 T
Width: 800
Adapter: MS03

Skeleton bucket 800mm MS03 class 3-6t

4,004.88 zł

In stock

The LAP-ZMG3-800-MS03 skeleton bucket, 800 mm wide, was designed with mini and compact excavators up to 2 t in mind. The tool is ideal for separating stones from soil, recycling operations, and...

Skeleton bucket 1000mm M10 class 3-6t

Class: 4-6 T
Width: 1000
Adapter: M10

Skeleton bucket 1000mm M10 class 3-6t

4,904.01 zł

In stock

The LAP-ZMG3-1000-M10 series is a 1000 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Openings in the base and sides let fine material fall through freely, making it...

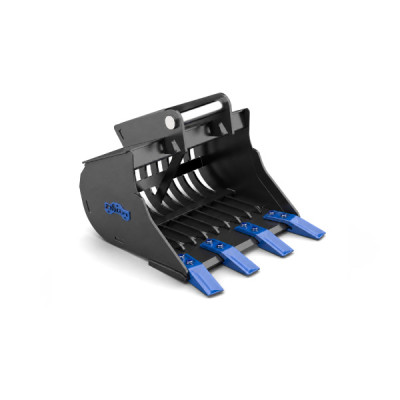

Skeleton bucket 800mm without adapter class 0-2t
