Class: 0-2 T
Width: 800
Adapter: CW05

Skeleton bucket 800mm CW05 class 0-2t

Skeleton bucket 800mm CW05 class 0-2t

Skeleton bucket 800mm CW05 class 0-2t

Skeleton bucket 800mm CW05 class 0-2t

Skeleton bucket 800mm CW05 class 0-2t

Skeleton bucket 800mm CW05 class 0-2t

Skeleton bucket 800mm CW05 class 0-2t

Skeleton bucket 800mm CW05 class 0-2t

Skeleton bucket 800mm CW05 class 0-2t

Skeleton bucket 800mm CW05 class 0-2t

Skeleton bucket 800mm CW05 class 0-2t

2,428.02 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
500	41	49	4
600	48	61	4
700	54	73	4
800	61	85	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Ribs:	8 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	40 mm

	Type
Teeth:	JCB Mini

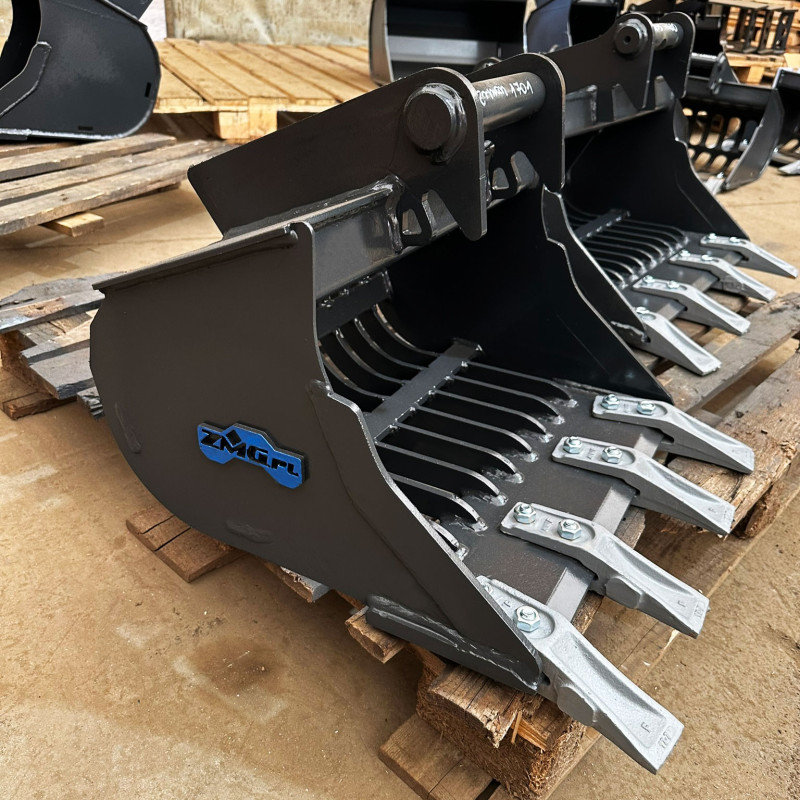

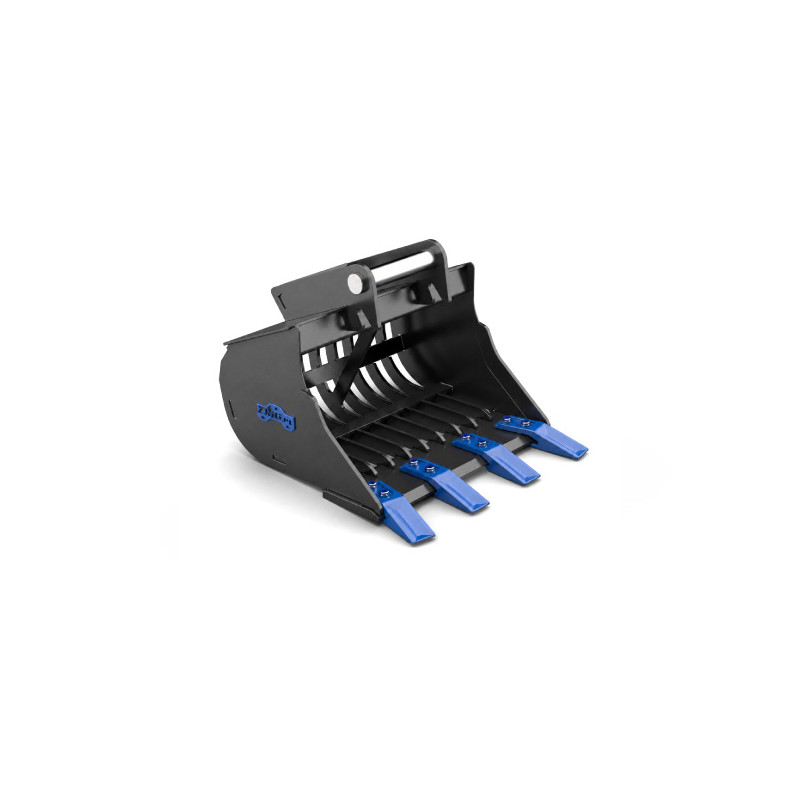

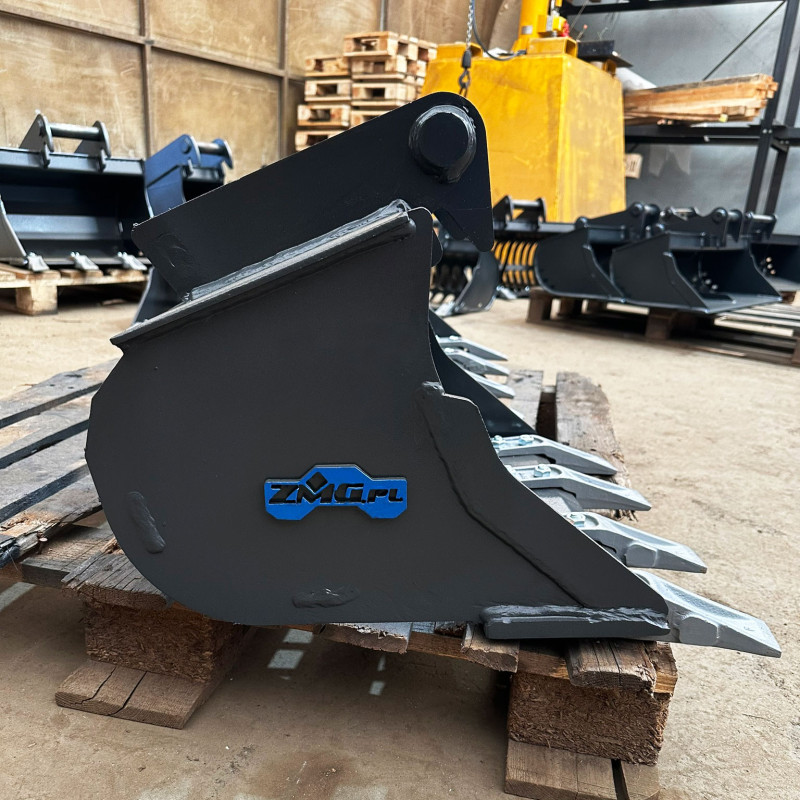

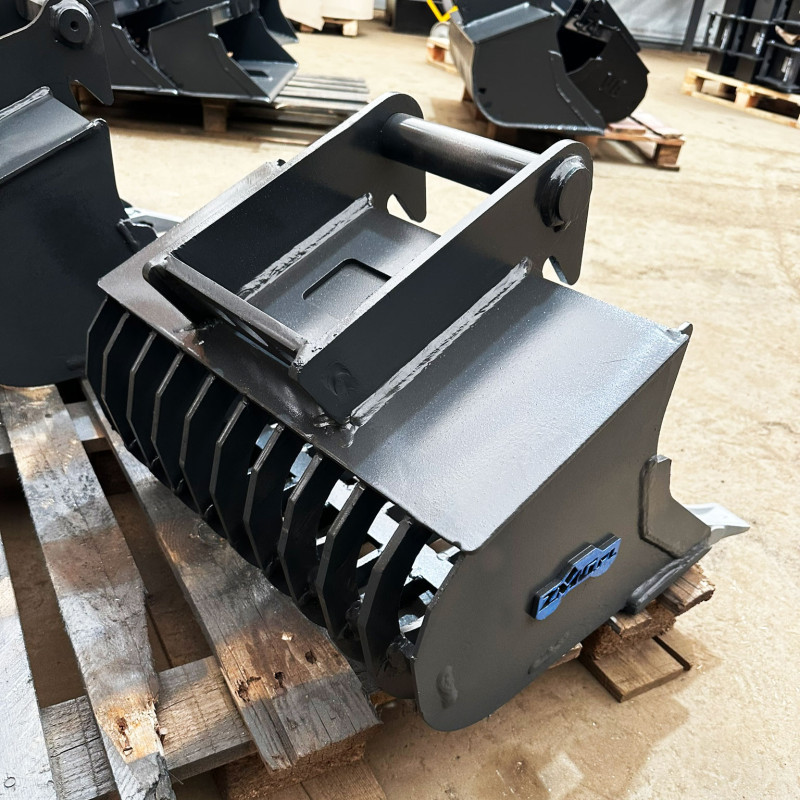

Model LAP-ZMG1-800-CW05 is a 800 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Its perforated structure enables efficient aggregate sorting, soil sieving, and selective material collection without transporting unwanted water or fine particles. The Verachtert CW05 quick coupler system guarantees a solid and safe machine connection, providing flexibility in attachment selection. The steel frame and reinforced S355 steel bars ensure long service life even when working with hard, abrasive materials.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG1

Reference LAP-ZMG1-800-CW05

Data sheet

Lead time: up to 3 business weeks
For the machine: 0-1
1-2
Adapter: CW05
Width: 800
Weight without adapter: 61
Capacity: 85
Side/rear plate: 4 S355
Side cutters: 8 HB400
Ribs: 8 S355
Rib spacing: 40
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 5
Type of teeth: JCB Mini
