Class: 3-4 T
Width: 800
Adapter: S40

Skeleton bucket 800mm S40 class 3-4t

Name: Skeleton bucket 800mm S40 class 3-4t
Brand: Kalanto
SKU: SBS-S3-V1-800-S40
Price: 2942.16 PLN
Availability: InStock

2,942.16 zł

Tax included

In stock Lead time: up to 48 hours

Other models:

Width

Adapter

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Ribs:	10 mm	S355
Cutting edge:	16 x 150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	6 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	45mm	-
	Type
Teeth:	E11.4

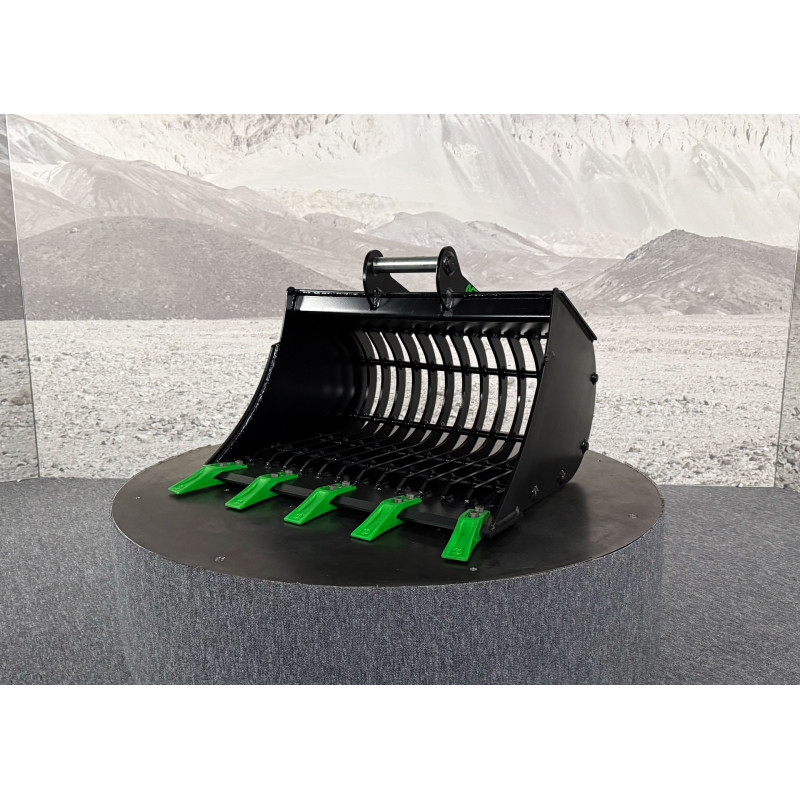

The SBS-S3-V1-800-S40 model is a sturdy skeleton bucket intended for excavators weighing between 3 and 4 tons, engineered for effective screening and sorting of loose materials. With evenly spaced ribs, it efficiently removes unwanted fractions such as stones, rubble, roots or compacted soil pieces. Its well-balanced geometry and construction proportions ensure easy loading and quick emptying, improving operator performance and increasing overall workflow efficiency.

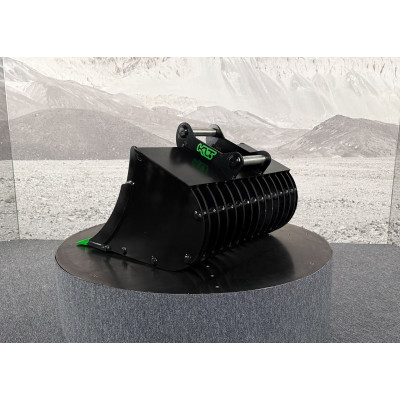

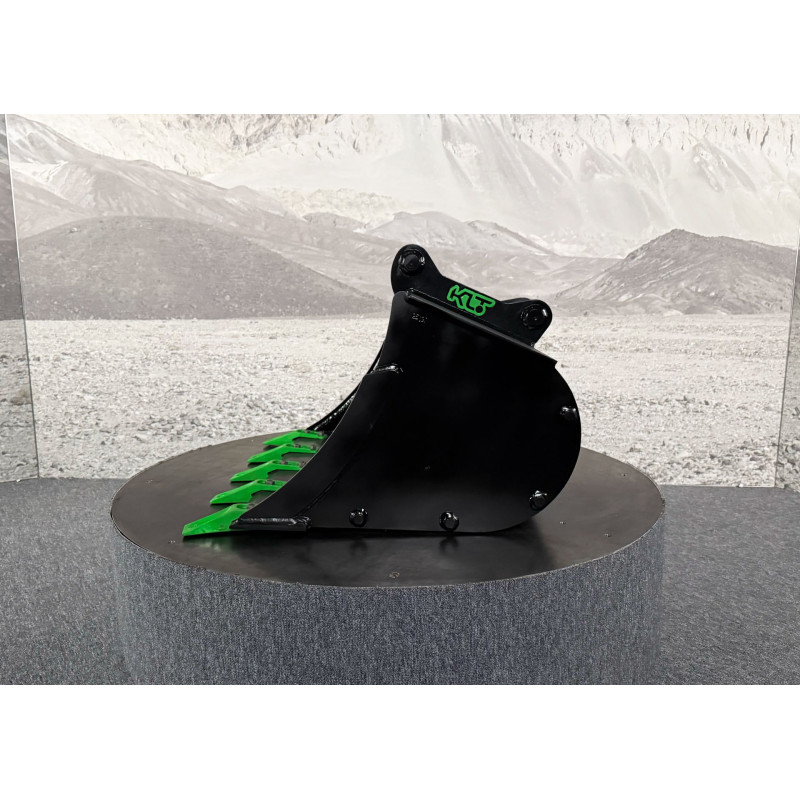

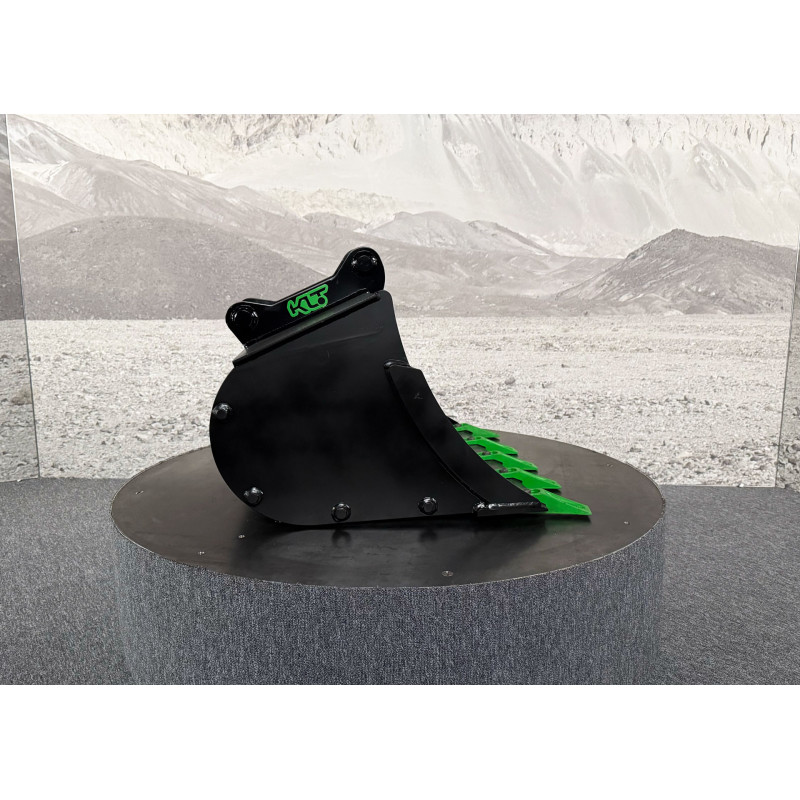

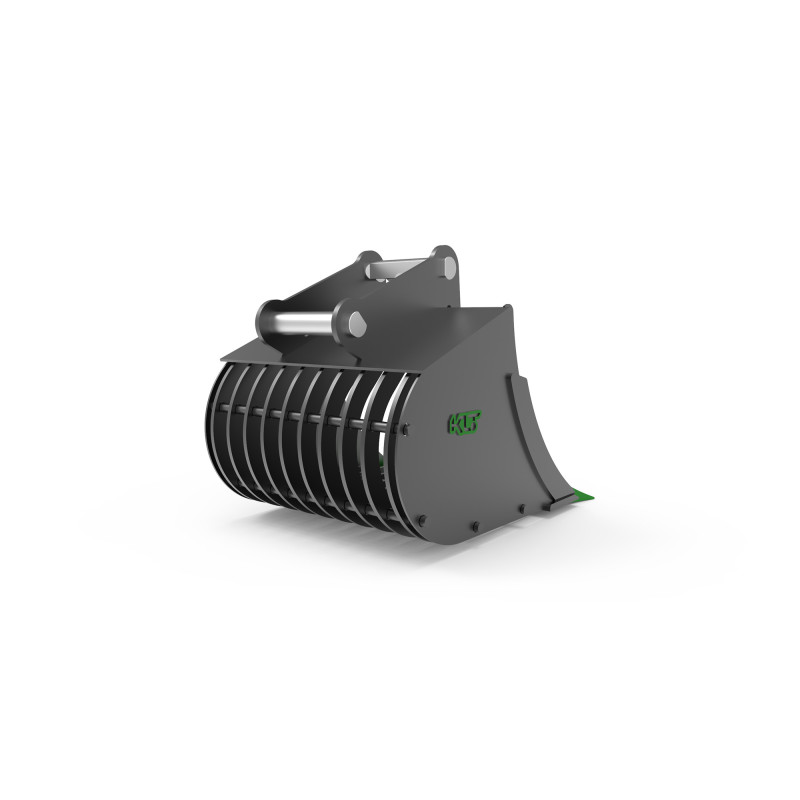

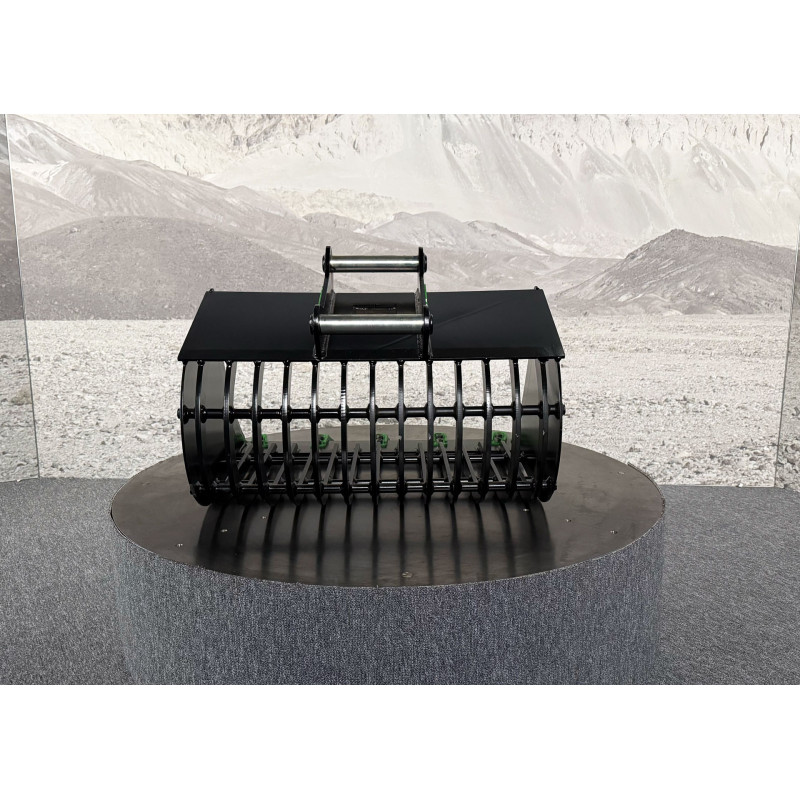

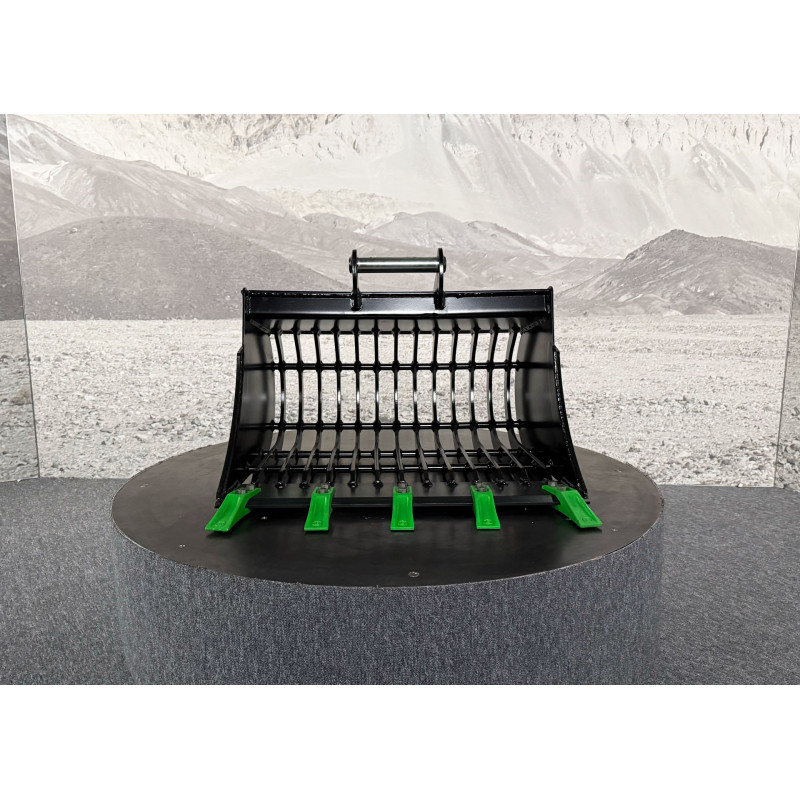

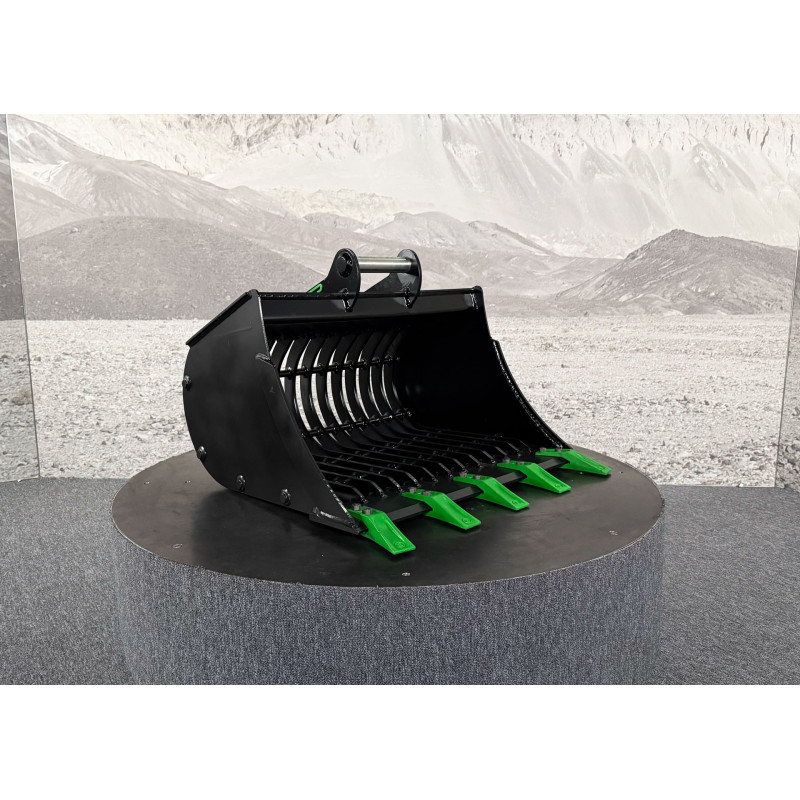

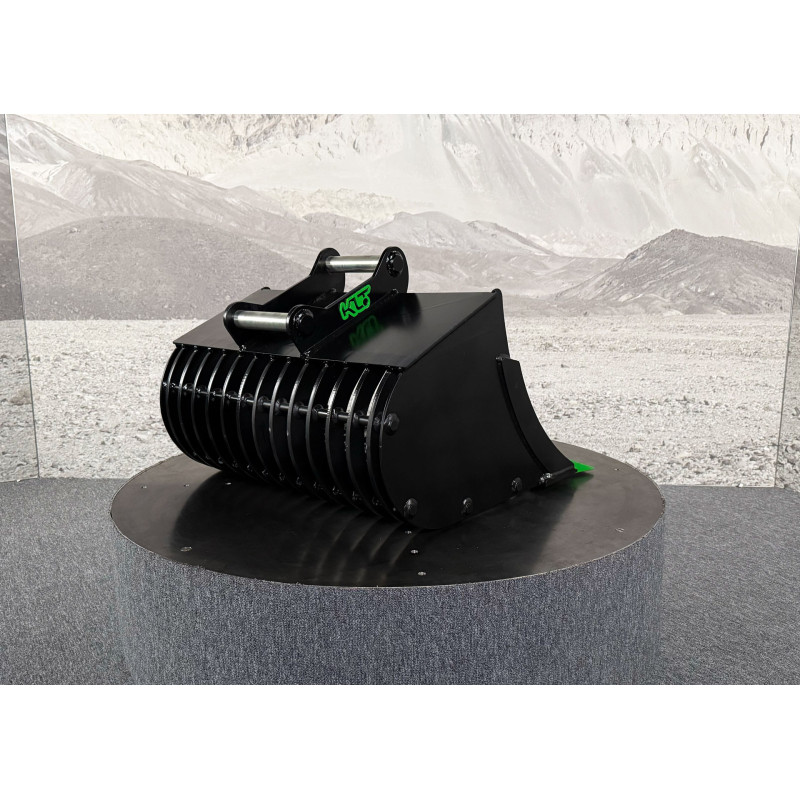

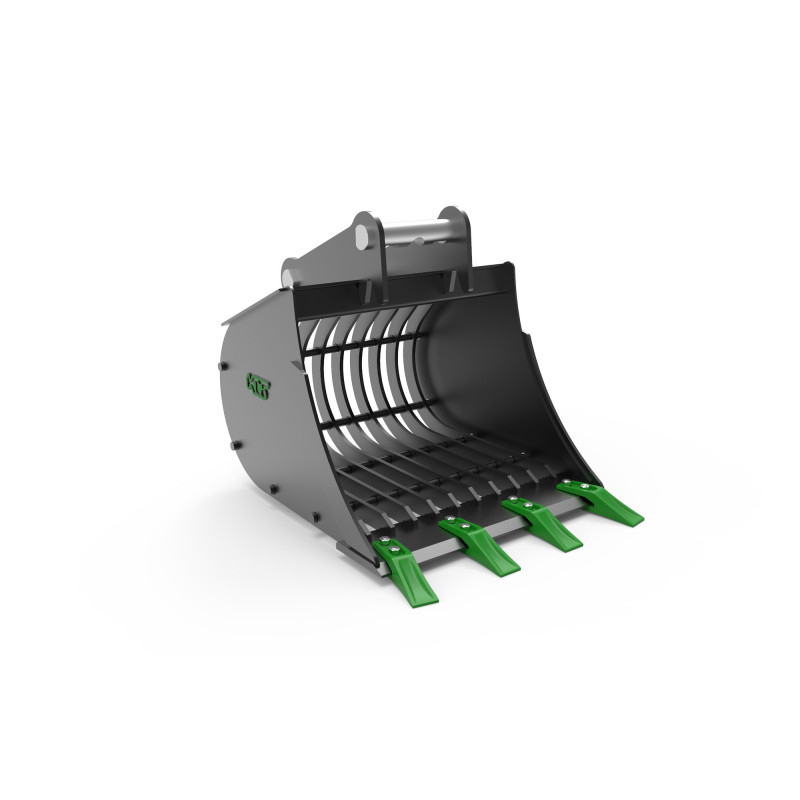

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference SBS-S3-V1-800-S40

Data sheet

Lead time: up to 48 hours
For the machine: 3-4
Adapter: S40
Width: 800
Weight without adapter: 99
Capacity: 164
Side/rear plate: 5 S355
Side cutters: 8 HB400
Ribs: 10 S355
Rib spacing: 45
Cutting edge: 16x150 HB400
Top plate: 6 S355
Bend plate: 5 S355
Number of teeth: 5
Type of teeth: E11.4

Specific References

EAN13: 5908159221787
