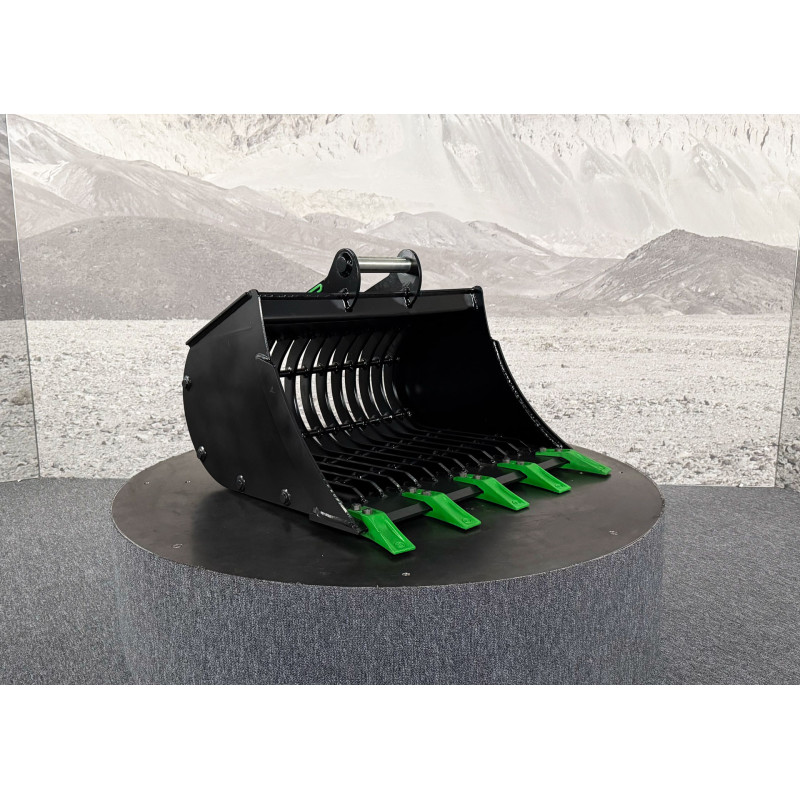

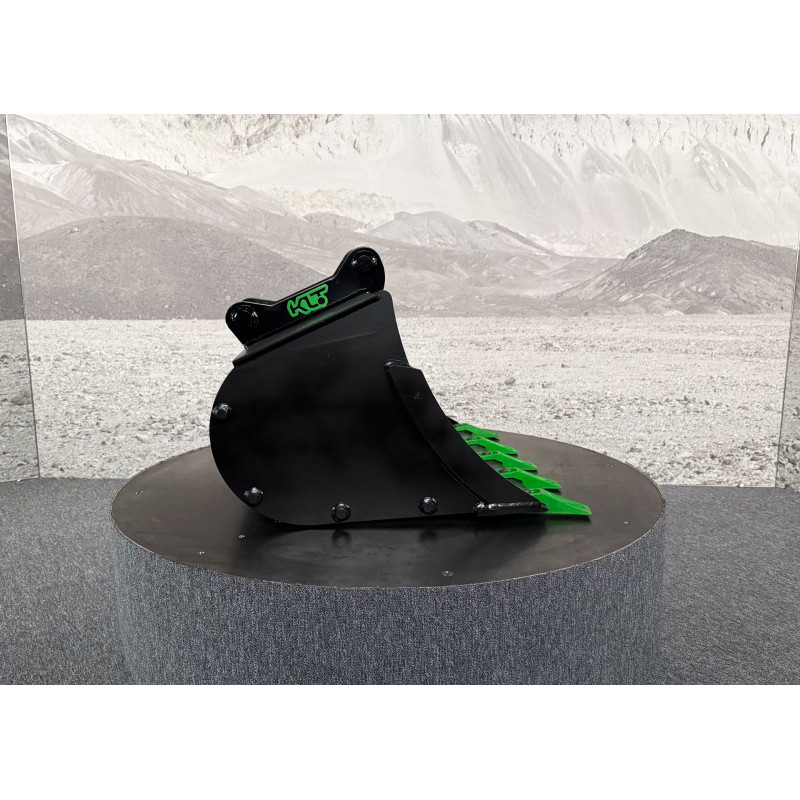

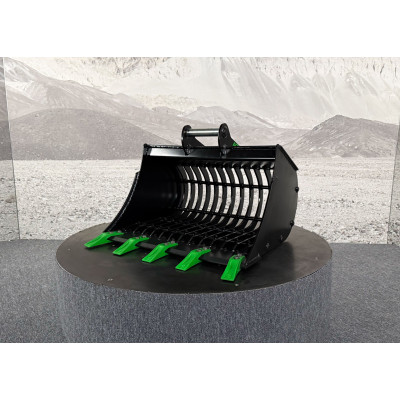

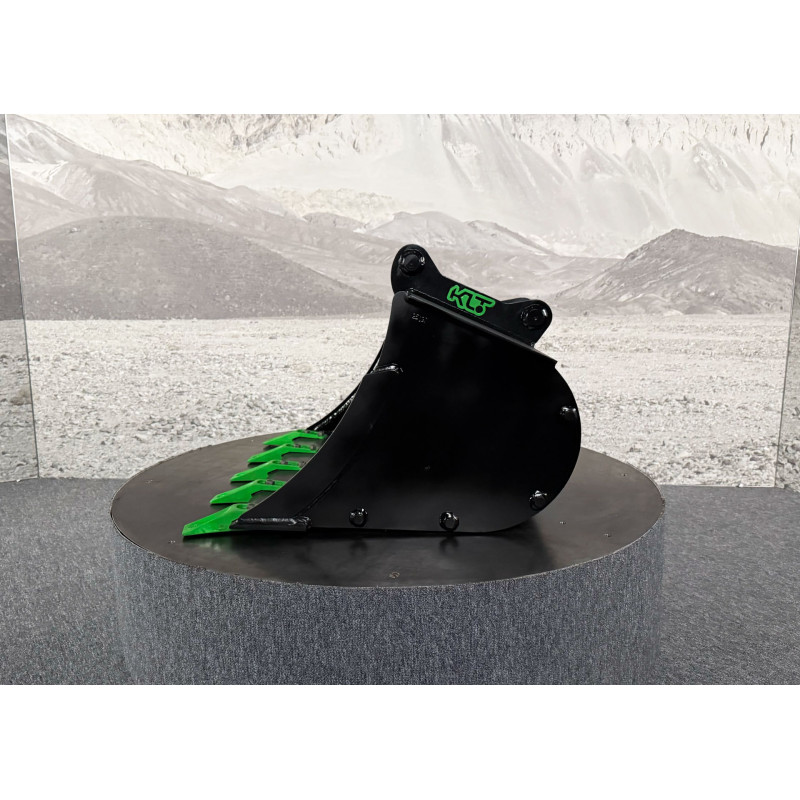

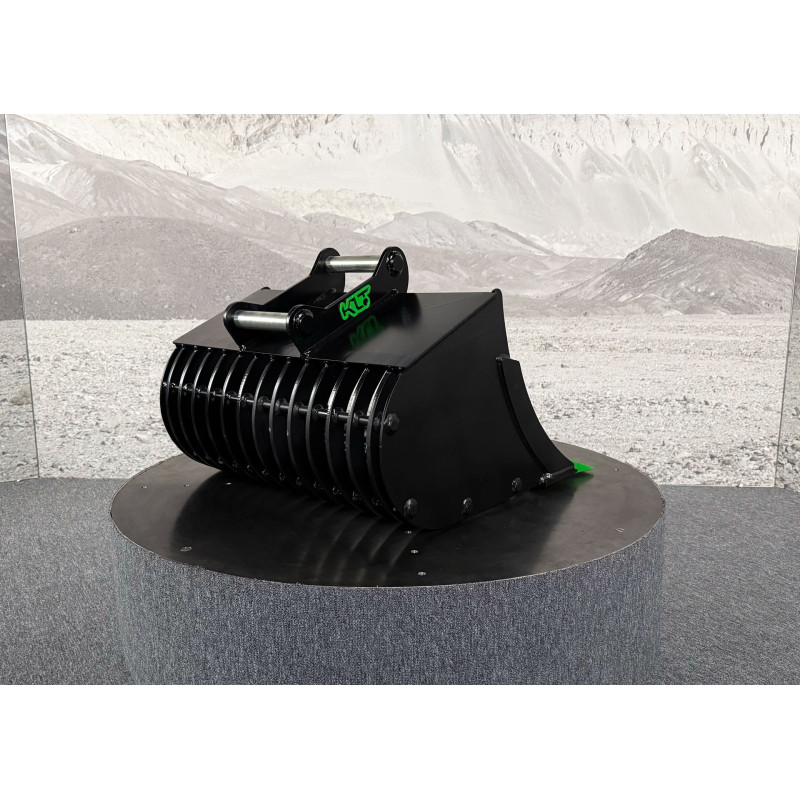

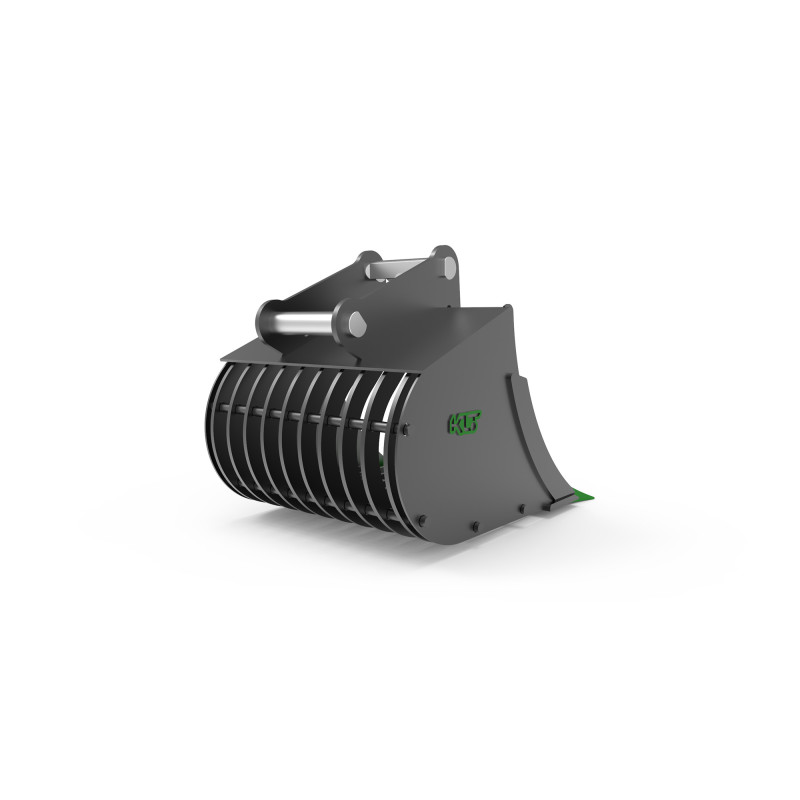

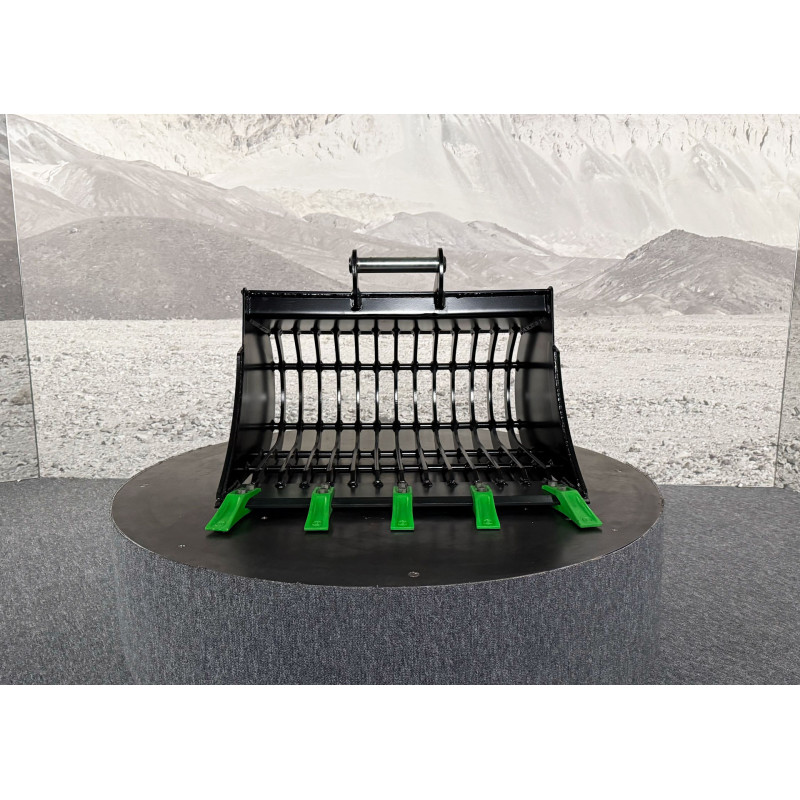

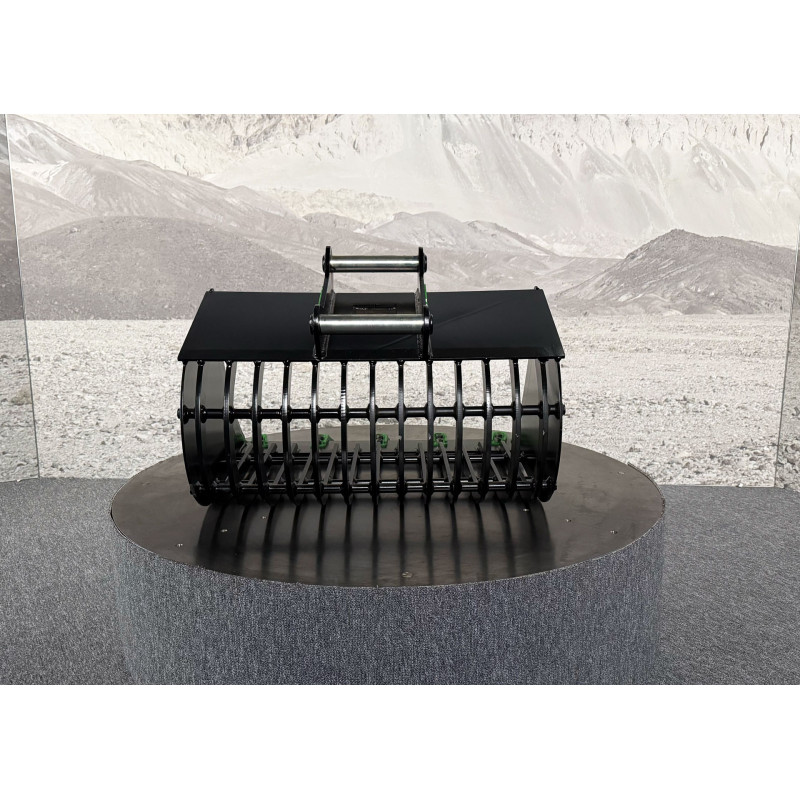

Skeleton bucket 600mm MS03SY class 3-4t
2,447.70 zł
Tax included
The SBS-S3-V1-600-MS03SY model is a durable skeleton bucket designed for excavators weighing between 3 and 4 tons. Thanks to its strategically positioned ribs, it enables efficient screening and separation of loose materials without the need for additional tools. It works perfectly for separating soil from stones, rubble, roots and other unwanted fractions in the excavated material. The optimal geometry and well-balanced proportions of the bucket ensure smooth filling and emptying, significantly improving the operator’s work efficiency.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 600 | 80 | 117 | 4 |
| 800 | 99 | 164 | 5 |

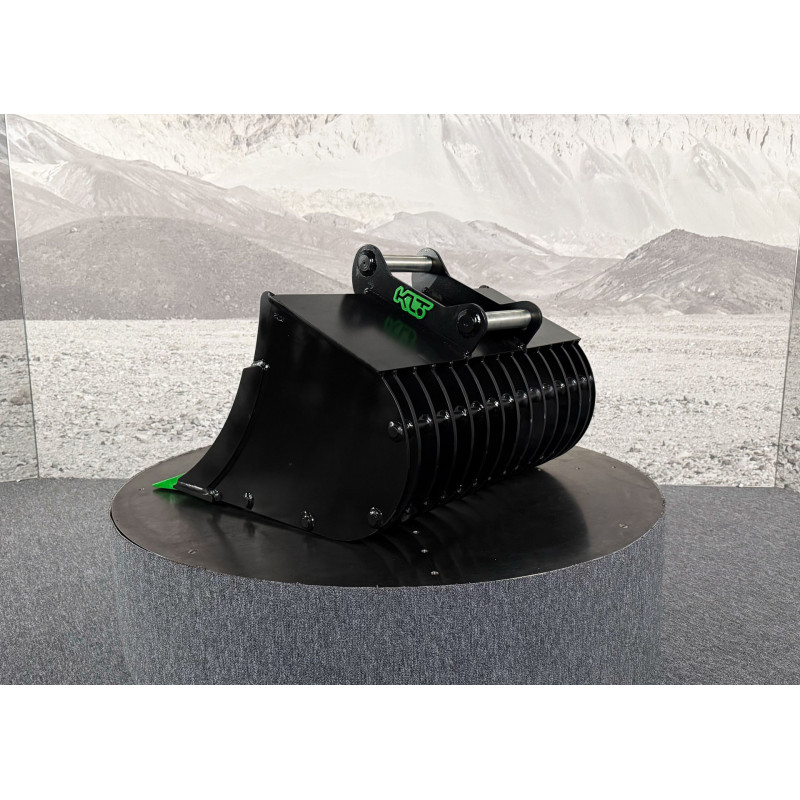

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Ribs: | 10 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 6 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Rib spacing: | 45mm | - |
| Type | ||
| Teeth: | E11.4 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
SBS-S3-V1-600-MS03SY
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 3-4t
- Adapter
- MS03SY
- Width
- 600mm
- Weight without adapter
- 80kg
- Capacity
- 117 l
- Side/rear plate
- 5mm S355
- Side cutters
- 8mm HB400
- Ribs
- 10mm S355
- Rib spacing
- 45mm
- Cutting edge
- 16x150mm HB400
- Top plate
- 6mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 4pcs
- Type of teeth
- E11.4
