Class: 2-3 T
Width: 800
Adapter: MS03SY

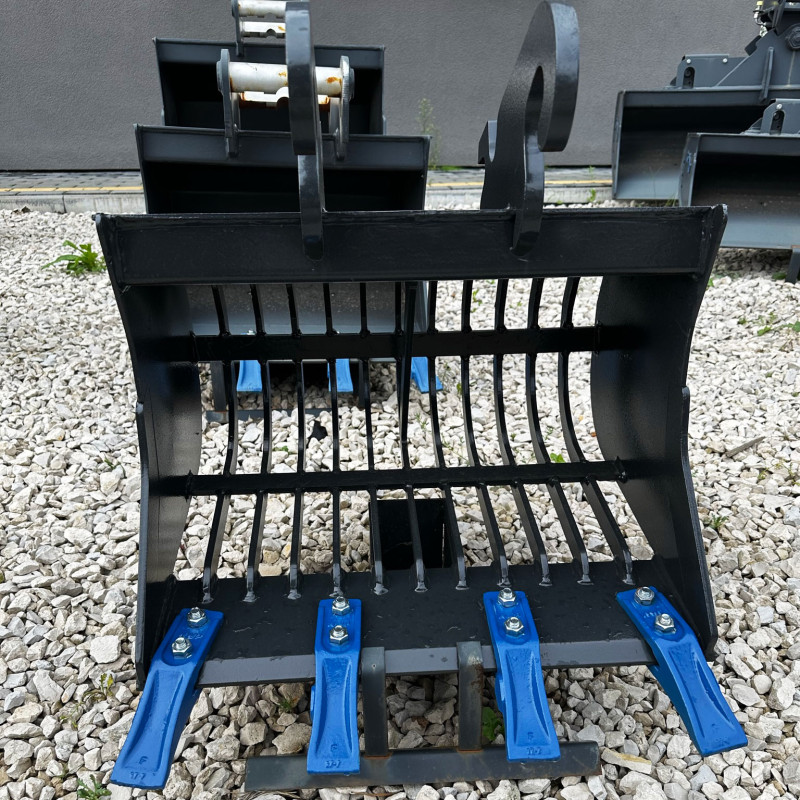

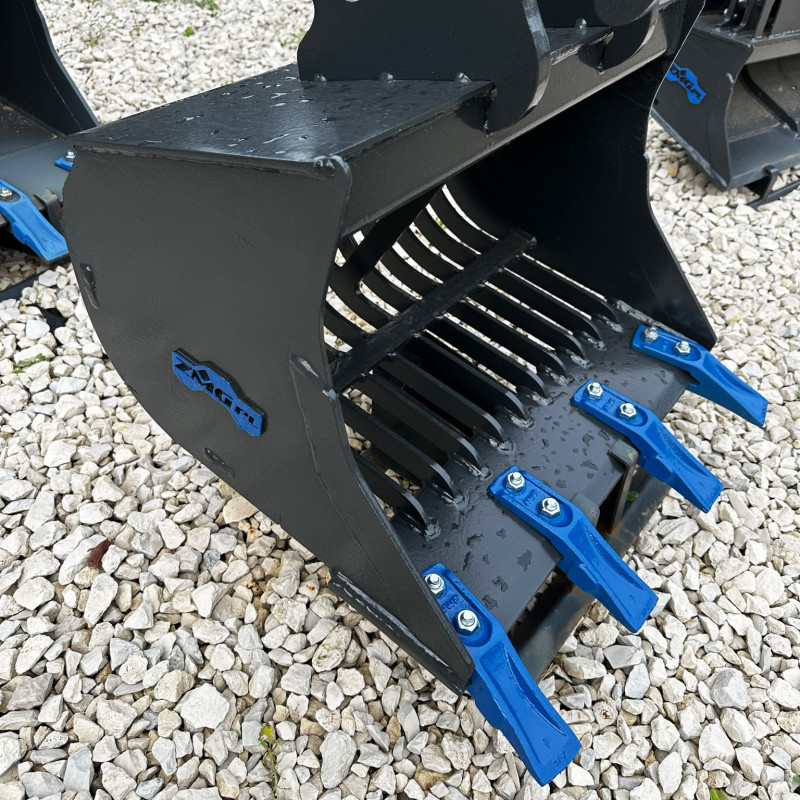

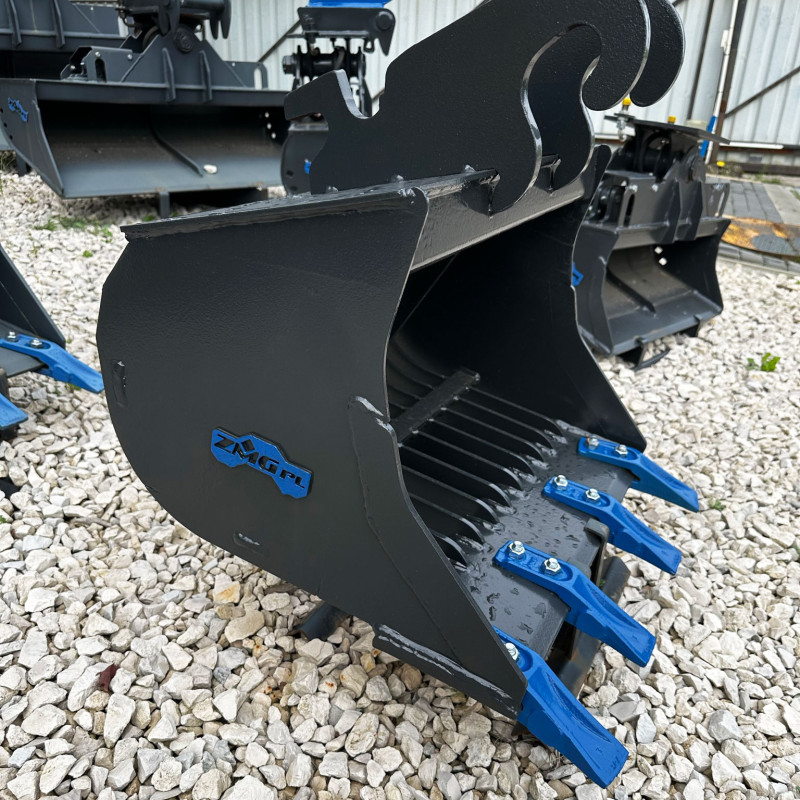

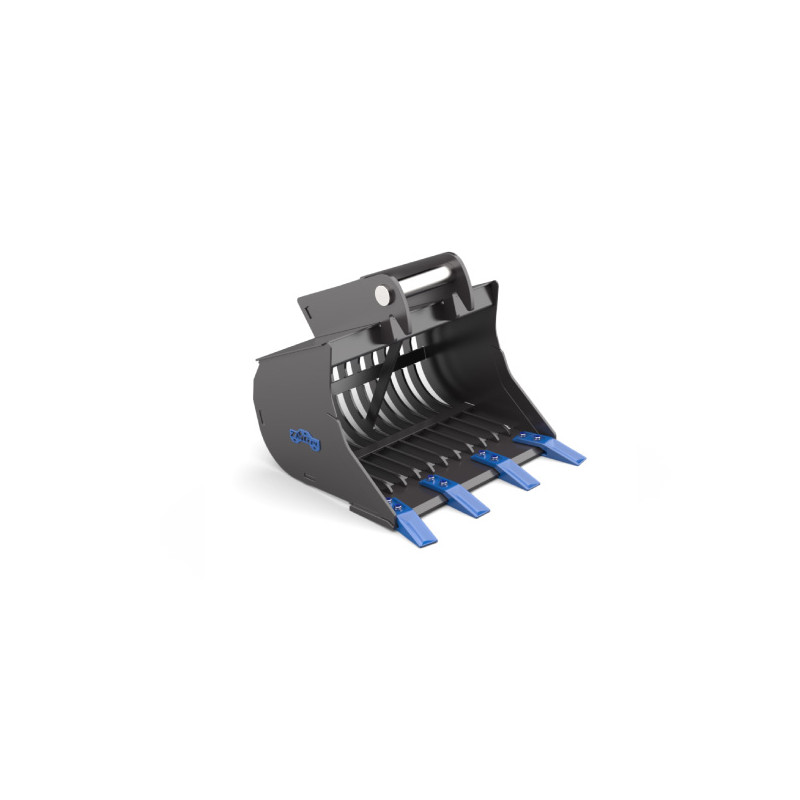

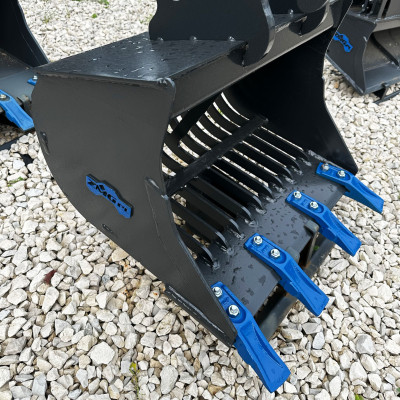

Skeleton bucket 800mm MS03SY class 2-3t

Skeleton bucket 800mm MS03SY class 2-3t

Skeleton bucket 800mm MS03SY class 2-3t

Skeleton bucket 800mm MS03SY class 2-3t

Skeleton bucket 800mm MS03SY class 2-3t

Skeleton bucket 800mm MS03SY class 2-3t

Skeleton bucket 800mm MS03SY class 2-3t

Skeleton bucket 800mm MS03SY class 2-3t

Skeleton bucket 800mm MS03SY class 2-3t

Skeleton bucket 800mm MS03SY class 2-3t

Skeleton bucket 800mm MS03SY class 2-3t

2,983.98 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
500	49	69	4
600	56	85	4
700	64	100	4
800	71	116	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Ribs:	8 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	40 mm

	Type
Teeth:	JCB Mini

The LAP-ZMG2-800-MS03SY series is a 800 mm skeleton bucket dedicated to small excavators in the 2–3 t class. Openings in the base and sides let fine material fall through freely, making it indispensable for stone-soil separation, recycling, and landscaping work. The hydraulic Lehnhoff MS03SY quick coupler lets the operator change attachments without leaving the cab, increasing productivity and safety. The steel frame and reinforced S355 steel bars ensure long service life even when working with hard, abrasive materials.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG2

Reference LAP-ZMG2-800-MS03SY

Data sheet

Lead time: up to 3 business weeks
For the machine: 2-3
Adapter: MS03SY
Width: 800
Weight without adapter: 71
Capacity: 116
Side/rear plate: 5 S355
Side cutters: 8 HB400
Ribs: 8 S355
Rib spacing: 40
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 5
Type of teeth: JCB Mini

16 other products in the same category:

Skeleton bucket 600mm with pins class 2-3t

Class: 2-3 T
Width: 600
Adapter: with pins

Skeleton bucket 600mm with pins class 2-3t

2,485.83 zł

In stock

The LAP-ZMG2-600-ZSW is a 600 mm skeleton bucket created for small excavators in the 2–3 t class. Its open structure allows efficient screening and material separation, essential for aggregate...

Skeleton bucket 700mm without adapter class 2-3t

Class: 2-3 T
Width: 700
Adapter: Without adapter

Skeleton bucket 700mm without adapter class 2-3t

2,184.48 zł

In stock

The LAP-ZMG2-700-WOA is a 700 mm skeleton bucket created for small excavators in the 2–3 t class. Its open structure allows efficient screening and material separation, essential for aggregate...

Skeleton bucket 800mm S50 class 8-11t

Class: 6-9 T
Width: 800
Adapter: S50

Skeleton bucket 800mm S50 class 8-11t

6,304.98 zł

In stock

The LAP-ZMG5-800-S50 is a 800 mm skeleton bucket created for heavy excavators in the 8–11 t class. Its open structure allows efficient screening and material separation, essential for aggregate...

Skeleton bucket 700mm S30/180 class 0-2t

Class: 0-2 T
Width: 700
Adapter: S30/180

Skeleton bucket 700mm S30/180 class 0-2t

2,047.95 zł

In stock

The LAP-ZMG1-700-S30/180 is a 700 mm skeleton bucket created for mini and compact excavators up to 2 t. Its open structure allows efficient screening and material separation, essential for...

Skeleton bucket 700mm CW05 class 2-3t

Class: 2-3 T
Width: 700
Adapter: CW05

Skeleton bucket 700mm CW05 class 2-3t

2,554.71 zł

In stock

The LAP-ZMG2-700-CW05 is a 700 mm skeleton bucket created for small excavators in the 2–3 t class. Its open structure allows efficient screening and material separation, essential for aggregate...

Skeleton bucket 500mm MS01SY class 0-2t

Class: 0-2 T
Width: 500
Adapter: MS01SY

Skeleton bucket 500mm MS01SY class 0-2t

1,761.36 zł

In stock

Model LAP-ZMG1-500-MS01SY is a 500 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Its perforated structure enables efficient aggregate sorting, soil sieving, and selective...

Skeleton bucket 700mm MS01 class 0-2t

Class: 0-2 T
Width: 700
Adapter: MS01

Skeleton bucket 700mm MS01 class 0-2t

2,047.95 zł

In stock

Model LAP-ZMG1-700-MS01 is a 700 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Its perforated structure enables efficient aggregate sorting, soil sieving, and selective...

Skeleton bucket 700mm with pins class 3-6t

Class: 4-6 T
Width: 700
Adapter: with pins

Skeleton bucket 700mm with pins class 3-6t

3,872.04 zł

In stock

The LAP-ZMG3-700-ZSW skeleton bucket with a working width of 700 mm is a specialist tool designed for mini and compact excavators up to 2 t. It is excellent for soil screening, stone separation,...

Skeleton bucket 600mm S50 class 6-8t

Class: 6-9 T
Width: 600
Adapter: S50

Skeleton bucket 600mm S50 class 6-8t

3,956.91 zł

In stock

The LAP-ZMG4-600-S50 skeleton bucket, 600 mm wide, was designed with excavators in the 6–8 t class in mind. The tool is ideal for separating stones from soil, recycling operations, and collecting...

Skeleton bucket 1200mm MS08SY class 6-8t

Class: 6-9 T
Width: 1200
Adapter: MS08SY

Skeleton bucket 1200mm MS08SY class 6-8t

6,537.45 zł

In stock

The LAP-ZMG4-1200-MS08SY skeleton bucket with a working width of 1200 mm is a specialist tool designed for excavators in the 6–8 t class. It is excellent for soil screening, stone separation, and...

Skeleton bucket 800mm MS08SY class 8-11t

Class: 6-9 T
Width: 800
Adapter: MS08SY

Skeleton bucket 800mm MS08SY class 8-11t

6,558.36 zł

In stock

The LAP-ZMG5-800-MS08SY skeleton bucket with a working width of 800 mm is a specialist tool designed for heavy excavators in the 8–11 t class. It is excellent for soil screening, stone separation,...

Skeleton bucket 600mm MS01SY class 0-2t

Class: 0-2 T
Width: 600
Adapter: MS01SY

Skeleton bucket 600mm MS01SY class 0-2t

1,983.99 zł

In stock

The LAP-ZMG1-600-MS01SY skeleton bucket with a working width of 600 mm is a specialist tool designed for mini and compact excavators up to 2 t. It is excellent for soil screening, stone...

Skeleton bucket 800mm MS01 class 0-2t

Class: 0-2 T
Width: 800
Adapter: MS01

Skeleton bucket 800mm MS01 class 0-2t

2,301.33 zł

In stock

The LAP-ZMG1-800-MS01 is a 800 mm skeleton bucket created for mini and compact excavators up to 2 t. Its open structure allows efficient screening and material separation, essential for aggregate...

Skeleton bucket 900mm MS03 class 3-6t

Class: 4-6 T
Width: 900
Adapter: MS03

Skeleton bucket 900mm MS03 class 3-6t

4,322.22 zł

In stock

The LAP-ZMG3-900-MS03 is a 900 mm skeleton bucket created for mini and compact excavators up to 2 t. Its open structure allows efficient screening and material separation, essential for aggregate...

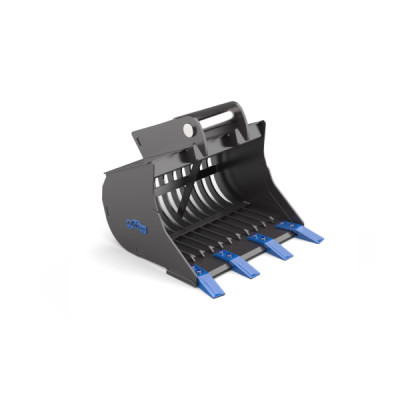

Skeleton bucket 800mm without adapter class 2-3t
