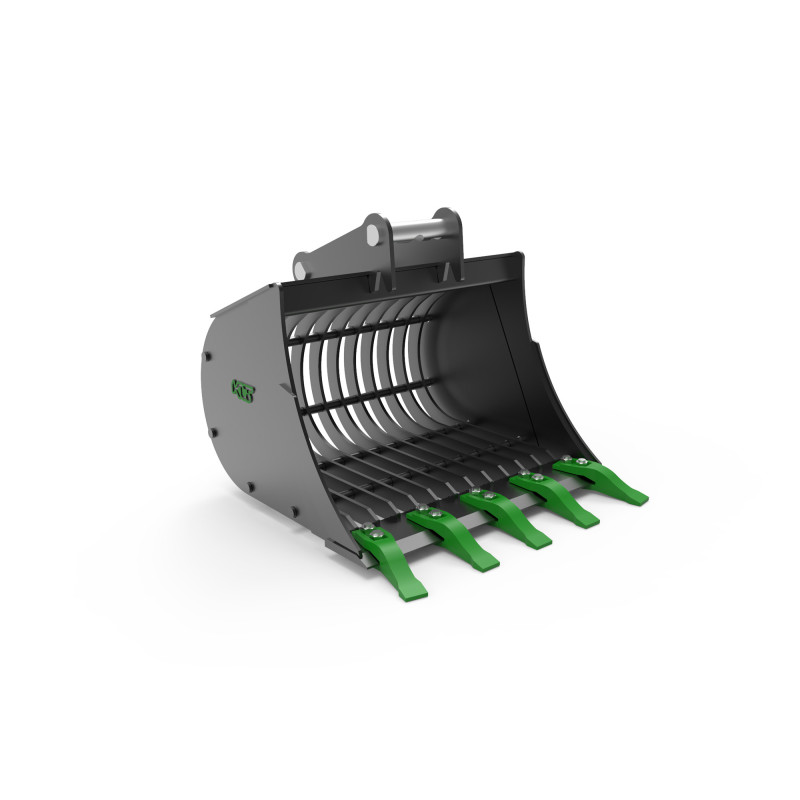

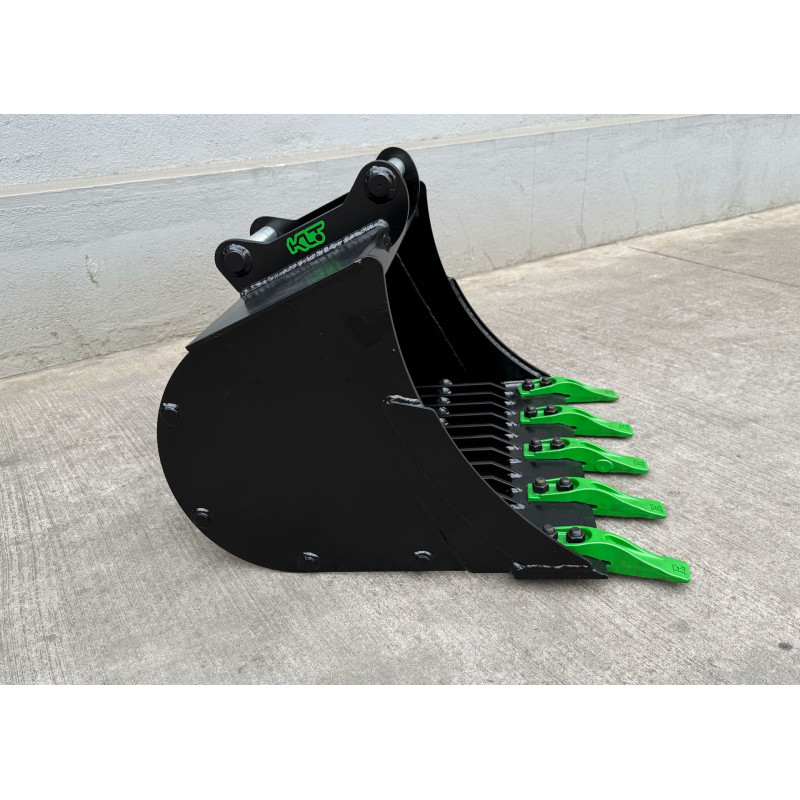

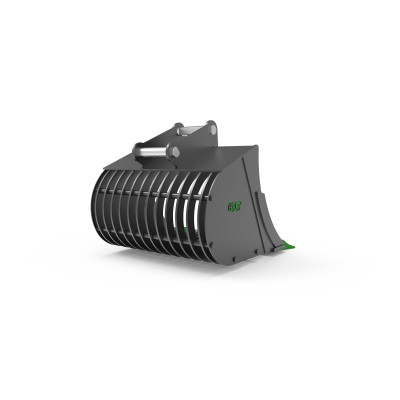

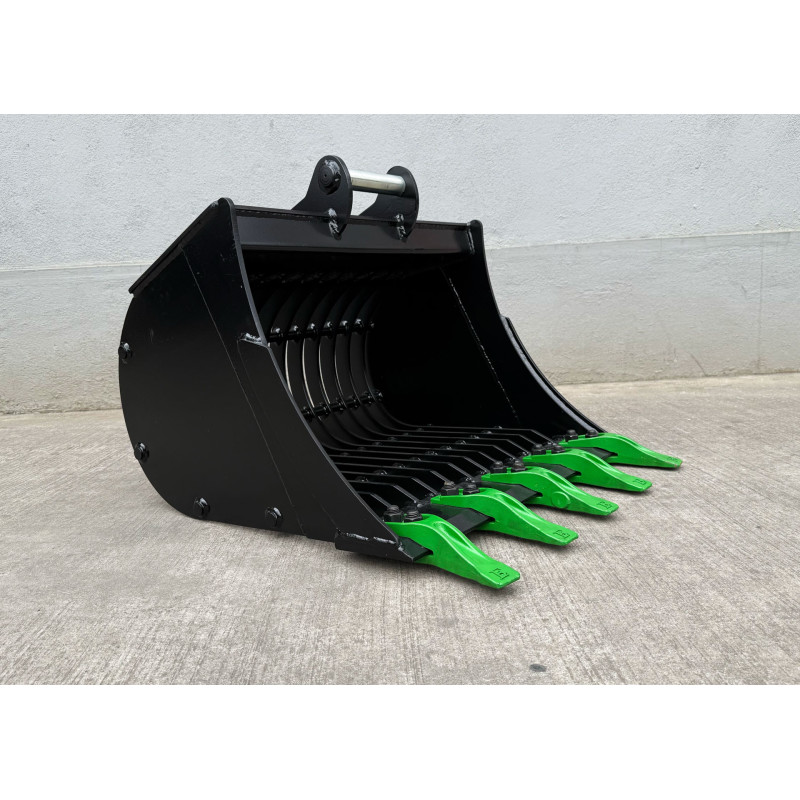

Skeleton bucket 1000mm S40 class 4-6t
4,463.67 zł
Tax included
The SBS-S4-V1-1000-S40 is a spacious skeleton bucket offering high productivity for excavators in the 4–6-ton range. Its wide, ribbed shell enables rapid and accurate separation of fine soil fractions from larger elements such as stones or rubble—without the need for additional screening machinery.
A stable structure and excellent ergonomics make this model a perfect tool for cleanup, earthmoving and selective sorting tasks, ensuring full control over material quality and workflow efficiency.

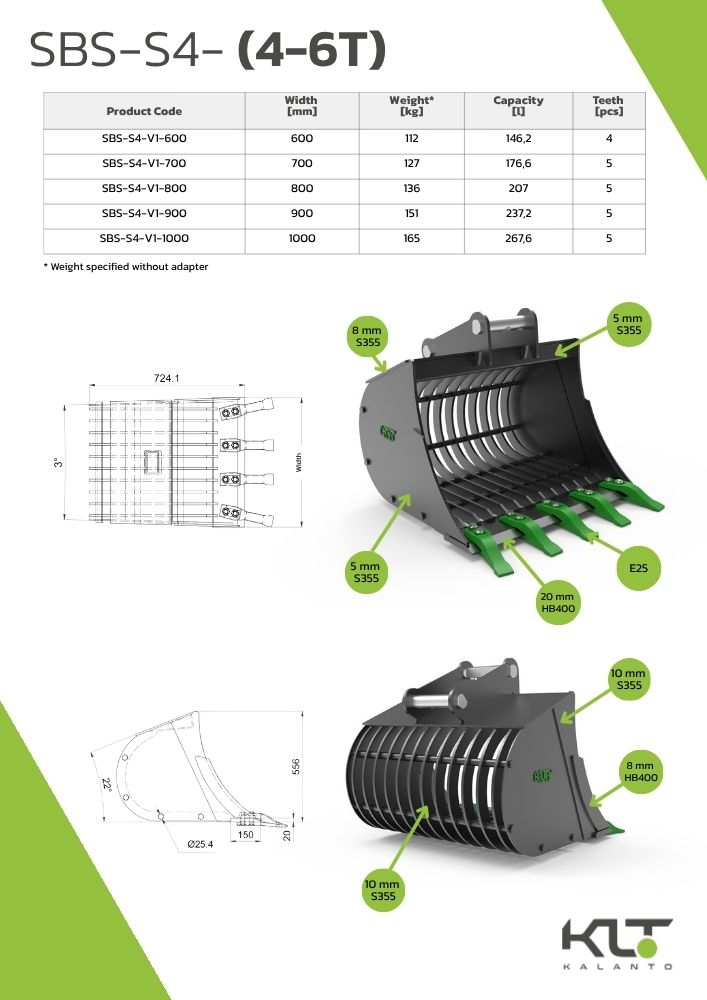

| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 600 | 112 | 146,2 | 4 |
| 800 | 136 | 207 | 5 |
| 1000 | 165 | 267,6 | 5 |
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Ribs: | 10 mm | S355 |
| Cutting edge: | 20 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 8 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Rib spacing: | 45mm | - |
| Type | ||
| Teeth: | E25 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
SBS-S4-V1-1000-S40
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 4-5t
5-6t - Adapter
- S40
- Width
- 1000mm
- Weight without adapter
- 165kg
- Capacity
- 267,6 l
- Side/rear plate
- 5mm S355
- Front side plate
- 10mm S355
- Side cutters
- 8mm HB400
- Ribs
- 10mm S355
- Rib spacing
- 45mm
- Cutting edge
- 20x150mm HB400
- Top plate
- 8mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 5pcs
- Type of teeth
- E25
