Class: 0-2 T
Width: 500
Adapter: MS01

Skeleton bucket 500mm MS01 class 0-2t

Name: Skeleton bucket 500mm MS01 class 0-2t
Brand: ZMG
SKU: LAP-ZMG1-500-MS01
Price: 1634.67 PLN
Availability: InStock

1,634.67 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
500	41	49	4
600	48	61	4
700	54	73	4
800	61	85	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Ribs:	8 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
Rib spacing:	40 mm

	Type
Teeth:	JCB Mini

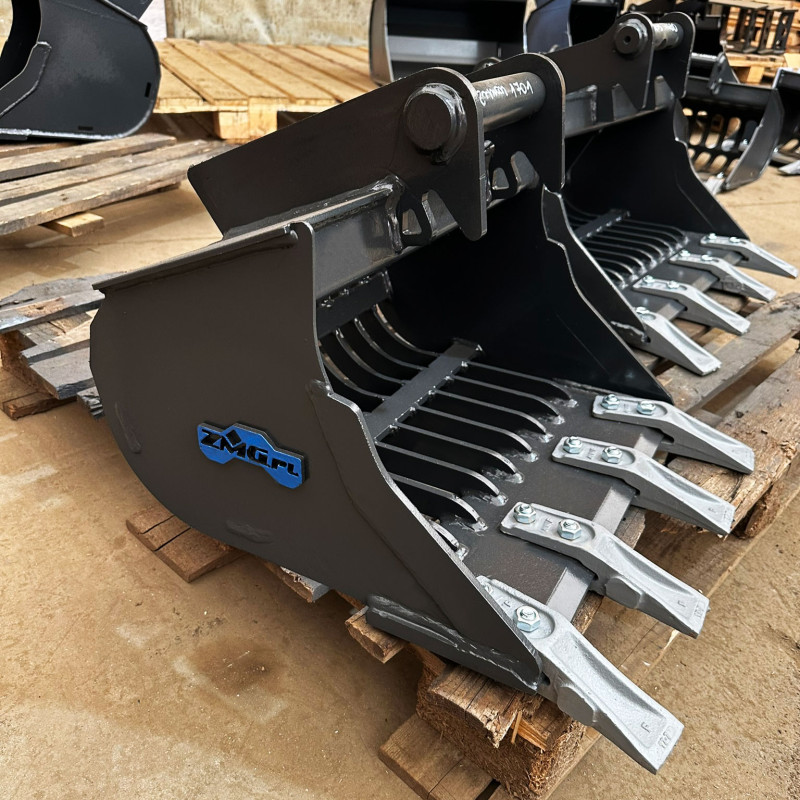

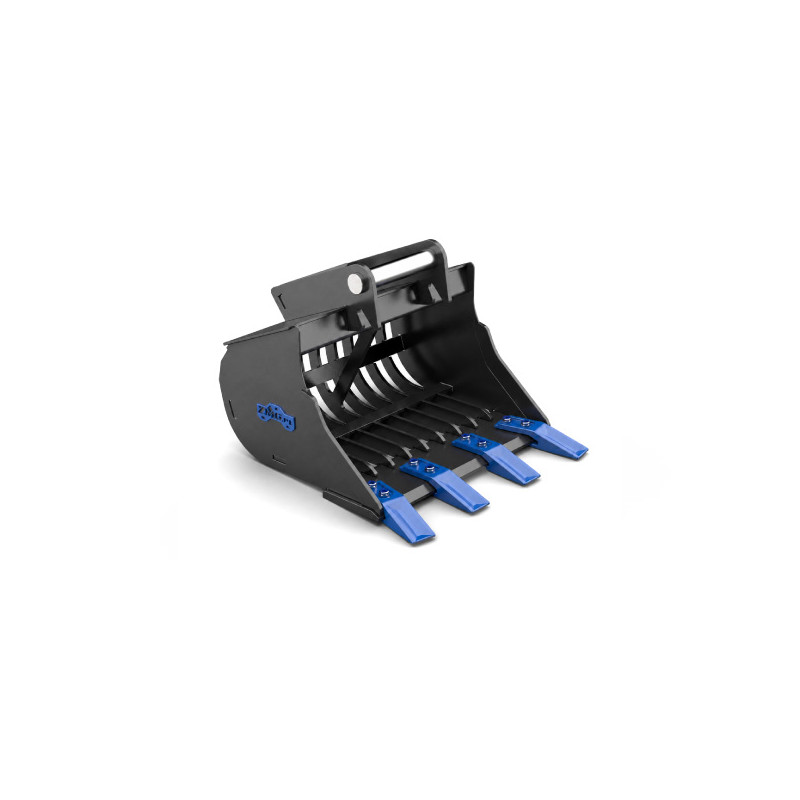

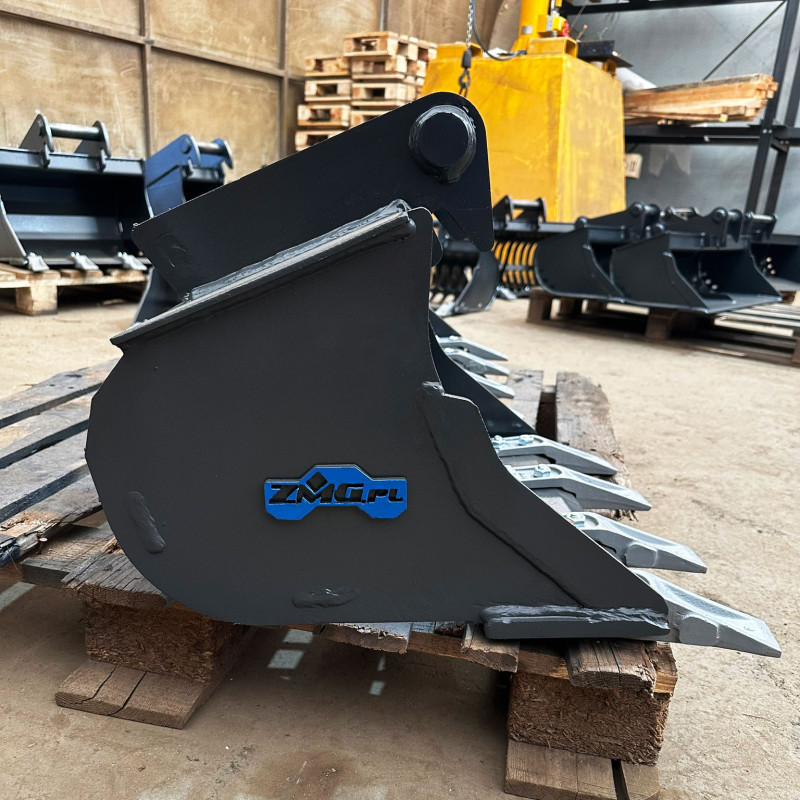

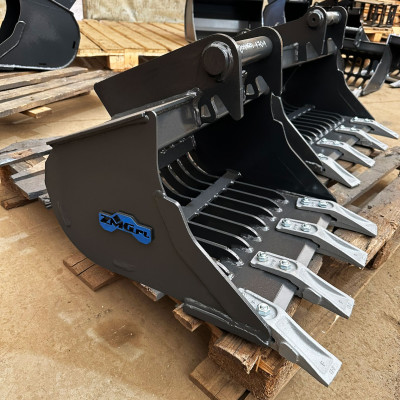

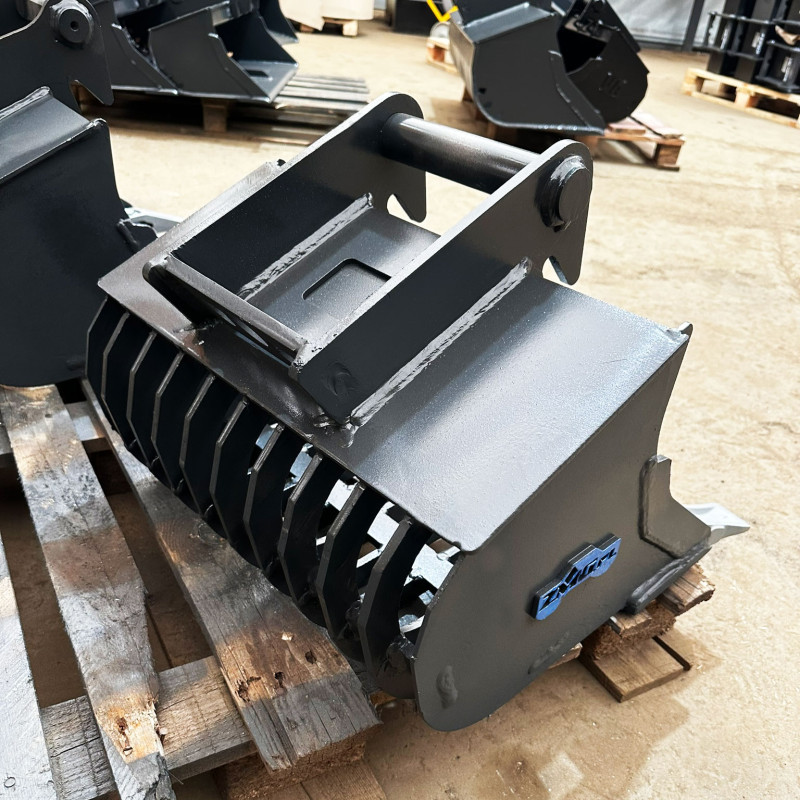

The LAP-ZMG1-500-MS01 series is a 500 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Openings in the base and sides let fine material fall through freely, making it indispensable for stone-soil separation, recycling, and landscaping work. The Lehnhoff MS01 quick coupler allows fast and safe attachment changes, minimising downtime on site. High-quality steel and careful welding technology ensure the bucket retains its shape and working properties over a long service life.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LAP-ZMG1

Reference LAP-ZMG1-500-MS01

Data sheet

Lead time: up to 3 business weeks
For the machine: 1-2
Adapter: MS01
Width: 500
Weight without adapter: 41
Capacity: 49
Side/rear plate: 4 S355
Side cutters: 8 HB400
Ribs: 8 S355
Rib spacing: 40
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: JCB Mini

16 other products in the same category:

Skeleton bucket 800mm with pins class 0-2t

Class: 0-2 T
Width: 800
Adapter: with pins

ZMG

Skeleton bucket 800mm with pins class 0-2t

2,485.83 zł

In stock

The LAP-ZMG1-800-ZSW skeleton bucket, 800 mm wide, was designed with mini and compact excavators up to 2 t in mind. The tool is ideal for separating stones from soil, recycling operations, and...

Class: 6-9 T
Width: 800
Adapter: S50

ZMG

Skeleton bucket 800mm S50 class 8-11t

6,304.98 zł

In stock

The LAP-ZMG5-800-S50 is a 800 mm skeleton bucket created for heavy excavators in the 8–11 t class. Its open structure allows efficient screening and material separation, essential for aggregate...

Skeleton bucket 600mm S30/180 class 0-2t

Class: 0-2 T
Width: 600
Adapter: S30/180

ZMG

Skeleton bucket 600mm S30/180 class 0-2t

1,857.30 zł

In stock

The LAP-ZMG1-600-S30/180 series is a 600 mm skeleton bucket dedicated to mini and compact excavators up to 2 t. Openings in the base and sides let fine material fall through freely, making it...

Class: 6-9 T
Width: 800
Adapter: MS08SY

Kalanto

Skeleton bucket 800mm MS08SY class 6-9t

5,193.06 zł

In stock

The SBS-S5-V1-800-MS08SY model is a skeleton bucket designed for excavators weighing between 6 and 9 tons. Built for intensive use, it performs exceptionally well in screening, sorting and...

Class: 2-3 T
Width: 800
Adapter: M03

ZMG

Skeleton bucket 800mm M03 class 2-3t

2,814.24 zł

In stock

The LAP-ZMG2-800-M03 is a 800 mm skeleton bucket created for small excavators in the 2–3 t class. Its open structure allows efficient screening and material separation, essential for aggregate...

Skeleton bucket 800mm without adapter class 0-2t

Class: 0-2 T
Width: 800
Adapter: Without adapter

ZMG

Skeleton bucket 800mm without adapter class 0-2t

2,115.60 zł

In stock

The LAP-ZMG1-800-WOA skeleton bucket, 800 mm wide, was designed with mini and compact excavators up to 2 t in mind. The tool is ideal for separating stones from soil, recycling operations, and...

Class: 4-6 T
Width: 600
Adapter: MS03

ZMG

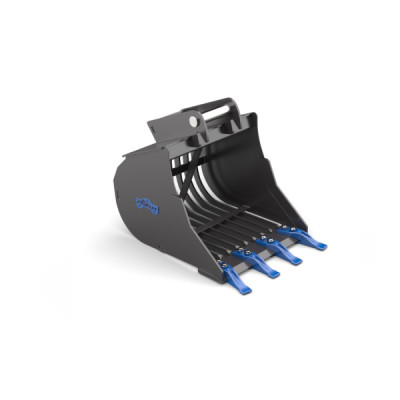

Skeleton bucket 600mm MS03 class 3-6t
